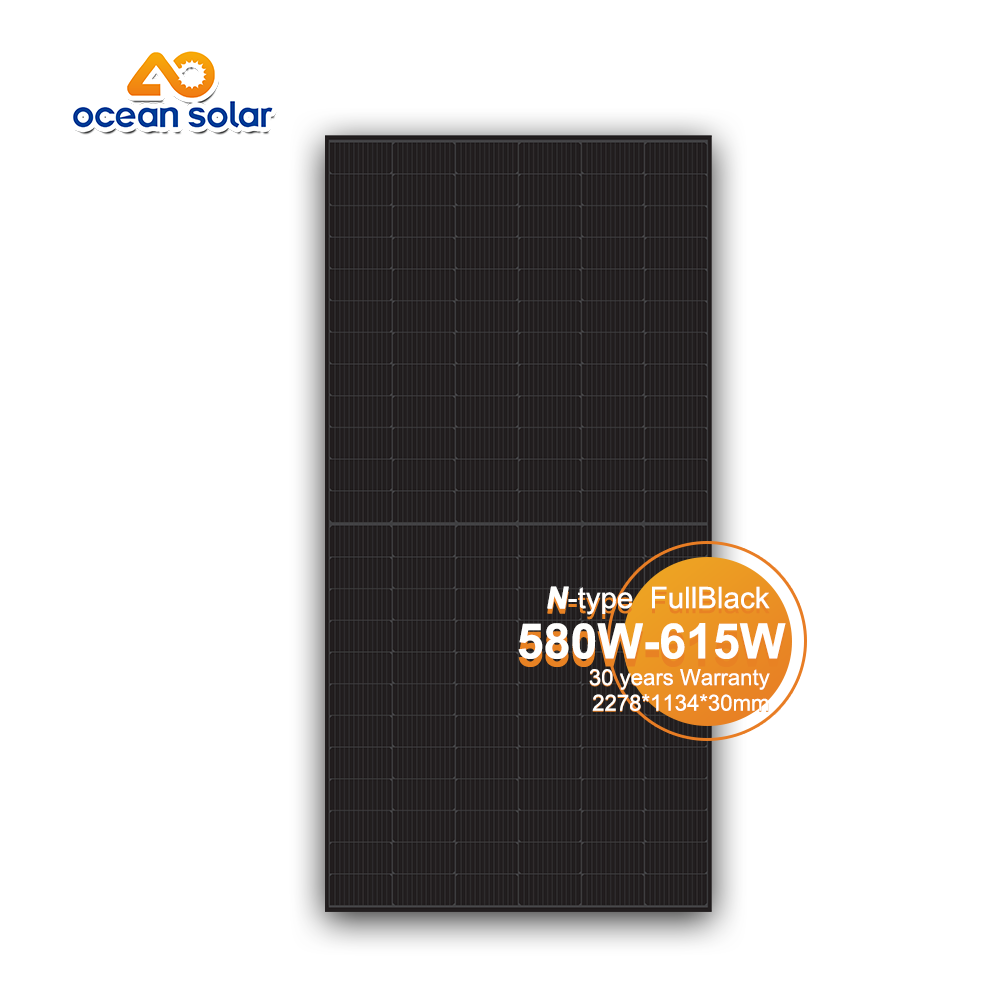

M10 Mono 580W-615W-Full Black Glass

M10 580W-615W N-Type TOPCon Full Black Solar Panel

The Ocean Solar AOX-72M10HC is a 580W-615W M10 N-type TOPCon full black dual-glass solar module designed for high-power photovoltaic projects. The series combines 144 half-cut TOPCon cells, SMBB interconnection technology, full-black appearance and a durable glass-glass structure in a 2278 × 1134 × 30mm module format.

Available from 580W to 615W, the highest-power model reaches up to 23.80% module efficiency. The module supports a 1500VDC system voltage, has a -0.30%/°C Pmax temperature coefficient and uses an IP68 junction box for demanding commercial, industrial and utility-scale solar installations.

The dual-glass construction also supports bifacial energy generation, with the current datasheet specifying maximum bifaciality up to 85±5%. This allows additional rear-side energy generation when modules are installed over suitable reflective or unobstructed surfaces.

580W-615W Full Black Solar Panel Key Specifications

Why Choose N-Type TOPCon Technology?

High Module Efficiency up to 23.80%

The AOX-72M10HC series provides eight power classes from 580W to 615W. Module efficiency increases from 22.40% for the 580W version to 23.80% for the 615W version, allowing project designers to install more DC capacity within a given module area.

SMBB Interconnection Technology

SMBB technology improves electrical current collection and light utilization across the module. Combined with N-type TOPCon cells and half-cut architecture, it supports high module output and efficient energy harvesting.

Low Temperature Coefficient

The Pmax temperature coefficient is -0.30%/°C. A lower absolute temperature coefficient helps the module retain more of its rated power as cell temperature rises during sunny and high-temperature operating conditions.

Low-Light Generation Performance

The N-type TOPCon cell structure is optimized to maintain useful photovoltaic performance under lower irradiance conditions, supporting energy production during mornings, evenings and periods of reduced solar intensity.

Full Black Dual-Glass Solar Module Design

Premium Full Black Appearance

The full-black module design creates a uniform dark appearance across the cells, frame and module surface. This makes the series suitable for projects where visual integration is important in addition to high power output.

2.0mm + 2.0mm Dual-Glass Structure

The module uses 2.0mm high-transmission AR-coated tempered front glass together with a 2.0mm heat-strengthened glass back cover. Dual-glass encapsulation provides strong environmental protection for the solar cells and supports long-term outdoor operation.

Bifacial Energy Generation up to 85±5%

Although the module has a full-black appearance, the current technical datasheet specifies a maximum bifaciality of up to 85±5%. Rear-side generation can therefore contribute additional energy when the mounting height, ground reflectivity, row spacing and surrounding environment allow reflected sunlight to reach the back of the module.

Electrical Characteristics of the 580W-615W Series

The following electrical values are specified under Standard Test Conditions: AM1.5 spectrum, 1000W/m² irradiance and 25°C cell temperature. Final string design should remain within the inverter's DC voltage, MPPT voltage and input-current limits.

Mechanical and Operating Parameters

Reliable Mechanical Loading and Outdoor Performance

5400Pa Snow Load and 2400Pa Wind Load

The module is specified for a front-side snow load of up to 5400Pa and a wind load of up to 2400Pa. This mechanical design supports deployment in demanding rooftop and ground-mounted PV applications when the module is installed using approved mounting methods.

Hail Resistance

Hail resistance is specified for hailstones up to 25mm in diameter at an impact velocity of 23m/s, helping protect the module against typical severe-weather exposure.

Anti-PID Design

Material selection and cell production optimization are used to reduce the probability of potential-induced degradation, supporting long-term module reliability in high-voltage photovoltaic systems.

12-Year Product Warranty and 30-Year Linear Power Warranty

The AOX-72M10HC series is specified with a 12-year warranty for materials and processing together with a 30-year warranty for extra linear power output. Product warranty and linear power warranty should therefore be shown separately rather than describing the module as having a 30-year product warranty.

                   Download MONO 580W-615W Full Black Glass Datasheet

Typical Applications for 580W-615W Full Black Solar Panels

The combination of high power density, full-black appearance and dual-glass construction makes this module suitable for commercial and industrial rooftops, premium architectural rooftop systems, ground-mounted photovoltaic projects and utility-scale solar installations.

For bifacial applications, system designers should evaluate mounting height, row spacing, surface reflectivity and rear-side shading. For rooftop projects, module dimensions, module weight, roof structural capacity and inverter electrical compatibility should be confirmed before installation.

Solar Panel Manufacturing and Quality Control

Ocean Solar uses automated solar module production processes covering cell interconnection, string layout, bussing, EL inspection, lamination, framing, curing, electrical testing and packaging. Multiple inspection stages help identify cell cracks, electrical defects and assembly issues before shipment.

1. High-speed SMBB PV cell soldering

2. Automatic PV cell string layup

3. Automatic bussing

4. PV cell string positioning

5. EL electroluminescence testing

6. Automatic edge sealing

7. Solar module lamination

8. Automatic edge trimming

9. Visual inspection

10. Automatic solar panel frame installation

11. Automatic glue dispensing

12. Silicone curing

13. Visual inspection and cleaning

14. Power testing

15. Final EL testing

16. Packaging

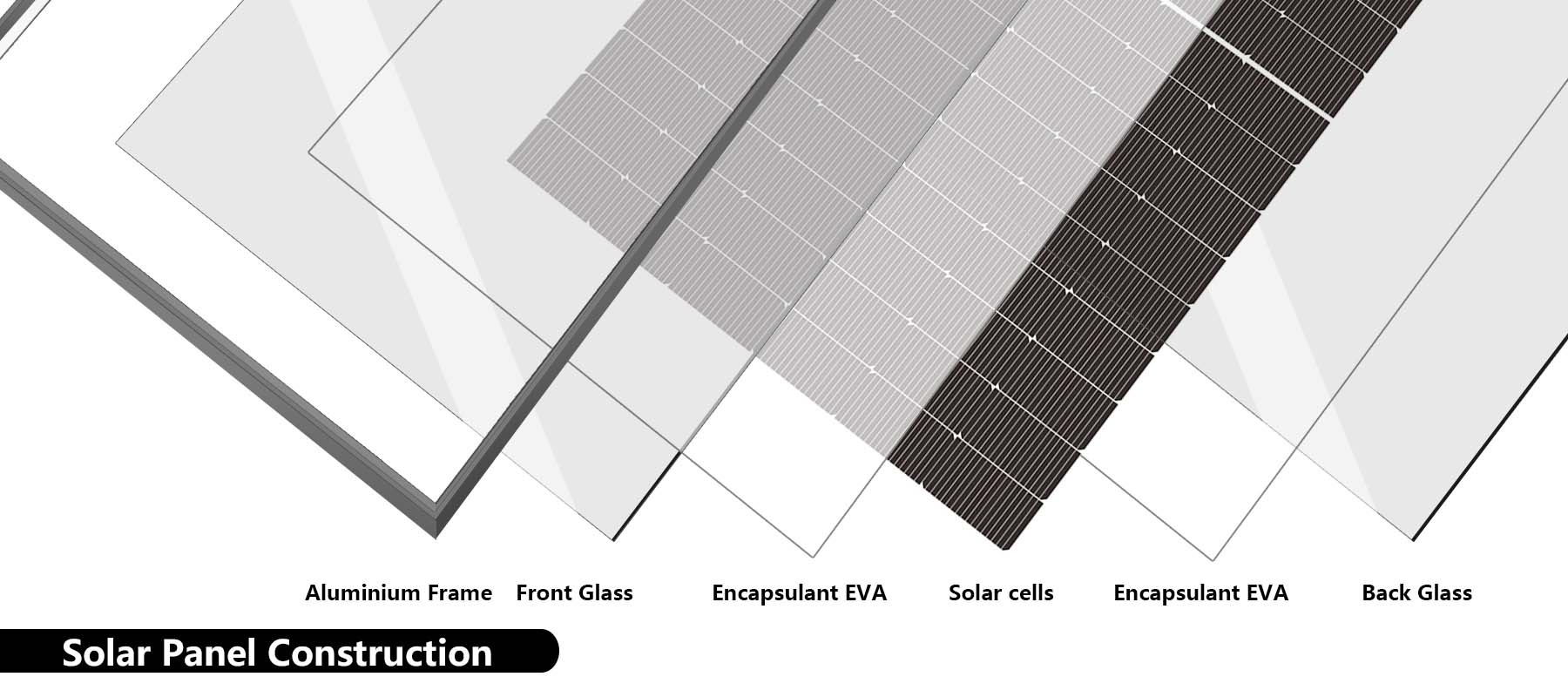

Full Black Dual-Glass Solar Panel Construction

The module structure combines N-type TOPCon half-cut cells, tempered front glass, EVA encapsulation, a heat-strengthened glass rear cover, anodized aluminium frame, IP68 junction box, bypass diodes and MC4-compatible connectors. This glass-glass structure protects the cell circuit from environmental exposure while enabling bifacial operation.

OEM Full Black Solar Panel Manufacturing

Ocean Solar supports OEM cooperation for solar distributors, importers, brands, EPC companies and project developers. Customization can include branding, labels, packaging, cable length, connector specifications and documentation subject to technical and certification requirements.

Alternative module configurations and power ranges can also be discussed for customers requiring monofacial, bifacial, flexible, black-frame, full-black or other PV module designs.

Packaging and International Solar Module Delivery

The AOX-72M10HC measures 2278 × 1134 × 30mm and weighs approximately 31.5kg. The current datasheet specifies a loading quantity of 740 modules per 40HQ container. Final packing quantity, delivery schedule and trade terms should be confirmed in the commercial quotation before shipment.

Product Certifications and System Compatibility

The current AOX-72M10HC datasheet displays TÜV, IEC 61215 / IEC 61730, ISO and CE certification marks. Certification requirements vary by country and project, so buyers should confirm the current certificate version and local market acceptance before placing a project order.

When selecting an inverter for the 580W-615W module series, verify maximum PV voltage, MPPT voltage range, maximum input current, short-circuit current and permitted DC oversizing. String calculations should also consider the module Voc temperature coefficient and the lowest expected site temperature.

Frequently Asked Questions About 580W-615W Full Black Solar Panels

What is the power range of the AOX-72M10HC full black solar panel?

The AOX-72M10HC series is available in 580W, 585W, 590W, 595W, 600W, 605W, 610W and 615W power classes.

What is the maximum efficiency of the 615W solar panel?

The 615W model has a specified module efficiency of up to 23.80% under Standard Test Conditions.

Is this a monofacial or bifacial solar panel?

The current Ocean Solar datasheet describes the AOX-72M10HC as a dual-glass Full Black PV module with bifacial capability and specifies maximum bifaciality of up to 85±5%. It should therefore be treated as a bifacial dual-glass module rather than a conventional single-glass monofacial panel.

What cells are used in the 580W-615W full black module?

The module uses 144 N-type TOPCon half-cut cells combined with SMBB interconnection technology.

What are the dimensions and weight of the module?

The current datasheet specifies dimensions of 2278 × 1134 × 30mm and a module weight of 31.5kg.

What is the temperature coefficient of Pmax?

The Pmax temperature coefficient is -0.30%/°C. The Voc temperature coefficient is -0.24%/°C and the Isc temperature coefficient is +0.04%/°C.

What is the maximum system voltage?

The module supports a maximum system voltage of 1500VDC according to its IEC specification, with a maximum series fuse rating of 25A.

What snow and wind loads can the module withstand?

The specified mechanical loading is up to 5400Pa for snow load and 2400Pa for wind load when installed according to approved mounting requirements.

What warranty is provided for the AOX-72M10HC?

Ocean Solar specifies a 12-year warranty for materials and processing and a 30-year warranty for extra linear power output.

Is this 600W-class full black solar panel suitable for commercial rooftops?

Yes. The high power density and full-black appearance can make the series suitable for many commercial and industrial rooftop systems, provided the roof loading, module size, mounting system and inverter specifications are compatible.

Can Ocean Solar provide OEM full black solar panels?

Yes. OEM options can include brand labels, packaging, cable length, connectors and other agreed specifications. Customized configurations should be technically reviewed before mass production.

How many modules can be loaded in a 40HQ container?

The current datasheet specifies approximately 740 modules per 40HQ container. Final loading quantities should be reconfirmed before shipment.
