G12 HJT 730W-750W-Bifacial solar panel

730W-750W N-Type HJT Bifacial Solar Panel

Ocean Solar AOX-66G12HC is a 730W-750W N-type HJT bifacial solar module designed for utility-scale power plants, commercial and industrial photovoltaic systems, agrivoltaic projects and other high-capacity solar installations requiring high power per module.

The series combines heterojunction solar-cell technology with 132 half cells in a 6 × 22 configuration. Front-side rated power ranges from 730W to 750W, with published module efficiency from 23.50% to 24.10%.

With dimensions of 2384 × 1303 × 33mm and a module weight of approximately 36.5kg, the AOX-66G12HC is intended primarily for professional photovoltaic projects where module power, array layout, mounting compatibility, inverter design and logistics must be evaluated together.

           Request a Quote

AOX-66G12HC Key Specifications

Up to 750W Front-Side Power

The AOX-66G12HC series covers front-side rated power from 730W to 750W. The highest-power version reaches published module efficiency up to 24.10%, supporting high installed DC capacity in large photovoltaic arrays.

Increasing module-level power can reduce the total number of modules required for a specified project capacity. Depending on the system architecture, fewer modules can also reduce mounting positions, electrical connections and module-handling operations.

Project economics should be evaluated at system level, including module pricing, mounting or tracker configuration, inverter selection, cable design, labor, land utilization and logistics.

           Get Project Pricing

What Is HJT Solar Cell Technology?

HJT, or heterojunction technology, combines crystalline silicon with thin passivation layers to form a high-efficiency photovoltaic cell architecture.

The AOX-66G12HC uses an N-type HJT cell platform together with half-cut cell architecture. This combination is intended for high-power photovoltaic applications where module efficiency, energy yield and long-term electrical performance are important purchasing considerations.

HJT technology is also widely used in bifacial module designs because both front-side and rear-side irradiance can contribute to photovoltaic generation when the module is installed with sufficient rear exposure.

132 Half-Cell Large-Format Module Design

The AOX-66G12HC uses 132 half cells arranged in a 6 × 22 configuration. Half-cell module architecture divides the electrical circuit into smaller cell sections and supports efficient current collection in high-power modules.

The module measures 2384 × 1303 × 33mm, placing it in the large-format photovoltaic module category. It is intended primarily for professional projects where high module power and system-level installation efficiency are more important than compact residential-module dimensions.

At approximately 36.5kg per module, handling procedures, lifting requirements, tracker or racking compatibility and installation access should be considered during project planning.

Bifacial Energy Generation

The bifacial module design allows solar cells to generate electricity from direct irradiance reaching the front surface together with reflected and diffuse irradiance reaching the rear surface.

Actual rear-side contribution depends on installation conditions. Ground albedo, module mounting height, tilt angle, tracker or racking structure, row spacing and rear-side shading all influence the amount of irradiance reaching the back of the module.

Bifaciality and actual annual bifacial energy gain should not be treated as the same value. Project developers should use site irradiance, surface reflectivity and actual array geometry when estimating rear-side contribution.

           Discuss Your HJT Bifacial Project

HJT Modules for High-Temperature PV Projects

Module temperature is an important factor in photovoltaic system performance because solar-cell output changes as operating temperature rises and falls.

HJT technology is commonly selected for high-power projects where temperature performance is an important design consideration, including high-irradiance and hot-climate installations.

For precise project simulations, EPC contractors should use the temperature coefficients from the latest approved AOX-66G12HC technical datasheet together with local irradiance and ambient-temperature data.

1500VDC System Compatibility

The published maximum system voltage is 1500VDC according to the stated IEC specification. This allows the AOX-66G12HC to be evaluated for high-voltage DC string architectures commonly used in large commercial and utility photovoltaic plants.

Final string length must be calculated using the exact module Voc from the applicable technical datasheet, minimum expected site temperature, inverter maximum DC voltage and the permitted MPPT operating-voltage range.

Module operating current, short-circuit current and maximum series fuse requirements should also be checked against the selected inverter and electrical protection design before final approval.

           Check Inverter and String Compatibility

Mechanical Load Performance

5400Pa Front-Side / Snow Load

The current product specification lists a maximum front-side or snow-load value of 5400Pa, equivalent to approximately 550kg/m².

Final structural capability depends on the approved mounting configuration, support positions, tracker or racking system and project-specific snow-load requirements.

2400Pa Rear-Side / Wind Load

The published rear-side or wind-load value is 2400Pa, equivalent to approximately 244kg/m². Racking, trackers and support structures should be engineered according to local wind conditions and the applicable mounting instructions.

-40°C to +85°C Operating Range

The published module operating-temperature range is -40°C to +85°C, with a nominal operating cell temperature of 45±2°C.

Site temperature should be included in both electrical and structural design. Low-temperature conditions are particularly important when calculating maximum string open-circuit voltage, while high operating temperatures influence module power and annual energy yield.

Applications for 730W-750W HJT Bifacial Modules

Utility-Scale Solar Power Plants

The high rated power and large-format module architecture make the AOX-66G12HC suitable for evaluation in utility-scale ground-mounted photovoltaic plants where reducing module quantity and optimizing system-level installation efficiency are important.

Desert and High-Irradiance PV Projects

High-power HJT modules can be evaluated for desert and high-irradiance projects where temperature behavior, dust, wind conditions, ground reflectivity and maintenance strategy must be considered together.

Commercial and Industrial Solar Systems

Commercial and industrial installations can use high-power HJT modules where the roof structure, mounting system, module-handling method and inverter specifications are compatible with the 2384 × 1303mm large-format module.

Agrivoltaic Projects

Elevated agrivoltaic structures can provide useful rear-side irradiance while maintaining agricultural space below or between module rows. Module height, row spacing and shading should be designed to balance photovoltaic generation with agricultural use.

Fishery-Solar and Water-Side PV

The bifacial design can also be evaluated for fishery-solar and other elevated water-side photovoltaic installations where reflected and diffuse irradiance can reach the rear module surface.

Designing for Bifacial Energy Gain

Rear-side generation depends primarily on the amount of reflected and diffuse irradiance reaching the back of the module. Higher-reflectance surfaces generally provide more useful rear-side irradiance than dark surfaces.

Increasing module clearance can improve rear-side exposure. Tilt angle, row spacing, tracker structure, mounting beams and cable routing should also be considered when reducing rear-side shading.

EPC contractors should use project-specific irradiance, albedo and actual array geometry when estimating bifacial energy contribution rather than applying a fixed additional-output percentage to every installation.

HJT or TOPCon: What Should Project Buyers Consider?

Both HJT and TOPCon are N-type photovoltaic technologies used in high-efficiency solar modules. Selection should be based on the complete project rather than technology name alone.

Project buyers should compare rated module power, watts per square meter, temperature behavior, bifacial performance, module dimensions, weight, inverter-current compatibility, warranty terms, certification requirements and delivered project cost.

For HJT projects, verified temperature coefficients, bifaciality data and long-term degradation values are particularly useful when completing detailed energy-yield and financial modeling.

What EPC Contractors Should Confirm Before Ordering

           Send Your Project Requirements

12-Year Product Warranty and 30-Year Linear Power Warranty

Current AOX-66G12HC product information specifies a 12-year product warranty together with a 30-year extra linear power output warranty.

Product warranty and linear power-output warranty are separate terms. Project buyers should review the applicable written warranty document for detailed coverage, guaranteed power retention, exclusions, installation requirements and claim conditions before procurement.

Solar Module Manufacturing and Inspection

The module-production workflow includes photovoltaic cell interconnection, automatic string layup, bussing, EL electroluminescence inspection, lamination, edge trimming, frame installation, curing, visual inspection, electrical power testing, final EL inspection and packaging.

1. PV cell soldering

2. Automatic PV cell string layup

3. Automatic bussing

4. PV cell string positioning

5. EL electroluminescence testing

6. Automatic edge sealing

7. Solar module lamination

8. Automatic edge trimming

9. Visual inspection

10. Automatic frame installation

11. Automatic glue dispensing

12. Silicone curing

13. Visual inspection and cleaning

14. Power testing

15. Final EL testing

16. Packaging

Packaging and Container Loading

The current product specification lists 34 modules per pallet and approximately 612 AOX-66G12HC modules per 40HQ container.

The large 2384 × 1303mm module dimensions and 36.5kg weight should be considered when planning unloading, site transport, storage and installation handling.

Final loading quantity, pallet configuration, destination documents, shipping terms and delivery schedule should be reconfirmed with the commercial quotation before shipment.

Procurement for Distributors, EPCs and Project Developers

Large-format 730W-750W modules are primarily intended for professional photovoltaic procurement. Buyers should evaluate electrical compatibility, module dimensions, structural loading, installation method, pallet quantity and container loading before selecting the final configuration.

Distributors, importers, EPC contractors and solar project developers can discuss labeling, packaging, documentation and agreed project requirements with Ocean Solar before ordering.

Any customization that changes cell configuration, electrical characteristics, module dimensions or structural construction should be technically confirmed as a separate product configuration.

           Get Project Pricing

Other Ocean Solar Bifacial Solar Modules

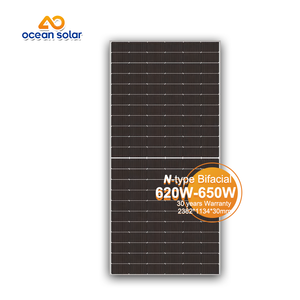

430W-460W Bifacial Solar Panel

                                   430W-460W PDF

580W-615W Bifacial Solar Panel

                                   580W-615W PDF

620W-650W Bifacial Solar Panel

                                   620W-650W PDF

Frequently Asked Questions About 730W-750W HJT Bifacial Solar Panels

What technology does the AOX-66G12HC use?

The AOX-66G12HC uses N-type heterojunction solar-cell technology with 132 half cells arranged in a 6 × 22 configuration.

What is the maximum power output?

The series covers front-side rated power from 730W to 750W.

What is the maximum module efficiency?

Published module efficiency ranges from 23.50% to 24.10%, with the highest-power model reaching up to 24.10%.

Is the AOX-66G12HC a bifacial module?

Yes. It is designed to use irradiance reaching both the front and rear solar-cell surfaces. Actual rear-side energy contribution depends on the installation environment.

What is the bifaciality of this HJT module?

A standalone bifaciality percentage is not included in the current AOX-66G12HC product information. Project buyers requiring detailed bifacial yield modeling should request the latest verified module data.

How much additional energy can the rear side generate?

Rear-side energy contribution varies by project. Ground reflectivity, mounting height, row spacing, tilt angle, tracker structure, shading and local irradiance determine actual bifacial gain.

What are the dimensions of the 750W module?

The AOX-66G12HC measures 2384 × 1303 × 33mm.

How much does the module weigh?

Published module weight is approximately 36.5kg.

What is the maximum system voltage?

The current product specification lists a maximum system voltage of 1500VDC under the stated IEC specification.

What is the operating temperature range?

The published module operating-temperature range is -40°C to +85°C, with nominal operating cell temperature of 45±2°C.

What are the mechanical load ratings?

Current product information lists up to 5400Pa front-side or snow load and 2400Pa rear-side or wind load.

Is this module suitable for utility-scale projects?

Yes. The 730W-750W power range, HJT bifacial architecture and 1500VDC maximum system voltage make the series suitable for evaluation in large ground-mounted photovoltaic projects.

Can the AOX-66G12HC be used with solar trackers?

It can be evaluated for compatible tracker systems. Module dimensions, weight, support points, tracker geometry and project wind-load conditions should be checked with the tracker supplier before final system design.

Can this large-format module be used on commercial rooftops?

It can be used where the roof structure, racking system, handling requirements and inverter specifications are compatible with the 2384 × 1303mm module format and approximately 36.5kg module weight.

What temperature coefficient does the AOX-66G12HC have?

The current AOX-66G12HC product information does not list the exact Pmax, Voc and Isc temperature coefficients. Buyers requiring project yield or cold-temperature string calculations should request the latest approved electrical datasheet.

What warranty does the AOX-66G12HC have?

Current product information specifies a 12-year product warranty together with a 30-year extra linear power output warranty. Detailed coverage and power-retention conditions should be confirmed in the applicable warranty document.

How many modules can be loaded in a 40HQ container?

The published packaging configuration is 34 modules per pallet and approximately 612 modules per 40HQ container.

Can Ocean Solar support distributor and project orders?

Distributors, importers and EPC contractors can discuss labeling, packaging, project documentation and agreed product requirements with Ocean Solar before ordering.

What information should I provide when requesting a quotation?

Please provide the required power class, project quantity, destination country, project type, inverter model, mounting or tracker system, proposed string configuration, site conditions, expected rear-side exposure and required documentation.
