M10R Mono 450W-475W-Full Black Solar Panel

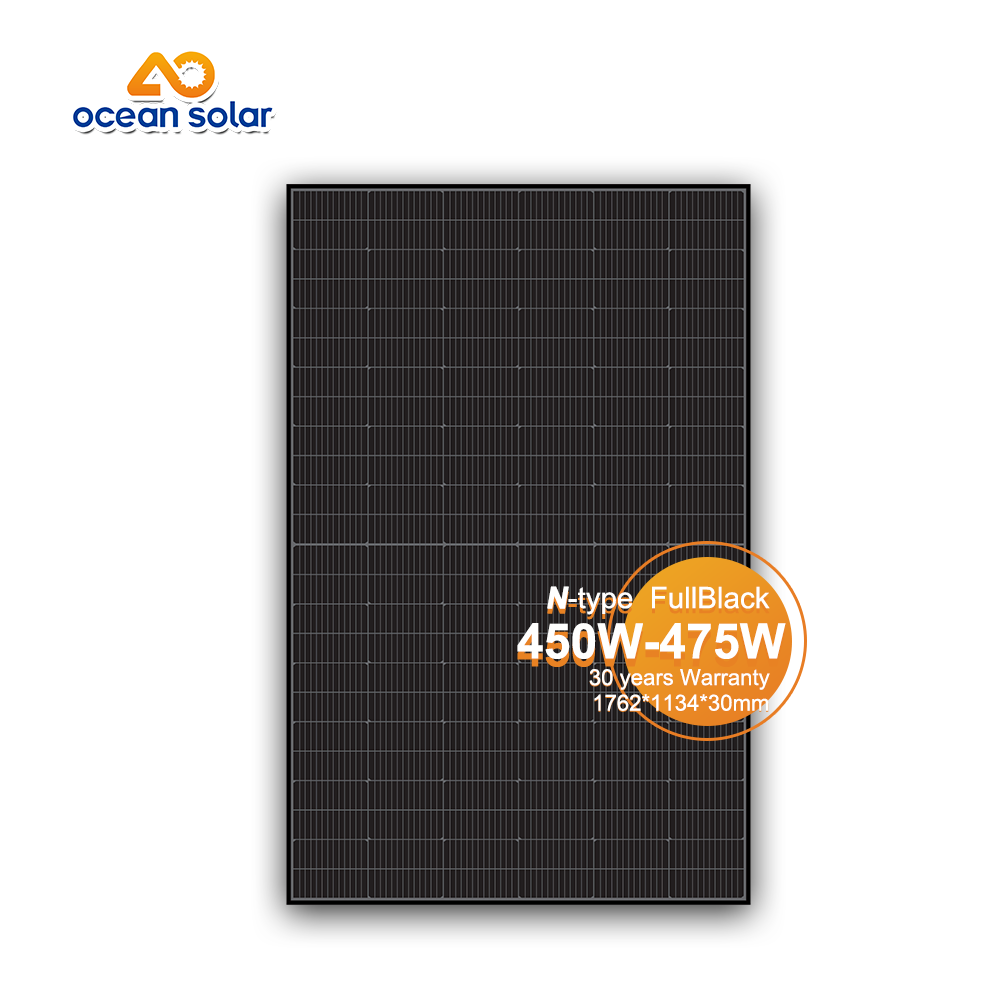

M10R 450W-475W N-Type TOPCon Full Black Solar Panel

Ocean Solar AOX-144M10RHC is a 450W-475W N-type TOPCon full black dual-glass solar panel designed for residential rooftops, commercial buildings and distributed photovoltaic systems where module efficiency, compact dimensions and architectural appearance are important.

The series provides six front-side power classes from 450W to 475W, with published module efficiency ranging from 22.50% to 23.80%. Its 1762 × 1134 × 30mm format combines up to 475W rated output with a rooftop-oriented module footprint.

The module uses N-type TOPCon half-cut cells, SMBB interconnection, 2.0mm front glass, 2.0mm rear glass, an IP68 junction box and a 30mm anodized aluminium frame. Maximum system voltage is specified at 1500VDC.

           Request a Quote

450W-475W Full Black Solar Panel Key Specifications

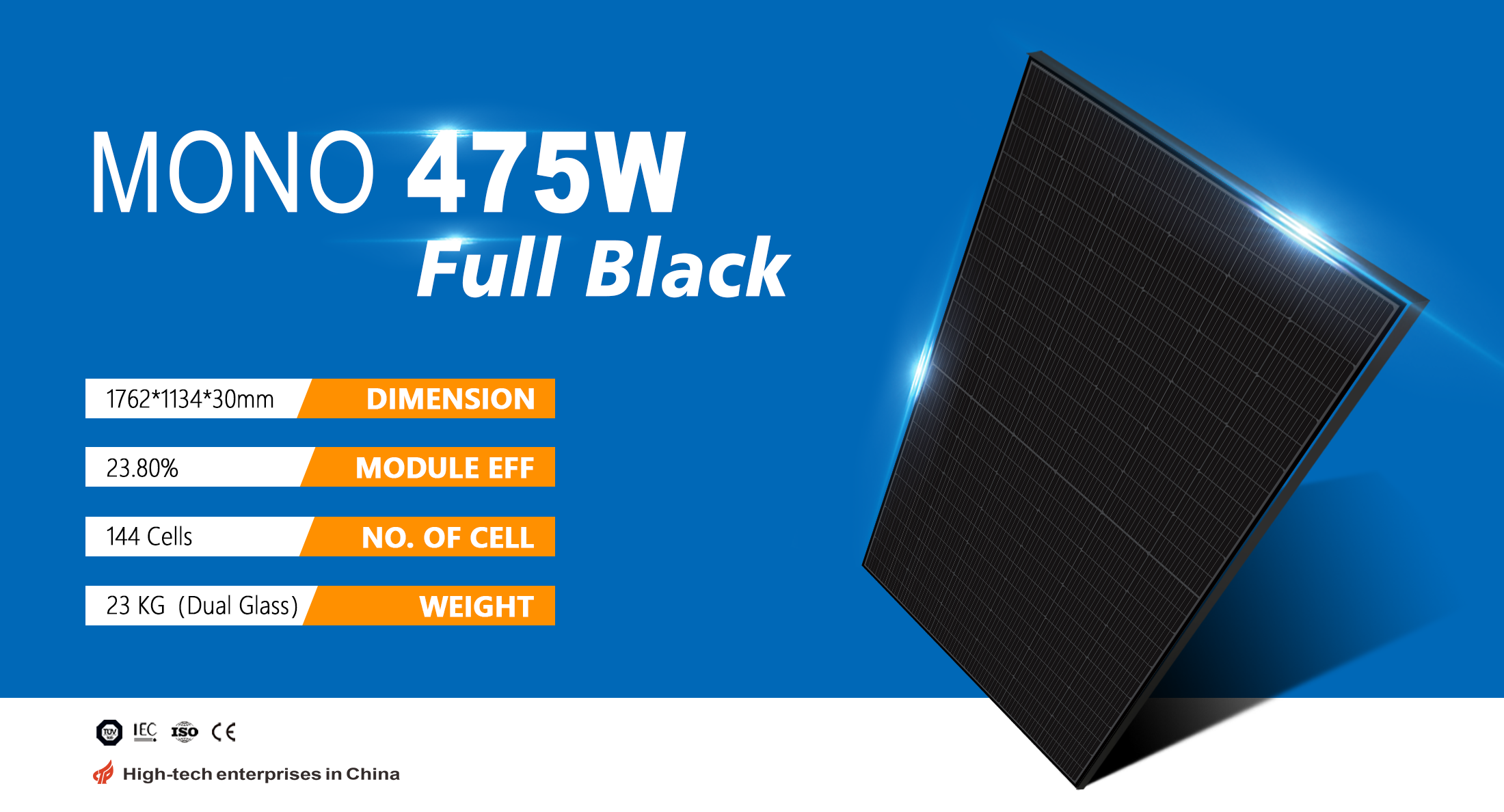

Up to 475W Output in a 1762 × 1134mm Format

The AOX-144M10RHC series provides six rated power classes from 450W to 475W while maintaining a compact 1762 × 1134mm module footprint.

The 475W model reaches a published module efficiency of up to 23.80%, supporting higher installed photovoltaic capacity on rooftops where available module area is limited.

Final rooftop layout should also consider roof geometry, setbacks, walkways, shading, structural capacity and mounting-system requirements.

N-Type TOPCon Cell Technology

The module uses N-type TOPCon half-cut cells with SMBB interconnection technology.

The cell and interconnection design supports high module conversion efficiency while reducing electrical transmission losses within the module.

Full Black Design for Rooftop Projects

The full-black module design provides a uniform dark appearance for residential, commercial and architectural rooftop photovoltaic installations.

Module appearance can be considered together with rated power, efficiency, dimensions, roof layout and system cost when selecting photovoltaic modules for visible rooftop applications.

2.0mm + 2.0mm Dual-Glass Construction

The AOX-144M10RHC uses 2.0mm high-transmission AR-coated tempered front glass and a 2.0mm heat-strengthened rear glass cover.

EVA encapsulation surrounds the solar-cell circuit, while a 30mm anodized aluminium-alloy frame provides structural support for installation and handling.

For projects requiring rear-side photovoltaic generation, confirm the exact supplied module configuration and applicable rear-side electrical performance before final system design.

-0.29%/°C Pmax Temperature Coefficient

The published maximum-power temperature coefficient is -0.29%/°C.

The open-circuit-voltage temperature coefficient is -0.25%/°C and the short-circuit-current temperature coefficient is +0.045%/°C.

These values should be considered when estimating module output at elevated operating temperatures and calculating maximum string voltage under cold conditions.

Electrical Characteristics of the 450W-475W Series

Published electrical characteristics are specified under Standard Test Conditions of 1000W/m² irradiance, 25°C cell temperature and AM1.5 spectrum.

Always use the latest issued datasheet for the exact supplied module when completing final photovoltaic string calculations.

1500VDC System Design

The module supports a maximum system voltage of 1500VDC under the current IEC specification and has a maximum series fuse rating of 30A.

Maximum string length must be calculated using the selected module Voc, the -0.25%/°C Voc temperature coefficient, inverter maximum DC voltage and the lowest expected site temperature.

IP68 Junction Box and PV Connections

The AOX-144M10RHC uses an IP68-rated junction box with three bypass diodes.

Standard photovoltaic cable is specified as 1 × 4mm² with approximately 350mm cable length, with customized cable lengths available subject to confirmed order requirements.

MC4 or compatible photovoltaic connectors are listed for the current module configuration.

Mechanical Load and Outdoor Performance

The module is specified for a maximum front-side mechanical test load of 5400Pa and a maximum rear-side test load of 2400Pa.

Hail resistance is specified using hailstones up to 25mm in diameter at an impact velocity of 23m/s.

Project engineers should verify mounting points, clamp zones, roof structure and site-specific wind and snow requirements before installation.

Anti-PID Module Design

The current product documentation describes cell-production optimization and material control intended to minimize the probability of potential-induced degradation during long-term photovoltaic operation.

How to Match the Module with an Inverter

The inverter should be selected using the electrical parameters of the exact ordered module rather than rated wattage alone.

Check module Vmp and Voc against the inverter MPPT range and maximum DC voltage, and check Imp and Isc against the inverter maximum operating-current and short-circuit-current limits.

The 475W version currently lists Vmp 31.30V, Imp 15.18A, Voc 32.00V and Isc 15.99A under Standard Test Conditions.

           Get PV String Configuration Support

Mechanical and Operating Parameters

12-Year Product Warranty and 30-Year Linear Power Warranty

The current AOX-144M10RHC datasheet specifies a 12-year warranty for materials and processing together with a 30-year warranty for extra linear power output.

These are separate warranty terms. Buyers should request the current written warranty conditions, degradation limits and applicable exclusions for the supplied module before ordering.

Download AOX-144M10RHC Datasheet

                   Download AOX-144M10RHC 450W-475W Solar Panel Datasheet

Residential and Commercial Rooftop Applications

Residential Rooftops

The 1762 × 1134mm module footprint and full-black appearance make the AOX-144M10RHC suitable for evaluation on residential rooftops where available roof area and visual integration both influence module selection.

Commercial Rooftops

The 450W-475W power range can also be used in compatible commercial rooftop systems where module efficiency, layout density and handling requirements are important.

Carports and Distributed PV

The module can be evaluated for compatible solar carports and distributed photovoltaic installations after structural, mounting and electrical requirements have been checked.

Solar Panel Manufacturing and Quality Control

Ocean Solar uses automated photovoltaic module production processes covering cell interconnection, string layout, bussing, EL inspection, lamination, framing, curing, electrical testing and final packaging.

M10R Full Black Dual-Glass Module Construction

Main module components include N-type TOPCon half-cut cells, tempered front glass, EVA encapsulation, heat-strengthened rear glass, anodized aluminium frame, IP68 junction box, bypass diodes, photovoltaic cable and compatible solar connectors.

OEM Full Black Solar Panel Supply

Ocean Solar supports OEM and private-label photovoltaic module supply for distributors, importers, EPC companies, installers and solar brands.

Available customization can include labels, branding, packaging, cable length, connector configuration and documentation according to confirmed technical specifications and order requirements.

Customers requiring other module formats can also discuss alternative power ranges, monofacial modules, bifacial modules, black-frame modules and other photovoltaic module configurations.

           Discuss OEM Requirements

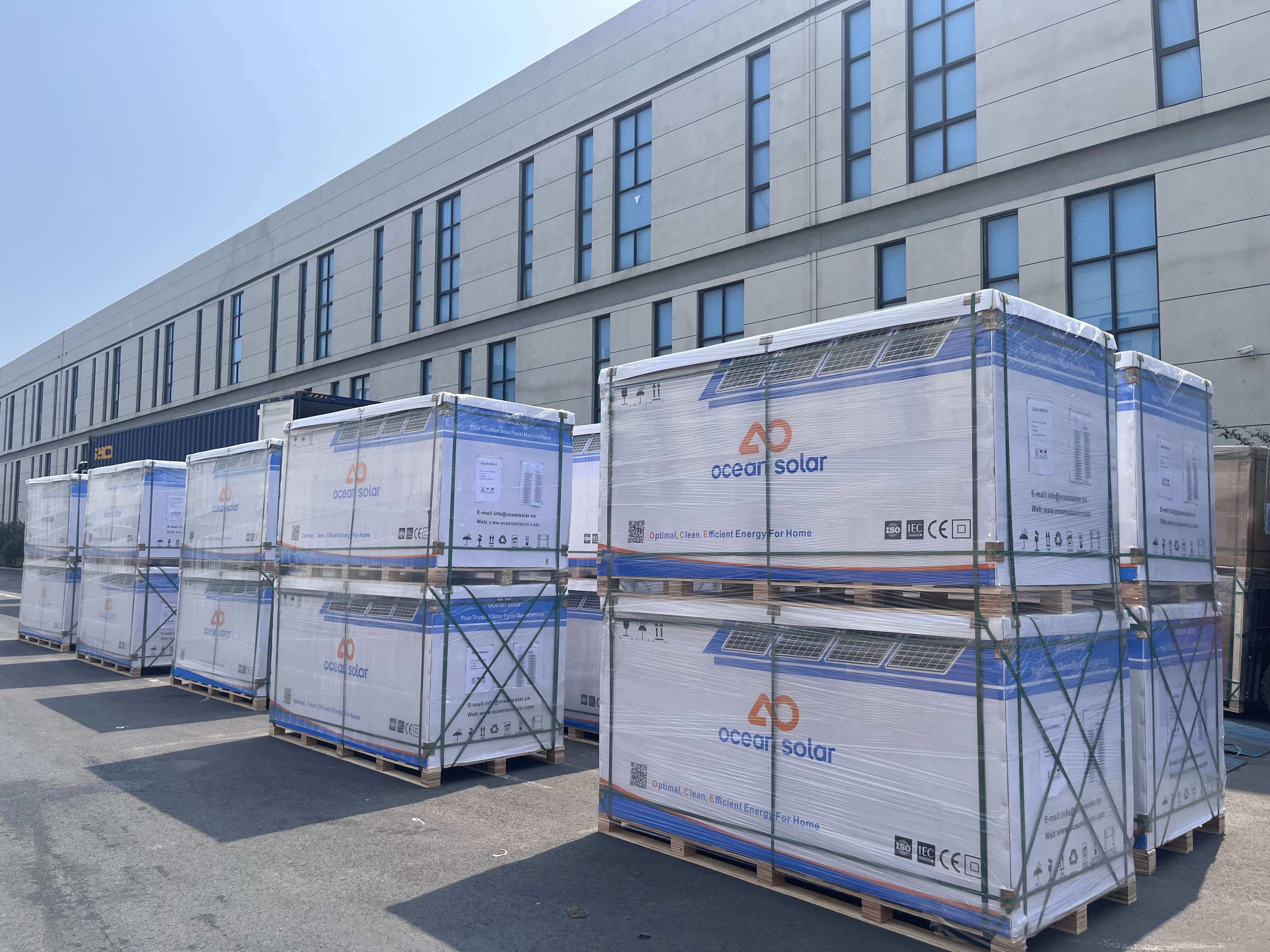

Packaging and International Delivery

The AOX-144M10RHC measures 1762 × 1134 × 30mm and weighs approximately 23kg.

Current packaging information specifies approximately 962 modules per 40HQ container.

Final pallet configuration, container loading quantity, delivery schedule and trade terms should be confirmed in the commercial quotation.

Certifications and Project Compatibility

Current product documentation displays TÜV, IEC, ISO and CE certification marks.

Certification requirements vary by destination country, installer scheme and project. Buyers should confirm the certificate version and exact model coverage required for the destination market before ordering.

For Distributors, Installers and EPC Contractors

The AOX-144M10RHC is intended for professional photovoltaic procurement where compact module dimensions, high front-side power, full-black appearance and dual-glass construction are required.

Buyers should provide the required wattage, destination country, project type, inverter model, mounting system and order quantity when requesting a quotation.

Required certificates, cable length, connector type, labeling, packaging and warranty documentation should also be confirmed before ordering.

           Get Pricing & Technical Support

Frequently Asked Questions About 450W-475W Full Black Solar Panels

What power ratings are available?

The AOX-144M10RHC series is available in 450W, 455W, 460W, 465W, 470W and 475W front-side power classes.

What is the maximum module efficiency?

The 475W version has a published module efficiency of up to 23.80% under Standard Test Conditions.

What type of cells are used?

The module uses N-type TOPCon half-cut solar cells with SMBB interconnection technology.

Is this a dual-glass solar panel?

Yes. The current mechanical specification lists 2.0mm front glass and 2.0mm heat-strengthened rear glass.

What are the module dimensions?

The module measures 1762 × 1134 × 30mm and weighs approximately 23kg.

Why choose a full black module for a rooftop?

A full-black module provides a more uniform dark appearance that can integrate with dark roofing and visible residential or commercial rooftop designs while maintaining high photovoltaic power density.

What is the Pmax temperature coefficient?

The published Pmax temperature coefficient is -0.29%/°C.

What is the maximum system voltage?

Maximum system voltage is specified at 1500VDC under the current IEC configuration.

What is the maximum series fuse rating?

The current specification lists a maximum series fuse rating of 30A.

What mechanical loads are specified?

The current module specification lists a maximum front-side mechanical test load of 5400Pa and a maximum rear-side load of 2400Pa.

What hail resistance is specified?

Hail resistance is specified using hailstones up to 25mm in diameter at 23m/s.

What is the junction box protection rating?

The module uses an IP68-rated junction box with three bypass diodes.

Can the module be used with a string inverter?

Yes, provided the module voltage and current characteristics are compatible with the inverter MPPT range, maximum DC voltage, maximum operating current and short-circuit-current limit.

Is the module suitable for residential rooftops?

It can be evaluated for residential rooftop systems where roof dimensions, structural loading, mounting requirements and electrical-system specifications are compatible with the module.

What warranty is available?

The current datasheet specifies a 12-year materials and processing warranty together with a 30-year linear power-output warranty. Exact warranty conditions should be confirmed using the applicable written warranty document.

How many modules fit in a 40HQ container?

Current packaging information specifies approximately 962 modules per 40HQ container. Final loading quantity should be reconfirmed before shipment.

Does Ocean Solar provide OEM full black modules?

Yes. Available OEM options can include product labels, branding, packaging, cable length, connector configuration and documentation subject to technical confirmation.

What information should I provide for a quotation?

Please provide the required wattage, quantity, destination country, project type, inverter model, mounting system, required certificates and connector or cable requirements.
