M10R Mono 450W-475W-Monofacial Solar Panel

450W-475W N-Type TOPCon Monofacial Solar Panel

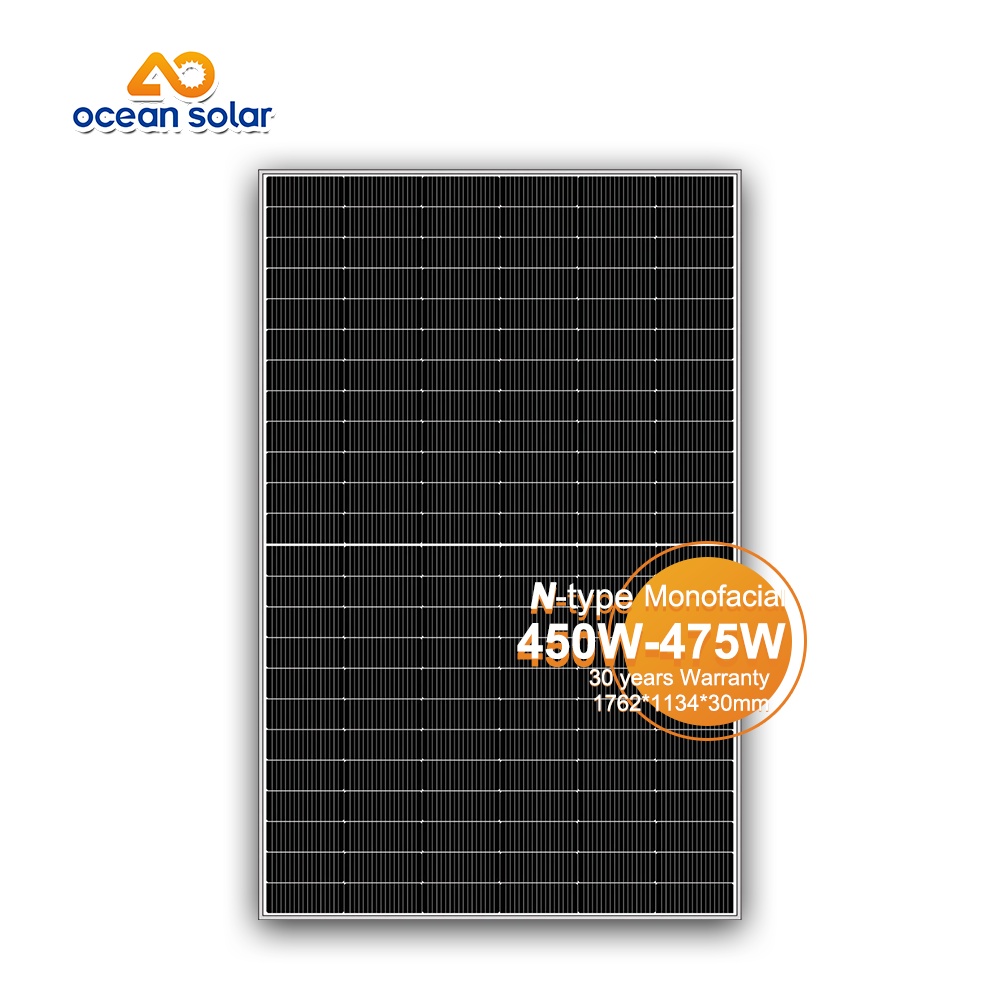

Ocean Solar AOX-144M10RHC is a 450W-475W N-type TOPCon monofacial dual-glass solar module designed for residential rooftops, commercial and industrial buildings and distributed photovoltaic systems requiring high installed power density in a compact module format.

The series combines 144 N-type TOPCon half-cut cells with SMBB interconnection technology and delivers up to 475W rated power with module efficiency up to 23.80%. The module measures 1762 × 1134 × 30mm and weighs approximately 23kg.

Its monofacial dual-glass construction uses 2.0mm high-transmission AR-coated tempered front glass and 2.0mm heat-strengthened rear glass. A 1500VDC maximum system voltage, IP68 junction box, -0.29%/°C Pmax temperature coefficient and 5400Pa / 2400Pa mechanical-load ratings support residential and commercial photovoltaic system design.

           Request a Quote

AOX-144M10RHC Key Specifications

High Power Density in a Compact 1762 × 1134mm Format

The AOX-144M10RHC reaches up to 475W within a 1762 × 1134mm module footprint. This compact format is designed for residential and distributed commercial rooftops where available installation area, module handling and installed DC capacity must be balanced.

The 475W model reaches a published module efficiency of up to 23.80%, supporting high installed power per square meter where usable roof area is limited.

Higher module power can also reduce the number of modules required for a specified DC array capacity compared with lower-wattage modules of a similar physical size. Final system economics depend on module layout, inverter configuration, mounting system, labor and other balance-of-system requirements.

           Discuss Your Rooftop Project

N-Type TOPCon and SMBB Cell Technology

The AOX-144M10RHC uses 144 N-type TOPCon half-cut cells combined with SMBB interconnection technology. TOPCon passivated-contact architecture is designed to reduce carrier recombination losses and support high photovoltaic conversion efficiency.

Half-cut cell architecture reduces current through individual cell sections, while multi-busbar interconnection provides multiple current-collection paths across the solar cell.

The current product information also identifies low-light performance and anti-PID design among the module characteristics.

Monofacial Dual-Glass Module Construction

The AOX-144M10RHC is configured as a monofacial module for front-side photovoltaic generation while using a glass-glass laminate structure for module protection.

The module uses 2.0mm high-transmission AR-coated tempered front glass and 2.0mm heat-strengthened rear glass with EVA encapsulation.

A 30mm anodized aluminium-alloy frame, IP68-rated junction box with three bypass diodes, 4mm² photovoltaic cable and MC4-compatible connectors complete the module construction.

-0.29%/°C Pmax Temperature Coefficient

Solar module power decreases as cell temperature increases. The AOX-144M10RHC has a specified Pmax temperature coefficient of -0.29%/°C.

This parameter is particularly relevant to rooftop photovoltaic systems where module temperature can rise significantly above the 25°C Standard Test Condition reference during periods of strong solar irradiance.

The specified Voc temperature coefficient is -0.25%/°C and the Isc temperature coefficient is +0.045%/°C. These values should be included in system yield calculations and cold-weather string-voltage calculations.

Mechanical Strength for Rooftop PV Systems

5400Pa Front-Side Load

The module specification states a maximum front-side mechanical load of 5400Pa. Final structural suitability depends on the approved mounting configuration, clamp position, support structure and project-specific roof conditions.

2400Pa Rear-Side Load

Rear-side mechanical load resistance is specified at up to 2400Pa. Mounting rails, clamps and roof structures should be selected according to module installation requirements and local wind-load calculations.

Hail Impact Resistance

The current specification lists resistance to a maximum 25mm diameter hailstone at an impact velocity of 23m/s.

1500VDC System Design

The AOX-144M10RHC supports a maximum system voltage of 1500VDC under the stated IEC specification and has a maximum series fuse rating of 30A.

Final string length must consider module open-circuit voltage, minimum site temperature, inverter maximum DC voltage, MPPT operating range and applicable electrical requirements.

Module operating current and short-circuit current should also be checked against inverter MPPT input-current and short-circuit-current limits before finalizing the array design.

           Check Module and Inverter Compatibility

Published 450W-475W Electrical Characteristics

The following electrical values reproduce the currently published product data under Standard Test Conditions at 1000W/m² irradiance, 25°C cell temperature and AM1.5 spectrum. The latest approved technical datasheet should be used for final inverter and string design.

Applications for 450W-475W Monofacial Solar Panels

Residential Rooftops

The compact 1762 × 1134mm format and up to 475W rated output make the AOX-144M10RHC relevant to residential roofs where usable roof area, module dimensions and installed DC power density are important.

Commercial and Industrial Rooftops

Commercial and industrial photovoltaic projects can use the compact module format and 1500VDC electrical architecture for distributed arrays on warehouses, factories and commercial buildings.

Distributed Ground-Mounted Systems

The module can also be evaluated for appropriately engineered ground-mounted systems where front-side generation, module efficiency and compatibility with the selected inverter and mounting structure are primary design considerations.

12-Year Product Warranty and 30-Year Linear Power Warranty

The AOX-144M10RHC specification provides a 12-year warranty for materials and processing together with a 30-year extra linear power output warranty.

The published linear warranty information states an average annual power decline of no more than 0.4% from the second through the thirtieth year.

Product warranty and linear power output warranty are separate terms. Detailed coverage, exclusions and claim conditions remain subject to the applicable written warranty document.

Manufacturing and Quality Inspection

Ocean Solar's module manufacturing workflow includes photovoltaic cell interconnection, automatic cell-string layup, bussing, EL electroluminescence inspection, lamination, frame installation, visual inspection, power testing and final EL inspection before packaging.

1. SMBB PV cell soldering

2. Automatic PV cell-string layup

3. Automatic bussing

4. PV cell-string positioning

5. EL electroluminescence testing

6. Automatic edge sealing

7. Solar module lamination

8. Automatic edge trimming

9. Visual inspection

10. Automatic frame installation

11. Automatic glue dispensing

12. Silicone curing

13. Visual inspection and cleaning

14. Power testing

15. Final EL testing

16. Packaging

Packaging and International Delivery

The current packaging specification indicates approximately 962 AOX-144M10RHC modules per 40HQ container.

Current published commercial information lists a minimum order quantity of one 20GP container and a regular-order lead time of approximately 7-14 working days after deposit. Final MOQ, availability, pallet configuration and delivery schedule should be confirmed with the commercial quotation.

OEM and Project Customization

Ocean Solar supports project cooperation with photovoltaic distributors, importers, EPC contractors and solar brands.

Available project options can include product labels, packaging, cable length, connector selection and other agreed product details subject to technical confirmation.

Any customization that changes module dimensions, cell layout, electrical characteristics or structural design should be evaluated as a separate product configuration and supported by the corresponding technical documentation.

           Discuss OEM & Project Requirements

Download the AOX-144M10RHC Datasheet

                   Download 450W-475W Monofacial Dual-Glass Solar Panel Datasheet

Frequently Asked Questions About 450W-475W Monofacial Solar Panels

What is the maximum output of the AOX-144M10RHC?

The series is available in 450W, 455W, 460W, 465W, 470W and 475W rated power classes.

What is the efficiency of the 475W solar panel?

The 475W version has a published module efficiency of up to 23.80%.

What solar cell technology does the module use?

The AOX-144M10RHC uses 144 N-type TOPCon half-cut cells together with SMBB interconnection technology.

What are the module dimensions and weight?

The module measures 1762 × 1134 × 30mm and weighs approximately 23kg.

Is this a monofacial solar panel?

Yes. This product configuration is designed for front-side photovoltaic generation and is supplied as a monofacial module.

Why does a monofacial module use dual glass?

Monofacial describes the module's photovoltaic generation configuration, while dual glass describes the laminate construction. The AOX-144M10RHC uses front and rear glass to protect the encapsulated cells while generating power primarily from the front side.

What is the Pmax temperature coefficient?

The published Pmax temperature coefficient is -0.29%/°C. The Voc coefficient is -0.25%/°C and the Isc coefficient is +0.045%/°C.

What is the maximum system voltage?

The module supports a maximum system voltage of 1500VDC under the stated IEC specification and has a maximum series fuse rating of 30A.

What are the snow and wind load ratings?

The current specification states a maximum front-side mechanical load of 5400Pa and a rear-side mechanical load of 2400Pa when installed using the applicable mounting configuration.

What hail resistance is specified?

The current specification lists resistance to hailstones up to 25mm in diameter at an impact velocity of 23m/s.

Is the junction box IP68 rated?

Yes. The module uses an IP68-rated junction box with three bypass diodes.

Is the 475W module suitable for residential rooftops?

Its compact 1762 × 1134mm footprint and high module power density make it suitable for evaluation in many residential and distributed rooftop systems. Final suitability depends on roof loading, mounting layout and electrical-design requirements.

Is the module suitable for commercial and industrial rooftops?

Yes. The 450W-475W power range, compact dimensions and 1500VDC architecture make the module relevant to appropriately designed factory, warehouse and commercial rooftop systems.

What warranty does Ocean Solar provide?

The current specification provides a 12-year warranty for materials and processing and a 30-year extra linear power output warranty.

How many modules fit in a 40HQ container?

The current packaging specification indicates approximately 962 modules per 40HQ container. Final loading quantity should be reconfirmed with the order.

Can cable length and connectors be customized?

The current configuration uses 4mm² photovoltaic cable with a standard length of approximately 350mm, while customized cable length and agreed connector options can be discussed for project orders.

What information should be provided for a quotation?

Please provide the required power class, order quantity, destination country, project type, inverter model, planned string design, delivery schedule and any OEM, connector or documentation requirements.
