G12R Mono 620W-650W-Monofacial solar panel

G12R 620W-650W N-Type TOPCon Monofacial Solar Panel Overview

The Ocean Solar AOX-132G12RHC is a high-power 620W-650W monofacial solar panel based on G12R N-type TOPCon half-cut cell technology. With module efficiency ranging from 22.90% to 24.10%, the series is designed for commercial and industrial rooftops, large ground-mounted solar projects and other PV systems where high power density and efficient use of installation area are important.

The module combines 132 half-cut cells, SMBB interconnection, a white backsheet, 1500VDC system compatibility and a -0.30%/°C Pmax temperature coefficient. The 650W model reaches up to 24.10% module efficiency, helping system designers increase installed capacity while reducing the number of modules required for a target project capacity.

For distributors, EPC contractors, solar installers and project developers, Ocean Solar also provides OEM customization, containerized supply and technical support for different markets and project requirements.

G12R 620W-650W Solar Panel Key Specifications

Why Choose G12R N-Type TOPCon Technology?

Up to 650W Output and 24.10% Module Efficiency

The AOX-132G12RHC series covers seven power classes from 620W to 650W. The highest-power 650W model reaches 24.10% module efficiency, enabling more installed wattage within a given project area and potentially reducing the number of modules, mounting components, cables and installation operations required for the same DC capacity.

N-Type TOPCon Cell Architecture

N-type TOPCon technology is used to improve cell conversion efficiency while supporting low degradation and strong energy yield. The module also uses SMBB interconnection technology to improve current collection, reduce electrical resistance and increase effective light utilization.

Low -0.30%/°C Power Temperature Coefficient

Solar module output naturally decreases as cell temperature rises. The AOX-132G12RHC has a Pmax temperature coefficient of -0.30%/°C, supporting stronger power retention in high-temperature operating conditions compared with modules that have a more negative power temperature coefficient.

Low Long-Term Power Degradation

The specified linear power warranty allows up to 1% degradation in the first year, followed by no more than 0.4% average annual degradation from the second year. This provides long-term output predictability for commercial and utility-scale PV project calculations.

Electrical Characteristics of 620W-650W Monofacial Solar Panels

The following electrical values are measured under Standard Test Conditions (STC: AM1.5, 1000W/m² irradiance and 25°C cell temperature). Selecting the correct power class should also take inverter MPPT voltage, maximum DC current, string length and local minimum-temperature conditions into account.

Mechanical Design and Reliability

132 Half-Cut Cell Monofacial Structure

The AOX-132G12RHC uses 132 N-type TOPCon half-cut cells with a high-transmission, anti-reflection coated tempered glass front cover and a white backsheet. The module is encapsulated with EVA and protected by a 30mm anodized aluminum alloy frame.

IP68 Junction Box and 1500V System Design

The module uses an IP68-rated junction box with three bypass diodes and supports a maximum system voltage of 1500VDC. Standard cabling is 1 × 4mm² with 350mm cable length or customized cable options, together with MC4 or MC4-compatible connectors.

High Mechanical Load Capability

Mechanical loading is rated up to 5400Pa for snow load and 2400Pa for wind load. Hail resistance is specified for hailstones up to 25mm in diameter at 23m/s, helping the module meet demanding outdoor installation requirements when installed according to the approved mounting instructions.

12-Year Product Warranty and 30-Year Linear Power Warranty

Ocean Solar specifies a 12-year warranty for materials and processing and a 30-year warranty for extra linear power output for the AOX-132G12RHC series. The specified degradation profile is 1% in the first year and no more than 0.4% average annual decline from the second year.

                   Download MONO 620W-650W Monofacial Solar Panel Datasheet

Typical Applications of 620W-650W Monofacial Solar Panels

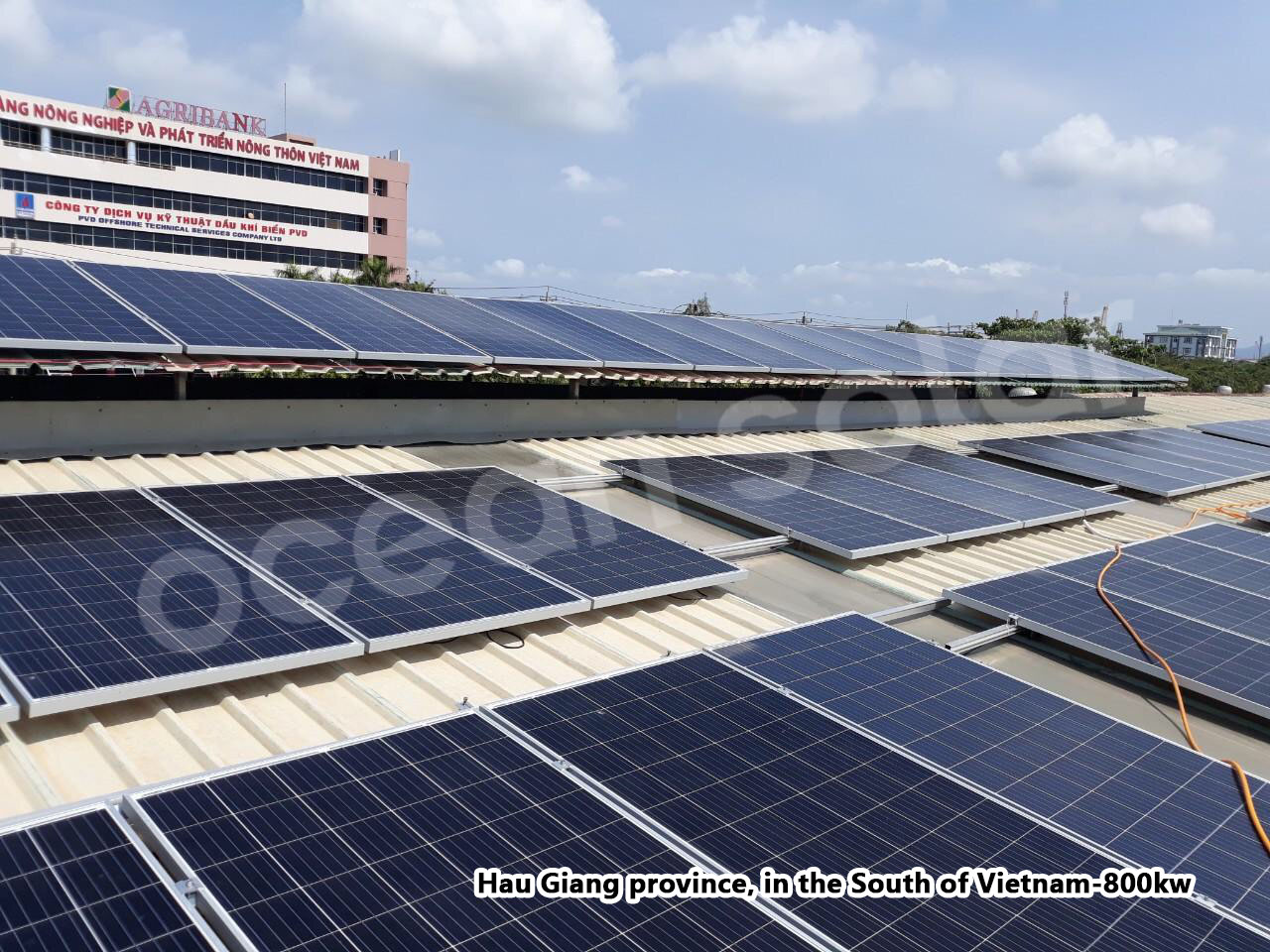

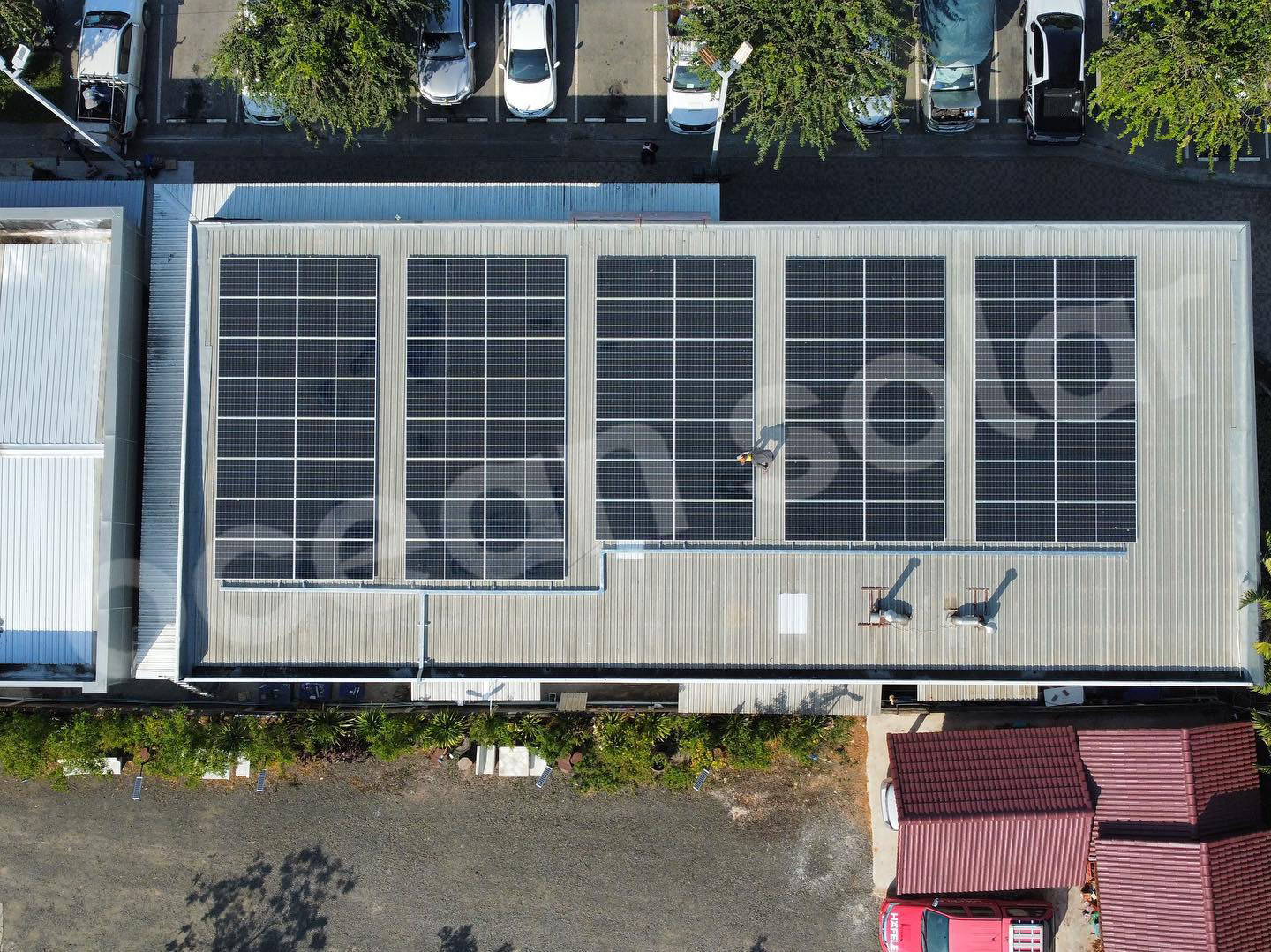

High-power G12R monofacial modules are suitable for projects where front-side solar irradiation is the primary source of energy generation and maximizing installed wattage per module is important. Typical applications include commercial and industrial rooftops, utility-scale ground-mounted PV plants, solar farms, agricultural PV projects and other large solar installations.

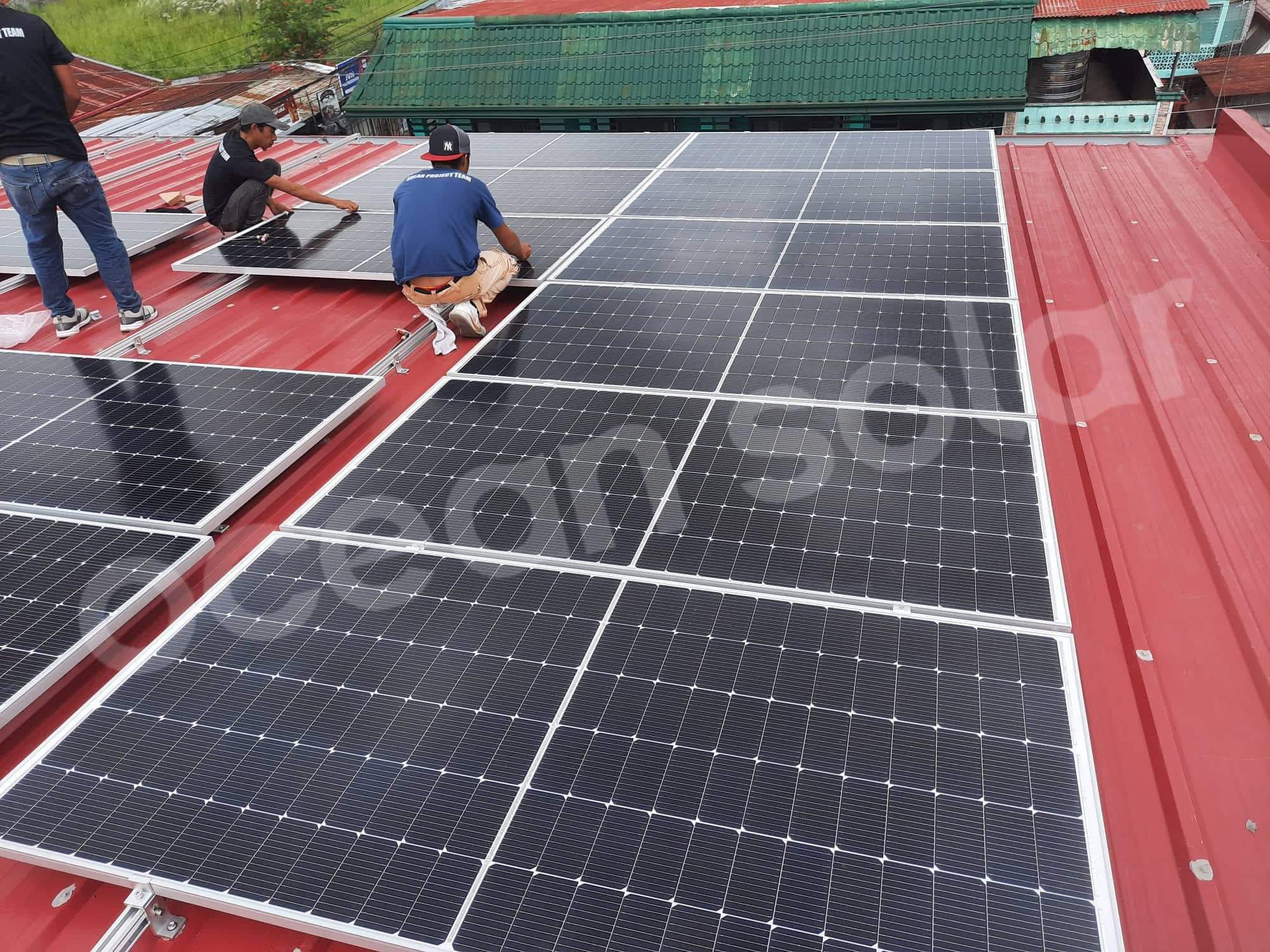

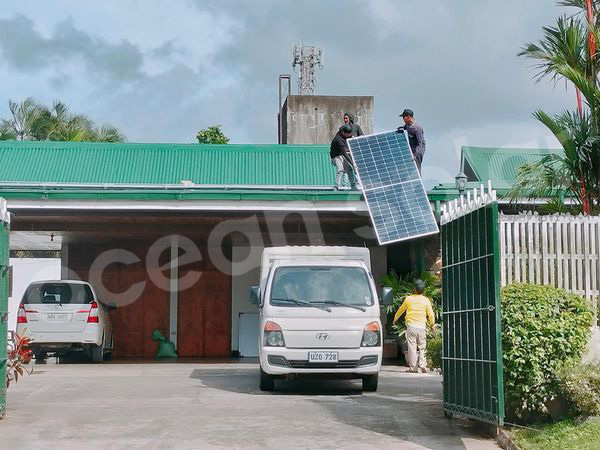

For rooftop applications, designers should verify roof dimensions, module handling requirements, structural loading, inverter current compatibility and local installation regulations before determining the final system layout.

Monofacial vs. Bifacial Solar Panels

A monofacial solar panel is designed primarily to generate electricity from sunlight reaching the front surface. The AOX-132G12RHC uses a white backsheet and is suitable for installations where rear-side irradiance contributes little additional energy.

Bifacial modules can generate additional power from reflected light reaching the rear side when they are installed above reflective or unobstructed surfaces. Monofacial modules can therefore be a practical option for conventional rooftops and other applications where rear-side solar gain is limited or unnecessary.

Solar Panel Manufacturing and Quality Control

Ocean Solar uses automated module production processes covering cell interconnection, string layout, bussing, EL inspection, lamination, framing, curing, electrical testing and final packaging. Multiple inspection stages are used to identify cell and module defects before shipment.

1. High-speed SMBB PV cell soldering

2. Automatic PV cell string layup

3. Automatic bussing

4. PV cell string positioning

5. EL electroluminescence testing

6. Automatic edge sealing

7. Solar module lamination

8. Automatic edge trimming

9. Visual inspection

10. Automatic frame installation

11. Automatic glue dispensing

12. Silicone curing

13. Visual inspection and cleaning

14. Power testing

15. Final EL testing

16. Packaging

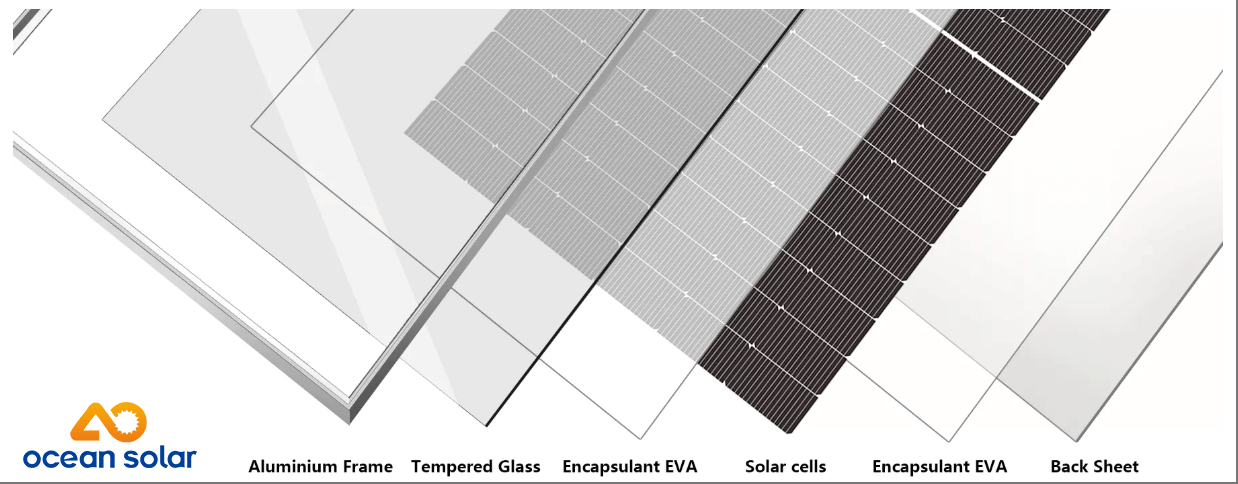

G12R Monofacial Solar Panel Structure

Key module components include N-type TOPCon half-cut cells, high-transmission tempered front glass, EVA encapsulation, a white backsheet, anodized aluminum frame, IP68 junction box, bypass diodes, PV cable and compatible solar connectors. Material selection and process control are important for electrical safety, mechanical strength and long-term outdoor performance.

OEM Solar Panel Manufacturing and Customization

Ocean Solar provides OEM services for distributors, solar brands, EPC contractors and project customers. Available customization can include product labeling, brand logo, packaging design, cable length, connectors and documentation according to confirmed technical specifications and project requirements.

Customers requiring alternative module formats can also discuss different power ranges, black-frame or full-black designs, bifacial modules, double-glass structures and other solar panel configurations with the Ocean Solar team.

Packaging, Container Loading and Global Delivery

The standard AOX-132G12RHC module weighs approximately 29kg and measures 2382 × 1134 × 30mm. Current packaging specifications indicate up to 740 modules per 40HQ container. Final loading quantity, packaging configuration, trade terms and delivery schedule should be confirmed in the commercial quotation.

Other Monofacial Solar Panel Power Options

In addition to the G12R 620W-650W monofacial series, Ocean Solar provides other module power ranges for different rooftop, commercial and utility-scale PV system requirements.

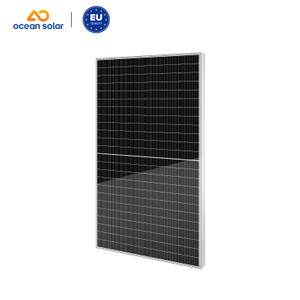

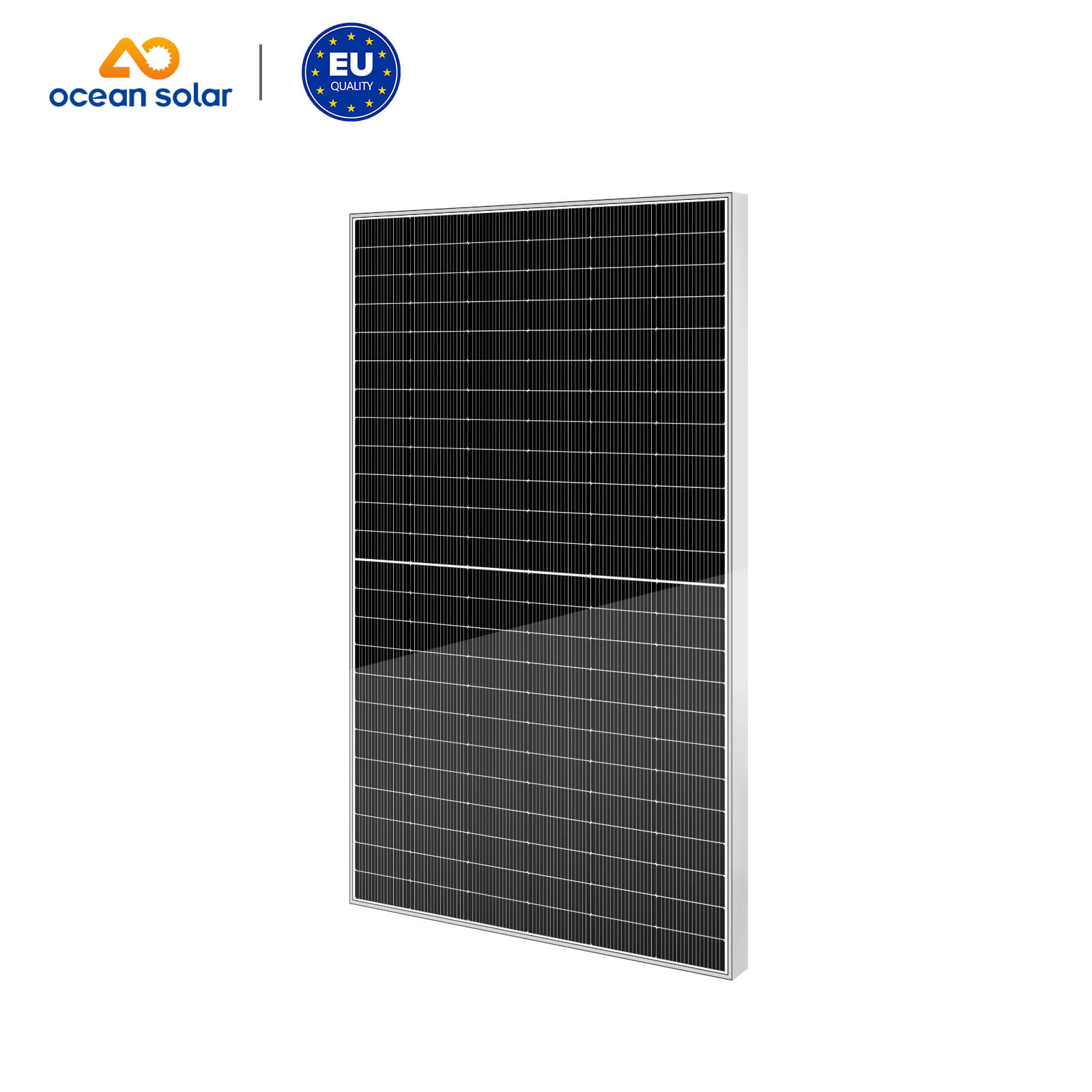

430W-460W Monofacial Solar Panel

                                   Download PDF

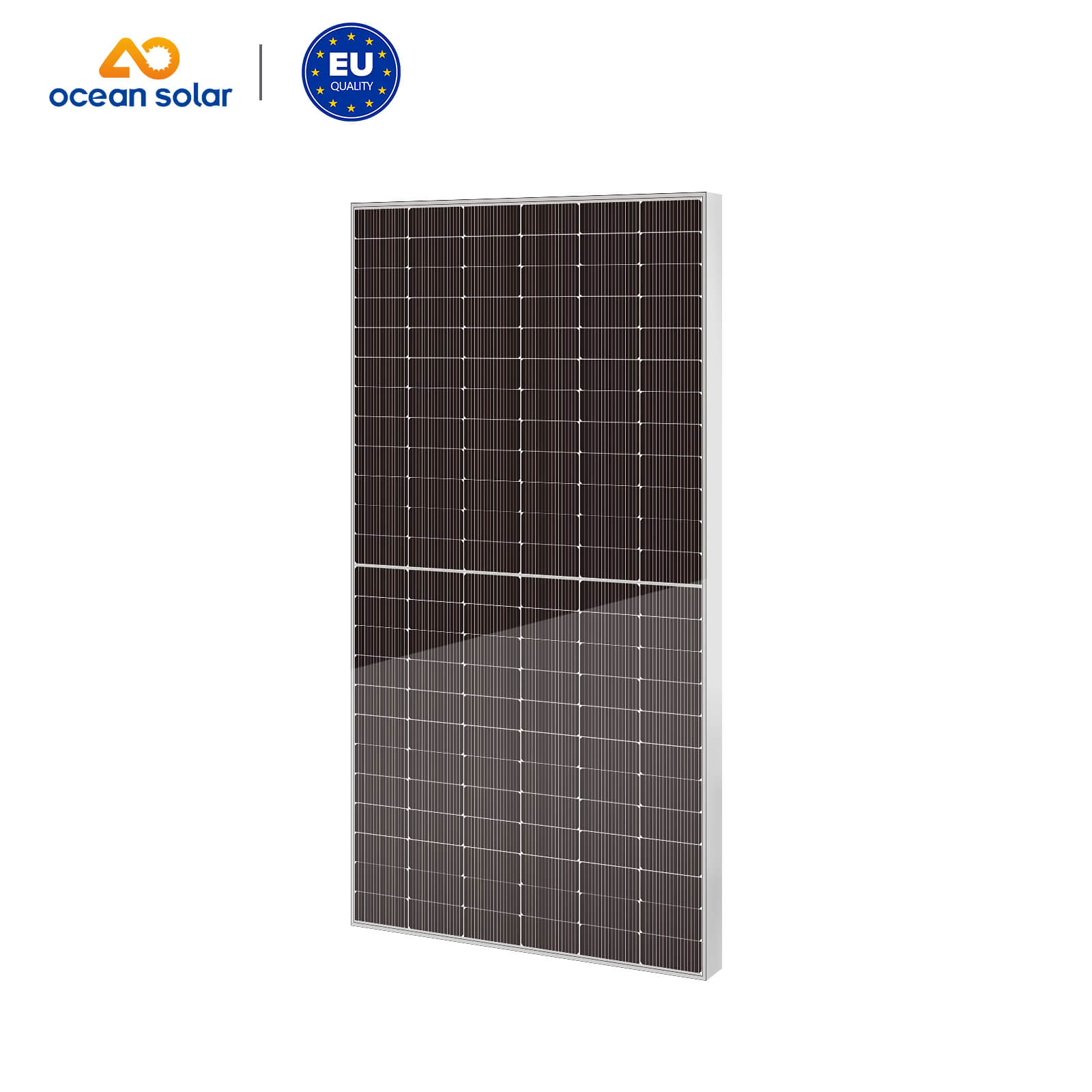

580W-615W Monofacial Solar Panel

                                   Download PDF

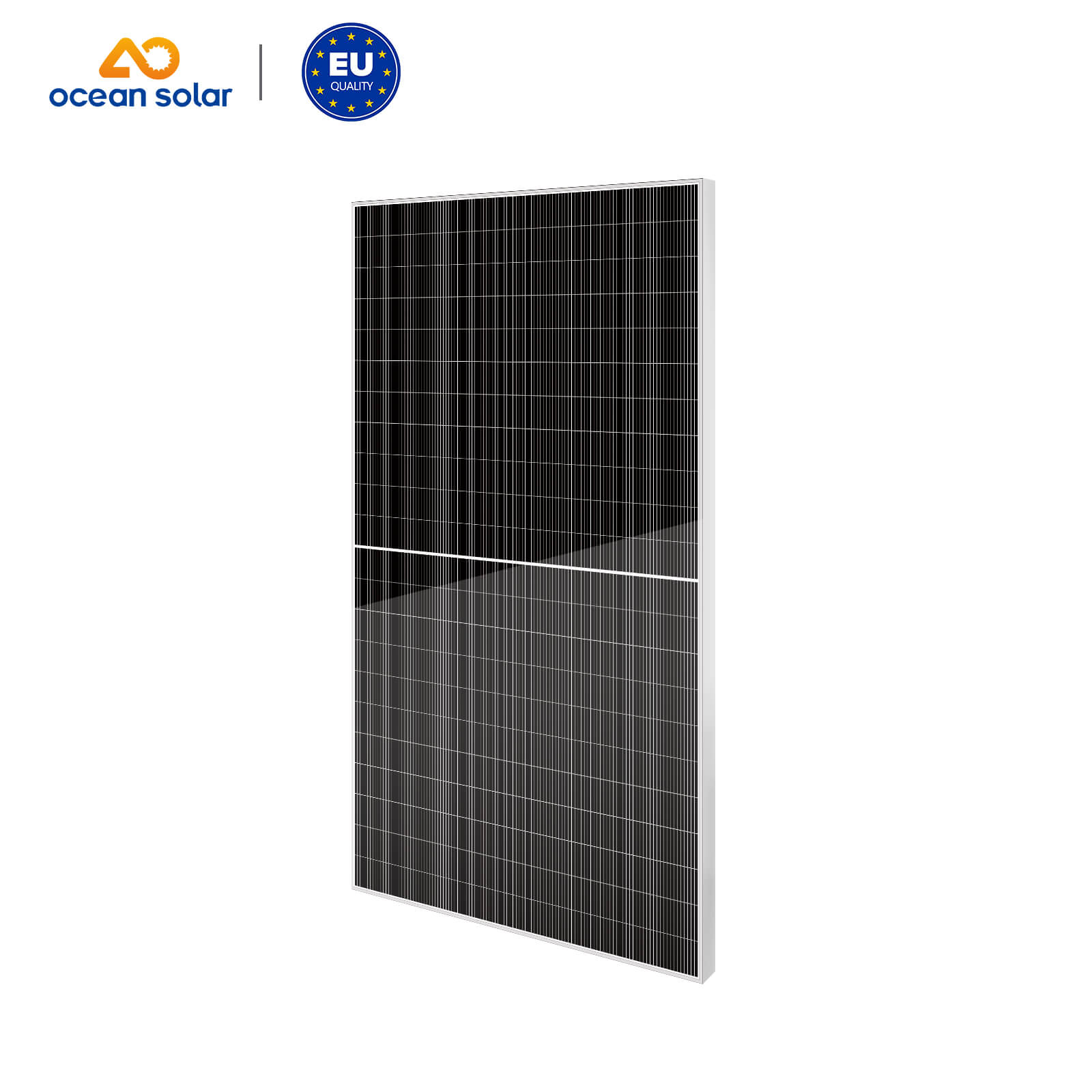

700W-750W Monofacial Solar Panel

                                   Download PDF

Frequently Asked Questions About G12R 620W-650W Monofacial Solar Panels

What is a G12R 620W-650W monofacial solar panel?

It is a high-power photovoltaic module based on the G12R cell format and N-type TOPCon technology. The Ocean Solar AOX-132G12RHC series uses 132 half-cut cells and is available from 620W to 650W.

What is the maximum efficiency of the 650W solar panel?

The 650W AOX-132G12RHC model has a specified module efficiency of up to 24.10% under Standard Test Conditions.

What is the difference between monofacial and bifacial solar panels?

Monofacial solar panels generate electricity primarily from sunlight reaching the front surface. Bifacial modules can also convert reflected light reaching the rear surface into electricity. Monofacial modules are often suitable for conventional rooftop and ground-mounted systems where rear-side irradiation is limited.

What type of solar cells are used in the AOX-132G12RHC?

The module uses 132 N-type TOPCon half-cut solar cells combined with SMBB interconnection technology.

What is the temperature coefficient of the 620W-650W solar panel?

The temperature coefficient of Pmax is -0.30%/°C, the Voc temperature coefficient is -0.24%/°C and the Isc temperature coefficient is +0.04%/°C.

What is the maximum system voltage?

The AOX-132G12RHC supports a maximum system voltage of 1500VDC according to its IEC specification. PV string design must also remain within the inverter's maximum DC voltage, MPPT range and current limits.

What wind and snow loads can the module withstand?

The specified mechanical loading is up to 5400Pa for snow load and 2400Pa for wind load when the module is installed according to approved mounting requirements.

What warranty does Ocean Solar provide for this module?

The AOX-132G12RHC is specified with a 12-year warranty for materials and processing and a 30-year warranty for extra linear power output.

Is the 620W-650W module suitable for commercial rooftops?

Yes. Its high power and efficiency make it suitable for many commercial and industrial rooftop projects, provided the roof structure, module dimensions, mounting system and inverter electrical specifications are compatible with the module.

Can Ocean Solar provide OEM solar panels?

Yes. OEM options can include branding, labeling, packaging, cable specifications, connectors and other agreed module configurations. Technical feasibility and certification requirements should be confirmed before mass production.

How many 620W-650W solar panels can be loaded in a 40HQ container?

The current AOX-132G12RHC datasheet specifies approximately 740 modules per 40HQ container. Final loading quantity should be confirmed before shipment because packaging configurations may change.
