English
 |

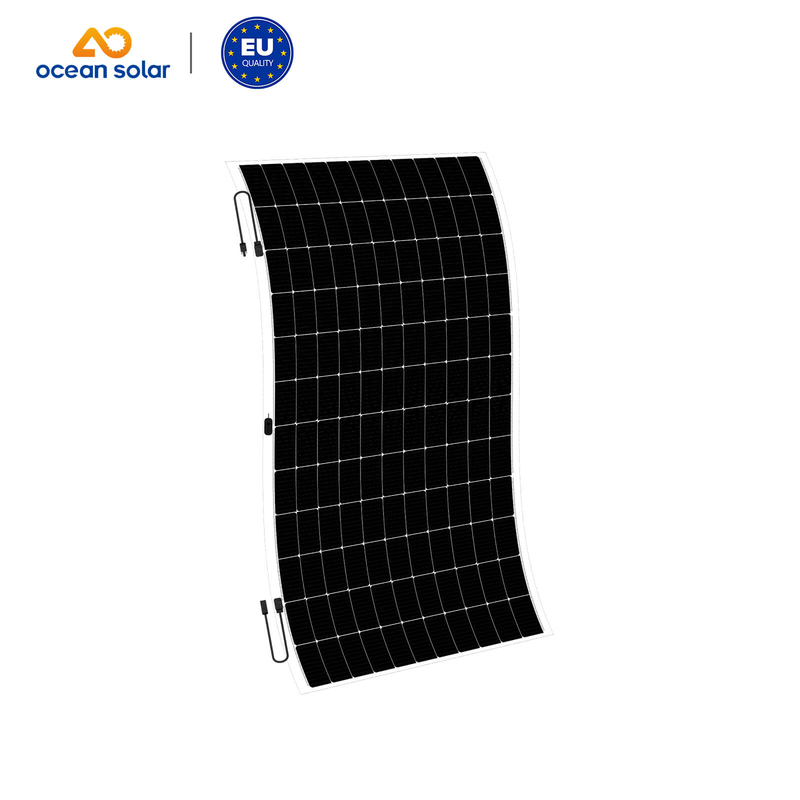

132M10FL 465W-485W
Ocean Solar
P type Mono-crystalline 182*91mm
PERC Technology, 132
1500VDC(IEC)
465W-485W
2246m x 1092mm x 2.5mm
7.4Kg
12years
70pcs/pallets,1400pcs/40HQ Container
Wholesale
Product Description
The mono 465W-485W-flexible solar panel adopts PERC technology and offers extremely low energy levelized cost of energy (LCOE). Flexible solar panel has the advantages of lightweight,resin-fiber strength improvement,self-developed polymer materials,easy to install,V0 rated flame flame retardant materials.
The advantages of PERC technology：
The efficiency is significantly improved
The cost advantage is prominent
Strong performance stability
Good process compatibility
Mature market application
2. Stable operation of mono 465W-485W-flexible solar panel
Whether it is the long and harsh winter in high-latitude regions, the heavy rainfall season on tropical islands, or the sandstorm challenges in the Gobi desert, our mono 465W-485W-flexible solar panels always maintain a stable operating state. Verified by numerous project implementations: in the extremely cold northern regions, the anti-freezing design of the panel ensures no structural damage in low-temperature environments; in the coastal areas with high salt spray, the special protection process can effectively delay the erosion of the environment on the panel; in the areas with frequent sandstorms, the self-cleaning surface can reduce the impact of natural sediment adhesion - these weather-resistant performances based on real application scenarios have passed the environmental adaptability certification by third-party institutions.
The mono 465W-485W-flexible meets the IEC 61730 double insulation protection standard, built-in over-temperature protection device, effectively avoids hot spot effect, and ensures long-term safe operation of the system.
The mono 465W-485W-flexible solar panel selected A+ grade monocrystalline silicon wafers, matched with high transmittance material (transmittance>=91%) and anti-aging EVA film, passed 1000 hours of wet heat (85℃/85% RH) and 200 hot and cold cycles (-40℃~+85℃) tests, and the mechanical fatigue life was increased by 30%.
Year guarantee:The mono 465W-485W-flexible solar panel provide 12-year product warranty, and the output power in the 25th year is ≥85% of the nominal value, which is far higher than the industry average.
Production video inspection:The mono 465W-485W-flexible solar panel support real-time factory inspection live broadcast, visualize the entire process from silicon wafer cutting to component packaging, equipped with AI quality inspection system, and the rejection rate of defective products is>99.99%.
Subsequent guarantee: 7×24-hour global technical response, free operation and maintenance training and remote monitoring system docking services, rapid replacement of faulty components during the warranty period, reducing customer operation and maintenance costs.
Professional test report:This single-glass, single-sided solar panel with a power output ranging from 465W to 485W has passed multiple product certifications, such as TUV, UL, CE, etc. It also provides an ISO 9001、14851、45001 quality system report.
Module | AOX-132M10FL |
Power range | 465W-485W |
Efficiency range | 18.96%-19.77% |
No. of cells | 12*11（132） |
Dimension | 2246*1092*2.5mm |
Weight | 7.4Kg |
Packaging | 70pcs/pallets,1400pcs/40HQ Container |
Product Warranty | 12Years |
Operational Temperature | -40~+85°C |
Maximum System Voltage | 1500VDC(IEC) |
| Nominal operational Cell Temperature | 45±2°C |
FL-465W-485W.pdfIf you purchase the mono 465W-485W-flexible solar panels from Ocean Solar. We provide one-stop full cycle service to protect your products.Not only that,we offer a variety of customizable modes, enabling it to be applied efficiently in different situations.
Our solar panels include mono 465W-485W - flexible type have been exported to 30+ countries, covering major photovoltaic markets such as Europe, Southeast Asia, the Middle East with a cumulative installed capacity of more than 10GW.Because of its excellent cost-effectiveness, it has been recognized as a reliable distributor and agent by all major partners.
In order to protect the interests of customers, Ocean Solar has complete procedures and regional certifications.
Ocean Solar sincerely recruit global regional agents and provide all-round cooperation solutions such as exclusive authorization, gradient pricing, advertising subsidies, and technical support. For agent orders, we prioritize production plans, provide customized product manuals and exhibition materials, and help quickly expand the local market.
Mono 465W-485W-flexible solar panels deliver significant cost - savings throughout production. By cutting down on labor expenses and minimizing material waste.The cost of the integrated balancing system (BOS) has been significantly reduced. It supports LCOE full-cycle cost calculation, helping customers to maximize the benefits of photovoltaic projects. Ocean Solar presents a shrewd investment opportunity that bolsters your business's bottom line.
The mono 465W-485W-flexible solar panels can offer flexible and diverse delivery methods according to customer requirements, including but not limited to factory pick-up (EXW), offshore port delivery (FOB), import transportation (CIF), and full-process tax and customs clearance coverage (DDP). At the same time, they support phased delivery based on project progress or customized logistics solutions (such as full-container shipping, bulk cargo consolidation, and emergency air transportation, etc.). Some suppliers can also achieve "product + construction" integrated delivery by combining installation and commissioning services, ensuring efficient coordination throughout the entire chain from transportation, customs clearance to final delivery, and fully meeting the personalized needs of different markets and customers of various scales.
The mono 465W-485W-flexible solar panel of minimum order quantity (MOQ) 20GP, The delivery time for regular orders is 7 to 14 working days after the deposit is received.If there are any urgent orders, we can negotiate to expedite the production process.
The transportation plan for mono 465W-485W-flexible solar panels usually involves full-process professional management, including customizing logistics solutions (such as optimizing multimodal transport routes, reinforcing packaging for moisture and shock protection, etc.) before transportation based on the characteristics of the goods and the destination environment; during transportation, real-time tracking of the goods' location and temperature/humidity status is carried out through IoT technology, and emergency plans are configured to deal with sudden weather conditions or customs clearance delays; at the same time, suppliers often collaborate with global leading logistics companies, customs clearance agents, and local warehousing service providers to ensure efficient connection from factory to terminal. Some enterprises can also provide transportation insurance or segmental delivery according to customer needs, taking into account transportation safety, timeliness, and cost controllability, and adapting to the complex transportation conditions of different regional markets.
1. Super High Speed SMBB (Shingled Mini-Busbar) PV Cell Soldering
2. PV Cell Automatic String Layup
3. PV Cell Automatic Bussing
4. PV Cell String Positioning
5. EL Testing (Electroluminescence Testing)
6. Automatic Solar Module Laminator
7. Automatic Edge Trimming
8. Visual Inspection
9. Automatic Glue Dispensing
10. Solar Silicone Curing (24 Hours)
11. Visual Inspection & Cleaning
12. Power Testing
13. Final EL Testing
14. Packaging
(II)The structure of mono 465W-485W-flexible solar panel
The quality of our solar panels is guaranteed by the reliability of the supply chain, brand strength and quality control. At the supply chain end, we collaborate with top global suppliers such as Trina Solar, Ja Solar, Jinko Solar, Aiko Solar,TW Solar,First Solar Sveck and CNBM, purchasing high-purity monocrystalline silicon cells, weather-resistant EVA, etc., to lay a solid foundation for quality from the source; at the same time, we establish a strict control system to conduct multi-dimensional testing on key indicators such as conversion efficiency and bonding strength of each batch of raw materials, and impose quality agreements on suppliers to ensure the quality of raw materials throughout the entire chain.
(III)Large-scale production and quality control of mono 465W-485W-flexible solar panel
The structure of solar panels is linked with the first-tier supply chain: the upstream supplies silicon materials for making solar cells,other protective encapsulation materials and other supporting components; the midstream welds and assembles the solar cells, and laminates and encapsulates them into modules; the downstream integrates them with brackets, inverters and other components based on application scenarios. Each link works in coordination to ensure production and application.
The mono 465W-485W-flexible solar panel has a 1.5GW intelligent production line, adopts MES system full process traceability,supports annual stable supply, and has self-developed and self-produced capabilities for silicon wafers and battery cells, effectively resisting upstream price fluctuations.
The mono 465W-485W-flexible solar panel has passed quality management certification. Each component has undergone EL defect detection, IV electrical performance test, and mechanical load test. The factory qualified rate is 100%.
Our expert technicians will ensure the proper installation and setup of your mono 465W-485W-flexible solar panels. We provide comprehensive training for your staff to operate the equipment efficiently and safely.
Ocean solar provides 24/7 technical assistance to solve all questions and problems you might face while operating your mono 465W-485W-flexible solar panels. Simply reach out via phone or email, and our dedicated team will promptly offer support.
To ensure your mono 465W-485W-flexible solar panel function at their best, consistent maintenance is crucial.Ocean solar provides preventive maintenance plans designed to prolong the lifespan of your equipment and reduce unforeseen interruptions in service.
Should your requirements shift or your production process advance, Ocean solar is ready to offer tailored solutions, designing your solar panels equipment to perfectly match your new specifications.
The mono 465W-485W-flexible solar panel supports 182mm/210mm silicon wafer size, and can customize component size and voltage specifications , adapting to different inverters and bracket systems.
In addition to the monocrystalline silicon 465W - 485W flexible solar panels,there are also bifacial and monofacial solar panels available for selection. the customizable power range of Ocean Solar's solar panels is also very flexible (generally ranging from 10W to 750W), offering options such as full black / black frame, double glass, transparent backsheet, reduction of reflective coatings, etc., to meet various application scenarios and the personalized needs of building-integrated photovoltaics (BIPV).
We undertake brand customization production, providing services such as LOGO design, packaging design, and certification adaptation (such as adding local language explanations), and offering a complete process of OEM solutions from R&D prototyping to mass production.
We offer regional exclusive brand licensing services: Based on market research and in accordance with the cooperation requirements of both parties, an exclusive agreement is signed to strictly control the brand output within the region, prevent competition among peers, help partners quickly establish regional brand barriers, and achieve a win-win situation of market share and brand value.
Ocean Solar, as one high-tech enterprise focusing on the production of high-efficiency monocrystalline solar modules,which serves domestic and oversea installers, distributors and factories engaged in off-grid and on-grid solar energy systems.We were established in 2012, committed to the production of solar panels for more than 10 years, mature production technology, professional R & D team.To provide customers with high-quality, safe, reliable and competitive price solar panels, has always been our mission and goal.
Expertise and Experience
Cutting-Edge Technology
Distinctiveness and Customization
Reliability and Stability
Environmental and Sustainable Focus
Reliability and Stability
Personalized Support
Cost-Effective Solutions
The solar panels of Ocean Solar have been applied in over 30+countries, including Germany, Sweden, Dubai,Vietnam, the Philippines, Thailand, South Africa, Iraq, Lebanon, etc.Our products offer excellent value for money and have been unanimously recognized by all major distributors and agents.
Ⅵ:FAQ of mono 465W-485W-flexible solar panel
Q1:What is the warranty period for mono 465W-485W flexible solar panels, and how many years of efficient power generation can be guaranteed?
A1: The mono 465W-485W flexible solar panels of warranty for materials and processing is 12 years. The warranty period for extra linear power output is 30 years.
Q2: How should I choose the solar panels that suit me?flexible or bifacial?
A2: Bifacial components cost slightly more than flexible ones, but generate higher power when the backside is unobstructed, as reflected light boosts output. Their bifacial encapsulation also better resists water vapor and salt fog. Monofacial components suit mountainous areas and rooftop distributed power systems.In addition, you can also choose flexible components are lighter and more portable than traditional panels, cutting transport and installation costs for wider applications.
Q3: What application scenarios is this flexible solar energy suitable for?
A3: This flexible solar panel is frameless, lighter, easier to carry, has high space utilization rate, good disaster resistance, and is generally suitable for installation in households and small projects. However, the type of solar panels suitable for different scenarios needs to be determined based on a comprehensive assessment. If you want to know more, you can contact our company directly. We will provide you with professional answers.We also offer product customization services.
