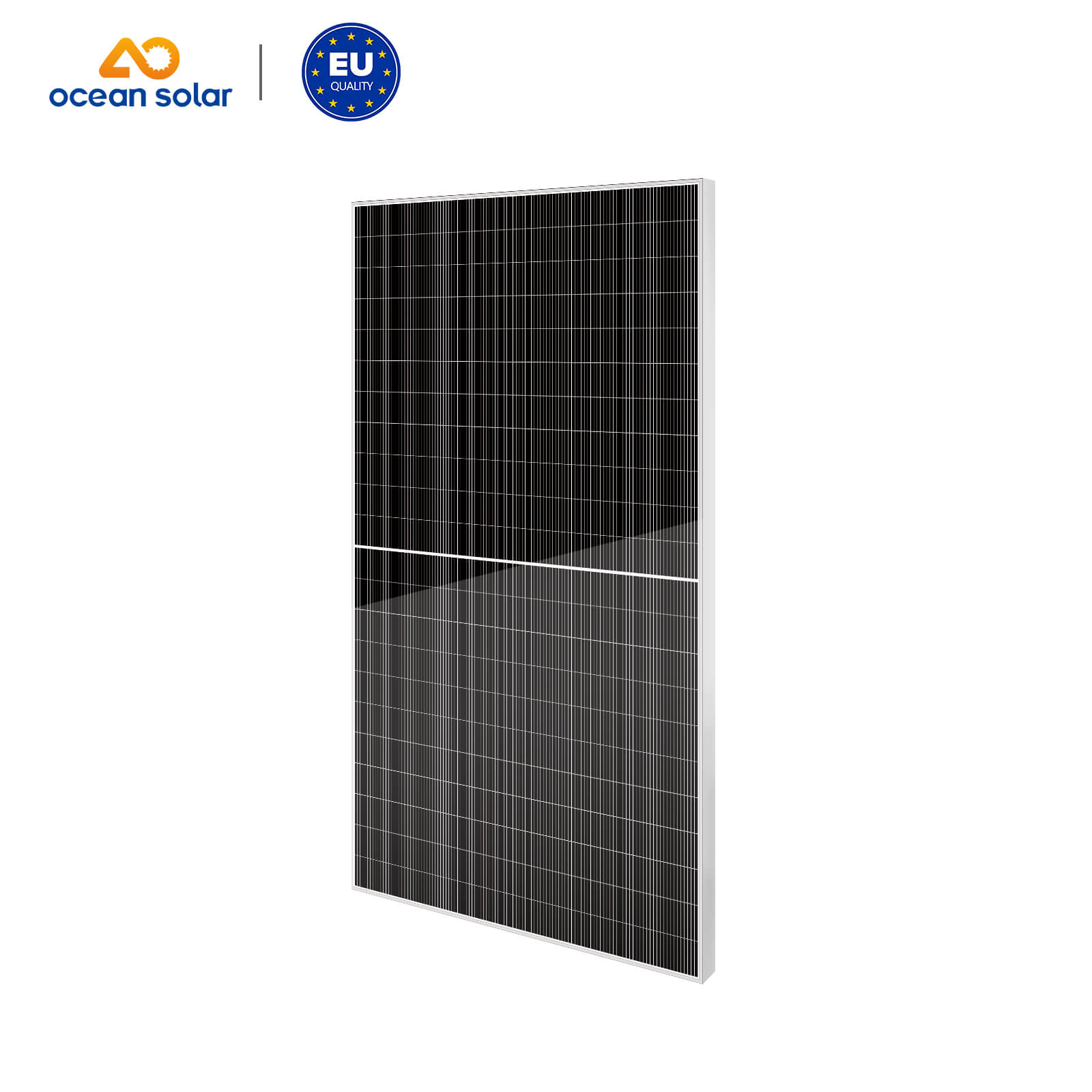

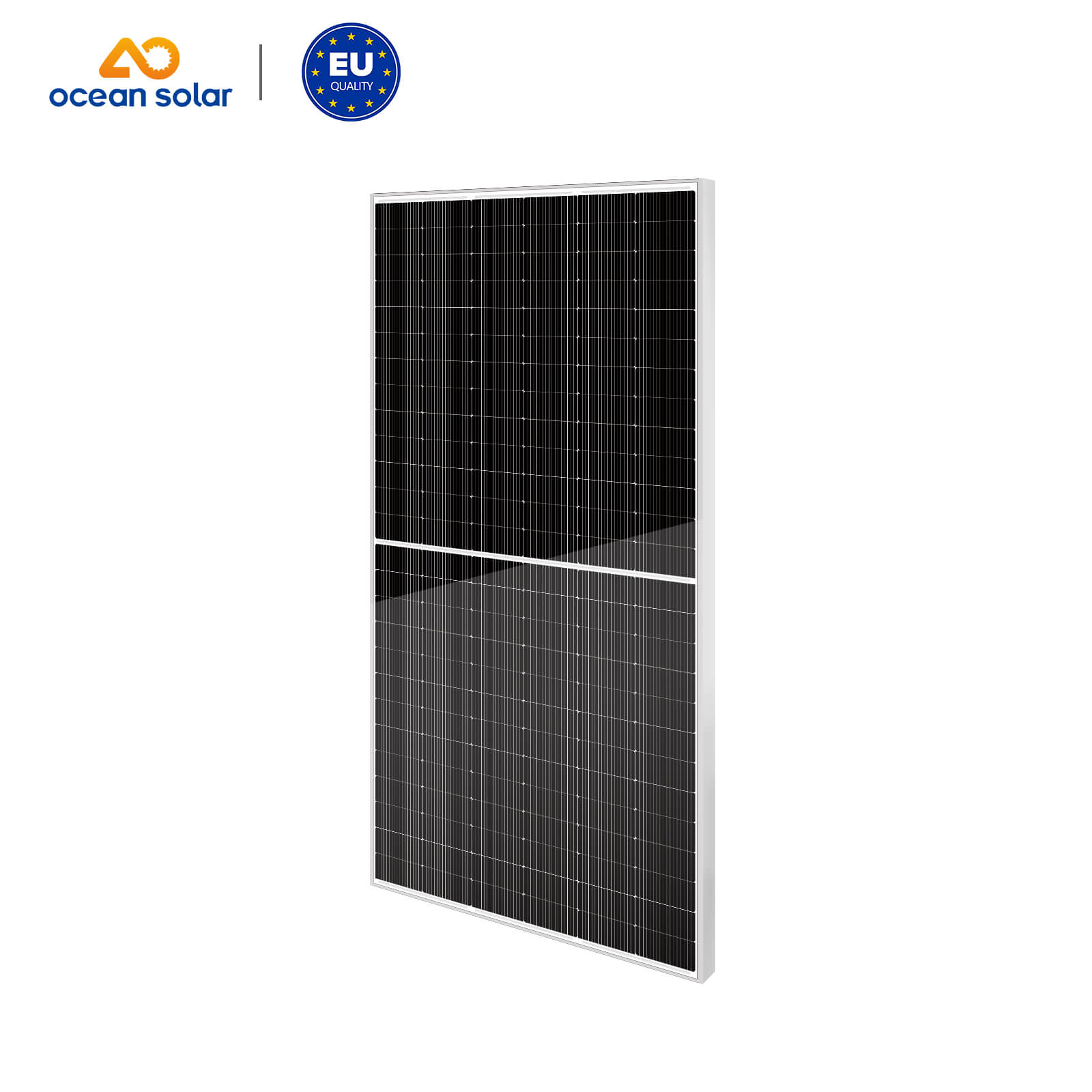

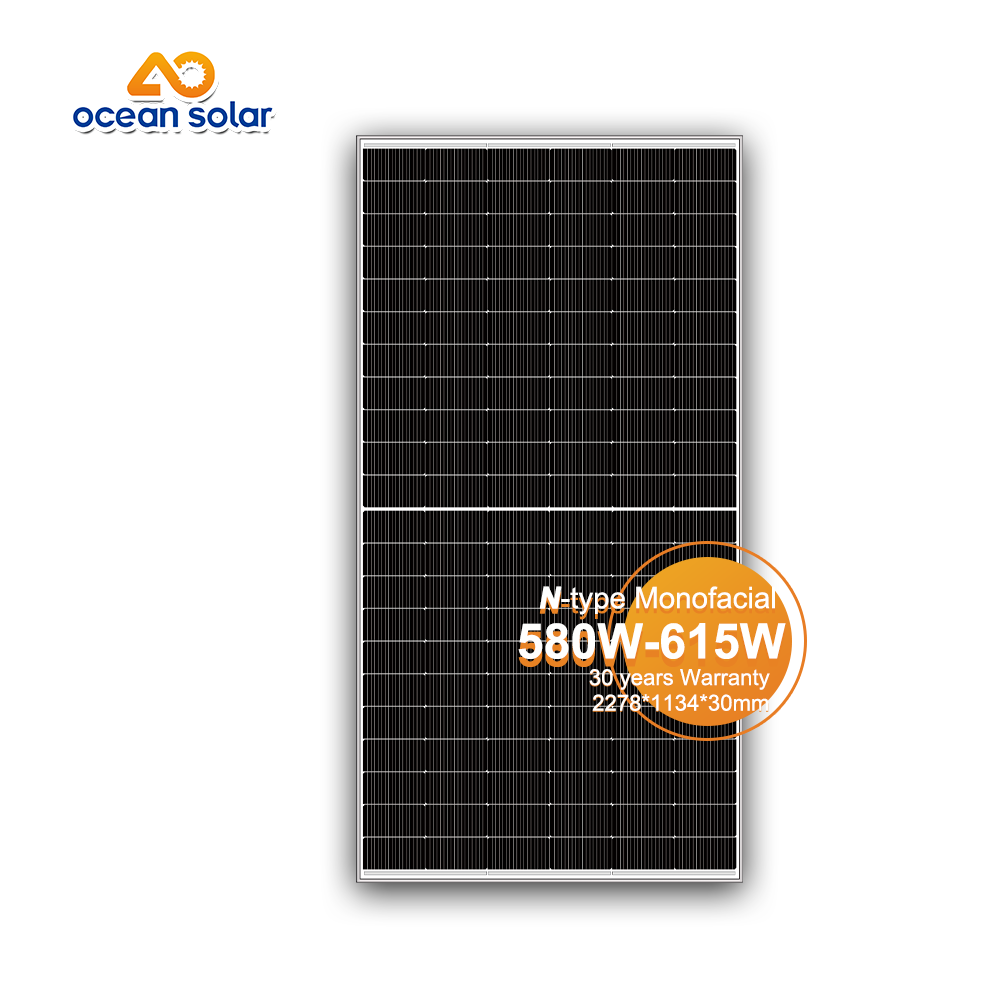

M10 Mono 580W-615W-Monofacial solar panel

580W-615W N-Type TOPCon Monofacial Solar Panel

Ocean Solar AOX-72M10HC is a 580W-615W N-type TOPCon monofacial solar panel designed for commercial and industrial rooftops, distributed photovoltaic systems and selected ground-mounted solar projects. The series combines 144 half-cut cells, SMBB interconnection technology and a single-glass monofacial module architecture in a 2278 × 1134 × 30mm format.

Available from 580W to 615W, the highest-power model reaches up to 23.80% module efficiency. At approximately 28kg per module, the monofacial design provides a lower module weight than comparable dual-glass configurations, making it particularly relevant to rooftop projects where structural loading, handling and installation efficiency are important.

The module supports a maximum system voltage of 1500VDC, operates from -40°C to +85°C and is specified for mechanical loading up to 5400Pa for snow and 2400Pa for wind. These characteristics make the series suitable for distributors, installers, EPC contractors and project developers requiring high-output 600W-class monofacial photovoltaic modules.

           Request a Quote

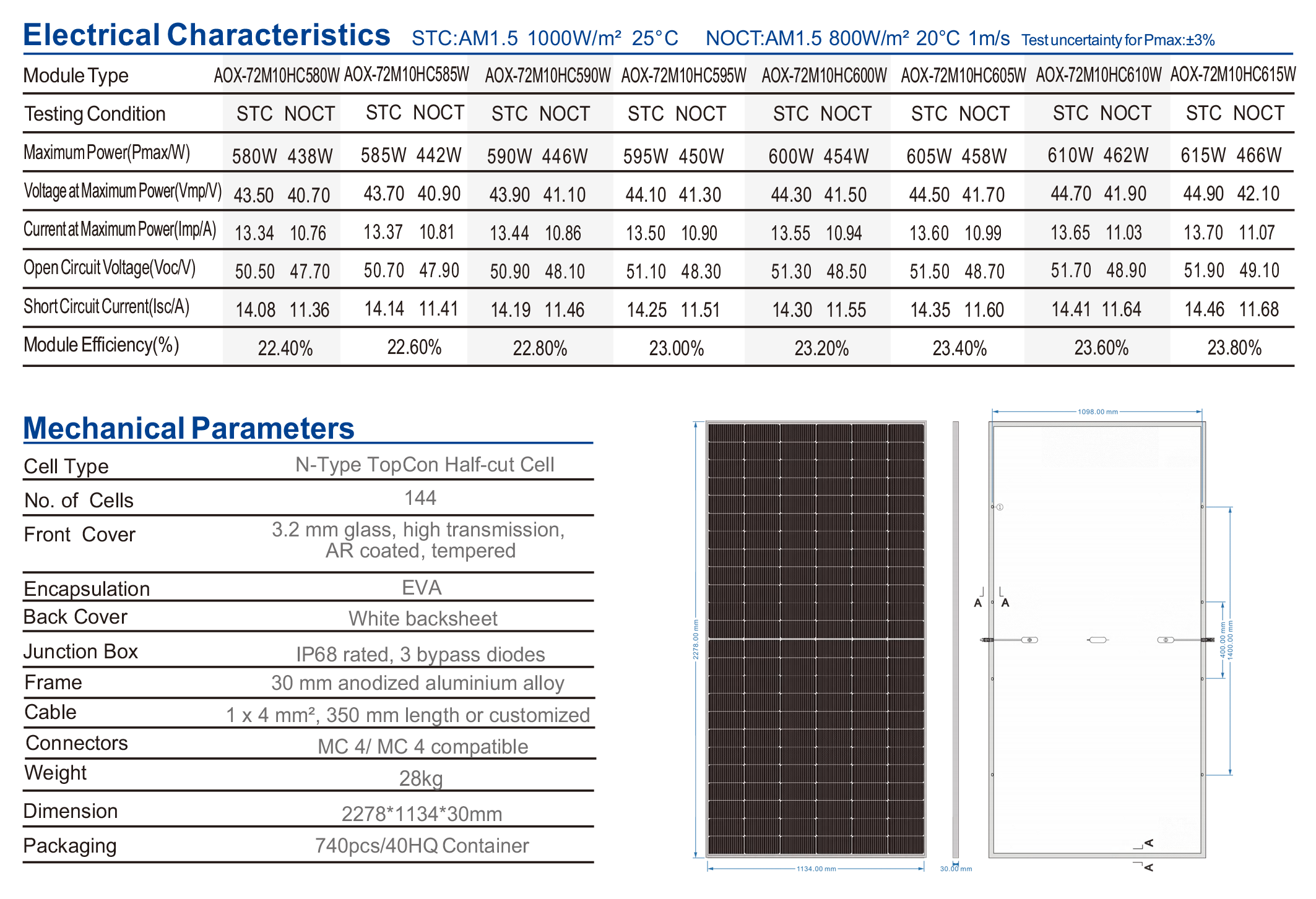

AOX-72M10HC Key Specifications

Why Choose a 580W-615W N-Type TOPCon Monofacial Module?

Up to 615W Front-Side Power

The AOX-72M10HC series covers power classes from 580W to 615W, allowing project developers to select module output according to system capacity, inverter design, available installation area and project budget.

The 615W version reaches up to 23.80% module efficiency, supporting higher installed DC capacity within a given module area compared with lower-efficiency modules of a similar footprint.

28kg Single-Glass Monofacial Design

At approximately 28kg, the module is suitable for projects where module weight affects roof structural calculations, installation handling and mounting-system design.

For rooftop applications where the rear side of the module receives little useful reflected sunlight, a monofacial module can provide a practical alternative to a heavier bifacial dual-glass configuration.

144 N-Type TOPCon Half Cells

The module uses 144 N-type TOPCon half cells in a 6 × 24 layout. The half-cell architecture helps reduce current-related electrical losses, while TOPCon passivated-contact technology supports high photovoltaic conversion efficiency.

SMBB Interconnection Technology

SMBB interconnection technology is used during module production to support efficient current collection and photovoltaic cell interconnection. The design complements the N-type TOPCon half-cell architecture used in the AOX-72M10HC series.

Designed for Commercial and Industrial Rooftops

The 2278 × 1134mm module format and approximately 28kg module weight make the AOX-72M10HC suitable for many commercial and industrial rooftop photovoltaic systems where module power density and roof loading must be considered together.

For factories, warehouses, logistics buildings and other large roofs, higher module power can reduce the total number of modules required for a given installed capacity compared with lower-wattage modules. Final system design should still consider roof geometry, structural capacity, mounting layout, access paths and local wind and snow conditions.

           Discuss Your Rooftop Project

Monofacial or Bifacial Solar Panel: Which Should You Choose?

1500VDC System Design

The AOX-72M10HC supports a maximum system voltage of 1500VDC according to the stated IEC specification. This makes the module suitable for appropriately designed commercial and large-scale photovoltaic strings.

Final string length should be calculated using the module open-circuit voltage from the applicable datasheet, the minimum expected project temperature, inverter maximum DC voltage, MPPT operating range and local electrical requirements.

Installers should also verify module operating current, short-circuit current and the inverter's permitted input-current limits before finalizing the array configuration.

           Check Module and Inverter Compatibility

Mechanical Load Performance

Up to 5400Pa Snow Load

The module specification states a snow-load capability of up to 5400Pa, equivalent to approximately 550kg/m². Actual structural suitability depends on module mounting positions, support structure and project-specific design requirements.

Up to 2400Pa Wind Load

Wind-load performance is specified up to 2400Pa. Mounting-system selection should account for the module dimensions, frame design, local wind conditions and required structural safety factors.

-40°C to +85°C Operating Range

The specified module operating-temperature range is -40°C to +85°C, supporting photovoltaic projects across a wide range of climate conditions when the module is installed according to the applicable requirements.

Typical Applications

Commercial and Industrial Rooftops

High power density and the approximately 28kg module weight make the series relevant to warehouses, factories, logistics buildings and other large rooftop photovoltaic installations.

Distributed Solar Projects

The AOX-72M10HC can be used in distributed photovoltaic systems where installers require 580W-615W module power together with a conventional monofacial configuration.

Ground-Mounted Photovoltaic Systems

The 1500VDC system rating and 600W-class module output also allow the product to be evaluated for compatible ground-mounted photovoltaic projects where rear-side generation is not a primary design requirement.

Solar Module Manufacturing and Quality Control

Ocean Solar's module production process covers photovoltaic cell interconnection, automatic string layup, bussing, EL inspection, lamination, frame installation, electrical testing and final packaging.

EL electroluminescence testing and power testing are included in the production process to identify cell cracks, electrical abnormalities and assembly issues before finished modules are packed for shipment.

1. SMBB PV cell soldering

2. Automatic PV cell string layup

3. Automatic bussing

4. PV cell string positioning

5. EL electroluminescence testing

6. Automatic edge sealing

7. Solar module lamination

8. Automatic edge trimming

9. Visual inspection

10. Automatic solar panel frame installation

11. Automatic glue dispensing

12. Silicone curing

13. Visual inspection and cleaning

14. Power testing

15. Final EL testing

16. Packaging

Monofacial Solar Panel Structure

The AOX-72M10HC uses a conventional monofacial module structure designed to convert solar irradiance received primarily from the front surface. The module combines N-type TOPCon half cells, protective encapsulation, front glass and an aluminum frame in a single-glass configuration.

12-Year Product Warranty and 30-Year Linear Power Warranty

Ocean Solar specifies a 12-year warranty for materials and processing together with a 30-year extra linear power output warranty for the 580W-615W monofacial module series.

Product warranty and power-output warranty are separate terms. Buyers should refer to the applicable written warranty document for detailed coverage conditions, exclusions and warranted power-retention values.

Packaging and International Delivery

The AOX-72M10HC measures 2278 × 1134 × 30mm and weighs approximately 28kg. The current packing specification indicates approximately 740 modules per 40HQ container.

Final pallet configuration, loading quantity, delivery schedule and trade terms should be confirmed with the commercial quotation because packaging requirements may vary by order and destination.

OEM and Project Customization

Ocean Solar supports OEM and project-based cooperation for solar distributors, importers, installers, EPC companies and photovoltaic brands.

Customization can include product labels, branding, packaging, documentation and selected module configurations subject to technical feasibility and the certification requirements of the destination market.

Customers requiring different power ranges can also discuss monofacial, bifacial, full-black and flexible photovoltaic module configurations.

           Request OEM Information

Product Documentation

Project buyers should confirm that the latest technical datasheet, warranty document and applicable certificates correspond to the exact module version and destination-market requirements before project approval or tender submission.

                   Download MONO 580W-615W Monofacial Solar Panel Datasheet

Frequently Asked Questions About 580W-615W Monofacial Solar Panels

What is the power range of the AOX-72M10HC solar panel?

The AOX-72M10HC monofacial series covers power ratings from 580W to 615W.

What is the maximum module efficiency?

Module efficiency ranges from 22.40% to 23.80%, with the 615W version reaching the highest specified efficiency of 23.80%.

Is this an N-type TOPCon solar panel?

Yes. The AOX-72M10HC uses N-type TOPCon photovoltaic cell technology together with a 144 half-cell layout.

Is the AOX-72M10HC monofacial or bifacial?

This version is a monofacial module designed to generate power primarily from solar irradiance reaching the front surface. Ocean Solar also offers separate bifacial module configurations for projects requiring rear-side energy generation.

What are the dimensions and weight of the module?

The module measures 2278 × 1134 × 30mm and weighs approximately 28kg.

How many cells does the module use?

The module uses 144 half cells arranged in a 6 × 24 layout.

What is the maximum system voltage?

The specified maximum system voltage is 1500VDC according to the IEC specification.

What is the operating temperature range?

The specified operating-temperature range is -40°C to +85°C.

What is the nominal operating cell temperature?

The specified nominal operating cell temperature is 45±2°C.

What snow and wind loads can the panel withstand?

The module specification states up to 5400Pa snow load and 2400Pa wind load when the module is installed according to the applicable mounting requirements.

Is the 615W module suitable for commercial rooftops?

It can be suitable for many commercial and industrial rooftop photovoltaic projects. Roof structural capacity, mounting layout, module dimensions, module weight and inverter electrical compatibility should be checked before installation.

When should I choose monofacial instead of bifacial solar panels?

Monofacial modules are particularly relevant where the rear side receives little useful reflected sunlight, such as many conventional rooftop installations. Bifacial modules can be more appropriate where elevated mounting and reflective surfaces provide meaningful rear-side irradiance.

What warranty does Ocean Solar provide?

Ocean Solar specifies a 12-year warranty for materials and processing and a 30-year extra linear power output warranty for this module series.

How many modules can be loaded in a 40HQ container?

The current packaging specification indicates approximately 740 modules per 40HQ container. Final quantity should be confirmed when placing the order.

Can Ocean Solar provide OEM monofacial solar panels?

Yes. OEM cooperation can include labels, branding, packaging, documentation and selected module configurations subject to technical review and applicable certification requirements.

How should an inverter be matched with the 580W-615W module?

The installer should compare the electrical values in the latest module datasheet with the inverter's maximum DC voltage, MPPT voltage range, maximum input current, short-circuit current limit and permitted DC oversizing before determining the final string configuration.

What information should be provided when requesting a quotation?

Please provide the required power rating, order quantity, destination country, project type, inverter model, expected delivery schedule and any OEM or certification requirements so that the appropriate module configuration can be reviewed.
