OCEH6K 6kW Hybrid Inverter

OCEH6K Solar Energy System Core Specifications Table

OCEH6K 6kW Hybrid Inverter.pdf

OCEH6K Solar Energy System Frequently Asked Questions

Installation and Operation FAQs

Q: Is professional installation required for this hybrid solar energy system?

A: Yes, we recommend professional installation by a qualified electrician. The OCEH6K solar energy system involves high-voltage DC and AC connections. While the system is designed for straightforward integration, professional installation ensures safety compliance and optimal performance according to local electrical codes.

Q: Can this solar energy system work with both new and existing PV installations?

A: Absolutely. The OCEH6K hybrid solar energy system is designed for both new installations and retrofit applications. It can integrate seamlessly with existing PV arrays, adding energy storage capability and backup power functionality to your current solar energy system.

Q: What is the IP66 protection rating mean for this solar energy system?

A: IP66 is the highest outdoor protection rating in the industry. It means the OCEH6K solar energy system is completely dust-tight and protected against powerful water jets from any direction. It can be installed outdoors with full exposure to rain, snow, and harsh weather conditions.

Performance and Technical FAQs

Q: What is the advantage of a hybrid inverter solar energy system over a standard grid-tie inverter?

A: A hybrid solar energy system combines the benefits of grid-tie functionality with battery energy storage and backup power capability. Unlike standard grid-tie inverters that shut down during outages, the OCEH6K solar energy system continues powering your home through seamless UPS switching within 20ms.

Q: How does the TOU (Time-of-Use) feature work in this solar energy system?

A: The OCEH6K solar energy system features intelligent TOU charge/discharge scheduling. You can program the system to charge batteries during low-tariff grid periods and discharge during high-tariff peak hours, maximizing electricity bill savings through price arbitrage.

Q: What types of batteries are compatible with this solar energy system?

A: The OCEH6K solar energy system supports both Lithium-ion (LiFePO4) and Lead Acid battery technologies. It features an advanced BMS interface via RS485 and CAN communication protocols, ensuring optimal charging and protection for both battery chemistries.

Q: What is the noise level of this solar energy system during operation?

A: The OCEH6K solar energy system operates at ≤29dB at 1 meter distance — quieter than a library. This ultra-low noise operation makes it suitable for installation near living spaces, bedrooms, and noise-sensitive environments.

Safety and Maintenance FAQs

Q: What safety protections are built into this solar energy system?

A: The OCEH6K solar energy system features comprehensive protection including: DC reverse polarity protection, DC/AC Type II surge protection, AC overvoltage protection, AC short-circuit protection, ground fault monitoring, anti-islanding protection, residual-current monitoring, and insulation resistance monitoring.

Q: What maintenance does this solar energy system require?

A: The OCEH6K solar energy system is virtually maintenance-free. It features a sealed design with no moving parts except for intelligent cooling. We recommend annual visual inspections and keeping the unit clean and free from debris buildup.

Q: Can this solar energy system operate at high altitudes?

A: Yes. The OCEH6K solar energy system operates up to 4000 meters altitude. Above 3000 meters, output power derates by 1% per 100 meters elevation to ensure reliable thermal performance.

Policy and Grid Connection FAQs

Q: Is this solar energy system certified for Australian and New Zealand markets?

A: Yes, the OCEH6K solar energy system is designed according to AS/NZS 4777.2 requirements and CEC listing is in progress. It also complies with IEC 62109-1/-2 safety standards and IEC 61000 EMC standards for global market compatibility.

Q: Can excess solar energy be exported to the grid with this system?

A: Yes. The OCEH6K solar energy system supports grid export functionality. Excess PV generation beyond household consumption and battery charging can be fed into the grid for feed-in tariff credits, subject to local utility policies.

Q: What warranty is provided for this solar energy system?

A: OCEAN SOLAR provides a standard 5-year warranty for the OCEH6K solar energy system, with options for extended warranty coverage. Global technical support and after-sales service are available through our international service network.

I. OCEAN SOLAR Premium Hybrid Inverter Solar Energy System Launch

1.1 What is a Hybrid Inverter Solar Energy System

1.1.1 The Evolution of Residential Solar Energy Systems

1.1.1.1 Limitations of Traditional Grid-Tie Solar Energy Systems

Traditional grid-tie solar energy systems suffer from a critical limitation: they automatically shut down during grid power outages for safety reasons. This means even with thousands of dollars invested in solar panels, homeowners have no power during blackouts. The OCEH6K hybrid solar energy system solves this fundamental problem while maintaining all the benefits of grid-connected operation.

1.1.1.2 The Hybrid Solar Energy System Revolution

Hybrid solar energy systems represent the next generation of residential solar technology. By combining grid-tie functionality, battery energy storage, and uninterruptible backup power in a single unit, the OCEH6K solar energy system delivers the complete energy solution that modern households demand.

1.1.2 OCEH6K Solar Energy System Core Positioning

1.1.2.1 Flagship 6kW Residential Hybrid Solar Energy System

As OCEAN SOLAR's flagship residential hybrid solar energy system, the OCEH6K is engineered for medium to large households seeking maximum energy independence. With 9000W PV input capacity and 6kW continuous output, this solar energy system handles all household loads while providing comprehensive backup protection.

1.1.2.2 Industry-Leading IP66 Outdoor Protection

Setting a new standard in the industry, the OCEH6K solar energy system achieves IP66 ingress protection — the highest rating for outdoor electronic equipment. Unlike competitors limited to IP65 or lower, this solar energy system offers true all-weather outdoor installation capability.

1.2 Why Choose the OCEH6K Hybrid Solar Energy System

1.2.1 Intelligent Energy Management Capabilities

1.2.1.1 TOU Peak/Valley Charge-Discharge Optimization

The OCEH6K solar energy system features advanced Time-of-Use (TOU) intelligent scheduling. Users can program the system to automatically charge batteries during low-tariff periods and discharge during expensive peak hours, creating significant electricity bill savings through price arbitrage.

1.2.1.2 Smart APP Remote Management and Monitoring

Complete system control is available through the dedicated mobile APP. Users can monitor real-time power generation, battery status, grid interaction, and consumption patterns from anywhere. Remote firmware updates and parameter configuration eliminate the need for on-site service visits.

1.2.2 Unmatched Reliability and Protection

1.2.2.1 <20ms Seamless UPS Backup Switching

During grid outages, the OCEH6K solar energy system completes seamless transfer to backup power mode within 20 milliseconds. This ensures sensitive electronics like computers, routers, and medical equipment continue operating without interruption or reset.

1.2.2.2 AS/NZS 4777.2 Compliance with CEC Certification

Designed specifically for the Australian and New Zealand markets according to AS/NZS 4777.2 standards, with CEC listing in progress. This solar energy system also meets IEC 62109 and IEC 61000 standards for global deployment.

II. OCEH6K Solar Energy System PV Input Technology Deep Dive

2.1 Dual MPPT PV Input Architecture

2.1.1 Ultra-High Voltage PV Input Specifications

2.1.1.1 550V Maximum Open Circuit Voltage

The OCEH6K solar energy system supports an impressive 550V maximum PV open circuit voltage with an 80V-520V MPPT operating range. This ultra-wide voltage range accommodates various PV array configurations and module types for maximum design flexibility.

2.1.1.2 250-500V Full Power MPPT Range

Unlike competitors that derate power at voltage extremes, this solar energy system delivers full 6kW output across the entire 250-500V range. The 100V minimum startup voltage ensures earlier morning and later evening power generation, maximizing daily energy harvest.

2.1.2 Dual Independent MPPT Trackers

2.1.2.1 9000W Maximum PV Input Power

With 9000W maximum PV input capacity (19A per tracker), the OCEH6K solar energy system supports oversized PV arrays up to 150% of inverter rating. This DC oversizing maximizes energy production during low irradiance conditions and winter months.

2.1.2.2 99% Industry-Leading MPPT Efficiency

The advanced MPPT algorithm achieves 99% tracking efficiency, continuously finding the optimal operating point even under rapidly changing irradiance and partial shading conditions. Every watt of solar power is efficiently harvested and converted.

2.2 Comprehensive PV Protection Mechanisms

2.2.1 DC Side Safety Protection

2.2.1.1 Integrated DC Disconnect Switch

The OCEH6K solar energy system includes a built-in DC disconnect switch for safe maintenance and emergency shutdown. This eliminates the need for external DC isolators and simplifies installation.

2.2.1.2 DC Reverse Polarity and Surge Protection

Built-in DC reverse polarity protection prevents damage from incorrect wiring, while Type II DC surge protection safeguards against lightning-induced voltage transients. This solar energy system provides complete protection for your PV investment.

III. OCEH6K Solar Energy System Grid-Tie and Backup Output Performance

3.1 On-Grid Output Specifications

3.1.1 High-Efficiency Grid Interaction

3.1.1.1 97.5% European Efficiency Rating

The OCEH6K solar energy system achieves 97.5% European efficiency and 96.65% peak efficiency, representing the pinnacle of conversion technology. With 94.6% battery charge/discharge efficiency, every kilowatt-hour flows through the system with minimal loss.

3.1.1.2 <2% THDI Clean Power Quality

Total Harmonic Distortion of current (THDI) is maintained below 2%, ensuring the solar energy system injects clean, high-quality power into the grid without causing interference or violating utility interconnection standards.

3.1.2 Flexible Grid Support Features

3.1.2.1 0.8 Adjustable Power Factor

The adjustable 0.8 power factor capability provides reactive power support to the grid, meeting advanced grid code requirements. This feature ensures grid stability and compliance with modern utility interconnection standards.

3.1.2.2 Anti-Islanding and Grid Protection

Comprehensive grid protection features include anti-islanding protection, ground fault monitoring, residual-current monitoring, and insulation resistance monitoring. The OCEH6K solar energy system meets and exceeds all grid safety requirements.

3.2 Backup Power Operation

3.2.1 Uninterruptible Power Supply Capability

3.2.1.1 6kW Continuous Backup Power

The OCEH6K solar energy system delivers full 6kW backup power during outages, supporting essential household loads including refrigeration, lighting, electronics, and even HVAC systems. The 26.1A output current handles all standard residential requirements.

3.2.1.2 Robust Overload Capacity

Impressive overload capability: 110% for 10 seconds, 150% for 5 seconds, 180% for 1 second, and 200% for 100ms. This ensures reliable starting of inductive loads like air conditioners, well pumps, and refrigerators without tripping.

3.2.2 Ultra-Low Noise Operation

3.2.2.1 ≤29dB Whisper-Quiet Performance

At only 29dB measured at 1 meter, this solar energy system operates quieter than a library. The advanced thermal management and intelligent fan control ensure silent operation, making it suitable for installation near living areas and bedrooms.

3.2.2.2 <2% THDU Clean Backup Power

Backup output voltage distortion (THDU) is maintained below 2%, providing grid-quality power for sensitive electronics including computers, audio equipment, and medical devices. No hum, no interference, just clean reliable power.

IV. OCEH6K Solar Energy System Battery Management Technology

4.1 Wide Battery Voltage Compatibility

4.1.1 40-60V Universal Battery Support

4.1.1.1 48V Nominal Voltage Platform

The OCEH6K solar energy system is optimized for 48V nominal battery systems with an operating range of 40-60V. This standard voltage platform is widely adopted in residential energy storage, ensuring compatibility with most battery products on the market.

4.1.1.2 60V Maximum Charging Voltage

The 60V maximum charging voltage accommodates both lithium and lead-acid battery chemistries, with precise voltage control for each battery type to ensure optimal charging and long battery life.

4.1.2 High-Current Charge/Discharge Capability

4.1.2.1 120A/120A Symmetric Charge/Discharge

With symmetric 120A maximum charging and 120A discharging current, the OCEH6K solar energy system delivers exceptional power capability. This high current enables rapid battery charging and supports high-power backup loads.

4.1.2.2 Dual Chemistry Support: Lithium + Lead Acid

Unlike hybrid inverters limited to single battery type, this solar energy system natively supports both Lithium-ion (LiFePO4) and Lead Acid batteries. Intelligent charging profiles are automatically applied for each chemistry.

4.2 Advanced BMS Integration

4.2.1 Multi-Protocol BMS Communication

4.2.1.1 RS485 and CAN BMS Interfaces

The OCEH6K solar energy system features both RS485 and CAN communication interfaces for BMS integration. This ensures compatibility with virtually all battery BMS systems for optimal protection and performance.

4.2.1.2 EMS/Meter Integration via RS485

Additional RS485 interface supports energy management systems (EMS) and smart meters, enabling zero-export functionality, consumption monitoring, and advanced energy management features.

4.2.2 Intelligent Thermal Management

4.2.2.1 -25°C to 60°C Extreme Temperature Range

Operating reliably from -25°C to 60°C, this solar energy system handles the harshest climates from freezing northern winters to scorching desert summers. The intelligent thermal management system ensures consistent performance across all conditions.

4.2.2.2 4000m High Altitude Operation

The OCEH6K solar energy system operates reliably up to 4000 meters elevation, with appropriate power derating above 3000 meters. This makes it suitable for mountain homes and high-altitude installations worldwide.

V. OCEH6K Solar Energy System Design and Communication

5.1 Premium Industrial Design

5.1.1 Compact and Robust Construction

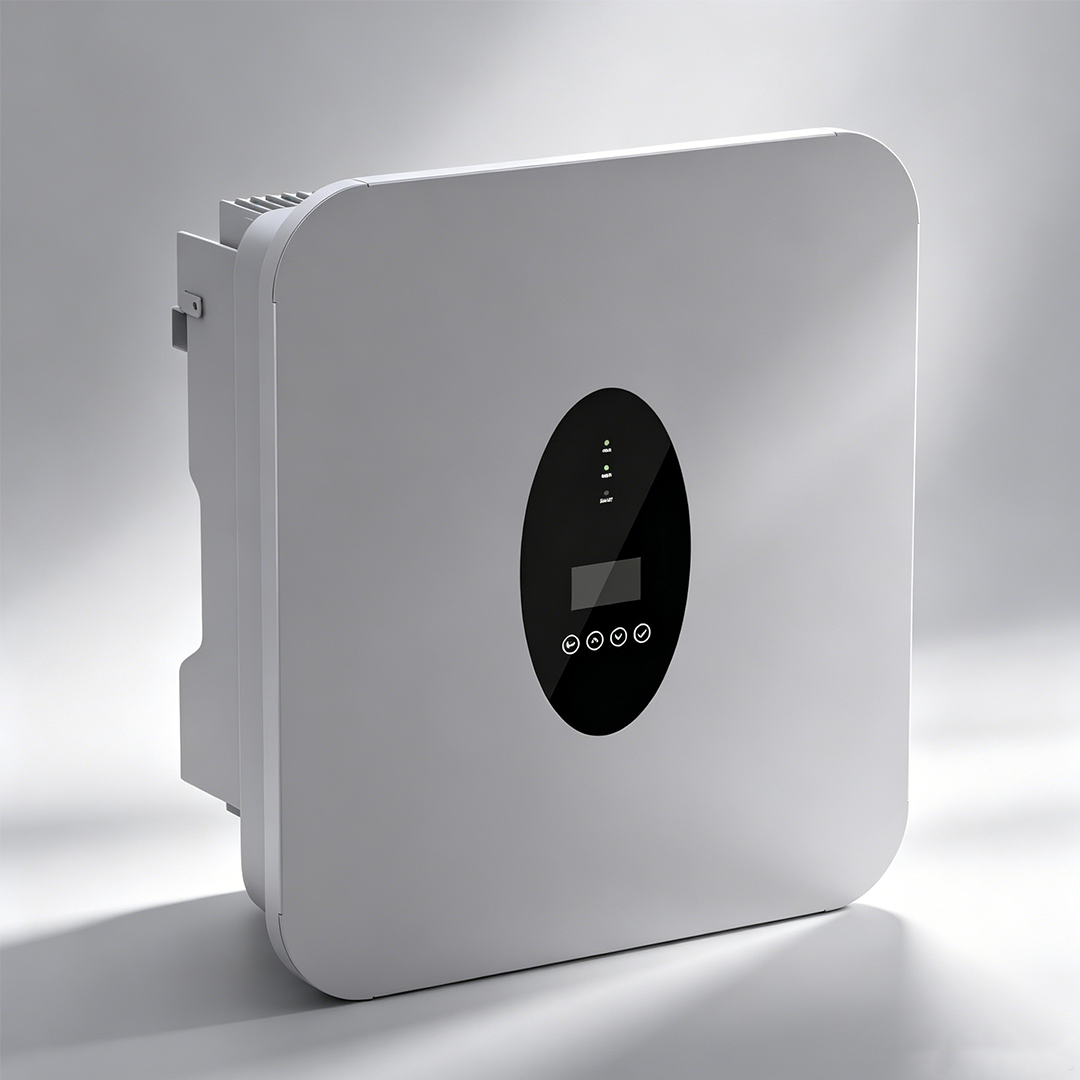

5.1.1.1 IP66 Fully Sealed Enclosure

The die-cast aluminum enclosure achieves IP66 ingress protection — completely dust-tight and protected against powerful water jets. This solar energy system is truly outdoor-rated, with no need for additional weather protection.

5.1.1.2 Compact Dimensions: 525×485×225mm

The compact 525mm × 485mm × 225mm footprint and 24kg net weight enable flexible wall mounting. The streamlined design integrates aesthetically with residential exteriors while maintaining service accessibility.

5.1.2 User-Friendly Interface

5.1.2.1 Touch LCD Display Interface

The intuitive touch LCD display provides local monitoring and configuration. Users can view real-time performance data, adjust settings, and access diagnostic information without connecting to the internet.

5.1.2.2 20-95% Humidity Tolerance

Operating across 20-95% relative humidity (non-condensing), this solar energy system withstands coastal humidity and tropical climates without corrosion or moisture-related issues.

5.2 Advanced Communication and Monitoring

5.2.1 WiFi and LAN Connectivity

5.2.1.1 Dual WiFi/LAN Communication Options

Both WiFi and Ethernet LAN connectivity options ensure reliable internet connection for remote monitoring. The system automatically reconnects after network interruptions for continuous data logging.

5.2.1.2 Real-Time Data Visualization

The dedicated mobile APP provides comprehensive real-time data visualization including PV generation, battery SOC, grid import/export, load consumption, and historical performance charts. Complete energy transparency at your fingertips.

5.2.2 Remote Management Capabilities

5.2.2.1 Remote Parameter Configuration

Authorized technicians can remotely adjust system parameters and update firmware without on-site visits. This dramatically reduces service costs and ensures your solar energy system always runs the latest optimized software.

5.2.2.2 Fault Alert and Diagnostic System

Automatic fault alerts and comprehensive diagnostic capabilities enable proactive maintenance. The system identifies potential issues before they become problems, maximizing uptime and system availability.

VI. OCEH6K Solar Energy System Global Market Applications

6.1 Target Market Analysis

6.1.1 Australian and New Zealand Residential Market

6.1.1.1 AS/NZS 4777.2 Compliance and CEC Listing

Designed specifically for Australia and New Zealand according to AS/NZS 4777.2 standards, with CEC listing in progress. The OCEH6K solar energy system meets all regulatory requirements for these important markets.

6.1.1.2 Grid Stability and Backup Power Needs

With increasing grid instability and extreme weather events, Australian and New Zealand households demand reliable backup power. The OCEH6K solar energy system delivers both economic savings and energy security.

6.1.2 European and Global Residential Markets

6.1.2.1 IEC Standards Compliance for Global Deployment

Full compliance with IEC 62109-1/-2 safety standards and IEC 61000 EMC standards enables deployment in European, Asian, and global markets. This solar energy system is engineered for worldwide acceptance.

6.1.2.2 Energy Independence and TOU Arbitrage

Rising electricity prices and TOU tariff structures worldwide make the OCEH6K solar energy system an excellent investment. The intelligent charge/discharge scheduling maximizes savings through price arbitrage.

6.2 Core Competitive Advantages

6.2.1 Technical Leadership

6.2.1.1 IP66 Rating — Industry's Highest Outdoor Protection

IP66 protection sets the OCEH6K solar energy system apart from competitors limited to IP65. This higher rating represents a significant quality and durability advantage for outdoor installations.

6.2.1.2 29dB Ultra-Low Noise Operation

The 29dB noise level is among the quietest in the industry, eliminating noise complaints and enabling installation near living spaces — a critical advantage for residential applications.

6.2.2 Commercial Value Proposition

6.2.2.1 3-5 Year Typical Investment Payback

With high efficiency and intelligent TOU optimization, the OCEH6K solar energy system typically delivers investment payback in 3-5 years, followed by decades of free or low-cost electricity and backup protection.

6.2.2.2 OCEAN SOLAR Global Warranty and Support

Backed by OCEAN SOLAR's comprehensive warranty and global service network, customers receive professional support throughout the entire lifecycle of their solar energy system investment.

VII. Ten Reasons to Choose OCEAN SOLAR Hybrid Solar Energy Systems

1. IP66 Industry-Leading Protection — Highest outdoor rating, truly all-weather operation

2. 97.5% European Efficiency — Industry-leading conversion efficiency for maximum savings

3. <20ms Seamless UPS Switching — True uninterruptible power for sensitive electronics

4. 9000W Oversized PV Input — 150% DC oversizing capability for maximum energy harvest

5. Dual Battery Chemistry Support — Native Lithium and Lead Acid battery compatibility

6. 120A High-Current Charge/Discharge — Rapid charging and powerful backup capability

7. ≤29dB Ultra-Quiet Operation — Library-quiet performance for residential installations

8. TOU Intelligent Scheduling — Peak/valley price arbitrage for maximum bill savings

9. WiFi/LAN APP Monitoring — Complete remote control and real-time visualization

10. OCEAN SOLAR Quality — Global certification, comprehensive warranty, expert support

Contact the OCEAN SOLAR team today to get a detailed quote and technical solution for the OCEH6K hybrid solar energy system, and experience the ultimate in residential energy independence and backup protection!
