Off-grid Hybrid Inverter OCE-N5K-24

OCE Product catalogue   OCE-N5K-24.pdf

H2: Overview of OCE-N5K-24 Hybrid Solar Inverter

H3: 1.1 Core Definition of OCE-N5K-24 Solar Inverter

H4: 1.1.1 What Makes OCE-N5K-24 Solar Inverter a Hybrid Solution?

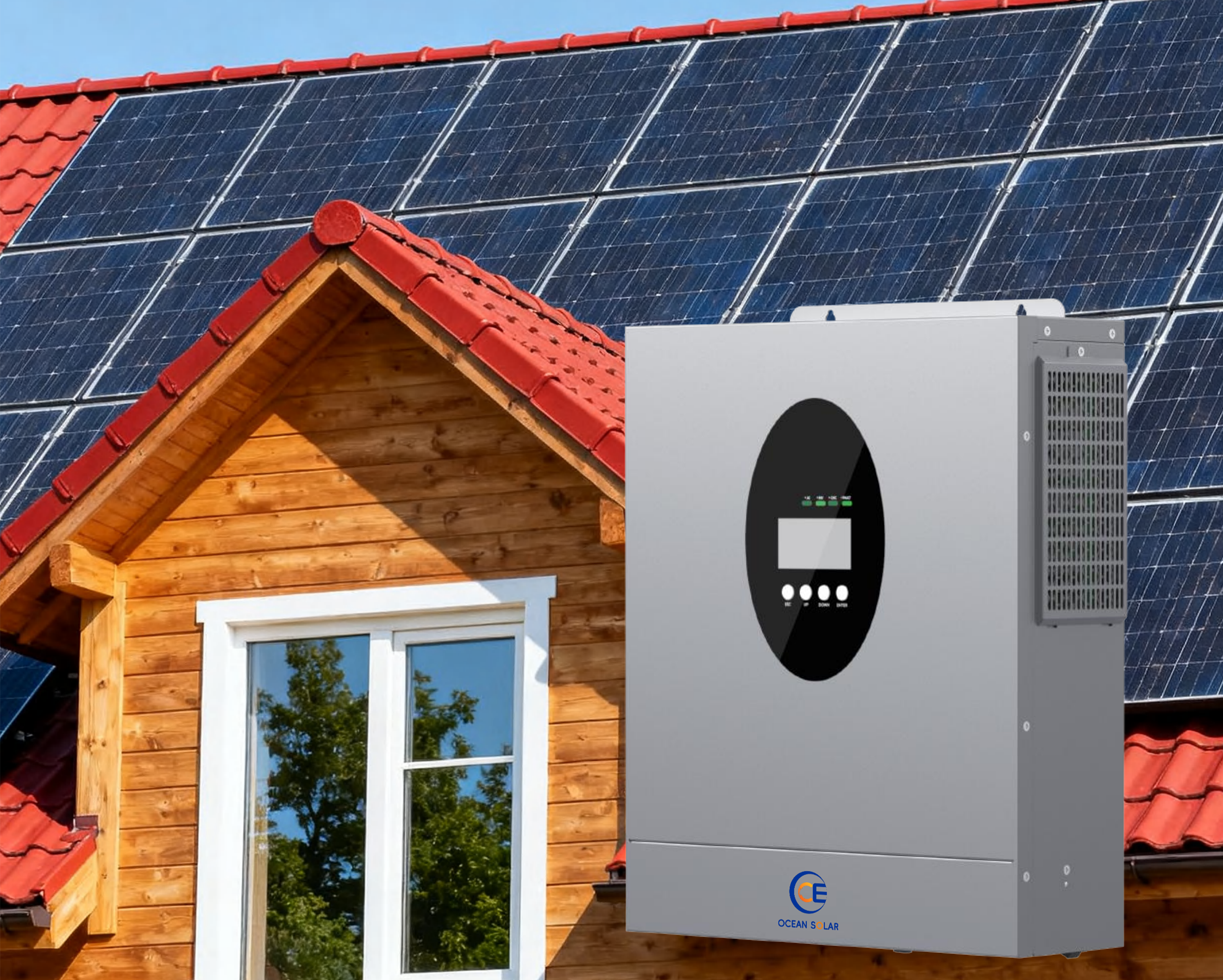

The OCE-N5K-24 Solar Inverter is a premium hybrid solar inverter engineered by Ocean Solar, integrating the functions of a solar charger, power inverter, and UPS backup into a single compact unit. As a 3.6kW 24V hybrid Solar Inverter, the OCE-N5K-24 Solar Inverter bridges the gap between on-grid and off-grid energy use, delivering flexible and reliable power management for solar energy systems. The OCE-N5K-24 Solar Inverter is designed to maximize solar energy utilization while ensuring uninterrupted power supply for critical loads.

H3: 1.2 Brand Value of Ocean Solar for OCE-N5K-24 Solar Inverter

H4: 1.2.1 Ocean Solar’s R&D Focus on Solar Inverter Technology

Ocean Solar is dedicated to developing high-performance Solar Inverter solutions, and the OCE-N5K-24 Solar Inverter is a testament to the brand’s commitment to innovation and quality. Every component of the OCE-N5K-24 Solar Inverter is precision-engineered to meet global energy efficiency and safety standards, making the OCE-N5K-24 Solar Inverter a trusted choice for residential and small-scale commercial solar systems worldwide.

H2: Key Advantages of OCE-N5K-24 Solar Inverter

H3: 2.1 Superior Protection for OCE-N5K-24 Solar Inverter

H4: 2.1.1 IP21 Ingress Protection of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter features an IP21 ingress protection rating, which shields the OCE-N5K-24 Solar Inverter from solid particles and dripping water, ensuring stable operation in indoor installation environments. This protection grade makes the OCE-N5K-24 Solar Inverter durable and low-maintenance for long-term use.

H3: 2.2 Ultra-Fast UPS Transfer of OCE-N5K-24 Solar Inverter

H4: 2.2.1 <10ms Switch Time of OCE-N5K-24 Solar Inverter

A standout feature of the OCE-N5K-24 Solar Inverter is its ultra-fast UPS transfer speed of less than 10 milliseconds. This seamless switch ensures the OCE-N5K-24 Solar Inverter keeps critical loads powered without interruption during grid outages, making the OCE-N5K-24 Solar Inverter an ideal backup power solution.

H3: 2.3 Dual Charging Capability of OCE-N5K-24 Solar Inverter

H4: 2.3.1 PV+Grid Dual Charging of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter supports PV+grid dual charging, allowing the OCE-N5K-24 Solar Inverter to charge connected batteries using solar energy first and grid power as a supplement. This dual charging function of the OCE-N5K-24 Solar Inverter maximizes renewable energy use and reduces reliance on the grid.

H3: 2.4 Flexible Operating Modes of OCE-N5K-24 Solar Inverter

H4: 2.4.1 Hybrid On/Off-Grid Modes of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter offers hybrid on/off-grid operating modes, giving users full control over their energy usage. In on-grid mode, the OCE-N5K-24 Solar Inverter feeds excess solar power back to the grid; in off-grid mode, the OCE-N5K-24 Solar Inverter operates independently to power loads using solar and battery energy.

H3: 2.5 High-Quality Output of OCE-N5K-24 Solar Inverter

H4: 2.5.1 Pure Sine Wave Output of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter produces a pure sine wave output, matching the quality of grid power. This clean power output from the OCE-N5K-24 Solar Inverter protects sensitive electronic devices from damage and ensures smooth operation of all electrical appliances.

H3: 2.6 Comprehensive Safety of OCE-N5K-24 Solar Inverter

H4: 2.6.1 Full-Range Protections of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is equipped with comprehensive protection mechanisms, including overcharge, overload, overvoltage, and short-circuit protection. These safety features make the OCE-N5K-24 Solar Inverter a secure choice for both the user and the connected energy system.

H3: 2.7 High Energy Efficiency of OCE-N5K-24 Solar Inverter

H4: 2.7.1 92.7% Max Efficiency of OCE-N5K-24 Solar Inverter

In battery mode, the OCE-N5K-24 Solar Inverter achieves a maximum efficiency of 92.7% at 24VDC. This high efficiency means the OCE-N5K-24 Solar Inverter minimizes energy loss during power conversion, optimizing the overall performance of the solar energy system.

H3: 2.8 Versatile Battery Compatibility of OCE-N5K-24 Solar Inverter

H4: 2.8.1 Lithium & Lead-Acid Support of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is compatible with both lithium and lead-acid batteries, offering users flexibility in battery selection. This compatibility makes the OCE-N5K-24 Solar Inverter adaptable to different energy system setups and budget requirements.

H2: Detailed TECHNICAL PARAMETERS of OCE-N5K-24 Solar Inverter

H3: 3.1 AC Input PARAMETERS of OCE-N5K-24 Solar Inverter

H4: 3.1.1 Rated Input Voltage of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a rated AC input voltage of 208/220/230/240 VAC (L+N+PE), making the OCE-N5K-24 Solar Inverter compatible with standard grid voltages across most regions.

H4: 3.1.2 Input Voltage Range of OCE-N5K-24 Solar Inverter

For the OCE-N5K-24 Solar Inverter, the AC input voltage range is 90~280±3 VAC in normal mode and 170~280±3 VAC in UPS mode, ensuring the OCE-N5K-24 Solar Inverter operates stably under grid voltage fluctuations.

H4: 3.1.3 Input Frequency of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter features an auto-adaptive AC input frequency of 50/60 Hz, eliminating the need for manual adjustment and making the OCE-N5K-24 Solar Inverter suitable for global use.

H3: 3.2 AC Output PARAMETERS of OCE-N5K-24 Solar Inverter

H4: 3.2.1 Rated Capacity of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a rated AC output capacity of 3.6kW, providing sufficient power for residential and small commercial loads.

H4: 3.2.2 Surge Power of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter delivers a surge power of 7.2kVA, allowing the OCE-N5K-24 Solar Inverter to start high-power electrical devices with high inrush current.

H4: 3.2.3 Output Voltage of OCE-N5K-24 Solar Inverter

The AC output voltage of the OCE-N5K-24 Solar Inverter is 208/220/230/240 VAC, matching the input voltage and ensuring consistent power supply.

H4: 3.2.4 Power Factor of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a power factor of 1, which means the OCE-N5K-24 Solar Inverter uses electrical power efficiently with no reactive power loss.

H4: 3.2.5 Output Frequency of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter maintains a precise AC output frequency of 50/60Hz±0.1%, ensuring stable operation of frequency-sensitive devices.

H4: 3.2.6 Switch Time of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a switch time of 10ms in APP/UPS mode and 20ms in GEN mode, guaranteeing uninterrupted power for critical loads.

H4: 3.2.7 Wave Form of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter produces a pure sine wave output, the gold standard for power quality in a Solar Inverter.

H4: 3.2.8 Overload Capacity of OCE-N5K-24 Solar Inverter

In battery mode, the OCE-N5K-24 Solar Inverter handles overloads with graded protection: 60s at 102%-110% load, 10s at 110%-130% load, 3s at 130%-150% load, and 0.2s at >150% load.

H4: 3.2.9 Max Efficiency (Battery Mode) of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter reaches a maximum efficiency of 92.7% in battery mode at 24VDC, a key performance metric for the Solar Inverter.

H3: 3.3 PV/AC Charger PARAMETERS of OCE-N5K-24 Solar Inverter

H4: 3.3.1 Solar Charger Type of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is equipped with an MPPT solar charger, which optimizes solar panel output and maximizes energy harvest for the OCE-N5K-24 Solar Inverter.

H4: 3.3.2 Max PV Input Current & Power of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a maximum PV input current of 18A and a maximum PV input power of 5000W, supporting high-power solar panel arrays.

H4: 3.3.3 MPPT Operating Voltage Range of OCE-N5K-24 Solar Inverter

The MPPT operating voltage range of the OCE-N5K-24 Solar Inverter is 40-450 VDC, ensuring the OCE-N5K-24 Solar Inverter works efficiently with different solar panel configurations.

H4: 3.3.4 Max PV Open Circuit Voltage of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter can withstand a maximum PV open circuit voltage of 500 VDC, protecting the Solar Inverter from voltage spikes in solar arrays.

H4: 3.3.5 Max PV Charge Current of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter delivers a maximum PV charge current of 100A, enabling fast charging of connected batteries with solar energy.

H4: 3.3.6 Max AC Charge Current of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a maximum AC charge current of 100A, allowing quick battery charging via grid power when needed.

H4: 3.3.7 Max Combined PV+AC Charge Current of OCE-N5K-24 Solar Inverter

The maximum combined PV+AC charge current of the OCE-N5K-24 Solar Inverter is 100A, balancing solar and grid charging for optimal battery performance.

H3: 3.4 Battery PARAMETERS of OCE-N5K-24 Solar Inverter

H4: 3.4.1 Rated Battery Voltage of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is designed for a rated battery voltage of 24 VDC, the standard voltage for small to medium solar energy systems.

H4: 3.4.2 Floating Charge Voltage of OCE-N5K-24 Solar Inverter

The floating charge voltage of the OCE-N5K-24 Solar Inverter is set at 27 VDC, maintaining battery health and extending battery lifespan.

H4: 3.4.3 Overcharge Protection Voltage of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter features an overcharge protection voltage of 30.5 VDC, preventing battery damage from overcharging.

H4: 3.4.4 Compatible Battery Types of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is compatible with both lithium and lead-acid batteries, making the Solar Inverter versatile for different battery setups.

H3: 3.5 Interface & Monitoring PARAMETERS of OCE-N5K-24 Solar Inverter

H4: 3.5.1 HMI Interface of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter comes with an LCD HMI interface, providing real-time data on the OCE-N5K-24 Solar Inverter’s operation and energy usage.

H4: 3.5.2 Wired Communication Interfaces of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is equipped with RS485/CAN/RS232/Dry Contact wired communication interfaces, enabling seamless integration of the OCE-N5K-24 Solar Inverter with energy management systems.

H4: 3.5.3 Wireless Monitoring Option of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter offers an optional WiFi monitoring function, allowing users to remotely monitor and control the OCE-N5K-24 Solar Inverter via a mobile app.

H3: 3.6 General & Environmental PARAMETERS of OCE-N5K-24 Solar Inverter

H4: 3.6.1 Ingress Protection Grade of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has an IP21 ingress protection grade, as a core environmental parameter of the Solar Inverter.

H4: 3.6.2 Operating Temperature of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter operates in a temperature range of -10℃ to 50℃, making the OCE-N5K-24 Solar Inverter suitable for most climatic conditions.

H4: 3.6.3 Relative Humidity of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter can operate in a relative humidity range of 5%~95% (non-condensing), with no impact on the Solar Inverter’s performance.

H4: 3.6.4 Storage Temperature of OCE-N5K-24 Solar Inverter

The storage temperature range of the OCE-N5K-24 Solar Inverter is -15℃ to 60℃, ensuring the OCE-N5K-24 Solar Inverter is protected during transportation and storage.

H4: 3.6.5 Max Operating Altitude of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a maximum operating altitude of 4000m (with derating above 1000m), making the Solar Inverter suitable for high-altitude installations.

H4: 3.6.6 Product Dimensions of OCE-N5K-24 Solar Inverter

The product dimensions of the OCE-N5K-24 Solar Inverter are 420mm284mm94mm, a compact design that saves installation space for the OCE-N5K-24 Solar Inverter.

H4: 3.6.7 Packaging Dimensions of OCE-N5K-24 Solar Inverter

The packaging dimensions of the OCE-N5K-24 Solar Inverter are 490mm328mm154mm, ensuring safe transportation of the OCE-N5K-24 Solar Inverter.

H4: 3.6.8 Net & Gross Weight of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter has a net weight of 6.4kg and a gross weight of 7.9kg, making the OCE-N5K-24 Solar Inverter easy to handle and install.

H2: Common Areas of Application for OCE-N5K-24 Solar Inverter

H3: 4.1 Residential Applications of OCE-N5K-24 Solar Inverter

H4: 4.1.1 Home Energy Systems with OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is the perfect core component for residential solar energy systems. The OCE-N5K-24 Solar Inverter powers household appliances, lighting, and electronics, while its hybrid mode allows homeowners to reduce grid electricity bills by using solar energy. The compact size of the OCE-N5K-24 Solar Inverter makes it ideal for installation in home garages, basements, or utility rooms.

H4: 4.1.2 Residential UPS Backup with OCE-N5K-24 Solar Inverter

For residential use, the OCE-N5K-24 Solar Inverter acts as a reliable UPS backup. The <10ms transfer speed of the OCE-N5K-24 Solar Inverter ensures critical home loads like refrigerators, medical devices, and security systems stay powered during grid outages.

H3: 4.2 Small Commercial Applications of OCE-N5K-24 Solar Inverter

H4: 4.2.1 Small Retail Shops Using OCE-N5K-24 Solar Inverter

Small retail shops benefit greatly from the OCE-N5K-24 Solar Inverter, as the OCE-N5K-24 Solar Inverter powers lighting, cash registers, and display units with solar energy. The OCE-N5K-24 Solar Inverter’s on-grid mode also allows shop owners to feed excess solar power back to the grid for additional revenue.

H4: 4.2.2 Small Office Spaces with OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is suitable for small office spaces, powering computers, printers, and air conditioning units. The pure sine wave output of the OCE-N5K-24 Solar Inverter protects office electronics, and the remote monitoring function makes the OCE-N5K-24 Solar Inverter easy to manage for office administrators.

H3: 4.3 Off-Grid Living Applications of OCE-N5K-24 Solar Inverter

H4: 4.3.1 Cabin & Vacation Home with OCE-N5K-24 Solar Inverter

Off-grid cabins and vacation homes are ideal common areas for the OCE-N5K-24 Solar Inverter. The OCE-N5K-24 Solar Inverter operates independently in off-grid mode, powering all essential loads with solar and battery energy. The high PV charge current of the OCE-N5K-24 Solar Inverter ensures fast battery charging during sunny days.

H4: 4.3.2 RV & Mobile Living with OCE-N5K-24 Solar Inverter

The compact and lightweight design of the OCE-N5K-24 Solar Inverter makes it a great choice for RVs and mobile living setups. The OCE-N5K-24 Solar Inverter powers RV appliances and electronics with solar energy, eliminating the need for noisy generators and making the OCE-N5K-24 Solar Inverter a must-have for off-grid travelers.

H3: 4.4 Light Agricultural Applications of OCE-N5K-24 Solar Inverter

H4: 4.4.1 Small Farm Equipment Power with OCE-N5K-24 Solar Inverter

Small-scale farms use the OCE-N5K-24 Solar Inverter to power low-wattage farm equipment such as water pumps and irrigation systems. The OCE-N5K-24 Solar Inverter’s overload capacity ensures the Solar Inverter can handle the start-up current of farm machinery.

H4: 4.4.2 Agricultural Sheds with OCE-N5K-24 Solar Inverter

Agricultural sheds and storage facilities are another common area for the OCE-N5K-24 Solar Inverter. The OCE-N5K-24 Solar Inverter powers lighting and ventilation systems in sheds, with its IP21 protection ensuring the Solar Inverter operates stably in farm environments.

H2: Why Choose OCE-N5K-24 Solar Inverter for Your Energy System?

H3: 5.1 Reliability of OCE-N5K-24 Solar Inverter

H4: 5.1.1 Long-Term Performance of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter is built for long-term reliable performance, with high-quality components that ensure the OCE-N5K-24 Solar Inverter operates flawlessly for years. The comprehensive protection features of the OCE-N5K-24 Solar Inverter further enhance its durability and reduce maintenance costs.

H3: 5.2 User-Friendly Design of OCE-N5K-24 Solar Inverter

H4: 5.2.1 Easy Operation of OCE-N5K-24 Solar Inverter

The OCE-N5K-24 Solar Inverter features an intuitive LCD interface and simple control buttons, making the OCE-N5K-24 Solar Inverter easy to operate for both professionals and end-users. The optional WiFi monitoring also allows users to adjust the OCE-N5K-24 Solar Inverter’s settings remotely, adding convenience to energy management.
