Wholesale M6 MBB PERC 120 half cells 360W-380W solar module factory and suppliers | Ocean Solar

M6 MBB PERC 120 half cells 360W-380W solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Higher Bifacial Gain
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

Data Sheet

Cell Mono 166*83mm
No. of cells 120(6×20)
Rated Maximum Power(Pmax) 360W-380W
Maximum Efficiency 19.8-20.9%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 1755*1038*35mm
No.of one 20GP container 336PCS
No.of one 40HQ container 884PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

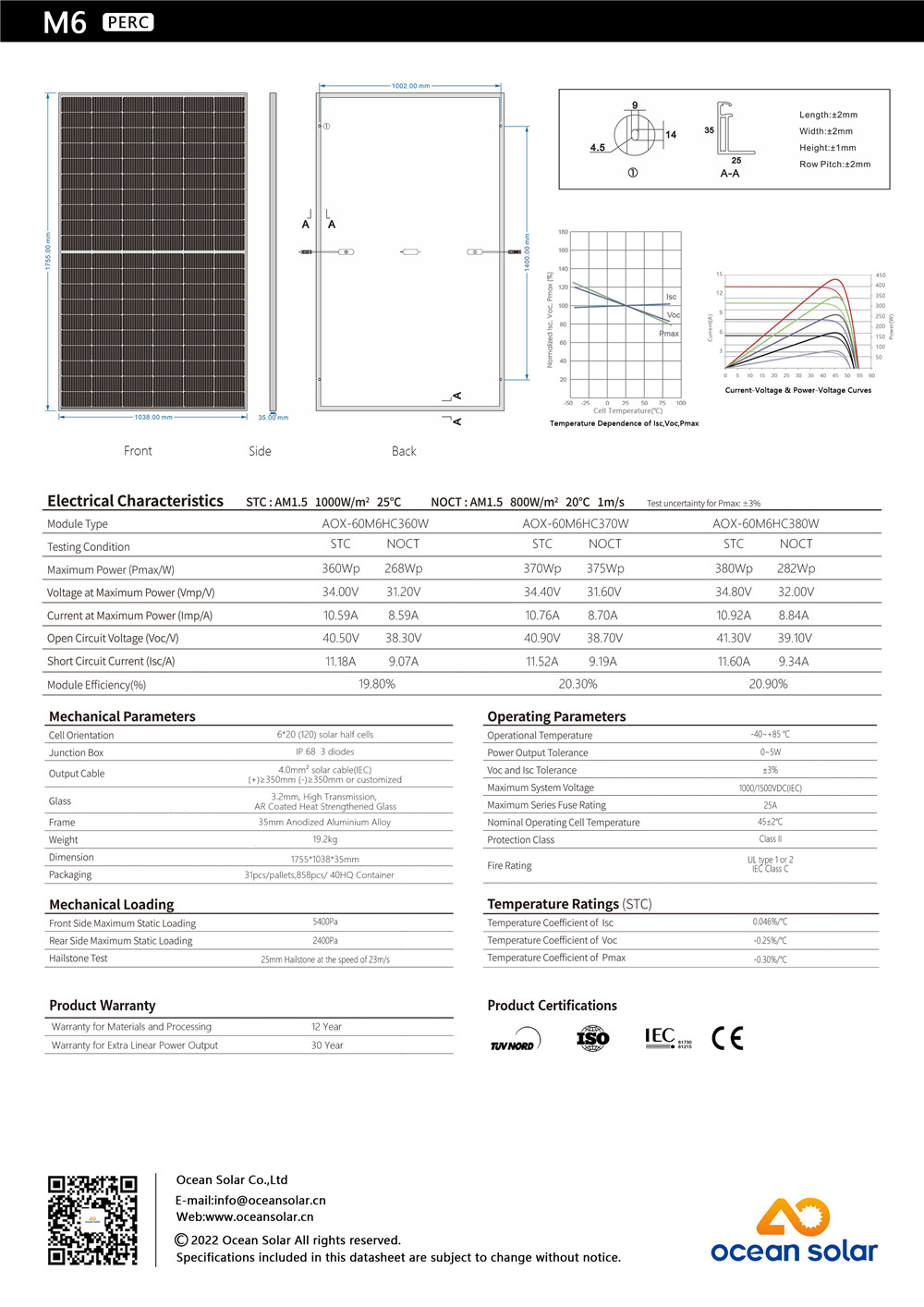

60M6-380W (1)

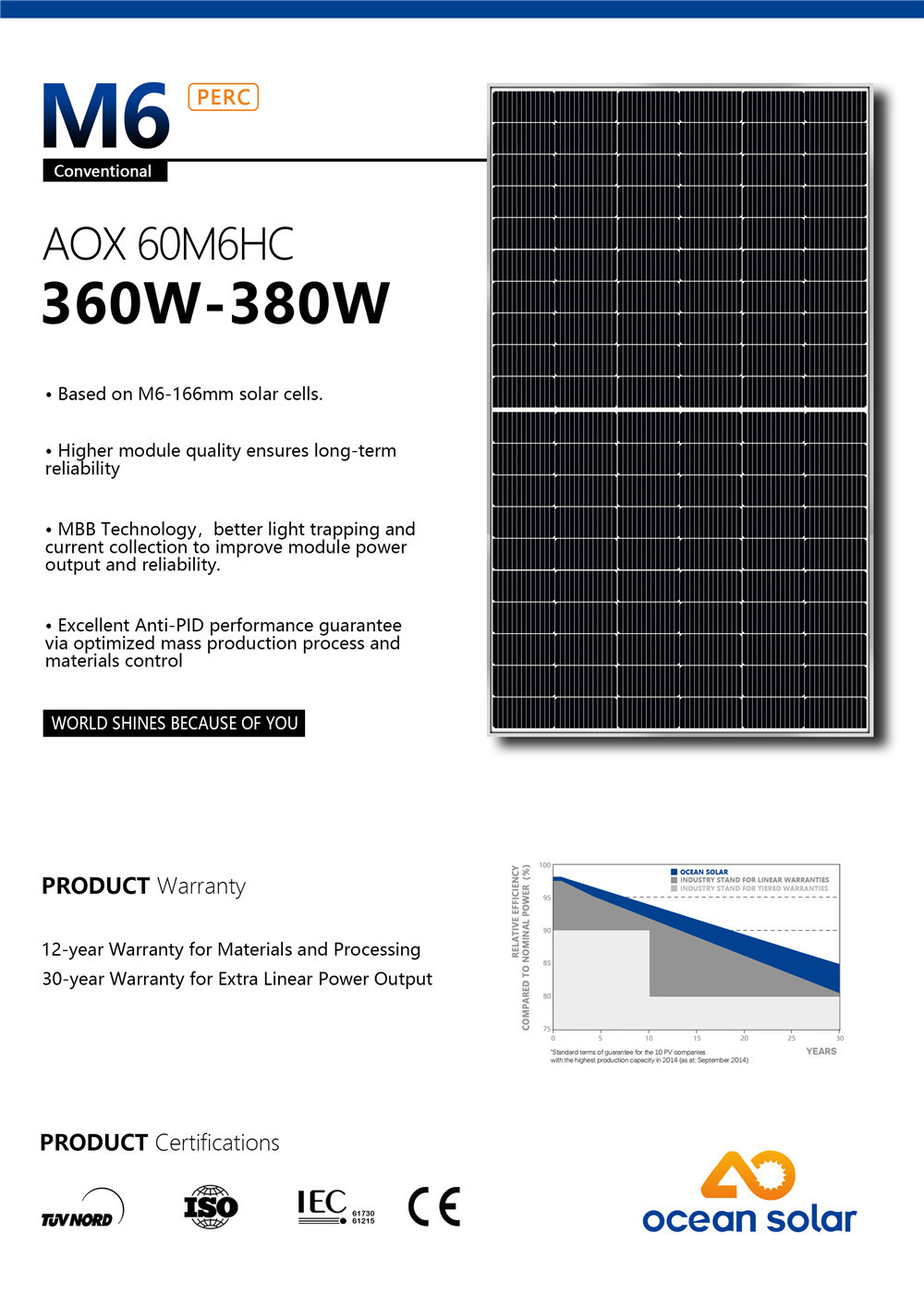

60M6-380W (2)

Product Detail

The M6 ​​MBB PERC 120 Half Cell 360W-380W Solar Module is an excellent investment for those looking to generate renewable energy and reduce their carbon footprint. Designed with 120 half cells, this solar panel uses PERC (Passivated Emitter Rear Contact) and MBB (Multiple Busbar) technologies, making it more efficient and durable than conventional solar panels.

The PERC technology used in this solar panel ensures maximum energy absorption and conversion. With a passivated rear emitter contact (PERC) design, solar panels can capture more sunlight and convert it into energy, increasing overall yield. The MBB technology used in this solar panel also increases power output and minimizes losses due to high electrical resistance.

Additionally, M6 MBB PERC 120 half-cell 360W-380W solar modules are designed to withstand harsh weather conditions. The use of advanced materials such as O-silicon and tempered glass ensures that the solar panels can withstand damage from weather, environmental elements and mechanical stress, making them a durable choice.

Plus, this solar panel is an eco-friendly and sustainable option. By generating renewable energy from the M6 ​​MBB PERC 120 half-cell 360W-380W solar modules, home and business users can significantly reduce their dependence on grid power and contribute to a cleaner environment. By reducing your dependence on fossil fuels, solar panels not only reduce your carbon footprint, but also save a lot on your energy bills.

In the end, the M6 ​​MBB PERC 120 half-cell 360W-380W solar module offers a solid return on investment (ROI). High power output, durability and ease of installation mean the initial investment cost is easily recouped in years of energy savings.

In summary, the M6 ​​MBB PERC 120 Half Cell 360W-380W Solar Module is a high performance solar panel that provides excellent energy output and durability. It is equipped with advanced PERC and MBB technologies, making it more efficient than conventional solar panels. With its high power output, durability, environmental friendliness and excellent return on investment, it is an excellent choice for those looking to generate renewable energy and reduce their carbon footprint.

why choose M6 MBB solar module

M6 MBB (Multiple Busbar) solar modules have the following advantages:

1. High efficiency: M6 multi-busbar solar modules have higher efficiency due to the use of multiple busbars. The MBB design reduces resistive power loss, thereby increasing the output power of the module.

2. Better shading performance: Compared with traditional modules, M6 MBB solar modules have better shading tolerance. This is because the MBB technology reduces the internal resistance and increases the effective shading area of ​​the module.

3. Higher durability: M6 MBB solar modules are more durable due to their improved mechanical design. Using multiple bus bars reduces the stress on each individual cell and makes the module less susceptible to microcracks, which can reduce the module's power output over time.

4. More beautiful: adopt MBB design, the module adopts streamlined design, less metal fingers, and the appearance is more pleasing to the eye.

5. Better power output: Due to the increased efficiency, M6 MBB solar modules have higher power output than conventional solar modules.

6. Higher power density: Due to the smaller size of the M6 ​​battery, the power density of the M6 ​​MBB solar module is higher than that of conventional modules. This means more electricity can be generated from a smaller area of ​​solar panels.

7. Environmental Sustainability: The use of M6 batteries in MBB modules reduces raw material consumption and overall module weight, making it a more environmentally friendly choice.

All in all, the M6 ​​MBB solar module is an excellent choice due to its high efficiency, better shading tolerance, higher durability, better aesthetics, better power output, higher power density and environmental sustainability. These features make the M6 ​​MBB modules a cost-effective, high-performance choice for residential and commercial solar installations.
