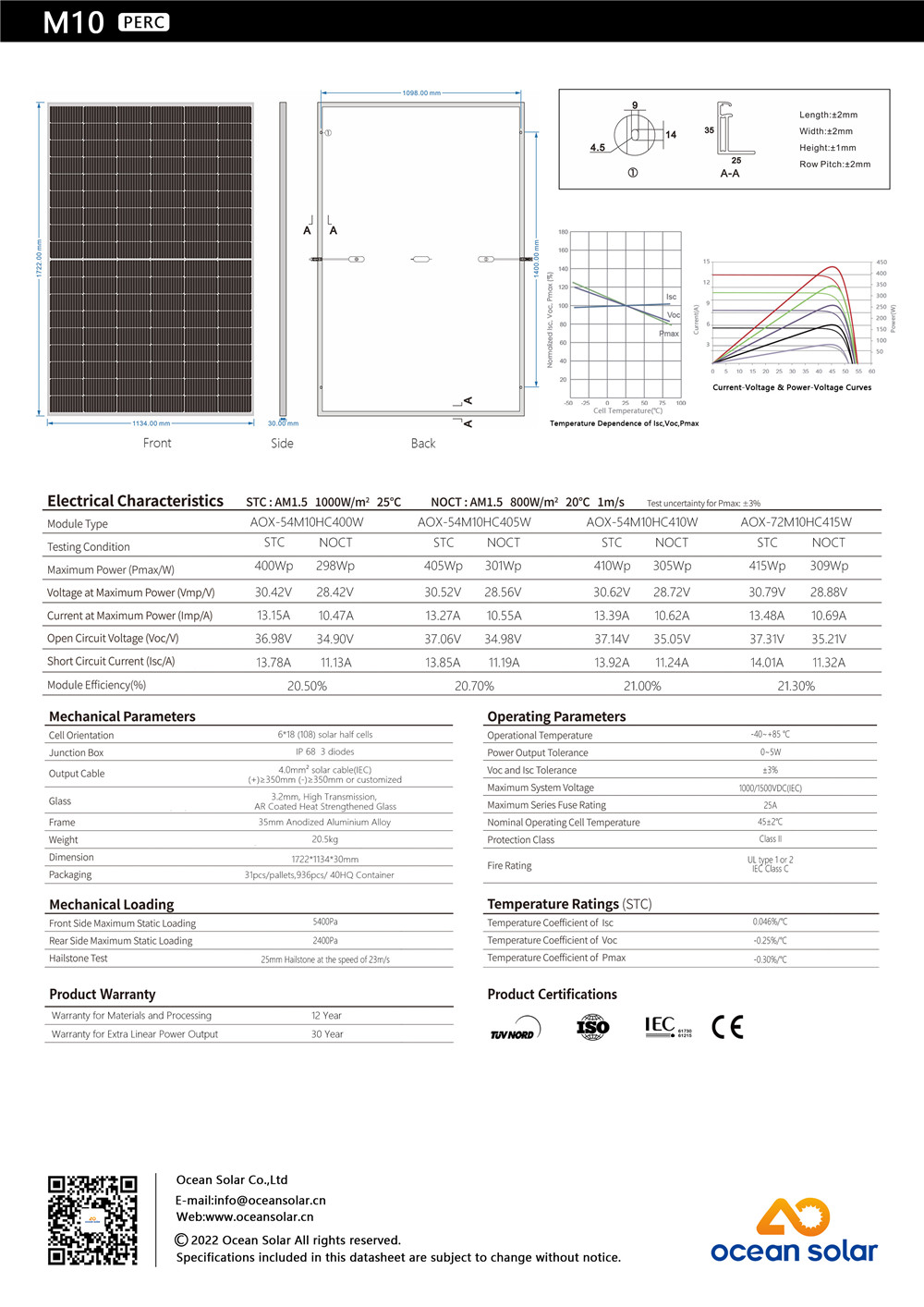

M10 MBB PERC 108 half cells 400W-415W solar module
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance
| Cell | Mono 182*91mm |
| No. of cells | 108(6×18) |
| Rated Maximum Power(Pmax) | 400W-415W |
| Maximum Efficiency | 20.5%-21.2% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 1722*1134*30mm |
| No.of one 20GP container | 396PCS |
| No.of one 40HQ container | 936PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
M10 MBB PERC 108 Half Cell 400W-415W Solar Module is a high performance solar panel designed for excellent energy output and durability. This solar panel is designed with 108 half cells, which has the advantage of lower resistance and higher overall power output. It is also equipped with PERC and MBB technologies, increasing its performance efficiency and allowing it to generate more electricity than conventional solar panels.
One of the great things about this solar panel is its high power output. With an output range of 400W-415W, this solar panel can generate a lot of energy and is an excellent choice for residential and commercial applications that require high power demands. The high power output also means that fewer solar panels are needed to meet the property's energy needs, saving on installation costs and available roof or ground space.
The PERC technology used in this solar panel ensures maximum energy absorption and conversion. With a passivated rear emitter contact (PERC) design, solar panels can capture more sunlight and convert it into energy, increasing overall yield. The MBB technology used in this solar panel also increases power output and minimizes losses due to high electrical resistance.
In addition to high power output and cutting-edge technology, the M10 MBB PERC 108 Half-Cell 400W-415W Solar Panel features a durable design. The use of advanced materials such as O-silicon and tempered glass ensures that the solar panels are resistant to damage from weather, environmental factors and mechanical stress.
Another significant advantage of this type of solar panel is its ease of installation. Its lightweight design is easy to handle, install and move, saving time and reducing installation costs. It also has a sleek black frame construction, making it a visually appealing addition to any property.
Finally, this solar panel is an environmentally friendly and sustainable option for sourcing renewable energy and reducing the carbon footprint of any property. By generating renewable energy from the M10 MBB PERC 108 half-cell 400W-415W solar modules, homeowners and commercial users can significantly reduce their dependence on fossil fuels and contribute to a cleaner environment.
All in all, the M10 MBB PERC 108 Half Cell 400W-415W Solar Module is an excellent solar panel designed for optimum performance and duration. Its 108 half-cell design, high power output, innovative technology, durability, easy installation and eco-friendliness make it an excellent choice for anyone looking to generate clean and renewable energy and reduce their carbon footprint.
