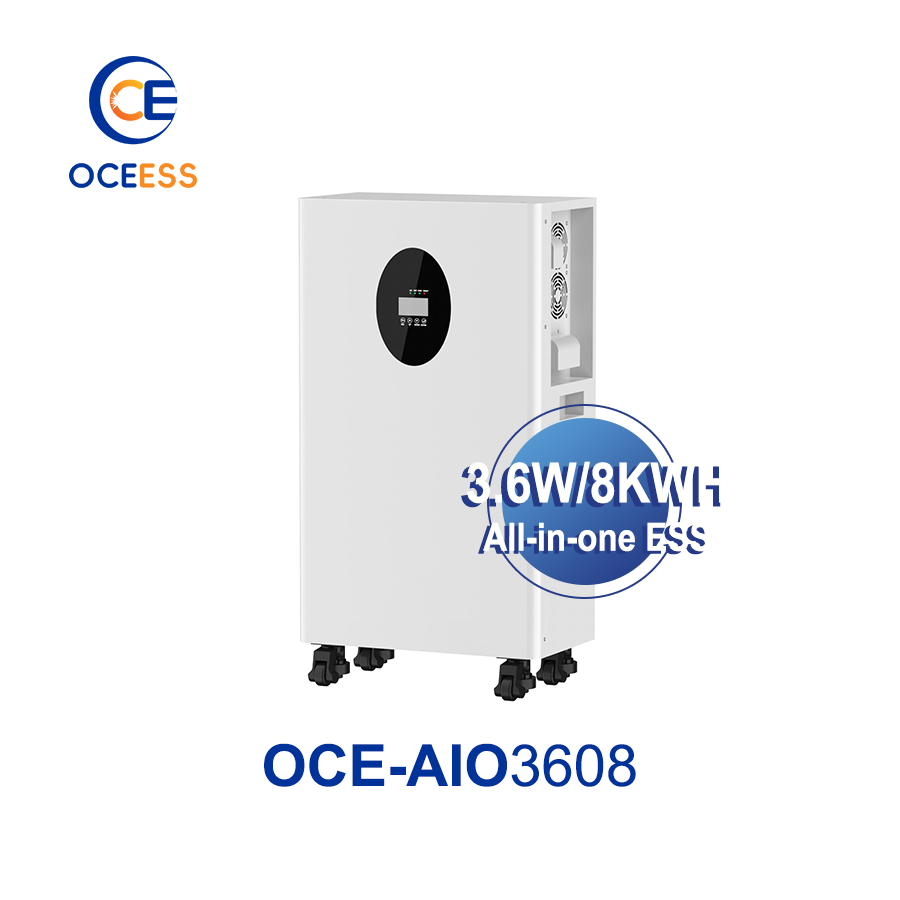

OCE-AIO3608 3.6kW/8kWh Wheeled Ultra-Capacity All-in-One ESS

OCE-AIO3608 Solar Energy System Core Specifications Table

OCE-AIO3608 3.6kW/8kWh Wheeled Ultra-Capacity All-in-One ESS.pdf

OCE-AIO3608 Solar Energy System Frequently Asked Questions

System Architecture and Capacity FAQs

Q: How does this AIO3608 compare to the AIO3605 and AIO2004 solar energy systems?

A: The OCE-AIO3608 represents the capacity flagship in the AIO wheeled solar energy system series: Same 3600W/7200W inverter and 5000W PV capability as the AIO3605, but with 8kWh battery capacity vs. 5kWh (+60% more energy storage) vs. 4kWh in the AIO2004. This delivers dramatically extended runtime for multi-day outage resilience. The ultimate extended-duration wheeled solar energy system.

Q: Why choose 8kWh capacity for this wheeled solar energy system?

A: 8kWh represents the sweet spot for true multi-day whole-home resilience: enough capacity for 2-4+ days of essential backup power without grid or solar recharge. This capacity level transforms the solar energy system from short-term outage backup to true energy independence for extended grid down scenarios.

Q: Is professional installation required for this ultra-capacity solar energy system?

A: The heavy-duty wheeled design allows single-person positioning and basic plug-and-play setup by homeowners, while PV array connection, grid-tie integration, and permanent electrical connections require a qualified electrician for safety and code compliance. The integrated mobility enables flexible deployment anywhere for your high-capacity solar energy system.

Runtime and Performance FAQs

Q: What is the actual backup runtime of this 8kWh ultra-capacity solar energy system?

A: Industry-leading extended runtime based on 8064Wh LFP capacity: Essential home backup (fridge+network+lighting) = 48-96+ hours (2-4+ days), 500W base load = 16 hours, 1000W continuous = 8 hours, 2000W heavy load = 4 hours. The longest runtime available in any wheeled all-in-one solar energy system.

Q: What can this 3600W/7200W solar energy system power?

A: 3600W continuous output powers entire home essentials simultaneously including: refrigerator + air conditioning + washing machine + multiple electronics + lighting + internet + medical equipment. 7200W surge handles all motor startup loads. The most capable extended-duration residential solar energy system available.

Q: What makes <10ms UPS switching critical for this solar energy system?

A: <10ms ultra-fast transfer is twice the industry standard speed, approaching true zero-transfer performance. All sensitive IT equipment, servers, NAS storage, medical devices, and networking hardware operate completely uninterrupted through multi-day grid outages protected by your ultra-capacity solar energy system.

Charging and Battery FAQs

Q: How fast can this 8kWh large-capacity solar energy system recharge?

A: Industry-leading 100A combined charging current from PV + AC parallel sources. 5000W solar charging fully recharges the 8kWh battery in approximately 1.6-2.5 hours. AC grid charging delivers equally fast recharge performance. Fast recharge even with double the battery capacity of standard solar energy system models.

Q: What battery technology is used in this 8kWh solar energy system?

A: Premium Grade A LiFePO4 (LFP) high-capacity cells configured as 25.6V 314Ah×8 for 8064Wh total capacity. 314Ah high-density cells deliver 60% more capacity in the same base footprint with 6000+ cycle life and excellent thermal safety for your long-term investment solar energy system.

Q: What is the significance of 314Ah cells in this solar energy system?

A: 314Ah high-density LFP cells represent the latest generation of energy-dense lithium iron phosphate technology. Delivering 57% more amp-hours than standard 200Ah cells, these premium cells enable 8kWh capacity in the same 445×240mm base footprint. The highest energy density in any wheeled solar energy system.

Smart Features and Application FAQs

Q: What smart monitoring features come with this solar energy system?

A: Built-in WiFi enables comprehensive cloud-based APP monitoring: real-time power flow visualization, precision SOC tracking for the large 8kWh pack, historical energy production analytics, consumption pattern optimization, automated fault alerts, and remote OTA firmware updates. Complete visibility and control of your high-capacity solar energy system from anywhere.

Q: Can multiple AIO3608 units expand this solar energy system?

A: Yes, through RS485/CAN parallel communication, multiple OCE-AIO3608 units operate in coordinated parallel for massive scalable capacity. Start with 8kWh, expand to 16kWh, 24kWh, 32kWh, or beyond as your energy resilience requirements grow with your modular ultra-capacity solar energy system.

Q: What are the primary applications for this 8kWh wheeled solar energy system?

A: Primary applications include: multi-day whole-home backup including air conditioning, extended off-grid cabin and remote site power, small business and retail multi-day continuity, critical infrastructure backup, emergency disaster response headquarters, premium residential installations requiring maximum runtime, and regions with frequent extended grid outages.

Q: Why the same footprint with 60% more capacity for this solar energy system?

A: Advanced 314Ah high-density LFP cell technology delivers 60% more energy storage in the identical 445×240mm base footprint. Only the height increases from 668mm to 760mm to accommodate the larger battery pack while maintaining full mobility through the heavy-duty caster system. The most energy-dense wheeled solar energy system architecture available.

I. OCEAN SOLAR Ultra-Capacity Extended Runtime Solar Energy System Launch

1.1 The Multi-Day Resilience Solar Energy System Breakthrough

1.1.1 Limitations of Standard Capacity Wheeled Solar Energy Systems

1.1.1.1 The Runtime Limitation of 4kWh/5kWh Solar Energy Systems

Standard 4kWh and 5kWh wheeled solar energy systems provide only 1-2 days of backup power at most. In regions with frequent extended grid outages, storm-related multi-day blackouts, or remote off-grid locations, users needed an ultra-capacity wheeled solar energy system delivering true multi-day resilience.

1.1.1.2 The AIO3608 Solar Energy System Solution

The OCE-AIO3608 solar energy system delivers 60% more battery capacity (8kWh vs. 5kWh) while maintaining the identical compact base footprint, same 3.6kW inverter power, and same 5kW PV capability. True 2-4+ day whole-home backup capability in a flexible wheeled plug-and-play solar energy system.

1.1.2 OCE-AIO3608 Solar Energy System Core Positioning

1.1.2.1 Extended Runtime Flagship Solar Energy System

As OCEAN SOLAR's ultra-capacity flagship wheeled solar energy system, the AIO3608 combines professional 3.6kW output, massive 8kWh LFP storage, 5kW PV capability, and smart monitoring for the ultimate extended-duration energy resilience solution. The premium choice for multi-day outage protection.

1.1.2.2 The Multi-Day Grid Independence Solar Energy System

The 8kWh capacity transforms this from short-term outage backup to true multi-day grid independence. Families and businesses can operate completely off-grid for days at a time without concern for runtime exhaustion — the ultimate energy security solar energy system.

1.2 Key Differentiating Technologies

1.2.1 8kWh Ultra-Capacity LFP Battery Pack

1.2.1.1 +60% Capacity vs. Standard Model

8064Wh total capacity represents a 60% increase over the 5kWh standard model and a 100% increase over the 4kWh entry model. Dramatically extended runtime for the most demanding outage scenarios with your premium solar energy system.

1.2.1.2 314Ah High-Density Cell Technology

Advanced 314Ah high-density Grade A LFP cells deliver 57% more amp-hours than standard 200Ah cells. This breakthrough in energy density enables 8kWh capacity in the same compact base footprint for your ultra-efficient solar energy system.

1.2.2 Same Footprint, Same Power, More Capacity

1.2.2.1 Identical 445×240mm Base

Identical 445mm × 240mm base footprint as both lower-capacity models. No increase in floor space required, only height increases to 760mm. The most space-efficient high-capacity wheeled solar energy system available.

1.2.2.2 Full 3.6kW / 5kW Performance Retained

No performance compromises for extra capacity: full 3600W continuous / 7200W peak inverter output and full 5000W PV input capability retained. Same professional-grade performance with dramatically extended runtime from your ultra-capacity solar energy system.

II. OCE-AIO3608 Solar Energy System 8kWh Ultra-Capacity Battery Technology

2.1 Premium 314Ah High-Density LFP Battery Pack

2.1.1 25.6V 314Ah LFP Configuration

2.1.1.1 8064Wh Total Stored Energy

25.6V nominal voltage with 314Ah capacity delivers 8064Wh total stored energy. Premium Grade A high-density cells configured as 8-series for optimal voltage and current characteristics in your high-performance solar energy system.

2.1.1.2 20-29.2V Operating Range

20V minimum to 29.2V maximum operating voltage range provides excellent depth of discharge capability while maintaining cell health and maximizing usable capacity for your long-life solar energy system.

2.1.2 314Ah High-Density Cell Advantages

2.1.2.1 Breakthrough Energy Density

314Ah high-density cells represent the latest generation of LFP technology. 57% higher capacity per cell than standard 200Ah cells enables 8kWh total capacity without increasing the base footprint of your compact solar energy system.

2.1.2.2 6000+ Cycle Life Rating

Premium Grade A LFP chemistry delivers 6000+ charge-discharge cycles at 80% depth of discharge. This translates to 12-15+ years of typical service life even with daily cycling for your investment-grade solar energy system.

2.2 Integrated Intelligent High-Capacity BMS

2.2.1 Comprehensive Large-Pack Management

2.2.1.1 Per-Cell Precision Monitoring

Individual cell voltage monitoring and active balancing ensure uniform charging and discharging across all 8 series high-capacity cells. Maximizes capacity utilization and maintains cell health across the 8kWh pack of your solar energy system.

2.2.1.2 Multi-Layer High-Current Protection

Comprehensive protection system optimized for high-capacity packs: over-voltage, under-voltage, over-current, short circuit, over-temperature, under-temperature, and over-charge protection. Complete safety for your large residential solar energy system.

2.2.2 CAN Bus High-Capacity Communication

2.2.2.1 Real-Time Large-Pack Health Data

CAN bus communication provides real-time battery health data, individual cell voltages, pack temperature, and state of charge to the inverter and monitoring system. Complete visibility into your 8kWh solar energy system battery status.

2.2.2.2 Massive Parallel Expansion Ready

CAN bus communication enables seamless parallel operation of multiple 8kWh packs and inverter units for utility-scale capacity expansion. Build 16kWh, 24kWh, 32kWh, or larger systems with your scalable solar energy system.

III. OCE-AIO3608 Solar Energy System 3.6kW Inverter Performance

3.1 Professional Pure Sine Wave Inverter Platform

3.1.1 92.7% Peak Conversion Efficiency

3.1.1.1 Optimized 24V Operating Point

92.7% peak conversion efficiency at the 24Vdc operating point. Advanced synchronous rectification and premium components minimize conversion losses, maximizing usable runtime from every watt-hour stored in your large-capacity solar energy system.

3.1.1.2 Unity Power Factor Output

Power factor = 1 output delivers maximum real power transfer without reactive power losses. Every amp from your inverter delivers full usable wattage for maximum efficiency in your premium extended-runtime solar energy system.

3.1.2 Graduated Intelligent Overload Protection

3.1.2.1 Advanced Time-Current Algorithm

Advanced graduated overload protection: 60 seconds @ 102-110%, 10 seconds @ 110-130%, 3 seconds @ 130-150%, 0.2 seconds @ >150%. Maximizes operational uptime while protecting your high-capacity solar energy system.

3.1.2.2 7200W Surge Capability

7200W peak surge power handles the extreme inrush currents of residential air conditioning compressors, well pumps, and heavy power tools. Full professional-grade performance retained in your ultra-capacity solar energy system.

3.2 <10ms Industrial-Grade UPS Technology

3.2.1 Near-Zero Transfer for Extended Outages

3.2.1.1 Twice the Industry Standard Speed

<10ms seamless transfer during grid outages is twice as fast as competing 20ms systems. Completely undetectable transfer protects sensitive equipment through multi-day outages powered by your extended-runtime solar energy system.

3.2.1.2 Multi-Day Uninterrupted Operation

The combination of <10ms transfer and 8kWh capacity delivers true multi-day uninterrupted power. Servers, medical equipment, and critical systems continue operating for days without interruption from your resilient solar energy system.

3.2.2 Dual-Range Voltage Operation

3.2.2.1 Wide Normal Mode Tolerance

90-280Vac normal operating range handles extremely unstable grid conditions, generator power, and storm-related voltage fluctuations. Your solar energy system continues operating through conditions that would shut down competing systems.

3.2.2.2 Tight UPS Mode Regulation

170-280Vac UPS mode range ensures clean tightly regulated output voltage for sensitive electronics during extended backup operation. Optimized power quality for your critical load solar energy system.

IV. OCE-AIO3608 Solar Energy System 5000W PV Charging System

4.1 Extended Range High-Voltage MPPT Controller

4.1.1 40-450V Ultra-Wide Operating Range

4.1.1.1 Full Residential and Commercial PV Compatibility

40-450V operating voltage range with 500V maximum open circuit voltage accepts virtually any solar panel configuration. Connect residential, commercial, and high-voltage arrays directly to your solar energy system.

4.1.1.2 No External Equipment Required

No external charge controllers, voltage converters, or matching hardware required. Connect your solar array directly to the PV input terminals for simplest, most reliable all-in-one solar energy system installation.

4.1.2 5000W Maximum PV Power

4.1.2.1 Oversized Array for Fast Large-Pack Recharge

5000W maximum PV input allows rapid recharge of the large 8kWh battery pack. The oversized array maximizes energy harvest and minimizes recharge time for your high-capacity off-grid solar energy system.

4.1.2.2 18A High-Current Charging

18A maximum PV charging current delivers industry-leading recharge performance. Full 8kWh recharge in as little as 1.6-2.5 hours under optimal sun conditions for your standalone solar energy system.

4.2 100A Combined Parallel Charging System

4.2.1 PV + AC Simultaneous Fast Charging

4.2.1.1 Dual Source Intelligent Charging

PV solar and AC grid charging operate simultaneously with intelligent current management up to 100A maximum combined charging current. Fast recharge even for the large 8kWh capacity of your premium solar energy system.

4.2.1.2 Multi-Stage Large-Pack Charge Algorithm

Advanced four-stage charging algorithm optimized for large high-capacity battery packs: bulk charge, absorption charge, float charge, and periodic equalization automatically applied by your solar energy system intelligent BMS.

4.2.2 150A High-Current Discharge

4.2.2.1 Full Power Support for Large Pack

150A maximum discharge current supports the full 3600W continuous and 7200W peak output capability. Heavy loads and high inrush currents are handled with ease by your high-performance solar energy system.

4.2.2.2 Dynamic Large-Pack Current Limiting

Intelligent dynamic current limiting protects both the large battery pack and inverter while maximizing available output power. The optimal balance of performance and protection for your ultra-capacity solar energy system.

V. OCE-AIO3608 Solar Energy System Smart Monitoring and Heavy-Duty Mobility

5.1 WiFi Cloud-Based Large-Capacity APP Monitoring

5.1.1 Comprehensive Extended Runtime Visibility

5.1.1.1 Real-Time Power Flow and Large-Pack SOC

Built-in WiFi connectivity provides cloud-based monitoring through the dedicated smartphone application. View real-time power flow diagrams, precise state of charge for the 8kWh pack, solar production, and consumption metrics for your solar energy system from anywhere.

5.1.1.2 Extended Runtime Analytics and Forecasting

Comprehensive historical data logging and energy analytics with runtime forecasting specifically optimized for large-capacity packs. Predict remaining runtime based on consumption patterns and optimize your extended-duration solar energy system performance.

5.1.2 Proactive Alerts and Remote Management

5.1.2.1 Large-Pack State of Charge Alerts

Customizable push notification alerts for state of charge thresholds particularly important for large-capacity systems providing multi-day backup. Proactive monitoring and awareness for your extended-runtime solar energy system.

5.1.2.2 Remote Firmware Updates

Over-the-air firmware updates ensure your high-capacity solar energy system always runs the latest software with performance improvements, feature enhancements, and large-pack optimization algorithms.

5.2 Heavy-Duty Wheeled Mobility Design

5.2.1 Upgraded Heavy-Duty Caster System

5.2.1.1 Single-Person Mobility for 84kg System

Upgraded heavy-duty integrated caster wheels allow the 84kg 8kWh ultra-capacity solar energy system to be moved and positioned by a single person. Roll to optimal connection points, between rooms, or for seasonal repositioning.

5.2.1.2 Same Footprint, Only Height Increased

Identical 445×240mm base footprint as lower-capacity models delivers 60% more energy storage with no increase in floor space required. Only height increases to 760mm to accommodate the larger battery pack.

5.2.2 Optimized Tall Form Factor

5.2.2.1 760mm Ergonomic Display Height

760mm overall height positions the LCD display and controls at perfect standing ergonomic viewing height. Easy monitoring and operation of your ultra-capacity solar energy system.

5.2.2.3 IP21 Indoor Optimized Protection

IP21 rating provides dripping water protection while maximizing cooling airflow efficiency for the large high-capacity battery pack. Optimal thermal management for indoor wheeled solar energy system deployment.

VI. Ten Reasons to Choose OCEAN SOLAR Ultra-Capacity Solar Energy Systems

8kWh Ultra-Capacity LFP — 60% more capacity, 2-4+ day whole-home backup

314Ah High-Density Cells — Latest generation, highest energy density available

3600W / 7200W Output — Powers air conditioning and entire home simultaneously

5000W High-Voltage PV — Fast recharge even for 8kWh large battery pack

<10ms Ultra-Fast UPS — Twice industry speed, multi-day uninterrupted power

100A Combined Fast Charging — Full 8kWh recharge in only 1.6-2.5 hours

WiFi APP Smart Monitoring — Large-pack optimized runtime forecasting and analytics

Heavy-Duty Wheeled Design — 84kg system movable by single person

Same Compact Footprint — 60% more capacity with identical base dimensions

Massive Parallel Scalability — Expand from 8kWh to 32kWh+ as needed

Contact the OCEAN SOLAR ultra-capacity sales team today to get a detailed quote for the OCE-AIO3608 8kWh extended runtime wheeled all-in-one solar energy system, and experience true multi-day energy independence with the world's most capable residential wheeled energy storage solution!

OCEAN SOLAR — Delivering true multi-day energy resilience through ultra-capacity wheeled solar energy systems
