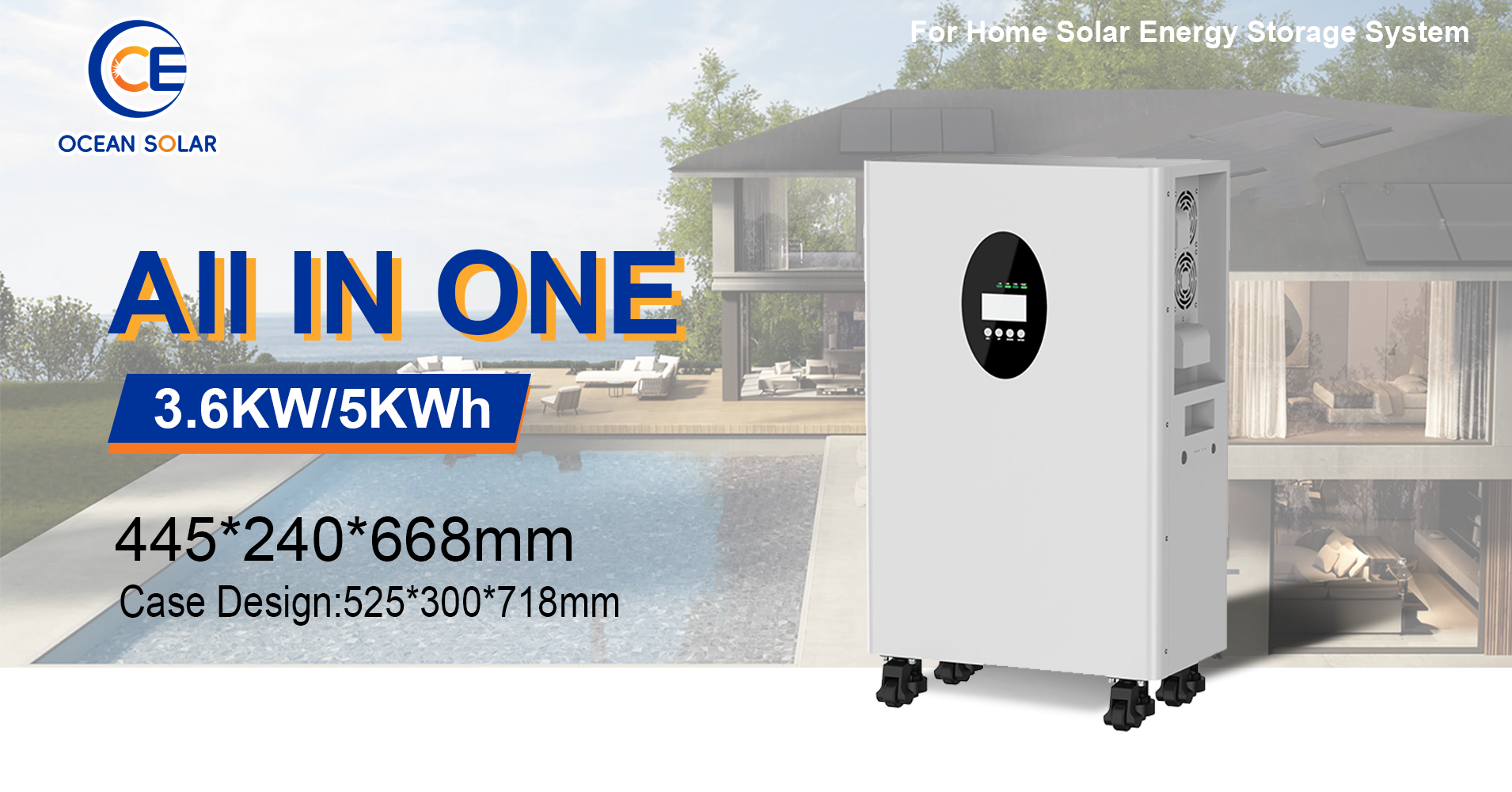

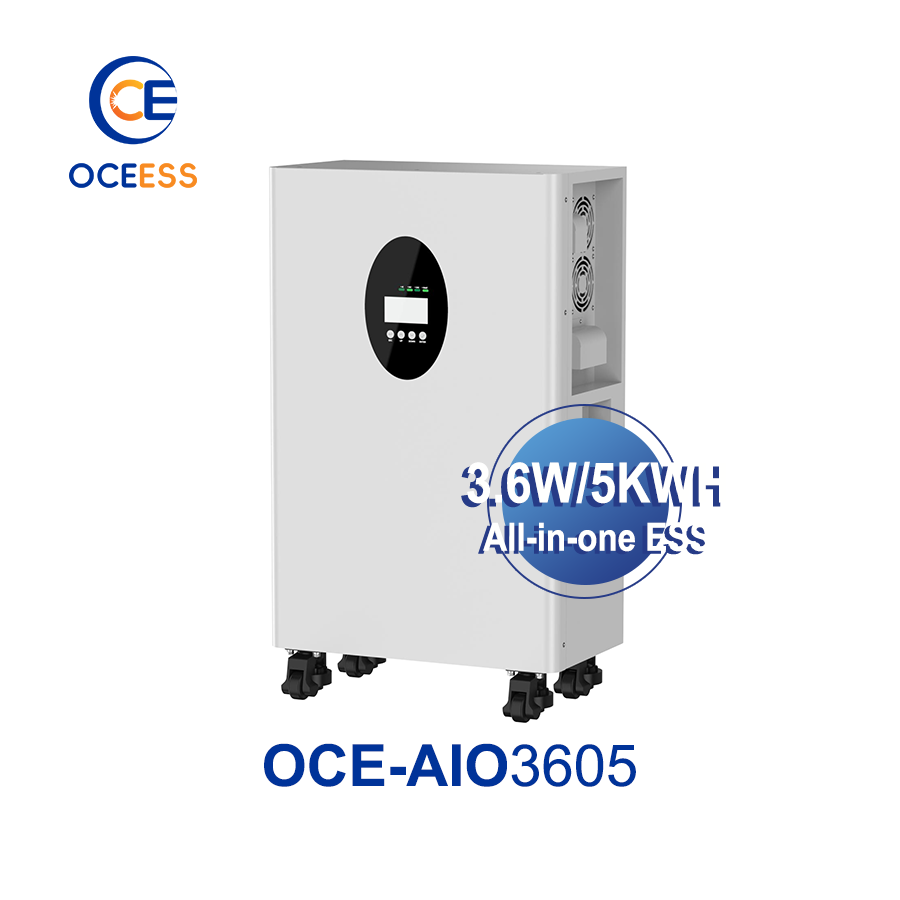

OCE-AIO3605 3.6kW/5kWh Wheeled High-Power All-in-One ESS

OCE-AIO3605 Solar Energy System Core Specifications Table

OCE-AIO3605 3.6kW/5kWh Wheeled High-Power All-in-One ESS.pdf

OCE-AIO3605 Solar Energy System Frequently Asked Questions

System Architecture and Upgrade FAQs

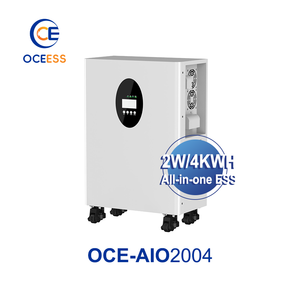

Q: How does this AIO3605 compare to the AIO2004 solar energy system?

A: Three major performance upgrades define this premium high-power solar energy system: 1) 3600W rated / 7200W peak vs. 2000W/4000W (+80% power), 2) 5kWh LFP battery vs. 4kWh (+25% capacity), 3) 5000W PV input vs. 3000W (+67% solar capacity). The OCE-AIO3605 is the premium flagship wheeled solar energy system for larger homes and small businesses.

Q: Is professional installation required for this high-power solar energy system?

A: The wheeled plug-and-play design simplifies basic deployment for homeowners, while PV array connection, grid-tie configuration, and electrical integration require a qualified electrician for safety and code compliance. The integrated mobility allows flexible positioning anywhere in your premium solar energy system installation.

Q: What does hybrid on/off-grid capability deliver for this solar energy system?

A: Seamless tri-mode operation: 1) Grid-tie self-consumption mode maximizes solar savings, 2) Off-grid island mode provides complete independence during outages, 3) Automatic hybrid mode optimizes between sources. The most versatile premium residential solar energy system architecture available.

Power and Performance FAQs

Q: What can this 3600W/7200W solar energy system power?

A: 3600W continuous output powers entire home essentials simultaneously: refrigerator + air conditioner + washing machine + multiple electronics + lighting + internet. 7200W surge handles all motor startup loads including AC compressors, well pumps, and power tools. The most powerful wheeled residential solar energy system available.

Q: What is the actual backup runtime of this 5kWh solar energy system?

A: Runtime examples based on 5000Wh LFP capacity: Essential home backup (fridge+network+lighting) = 24-48+ hours, 500W base load = 10 hours, 1000W continuous = 5 hours, 2000W heavy load = 2.5 hours. The 5kWh capacity delivers true multi-day whole-home backup from your premium solar energy system.

Q: What makes <10ms UPS switching critical for this solar energy system?

A: <10ms ultra-fast transfer is twice the industry standard speed and approaches true zero-transfer performance. All sensitive IT equipment, servers, NAS storage, medical devices, and networking hardware operate completely uninterrupted through grid outages. The fastest UPS transfer in any premium residential solar energy system.

Q: What is the significance of 5000W PV input for this solar energy system?

A: Industry-leading 5000W PV capacity with 40-450V ultra-wide MPPT range supports full-size residential solar arrays directly. The PV array can be 40% larger than the inverter output for maximum energy harvesting — the highest solar input ratio in any wheeled all-in-one solar energy system.

Charging and Battery FAQs

Q: How fast can this 5kWh high-power solar energy system recharge?

A: Industry-leading 100A combined charging current from PV + AC parallel sources. 5000W solar charging alone fully recharges the 5kWh battery in approximately 1.0-1.5 hours. AC grid charging delivers equally fast recharge performance for your premium backup solar energy system.

Q: What battery technology is used in this solar energy system?

A: Premium Grade A LiFePO4 (LFP) cells configured as 25.6V 200Ah×8 for 5120Wh total capacity. LFP chemistry delivers 6000+ cycles, superior thermal stability, excellent safety characteristics, and 10+ year service life for your long-term investment solar energy system.

Q: What is the 150A discharge capability of this solar energy system?

A: 150A maximum discharge current supports the full 3600W continuous and 7200W peak output capability. Heavy loads, high inrush currents, and simultaneous multi-appliance operation are handled effortlessly by this high-performance solar energy system.

Smart Monitoring and Application FAQs

Q: What smart monitoring features are included with this solar energy system?

A: Built-in WiFi enables comprehensive cloud-based APP monitoring: real-time power flow visualization, precise SOC tracking, historical energy production analytics, consumption patterns, automated fault alerts, and remote OTA firmware updates. Complete visibility and control of your solar energy system from anywhere.

Q: What communication protocols are supported for this solar energy system?

A: Full industrial connectivity suite: RS232 for local configuration, RS485 for multi-unit parallel expansion, CAN bus for BMS integration, and WiFi for cloud monitoring. Compatible with all major home automation and commercial EMS platforms for your integrated solar energy system.

Q: Can multiple AIO3605 units expand this solar energy system?

A: Yes, through RS485/CAN parallel communication, multiple OCE-AIO3605 units operate in coordinated parallel for massive scalable capacity. Start with 5kWh, expand to 10kWh, 15kWh, 20kWh, or beyond as your energy requirements grow with your modular premium solar energy system.

Q: What are the primary applications for this high-power wheeled solar energy system?

A: Primary applications include: whole-home backup including air conditioning, small business and retail store continuity, premium apartment and renter installations, emergency disaster response headquarters, remote professional workstations, construction site field offices, and premium residential installations requiring maximum power and flexibility.

I. OCEAN SOLAR Premium High-Power Wheeled Solar Energy System Launch

1.1 The Flagship Residential Solar Energy System Breakthrough

1.1.1 Limitations of Standard Wheeled Solar Energy Systems

1.1.1.1 The Power Capacity Gap in Entry Solar Energy Systems

Entry-level wheeled solar energy systems at 2kW cannot power air conditioning, electric heating, washing machines, or multiple heavy appliances simultaneously. Homes and small businesses requiring true whole-home backup needed a premium high-power wheeled solar energy system solution.

1.1.1.2 The AIO3605 Solar Energy System Solution

The OCE-AIO3605 solar energy system delivers 80% more inverter power, 25% more battery capacity, and 67% more PV input capability than the standard AIO2004 while maintaining the same compact wheeled footprint. True whole-home backup including air conditioning in a flexible plug-and-play solar energy system.

1.1.2 OCE-AIO3605 Solar Energy System Core Positioning

1.1.2.1 Premium Whole-Home Solar Energy System Flagship

As OCEAN SOLAR's flagship wheeled residential solar energy system, the AIO3605 combines professional-grade 3.6kW output, 5kWh LFP storage, 5kW PV capability, and smart monitoring in a compact mobile form factor. The ultimate premium solution for discerning homeowners and small business solar energy system operators.

1.1.2.2 The Air Conditioning Capable Solar Energy System

The 3600W continuous and 7200W surge capability makes this the first wheeled all-in-one solar energy system that can reliably run residential air conditioning systems through extended grid outages. A game-changing capability for summer blackout resilience.

1.2 Three Major Performance Upgrades

1.2.1 3600W / 7200W Inverter Upgrade

1.2.1.1 +80% Power Output Increase

3600W continuous rated output represents an 80% increase over the 2000W standard model. Run air conditioning, washing machines, dryers, microwaves, and all household essentials simultaneously from your premium solar energy system.

1.2.1.2 7200W Surge Capability

Doubled 7200W peak surge power handles the highest inrush currents from air conditioning compressors, well pumps, electric motors, and power tools. The most powerful wheeled residential solar energy system available.

1.2.2 5000W High-Voltage PV Input Upgrade

1.2.2.1 +67% Solar Capacity Increase

5000W maximum PV input represents a 67% increase over the 3000W standard model. Connect full-size residential solar arrays directly without additional equipment for maximum energy harvest from your off-grid solar energy system.

1.2.2.2 40-450V Ultra-Wide MPPT Range

Extended 40-450V operating range with 500V maximum open circuit voltage. Compatible with virtually all residential and commercial solar panel configurations for your flexible solar energy system.

1.2.3 5kWh LFP Battery Upgrade

1.2.3.1 +25% Energy Capacity Increase

5000Wh premium LFP battery delivers 25% more storage capacity than the standard 4kWh model. True multi-day whole-home backup capability from your premium residential solar energy system.

1.2.3.2 Grade A LFP Cell Technology

Premium Grade A LiFePO4 cells with 6000+ cycle life and excellent thermal stability. The safest, longest-lasting battery technology available for your investment-grade solar energy system.

II. OCE-AIO3605 Solar Energy System 3.6kW Inverter Performance

2.1 Premium Pure Sine Wave Inverter Platform

2.1.1 92.7% Peak Conversion Efficiency

2.1.1.1 Optimized 24V Operating Point

92.7% peak conversion efficiency at the 24Vdc operating point. Advanced synchronous rectification technology and premium magnetic components minimize conversion losses for maximum usable energy from every watt stored in your solar energy system.

2.1.1.2 Unity Power Factor Output

Power factor = 1 output delivers maximum real power transfer without reactive power losses. Every amp from your inverter delivers full usable wattage for maximum efficiency in your premium solar energy system.

2.1.2 Graduated Intelligent Overload Protection

2.1.2.1 Time-Current Response Curve

Advanced graduated overload protection algorithm: 60 seconds @ 102-110%, 10 seconds @ 110-130%, 3 seconds @ 130-150%, 0.2 seconds @ >150%. Maximizes operational uptime while protecting your solar energy system from damage.

2.1.2.2 7200W Surge Performance

7200W peak surge capability handles the extreme inrush currents of residential air conditioning compressors. The only wheeled all-in-one solar energy system that can reliably start and run air conditioning systems.

2.2 <10ms Industrial-Grade UPS Technology

2.2.1 Near-Zero Transfer Performance

2.2.1.1 Twice the Industry Standard Speed

<10ms seamless transfer during grid outages is twice as fast as competing 20ms systems. Approaches the zero-transfer performance previously available only in industrial UPS solar energy system installations costing thousands more.

2.2.1.2 Completely Transparent Operation

The ultra-fast transfer is completely undetectable by all connected equipment. Servers, NAS storage, desktop computers, networking hardware, and sensitive medical devices continue operating without reset, interruption, or data loss from your backup solar energy system.

2.2.2 Dual-Range Voltage Operation

2.2.2.1 Wide Normal Mode Tolerance

90-280Vac normal operating range handles extremely unstable grid conditions, generator power, and storm-related voltage fluctuations. Your solar energy system continues operating through conditions that would shut down competing systems.

2.2.2.2 Tight UPS Mode Regulation

170-280Vac UPS mode range ensures clean tightly regulated output voltage for sensitive electronics during backup operation. Optimized power quality for your critical load solar energy system.

III. OCE-AIO3605 Solar Energy System 5000W PV Charging System

3.1 Extended Range High-Voltage MPPT Controller

3.1.1 40-450V Ultra-Wide Operating Range

3.1.1.1 Industry's Most Flexible PV Compatibility

40-450V operating voltage range with 500V maximum open circuit voltage accepts virtually any solar panel configuration: 24V, 36V, 48V, 60V, 72V, 96V, and high-voltage commercial arrays connected directly to your solar energy system.

3.1.1.2 No Additional Equipment Required

No external charge controllers, voltage converters, or matching hardware required. Connect your solar array directly to the PV input terminals for simplest, most reliable all-in-one solar energy system installation.

3.1.2 5000W Maximum PV Power

3.1.2.1 Oversized PV Array Capability

5000W maximum PV input allows the solar array to be 40% larger than the 3600W inverter output. This over-sizing maximizes energy harvest during morning, evening, and cloudy conditions for your off-grid solar energy system.

3.1.2.2 18A High-Current Charging

18A maximum PV charging current delivers industry-leading recharge performance. Full 5kWh recharge in as little as 1-1.5 hours under optimal sun conditions for your standalone solar energy system.

3.2 100A Combined Parallel Charging System

3.2.1 PV + AC Simultaneous Charging

3.2.1.1 Dual Source Intelligent Charging

PV solar and AC grid charging operate simultaneously with intelligent current management up to 100A maximum combined charging current. The fastest recharge capability available in any residential all-in-one solar energy system.

3.2.1.2 Multi-Stage Charge Algorithm

Advanced four-stage charging algorithm optimizes battery health and cycle life: bulk charge, absorption charge, float charge, and periodic equalization automatically applied by your solar energy system intelligent BMS.

3.2.2 150A High-Current Discharge

3.2.2.1 Heavy Load Support

150A maximum discharge current supports the full 3600W continuous and 7200W peak output capability. The heaviest loads and highest inrush currents are handled with ease by your high-performance solar energy system.

3.2.2.2 Dynamic Current Limiting

Intelligent dynamic current limiting protects both battery and inverter while maximizing available output power. The optimal balance of performance and protection for your premium solar energy system.

IV. OCE-AIO3605 Solar Energy System 5kWh LFP Battery Technology

4.1 Premium Grade A LiFePO4 Battery Pack

4.1.1 25.6V 200Ah LFP Configuration

4.1.1.1 5120Wh Total Capacity

25.6V nominal voltage with 200Ah capacity delivers 5120Wh total stored energy. Premium Grade A cells configured as 8-series for optimal voltage and current characteristics in your high-performance solar energy system.

4.1.1.2 20-29.2V Operating Range

20V minimum to 29.2V maximum operating voltage range provides excellent depth of discharge capability while maintaining cell health and longevity for your long-life solar energy system.

4.1.2 LFP Chemistry Advantages

4.1.2.1 6000+ Cycle Life Rating

LiFePO4 chemistry delivers 6000+ charge-discharge cycles at 80% depth of discharge. This translates to 10-15+ years of typical service life for your investment-grade solar energy system.

4.1.2.2 Excellent Thermal Stability

LFP chemistry provides inherent thermal stability and excellent safety characteristics without the thermal runaway risk of other lithium chemistries. The safest battery technology for your residential solar energy system.

4.2 Integrated Intelligent BMS

4.2.1 Comprehensive Cell Management

4.2.1.2 Per-Cell Voltage Monitoring

Individual cell voltage monitoring and active balancing ensure uniform charging and discharging across all 8 series cells. Maximizes capacity utilization and extends service life of your solar energy system battery pack.

4.2.1.2 Multi-Layer Protection System

Comprehensive protection: over-voltage, under-voltage, over-current, short circuit, over-temperature, under-temperature, and over-charge protection. Complete safety for your residential solar energy system.

4.2.2 CAN Bus Communication

4.2.2.1 Real-Time Health Reporting

CAN bus communication provides real-time battery health data to the inverter and monitoring system. Complete visibility into battery status, temperature, and health for your solar energy system.

4.2.2.2 Parallel Expansion Ready

CAN bus communication enables seamless parallel operation of multiple battery packs and inverter units for massive scalable capacity expansion of your growing solar energy system.

V. OCE-AIO3605 Solar Energy System Smart Monitoring and Mobility

5.1 WiFi Cloud-Based APP Monitoring

5.1.1 Comprehensive Remote Visibility

5.1.1.1 Real-Time Power Flow Visualization

Built-in WiFi connectivity provides cloud-based monitoring through the dedicated smartphone application. View real-time power flow diagrams, precise state of charge, solar production watts, and consumption metrics for your solar energy system from anywhere worldwide.

5.1.1.2 Historical Energy Analytics

Comprehensive historical data logging and energy analytics track your solar production, self-consumption ratio, grid import/export, and financial savings over time. Data-driven optimization for your solar energy system performance.

5.1.2 Proactive Alerts and Management

5.1.2.1 Push Notification Alerts

Instant push notifications for system events, fault conditions, state of charge thresholds, and maintenance reminders. Proactive monitoring and awareness without requiring physical presence at your solar energy system.

5.1.2.2 Remote Firmware Updates

Over-the-air firmware updates ensure your solar energy system always runs the latest software with performance improvements, feature enhancements, and bug fixes. No on-site technician visit required.

5.2 Wheeled Mobility and Compact Design

5.2.1 Integrated Caster Wheel System

5.2.1.1 Single-Person Mobility

Heavy-duty integrated caster wheels allow the 70kg 5kWh high-power solar energy system to be moved and positioned by a single person. Roll to optimal connection points, between rooms, or for seasonal repositioning.

5.2.1.2 Same Footprint, More Power

Identical 445×240mm base footprint as the lower-power model delivers 80% more power and 25% more capacity in the same compact space. The most power-dense wheeled solar energy system on the market.

5.2.2 Optimized Residential Form Factor

5.2.2.1 668mm Ergonomic Height

668mm overall height positions the LCD display and controls at natural ergonomic viewing height while maintaining excellent stability. Easy monitoring and operation of your premium solar energy system.

5.2.2.2 IP21 Indoor Optimized Protection

IP21 rating provides dripping water protection while maximizing cooling airflow efficiency for indoor residential and light commercial environments. The optimal rating for indoor wheeled solar energy system deployment.

VI. Ten Reasons to Choose OCEAN SOLAR Premium High-Power Solar Energy Systems

3600W Continuous / 7200W Peak — Powers air conditioning and entire home simultaneously

5kWh Premium LFP Battery — Grade A cells, 6000+ cycles, 10+ year life

5000W High-Voltage PV Input — 40-450V range, 40% oversized array capability

<10ms Ultra-Fast UPS — Twice industry speed, zero-detection transfer

100A Combined Fast Charging — Full 5kWh recharge in only 1-1.5 hours

WiFi APP Smart Monitoring — Cloud-based remote monitoring and analytics

Wheeled Plug-and-Play Design — No permanent installation, renter-friendly

Hybrid On/Off-Grid Tri-Mode — Seamless automatic mode switching

Parallel Scalable Capacity — Expand from 5kWh to 20kWh+ as needed

Same Compact Footprint — 80% more power in identical base dimensions
