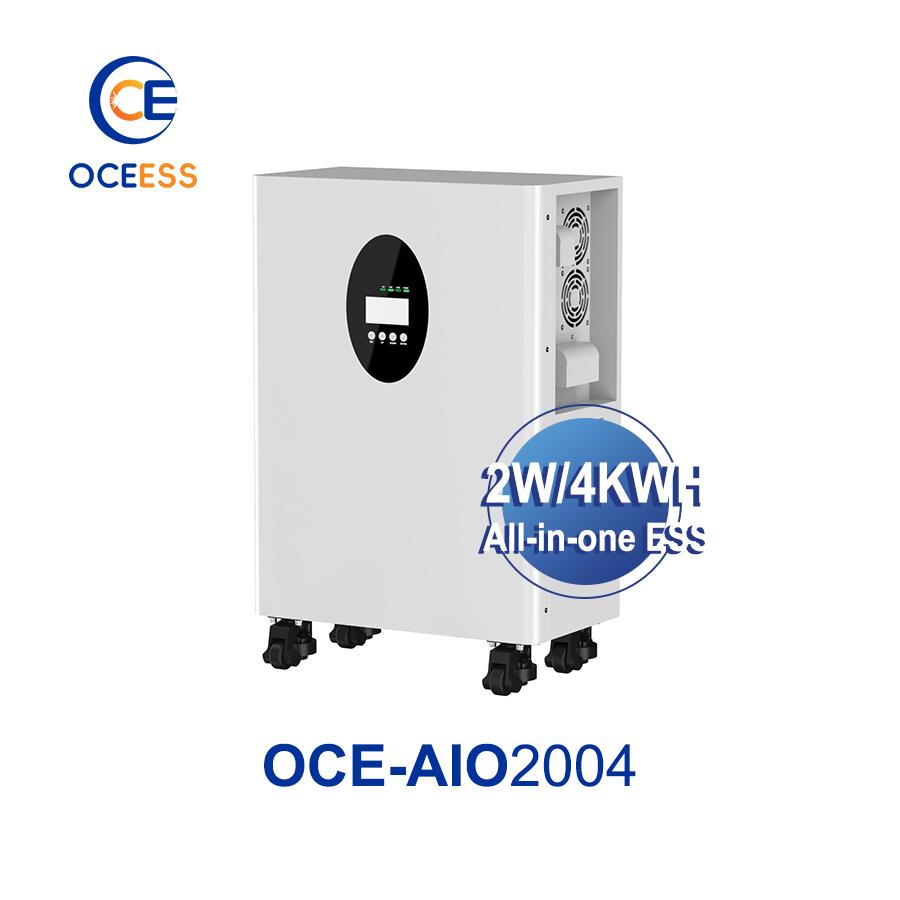

OCE-AIO2004 2kW/4kWh Wheeled All-in-One ESS

OCE-AIO2004 Solar Energy System Core Specifications Table

OCE-AIO2004 2kW/4kWh Wheeled All-in-One ESS.pdf

OCE-AIO2004 Solar Energy System Frequently Asked Questions

System Architecture and Installation FAQs

Q: Is professional installation required for this all-in-one solar energy system?

A: The OCE-AIO2004 solar energy system features wheeled plug-and-play design for simplified deployment. Basic setup can be performed by homeowners, while PV panel connection and grid-tie configuration require a qualified electrician to ensure safety and compliance. The integrated wheels allow easy positioning anywhere in your home or business solar energy system installation.

Q: What does hybrid on/off-grid capability mean for this solar energy system?

A: The OCE-AIO2004 solar energy system operates in both modes seamlessly: 1) Grid-tie mode: self-consumption with grid backup, 2) Off-grid mode: complete island operation during outages, 3) Hybrid mode: automatically switches between modes. The most versatile residential solar energy system configuration available.

Q: How do the integrated wheels enhance this solar energy system?

A: The four heavy-duty omni-directional caster wheels allow the 60kg 4kWh solar energy system to be easily moved and repositioned by a single person. Roll it to the optimal PV connection point, move it between rooms, or reposition for seasonal sun exposure optimization — unprecedented flexibility in a residential solar energy system.

Performance and Power FAQs

Q: What is the significance of <10ms UPS switching in this solar energy system?

A: <10ms ultra-fast transfer is twice as fast as the industry standard 20ms and approaches true zero-transfer performance. Even the most sensitive desktop computers, servers, medical equipment, and networking hardware will never detect an outage. The fastest UPS transfer available in any residential solar energy system.

Q: How much power and capacity does this 2kW/4kWh solar energy system provide?

A: 2000W continuous output powers all household essentials simultaneously: refrigerator + internet + lighting + multiple electronics. 4000W surge capability handles motor startup loads from refrigerators, compressors, and pumps. 4kWh capacity provides 8-24 hours of backup power depending on load for your home solar energy system.

Q: What is the 3000W high-voltage PV capability of this solar energy system?

A: Industry-leading 3000W PV input with 30-400V ultra-wide MPPT range supports standard residential solar panel arrays directly. Connect up to 3kW of solar panels without additional equipment. The highest PV input capacity in its class for your off-grid solar energy system.

Q: How fast can this solar energy system recharge?

A: Industry-leading 100A maximum combined charging current from PV + AC sources. 3000W solar charging alone can fully recharge the 4kWh battery in approximately 1.5-2 hours. AC grid charging provides equally fast recharge capability for your backup solar energy system.

Smart Monitoring and Connectivity FAQs

Q: What smart monitoring features does this solar energy system include?

A: Built-in WiFi enables comprehensive smart APP monitoring: real-time power flow visualization, state of charge tracking, historical energy production data, consumption analytics, fault alerts, and remote firmware updates. Monitor and manage your solar energy system from anywhere in the world.

Q: What communication protocols are supported for this solar energy system?

A: Comprehensive industrial connectivity: RS232 for local configuration, RS485 for multi-unit parallel systems, CAN bus for BMS integration, and WiFi for cloud monitoring. Compatible with all major home automation and commercial energy management systems for your integrated solar energy system.

Q: Can multiple units be connected for expanded solar energy system capacity?

A: Yes, through the RS485/CAN communication interface, multiple OCE-AIO2004 units can be paralleled for scalable capacity. Start with one 4kWh unit, expand to 8kWh, 12kWh, or more as your energy needs grow — modular scalability for your growing solar energy system.

Application and Safety FAQs

Q: What are the primary applications for this wheeled solar energy system?

A: Primary applications include: whole-home backup power, small business and retail continuity, apartment and renter solar energy system installations, emergency disaster response, remote workstations, temporary event power, construction site offices, and flexible residential solar installations where permanent mounting is not feasible.

Q: Why IP21 rating instead of IP65 for this solar energy system?

A: IP21 is optimized specifically for indoor residential and light commercial environments, providing dripping water protection while maximizing cooling efficiency. The wheeled design allows easy movement indoors, making outdoor protection unnecessary for this flexible solar energy system.

Q: What comprehensive protections are built into this solar energy system?

A: Multi-stage intelligent protection system: overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, over-temperature protection, overload protection with graduated time/current response, and comprehensive BMS cell balancing. Complete safety for your home solar energy system.

I. OCEAN SOLAR Wheeled All-in-One Hybrid Solar Energy System Launch

1.1 The Flexible Home Solar Energy System Revolution

1.1.1 Limitations of Fixed Solar Energy System Installations

1.1.1.1 The Problem with Permanent Solar Energy System Mounting

Traditional fixed solar energy system installations require permanent mounting, professional installation, structural modifications, and often landlord or HOA approval. Renters, apartment dwellers, and homeowners unwilling to modify their property have been locked out of residential solar energy system benefits — until now.

1.1.1.2 The Wheeled Solar Energy System Breakthrough

The OCE-AIO2004 solar energy system eliminates all these barriers with integrated caster wheels and plug-and-play operation. No permanent installation, no structural modifications, no permission required. Simply roll into place, plug in, and enjoy all the benefits of a residential solar energy system with unprecedented flexibility.

1.1.2 OCE-AIO2004 Solar Energy System Core Positioning

1.1.2.1 The Renter and Apartment Solar Energy System Solution

Specifically designed for renters, apartment dwellers, and homeowners who cannot install permanent rooftop systems. The wheeled design allows installation in any rental property with complete portability when you move. The first truly accessible residential solar energy system.

1.1.2.2 Hybrid On/Off-Grid Versatility

True hybrid capability with seamless mode switching: grid-tied self-consumption, off-grid island operation, and backup power functionality. The most versatile all-in-one solar energy system architecture available for residential and light commercial applications.

1.2 Key Breakthrough Technologies

1.2.1 <10ms Ultra-Fast UPS Transfer

1.2.1.1 Twice as Fast as Industry Standard

<10ms seamless UPS switching delivers near-zero-transfer performance — twice as fast as the standard 20ms systems. Even the most sensitive IT equipment and medical devices operate through outages without detection. The gold standard for backup solar energy system performance.

1.2.1.2 4000W Surge Capability

4000W peak surge power handles the high inrush current of motor-driven appliances. Refrigerators, air conditioners, well pumps, and power tools start reliably every time from your backup solar energy system.

1.2.2 3000W High-Voltage PV Input

1.2.2.1 30-400V Ultra-Wide MPPT Range

Industry-leading 30-400V operating voltage range with 450V maximum open circuit voltage. Connect directly to standard residential solar panel arrays without additional equipment or voltage matching. The most flexible PV integration in any portable solar energy system.

1.2.2.2 100A Combined Charging Current

100A maximum combined charging current from PV and AC sources delivers industry-leading recharge speed. Full 4kWh recharge in as little as 1.5 hours from solar alone for your off-grid solar energy system.

II. OCE-AIO2004 Solar Energy System Wheeled Mobility Design

2.1 Integrated Caster Wheel System

2.1.1 Heavy-Duty Omni-Directional Mobility

2.1.1.1 Four-Point Caster Configuration

Four heavy-duty omni-directional caster wheels distribute the 60kg system weight evenly, allowing the entire 4kWh solar energy system to be easily moved and positioned by a single person without assistance.

2.1.1.2 Precision Maneuverability

360-degree steering capability allows precise positioning in tight spaces. Roll through standard doorways, position in corners, move between rooms, or optimize for seasonal sun exposure — complete flexibility for your solar energy system.

2.1.2 Optimized Residential Footprint

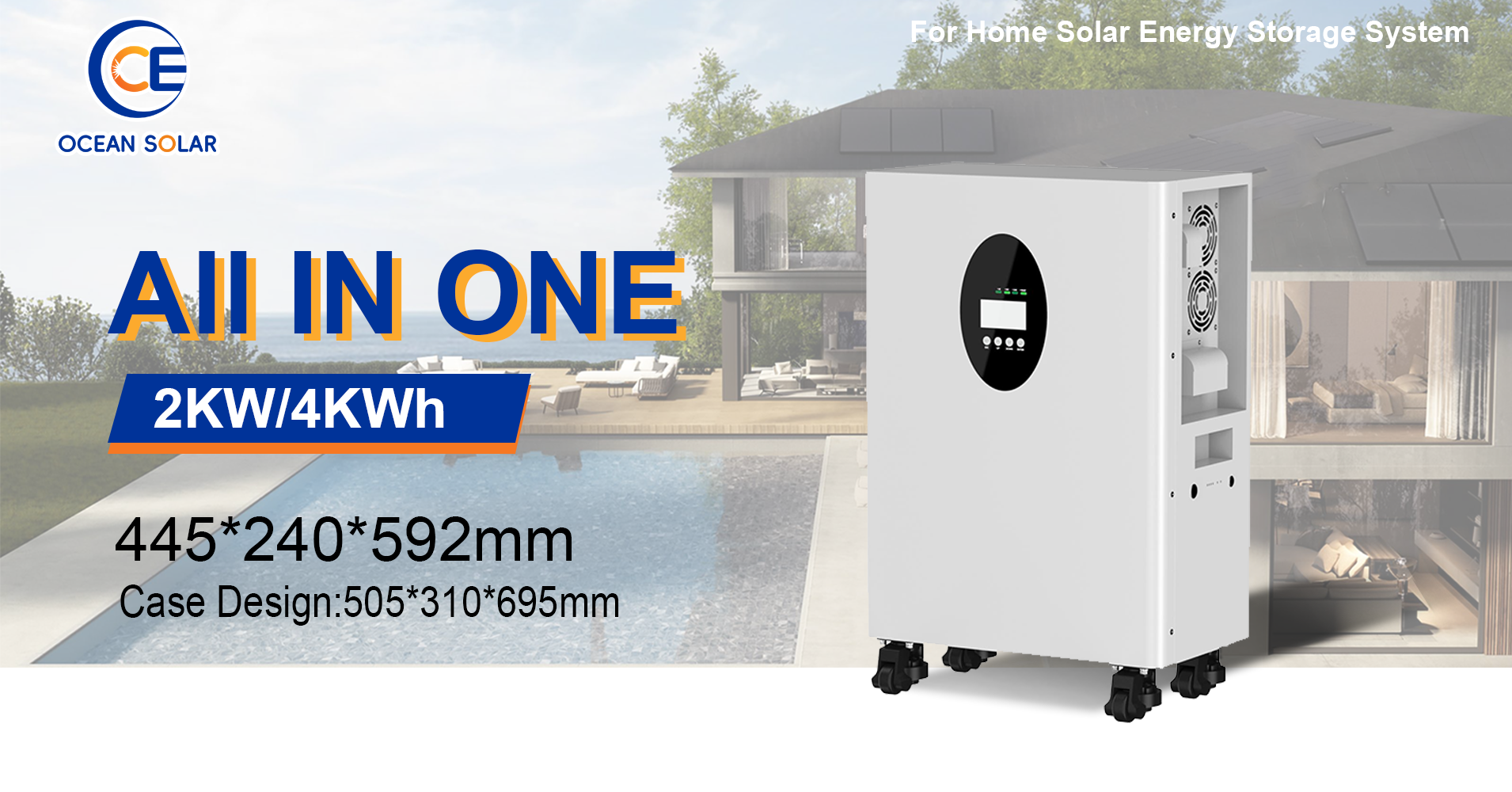

2.1.2.1 Compact 445×240mm Base

At only 445mm wide × 240mm deep, the footprint is smaller than many microwave ovens. Fits easily in utility rooms, garages, closets, living areas, or apartment balconies. The most space-efficient 4kWh solar energy system available.

2.1.2.2 592mm Optimal Height

592mm height provides ergonomic access to the front panel display and controls while maintaining excellent stability. The display is positioned at natural viewing height for monitoring your solar energy system performance.

2.2 User Interface and Display System

2.2.1 Circular LCD HMI Panel

2.2.1.1 Central Display Cluster

The distinctive circular front panel features an integrated LCD display with LED status indicators and physical control buttons. Intuitive operation and at-a-glance status monitoring for your solar energy system.

2.2.1.2 Four-Button Control Interface

Four dedicated physical buttons provide reliable tactile control: system power, mode selection, display cycling, and enter/confirm. Simple, intuitive operation without complex menus for your solar energy system.

2.2.2 Status and Protection Indicators

2.2.2.1 Multi-Color LED Status Bar

LED indicators provide immediate visual feedback for operating mode, fault conditions, charge status, and communication activity. Understand your solar energy system status at a glance from across the room.

2.2.2.2 Visual Alarm Notification

Integrated visual alarm system provides immediate notification of fault conditions without requiring app connection. Proactive status awareness for your solar energy system.

III. OCE-AIO2004 Solar Energy System Inverter and Performance

3.1 2kW Hybrid Pure Sine Wave Inverter

3.1.1 93% Peak Conversion Efficiency

3.1.1.1 Industry-Leading Efficiency Performance

93% peak conversion efficiency at 48Vdc operating point. Advanced synchronous rectification and optimized magnetics minimize conversion losses, delivering maximum usable energy from your solar energy system.

3.1.1.2 Pure Sine Wave Power Quality

Premium pure sine wave output with <3% THD ensures grid-equivalent power quality for all sensitive electronics, audio equipment, medical devices, and variable-speed motors powered by your solar energy system.

3.1.2 Graduated Overload Protection

3.1.2.1 Intelligent Time-Current Response

Advanced graduated overload protection: 60 seconds @ 102-110%, 10 seconds @ 110-130%, 3 seconds @ 130-150%, 0.2 seconds @ >150%. Maximizes operational uptime while protecting your solar energy system from damage.

3.1.2.2 4000W Surge Capability

4000W peak surge power handles motor inrush currents that would trip lesser systems. All motor-driven appliances and tools start reliably from your residential solar energy system.

3.2 <10ms Ultra-Fast UPS Technology

3.2.1 Near-Zero Transfer Performance

3.2.1.1 Twice the Industry Standard Speed

<10ms transfer time during grid outages is twice as fast as competing 20ms systems. Approaches true zero-transfer performance previously available only in much more expensive industrial UPS solar energy system installations.

3.2.1.2 Transparent Operation

The transfer is completely transparent to all connected equipment. Computers, servers, networking hardware, and medical devices continue operating without reset, interruption, or data loss from your backup solar energy system.

3.2.2 Dual Mode Voltage Operation

3.2.2.1 Wide Normal Mode Range

90-280Vac normal operating range handles extremely unstable grid conditions common in developing regions and during storm events. Your solar energy system continues operating through voltage sags and swells that would shut down competing systems.

3.2.2.2 Restricted UPS Mode Range

170-280Vac UPS mode range ensures clean stable output voltage for sensitive equipment during backup operation. Optimized voltage regulation for your critical loads solar energy system.

IV. OCE-AIO2004 Solar Energy System 3000W PV Charging System

4.1 High-Voltage Wide-Range MPPT Controller

4.1.1 30-400V Ultra-Wide Operating Range

4.1.1.1 Industry's Widest PV Compatibility

30-400V operating voltage range with 450V maximum open circuit voltage accepts virtually any residential solar panel configuration: 12V, 24V, 36V, 48V, 60V, 72V, and high-voltage arrays directly connected to your solar energy system.

4.1.1.2 No Additional Hardware Required

No additional charge controllers, voltage converters, or matching equipment required. Connect your solar panels directly to the PV input terminals of your all-in-one solar energy system for simplest installation.

4.1.2 3000W Maximum PV Power

4.1.2.1 Highest PV Capacity in Class

3000W maximum PV input power is the highest in this product category. The solar array can be larger than the inverter output, maximizing energy harvest during peak sun hours for your off-grid solar energy system.

4.1.2.2 18A High-Current Charging

18A maximum PV charging current delivers fast off-grid recharge performance. Full 4kWh recharge in as little as 1.5-2 hours under optimal sun conditions for your standalone solar energy system.

4.2 100A Combined Charging System

4.2.1 PV + AC Parallel Charging

4.2.1.1 Simultaneous Dual Source Charging

PV solar and AC grid charging operate simultaneously with intelligent current management up to 100A maximum combined charging current. The fastest recharge capability available in any residential all-in-one solar energy system.

4.2.1.2 Intelligent Charge Algorithm

Advanced multi-stage charging algorithm optimizes battery health and longevity: bulk charge, absorption charge, float charge, and equalization stages automatically applied by your solar energy system BMS.

4.2.2 150A Maximum Discharge Capability

4.2.2.1 High-Current Output Performance

150A maximum discharge current supports the 2000W continuous and 4000W peak output capability. Heavy loads and high inrush currents are handled with ease by your high-performance solar energy system.

4.2.2.2 Dynamic Current Limiting

Intelligent dynamic current limiting protects both the battery and inverter while maximizing available output power. The optimal balance of performance and protection for your solar energy system.

V. OCE-AIO2004 Solar Energy System Smart Monitoring and Connectivity

5.1 WiFi APP Monitoring System

5.1.1 Cloud-Based Remote Monitoring

5.1.1.1 Real-Time Energy Visualization

Built-in WiFi connects to your home network and provides cloud-based monitoring through the dedicated smartphone APP. View real-time power flow, state of charge, solar production, and consumption data for your solar energy system from anywhere.

5.1.1.2 Historical Data and Analytics

Comprehensive historical data logging and energy analytics track your solar production, self-consumption ratio, and savings over time. Understand and optimize your solar energy system performance through detailed data visualization.

5.1.2 Remote Management and Alerts

5.1.2.1 Push Notification Alerts

Instant push notifications for system events, fault conditions, and state of charge alerts. Proactive monitoring and maintenance awareness for your solar energy system without requiring physical presence.

5.1.2.2 Remote Firmware Updates

Over-the-air firmware updates ensure your solar energy system always runs the latest software with performance improvements and feature enhancements. No technician visit required for system updates.

5.2 Multi-Protocol Industrial Connectivity

5.2.1 RS232/RS485/CAN Interface

5.2.1.1 Comprehensive Protocol Support

Industrial-grade communication interfaces: RS232 for local configuration, RS485 for multi-unit parallel systems, CAN bus for BMS integration. Complete compatibility with all major energy management platforms for your integrated solar energy system.

5.2.1.2 Parallel Expansion Capability

Through RS485/CAN communication, multiple OCE-AIO2004 units operate in parallel for modular capacity expansion. Start with 4kWh, expand to 8kWh, 12kWh, 16kWh, or more as your energy needs grow with your scalable solar energy system.

5.2.2 Home Automation Integration

5.2.2.1 Smart Home Compatibility

Open communication protocols enable integration with all major home automation systems including Home Assistant, OpenHAB, Domoticz, and commercial building management systems for your connected smart solar energy system.

5.2.2.3 Energy Management System (EMS) Ready

Designed for integration with residential and commercial energy management systems. Demand response, time-of-use optimization, and peak shaving capabilities are fully supported by your intelligent solar energy system.

VI. Ten Reasons to Choose OCEAN SOLAR Wheeled Hybrid Solar Energy Systems

Wheeled Plug-and-Play Design — No permanent installation, roll anywhere, renter-friendly

<10ms Ultra-Fast UPS — Twice as fast as industry standard, zero-detection transfer

2kW Continuous / 4kW Surge — Powers all household essentials and motor loads

4kWh High Capacity — 8-24 hours of whole-home backup power

3000W High-Voltage PV — 30-400V range, connects directly to solar arrays

100A Ultra-Fast Charging — Full recharge in 1.5-2 hours from solar alone

WiFi APP Smart Monitoring — Cloud-based remote monitoring and energy analytics

Hybrid On/Off-Grid — Seamless mode switching for maximum versatility

Parallel Scalable Capacity — Expand from 4kWh to 16kWh+ as needed

IP21 Indoor Optimized — Maximum cooling efficiency for residential environments

Contact the OCEAN SOLAR professional team today to get a detailed quote for the OCE-AIO2004 wheeled hybrid all-in-one solar energy system, and experience the most flexible, powerful, and accessible residential energy storage solution available!

OCEAN SOLAR — Making solar energy system ownership accessible to everyone through innovative wheeled plug-and-play design
