N-TopCon Solar Panel Mono 700W-750W Monofacial

Short Description:


Product Detail

Product Tags

Product Features

Type of panels: N-type TOPCon Technology

Power range: 700W-750W
Efficiency range:
22.50%-24.20%
Dimensions: 2382mm x 1303mm x 35 mm
Weight: 31Kg
Performance Guarantee: 30 years
Product Warranty: 12 years
Packaging558pcs/40HQ Container

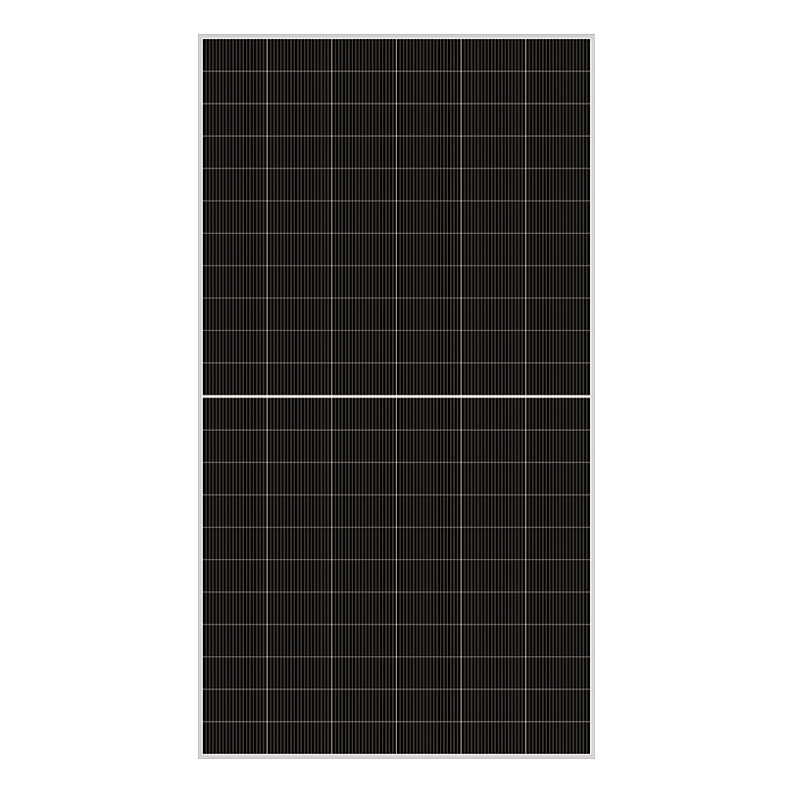

750W Monofacial

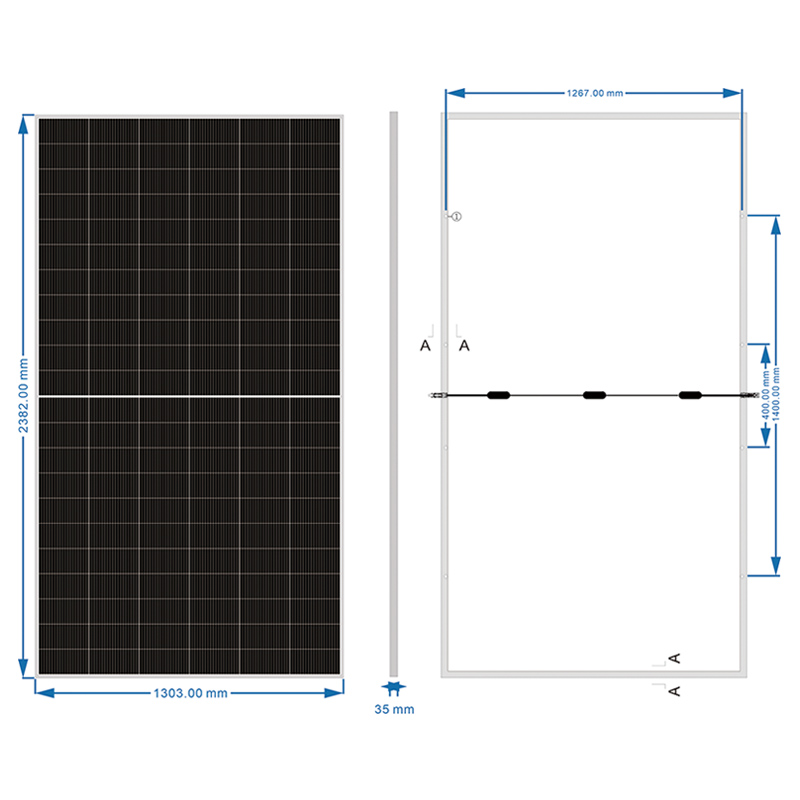

750W Monofacial2

Data Sheet

Cell Type

N-Type TopCon Half-cut Cell

No. of cells

132

Front Cover

3.2 mm glass, high transmission,
AR coated, tempered

Encapsulation

EVA

Back Cover

White backsheet

Junction Box

IP68 rated, 3 bypass diodes

Frame

35 mm anodized aluminium alloy

Cable

1 x 4 mm², 350 mm length or customized

Connectors

MC 4/ MC 4 compatible

Weight

31kg

Dimension

2382*1303*35mm

Packaging

558pcs/40HQ Container

Product Certificate

certificate

details show

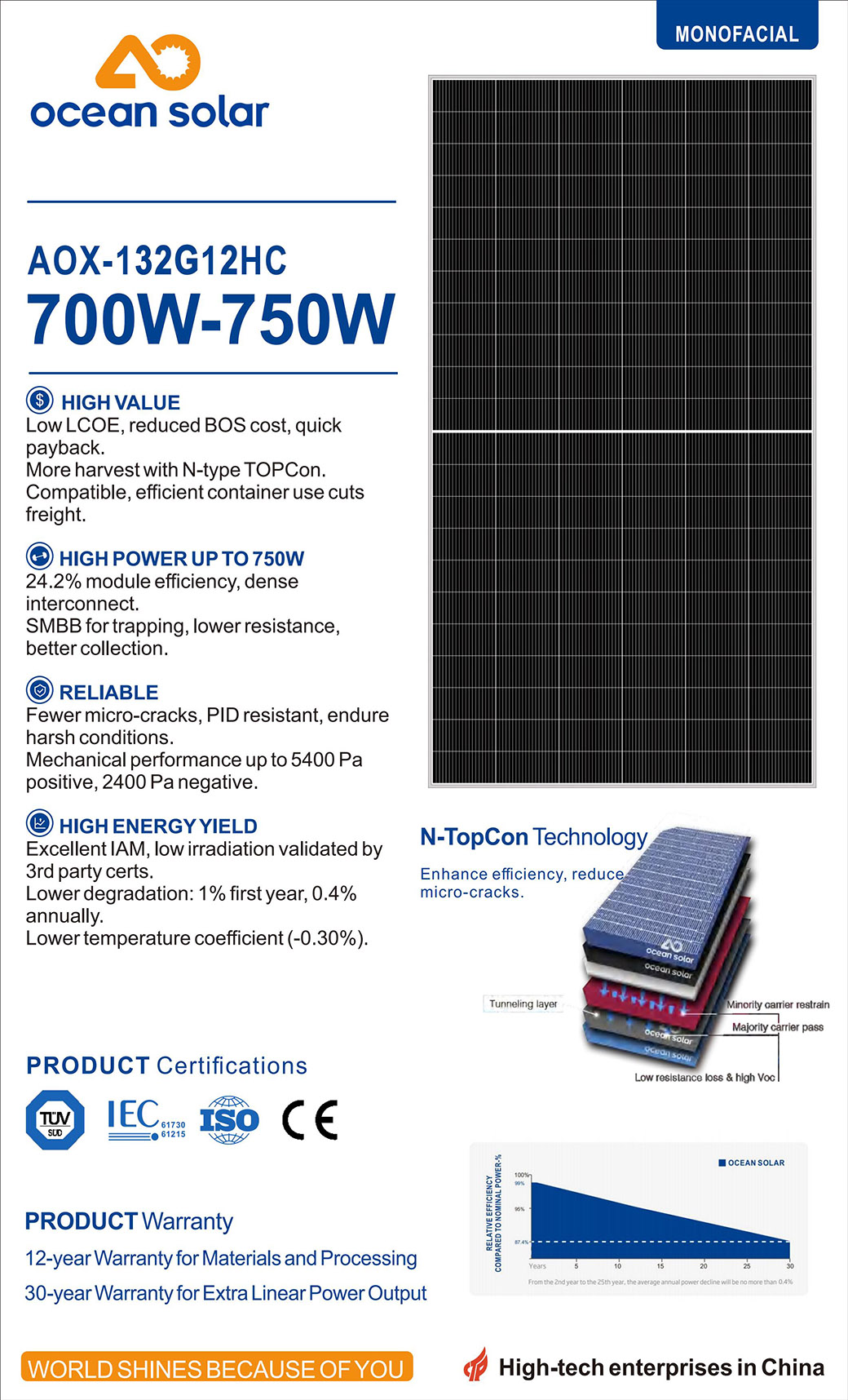

MONO 700W-750W Monofacial_00

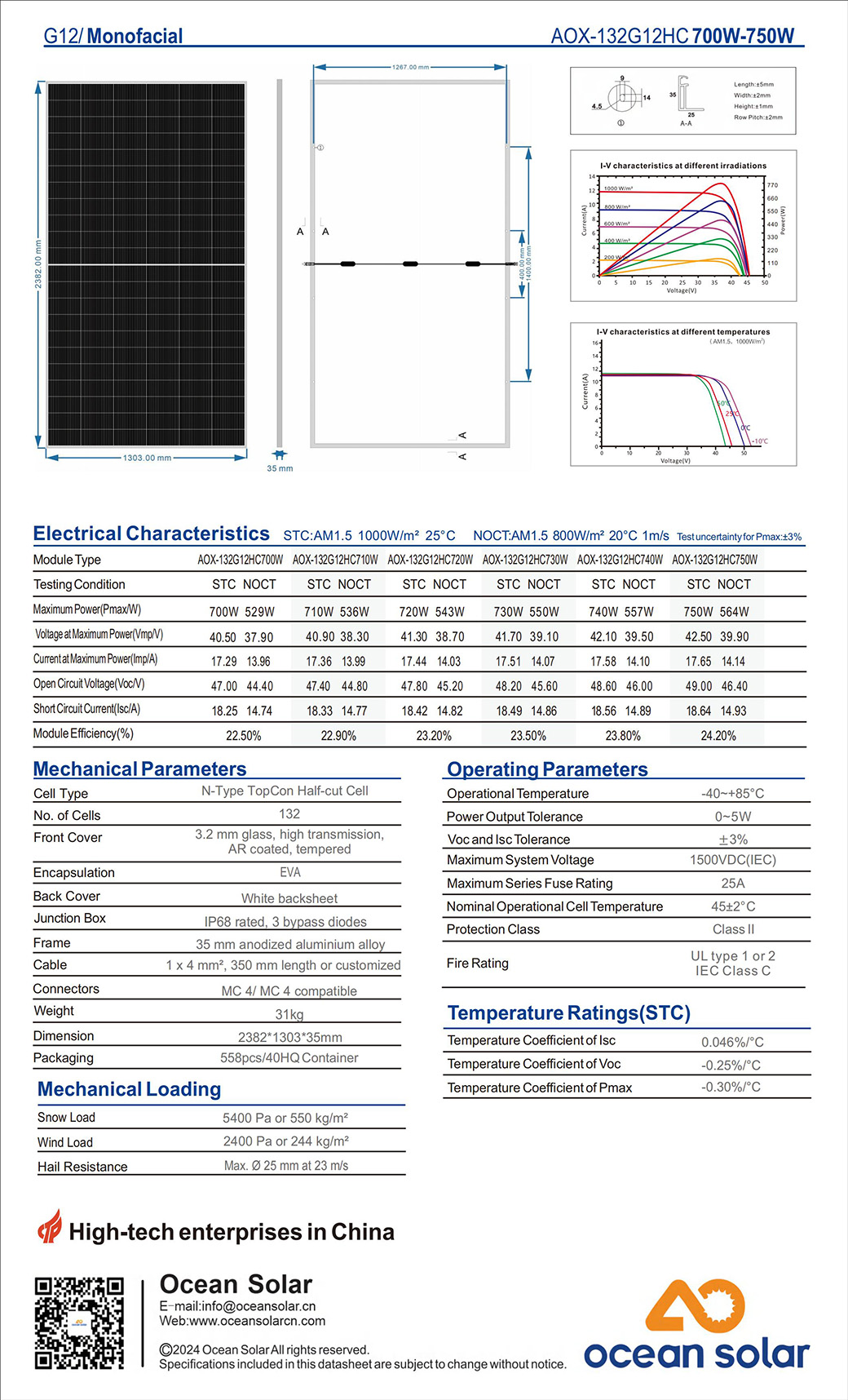

MONO 700W-750W Monofacial_01
