Wholesale N-TopCon Solar Panel Mono 585W-615W Monofacial factory and suppliers | Ocean Solar

N-TopCon Solar Panel Mono 585W-615W Monofacial

Short Description:


Product Detail

Product Tags

Product Features

Type of panels: N-type TOPCon Technology

Power range: 585W-615W
Efficiency range:
22.60%-23.80%
Dimensions: 2278mm x 1134mm x 30 mm
Weight: 28Kg
Performance Guarantee: 30 years
Product Warranty: 12 years
Packaging740pcs/40HQ Container

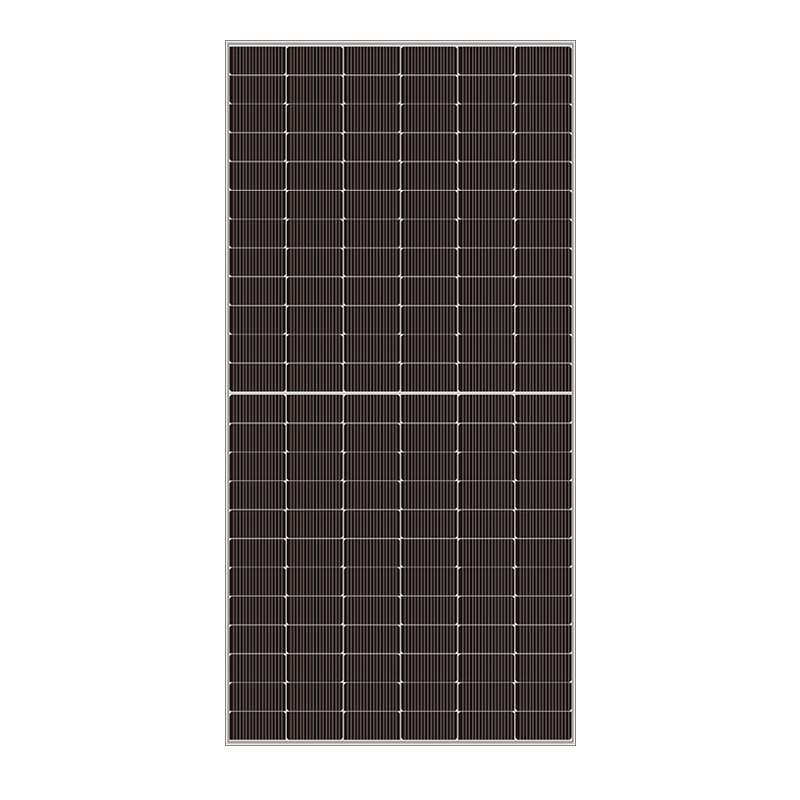

615w Monofacial1

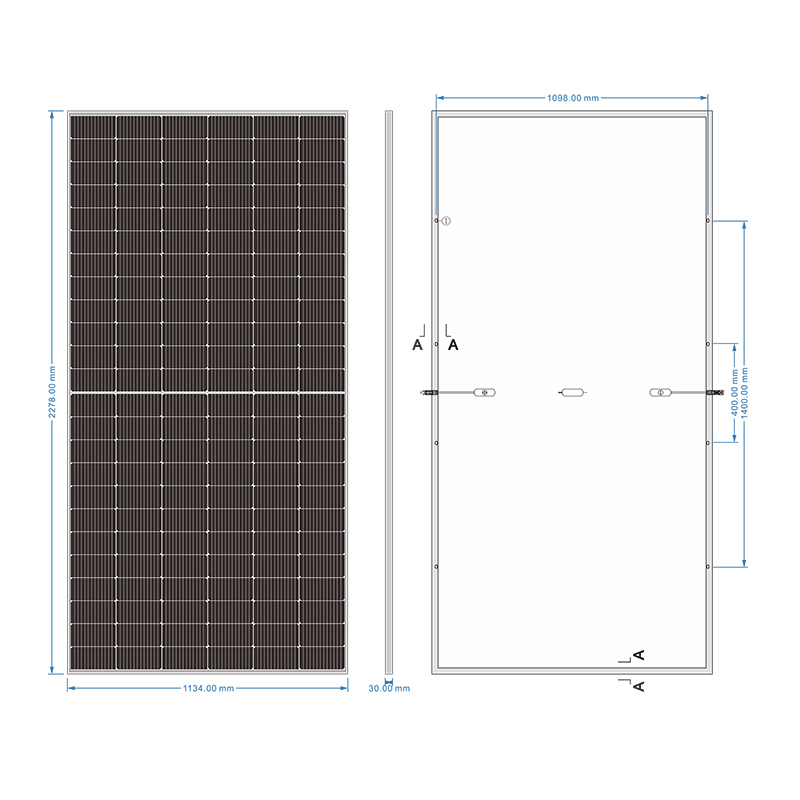

615w Monofacial2

Data Sheet

Cell Type

N-Type TopCon Half-cut Cell

No. of cells

144

Front Cover

3.2 mm glass, high transmission,
AR coated, tempered

Encapsulation

EVA

Back Cover

White backsheet

Junction Box

IP68 rated, 3 bypass diodes

Frame

30 mm anodized aluminium alloy

Cable

1 x 4 mm², 350 mm length or customized

Connectors

MC 4/ MC 4 compatible

Weight

28kg

Dimension

2278*1134*30mm

Packaging

740pcs/40HQ Container

Product Certificate

certificate

details show

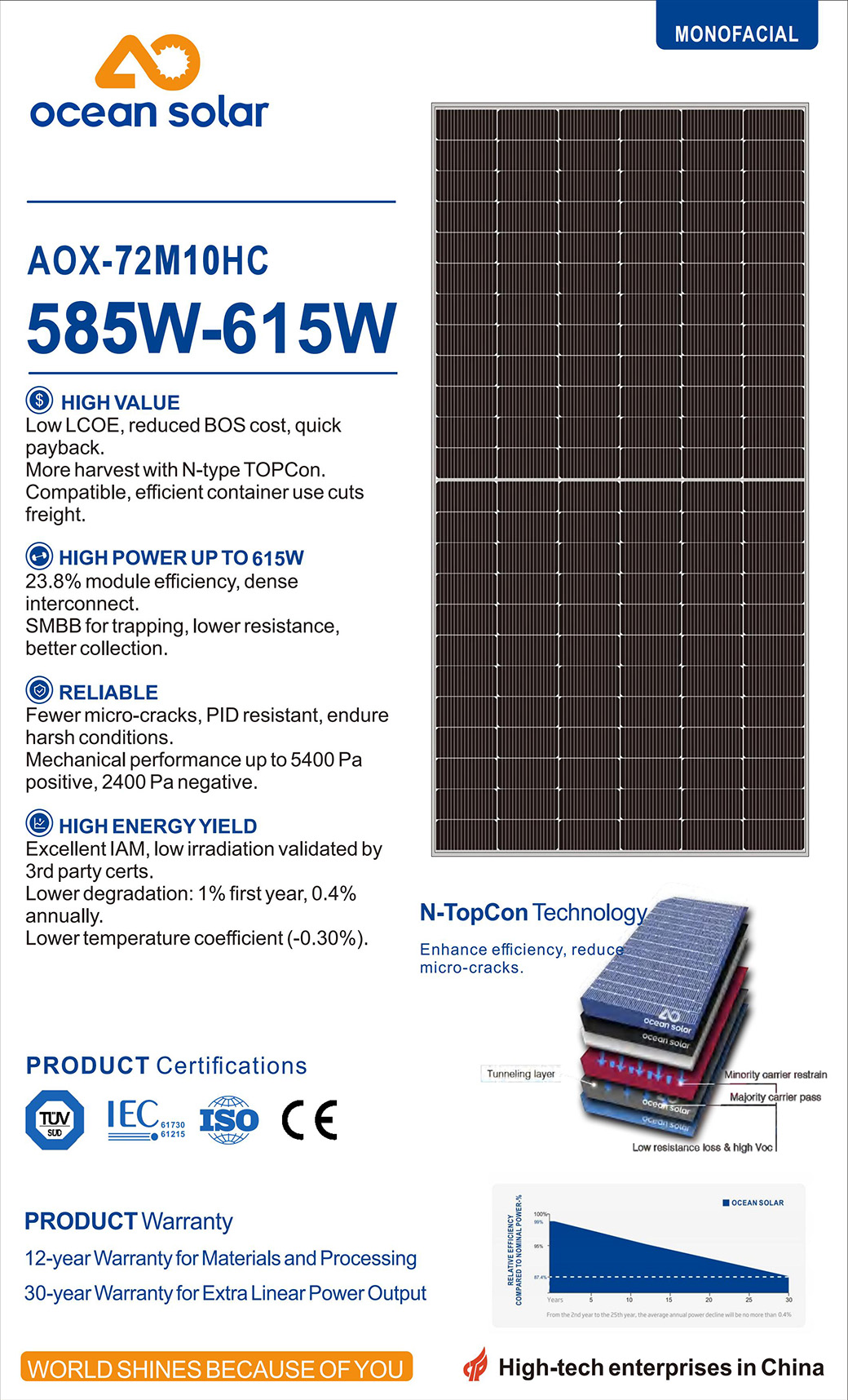

MONO 585W-615W Monofacial_00
MONO 585W-615W Monofacial_01
