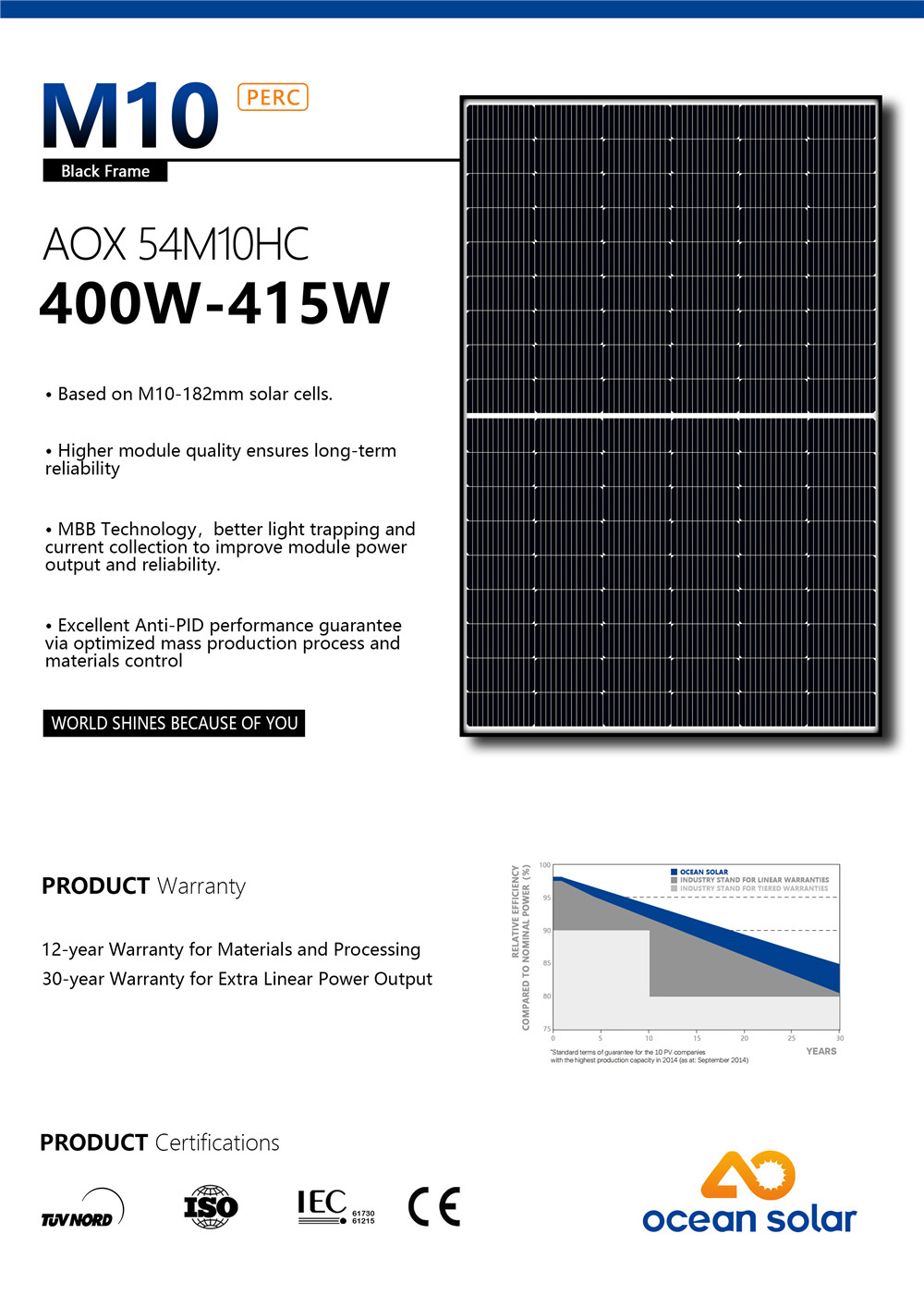

M10 MBB PERC 108 half cells 400W-415W black frame solar module
Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance
| Cell | Mono 182*91mm |
| No. of cells | 108(6×18) |
| Rated Maximum Power(Pmax) | 400W-415W |
| Maximum Efficiency | 20.5-21.3% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 1722*1134*30mm |
| No.of one 20GP container | 396PCS |
| No.of one 40HQ container | 936PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
M10 MBB PERC 108 Half Cell 400W-415W Black Frame Solar Module is a highly efficient and reliable solar panel ideal for residential and commercial applications. It utilizes several advanced technologies to enhance its performance and durability, making it an excellent investment for anyone looking to power their home or business with sustainable, clean energy.
Here are some of the technologies that make the M10 MBB PERC 108 Half Cell 400W-415W Black Frame Solar Module an excellent choice:
1. Multiple bus bar (MBB) technology: This technology involves using multiple thin metal wires to harvest solar energy from individual cells in a panel. MBB technology, also known as shingling, increases the conductivity of the panels and improves energy efficiency. It also reduces the negative effects of battery shading, which can lead to a reduction in solar panel output.
2. PERC (Passivated Emitter Rear Cell) Technology: PERC is a solar cell technology that provides a reflective surface on the back of the cell to capture light that is not absorbed by the front of the cell. PERC technology increases cell efficiency by capturing more solar energy, and the use of a passivation layer reduces the amount of recombination losses compared to standard panels.
3. Half-cell: The M10 MBB PERC 108 half-cell solar module is designed by splitting each cell in half. This design is more efficient, in part because it reduces energy loss by limiting hot spots and improving current flow through the panel. Additionally, it increases the overall durability of the panel by reducing the chance of damage from temperature fluctuations.
4. Black frame design: The M10 MBB PERC 108 half-cell solar panel has a black aluminum frame. This design adds beauty to the solar panels, making them a visual treat on the exterior of any building.
In addition to these cutting-edge technologies, the M10 MBB PERC 108 Half-Cell 400W-415W Black Frame Solar Module is backed by a 25-year power output warranty, guaranteeing its superior performance for years to come. Overall, the M10 MBB PERC 108 Half Cell Solar Module is an efficient, durable and attractive option for those looking to harness the power of the sun.
