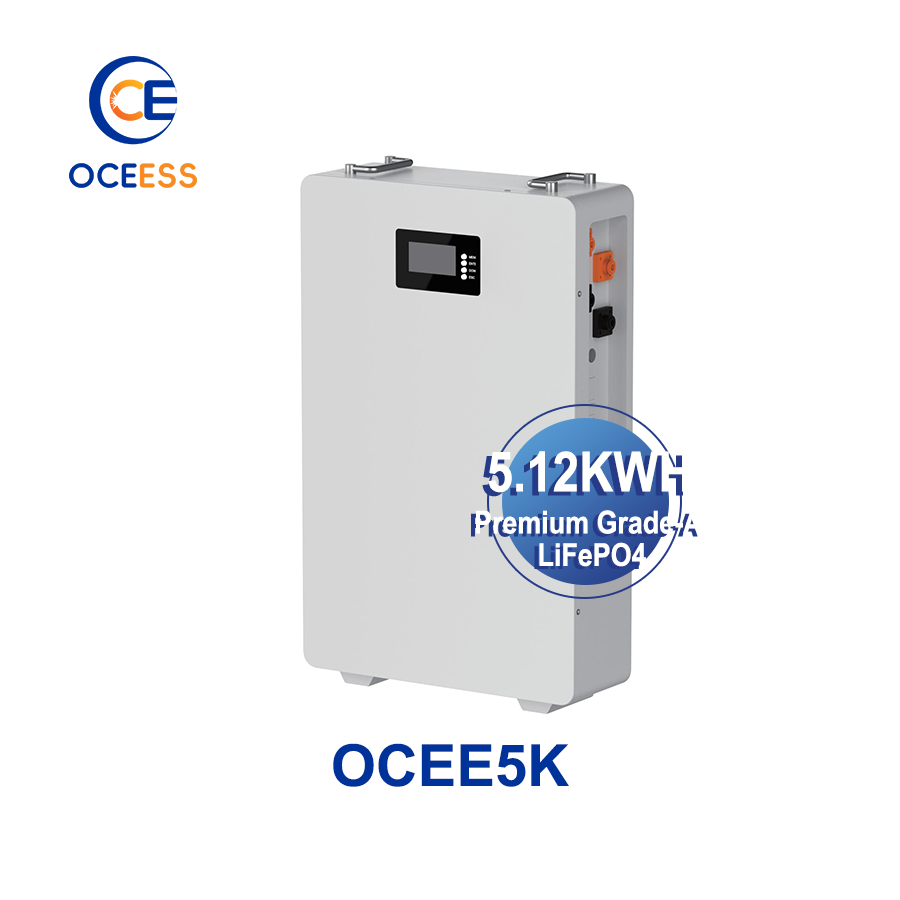

OCEE5K 5.12kWh Floor-standing LFP Battery

OCEE5K Solar Energy System Battery Core Specifications Table

OCEE5K 5.12kWh Floor-standing LFP Battery.pdf

OCEE5K Solar Energy System Battery Frequently Asked Questions

System Architecture and Compatibility FAQs

Q: How does this OCEE5K compare to the OCEE5K-ST65 stacked solar energy system battery?

A: The OCEE5K floor-standing solar energy system battery features a slimmer profile design: 400×140×660mm vs. 482×178×570mm, lighter weight at 44.2kg vs. 52kg, and optimized floor-standing vertical form factor. Both deliver 5.12kWh capacity with 8000-cycle Grade-A cells and CAN/RS485 communication. The OCEE5K is ideal for slim-profile installations and space-constrained solar energy system configurations.

Q: What inverters are compatible with this solar energy system battery?

A: The OCEE5K solar energy system battery is universally compatible with all major hybrid, off-grid, and grid-tie inverters supporting 48V/51.2V LFP battery banks via standard CAN Bus and RS485 communication protocols. Fully compatible with OCEAN SOLAR OCEH6K, AIO series, and all third-party inverter brands for your integrated solar energy system.

Q: Is professional installation required for this solar energy system battery?

A: Professional installation by a qualified electrician is recommended for all high-voltage 51.2V solar energy system battery installations to ensure proper wiring, communication configuration, and safety compliance. The compact floor-standing design simplifies placement and integration into your residential or commercial solar energy system.

Performance and Cycle Life FAQs

Q: What is the actual service life of this 8000-cycle solar energy system battery?

A: 8000 charge-discharge cycles at 80% depth of discharge translates to approximately 15-20+ years of typical residential solar energy system operation. This represents industry-leading durability — more than double the cycle life of standard lead-acid batteries and 30-40% longer than typical entry-level LFP solar energy system batteries.

Q: What do the 50A charge / 100A discharge ratings mean for my solar energy system?

A: 50A maximum continuous charging supports up to 2560W of simultaneous charging power from your solar energy system inverter. 100A maximum continuous discharging supports up to 5120W of continuous output power, with 150A pulse capability for surge loads. These ratings are optimized for typical residential and light commercial solar energy system applications.

Q: What is the significance of 51.2V high-voltage architecture for this solar energy system battery?

A: 51.2V high-voltage platform halves the operating current compared to 25.6V systems for the same power, dramatically reducing I⊃2;R cabling losses, allowing smaller gauge wiring, improving system efficiency, reducing heat generation, and enhancing overall safety for your solar energy system.

Expansion and Configuration FAQs

Q: Can multiple OCEE5K units expand my solar energy system capacity?

A: Yes, through parallel CAN Bus communication, multiple OCEE5K units operate in coordinated parallel for massive scalable solar energy system capacity. Start with 5.12kWh, expand to 10.24kWh, 15.36kWh, 20.48kWh, or beyond as your solar energy system storage requirements grow.

Q: What is the maximum recommended parallel configuration for this solar energy system battery?

A: Up to 16 units can be configured in parallel for 81.92kWh total solar energy system storage capacity when using properly sized cabling, overcurrent protection, and coordinated BMS communication through CAN Bus. Consult with your solar energy system installer for large-scale configurations.

Q: How does the optional LCD display enhance this solar energy system battery?

A: The optional LCD display provides local real-time visibility of: state of charge percentage, pack voltage, charge/discharge current, individual cell voltages, battery temperature, fault codes, and cycle count. Complete local diagnostics for your solar energy system battery without requiring monitoring software.

Safety and Application FAQs

Q: What safety protections are included with this solar energy system battery?

A: Comprehensive five-layer intelligent protection system managed by the built-in BMS: overcharge protection, over-discharge protection, over-current protection, short circuit protection, and over-temperature protection. Each protection feature is independently monitored and enforced for maximum solar energy system safety.

Q: What safety certifications does this solar energy system battery have?

A: The OCEE5K solar energy system battery is fully certified to UN38.3 for transportation safety and MSDS compliant for material safety. These certifications ensure safe shipping, handling, installation, and operation of your LFP solar energy system battery worldwide.

Q: What are the primary applications for this floor-standing solar energy system battery?

A: Primary applications include: residential on/off-grid solar energy system storage, backup power battery banks, hybrid inverter paired storage, off-grid cabin and remote site power, small commercial energy storage, UPS system battery banks, and modular expandable solar energy system configurations.

Q: Why the slim 140mm profile for this floor-standing solar energy system battery?

A: The ultra-slim 140mm depth profile enables installation in extremely space-constrained locations: between wall studs, in narrow utility closets, along wall perimeters, and in tight mechanical rooms where deeper battery packs won't fit. The most space-efficient 5kWh floor-standing solar energy system battery available.

I. OCEAN SOLAR Slim-Profile Floor-Standing Solar Energy System Battery Launch

1.1 The Space-Optimized Solar Energy System Battery Breakthrough

1.1.1 Limitations of Standard Solar Energy System Batteries

1.1.1.1 The Footprint Problem of Standard Solar Energy System Batteries

Standard stacked and floor-standing solar energy system batteries with deep profiles cannot fit in narrow utility closets, between wall studs, or in space-constrained mechanical rooms. Installers and homeowners needed a slim-profile floor-standing solar energy system battery delivering full 5kWh capacity in a compact form factor.

1.1.1.2 The OCEE5K Solar Energy System Battery Solution

The OCEE5K solar energy system battery delivers full 5.12kWh Grade-A LFP capacity, 8000-cycle durability, and complete CAN/RS485 communication in an ultra-slim 140mm depth floor-standing form factor. Full professional performance with dramatically reduced space requirements for your solar energy system.

1.1.2 OCEE5K Solar Energy System Battery Core Positioning

1.1.2.1 Slim-Profile Premium Solar Energy System Battery

As OCEAN SOLAR's space-optimized floor-standing solar energy system battery, the OCEE5K combines premium Grade-A 8000-cycle LFP cells, 51.2V high-voltage architecture, comprehensive protection, and universal inverter compatibility in an ultra-compact vertical form factor. The ideal solution for space-constrained solar energy system installations.

1.1.2.2 The Universal Modular Solar Energy System Battery

The OCEE5K is designed as a universal modular building block for any solar energy system configuration. Pair with hybrid inverters, off-grid inverters, grid-tie systems, UPS systems, or expand through parallel configuration for custom capacity solar energy system solutions.

1.2 Key Differentiating Technologies

1.2.1 Ultra-Slim 140mm Floor-Standing Profile

1.2.1.1 Industry-Leading Space Efficiency

140mm ultra-slim depth profile is 21% slimmer than standard stacked battery designs. Fits between standard 16" on-center wall studs, in narrow closets, and along wall perimeters where deeper solar energy system batteries cannot be installed.

1.2.1.2 Optimized Vertical 660mm Height

660mm optimized vertical height positions the optional LCD display at natural viewing height while maintaining excellent stability and minimizing floor space footprint for your compact solar energy system battery.

1.2.2 8000-Cycle Grade-A LFP Cell Technology

1.2.2.1 Industry-Leading Cycle Life Rating

Premium Grade-A LiFePO4 cells deliver 8000 charge-discharge cycles at 80% depth of discharge. This represents 30-40% longer cycle life than typical entry-level LFP solar energy system batteries and more than double standard lead-acid battery life.

1.2.2.2 Superior LFP Chemistry Advantages

LiFePO4 chemistry provides inherent thermal stability, excellent safety characteristics without thermal runaway risk, consistent discharge voltage, and excellent high-temperature performance for reliable long-term solar energy system operation.

1.2.3 51.2V High-Voltage Architecture

1.2.3.1 Reduced Losses, Improved Efficiency

51.2V high-voltage platform halves operating currents compared to 25.6V systems for the same power level. Dramatically reduced I⊃2;R cabling losses, smaller wiring requirements, and improved overall solar energy system efficiency.

1.2.3.2 Industry-Standard Voltage Compatibility

51.2V nominal voltage represents the industry standard for modern residential and light commercial hybrid inverter systems. Universal compatibility with all major inverter brands for your integrated solar energy system.

II. OCEE5K Solar Energy System Battery 8000-Cycle Grade-A LFP Technology

2.1 Premium Grade-A LiFePO4 Cell Pack

2.1.1 51.2V 100Ah LFP Configuration

2.1.1.1 5120Wh Total Stored Energy

51.2V nominal voltage with 100Ah capacity delivers 5120Wh total stored energy. Premium Grade-A cells configured in 16-series for optimal high-voltage characteristics and balanced performance in your solar energy system.

2.1.1.2 40.0-58.4V Operating Range

40.0V minimum to 58.4V maximum operating voltage range provides excellent depth of discharge capability while maintaining cell health and maximizing usable capacity for your long-life solar energy system battery.

2.1.2 8000-Cycle Durability Rating

2.1.2.1 15-20+ Year Expected Service Life

8000 charge-discharge cycles at 80% depth of discharge translates to approximately 15-20+ years of typical residential solar energy system operation. Daily cycling for over two decades of reliable energy storage.

2.1.2.2 Consistent Performance Throughout Life

Grade-A LFP cells maintain consistent capacity, low internal resistance, and stable voltage characteristics throughout their entire service life. Minimal capacity fade ensures reliable solar energy system performance year after year.

2.2 Integrated Intelligent BMS Management

2.2.1 Comprehensive Cell Monitoring and Balancing

2.2.1.1 Per-Cell Precision Voltage Monitoring

Individual cell voltage monitoring and active balancing ensure uniform charging and discharging across all 16 series cells. Maximizes capacity utilization and maintains cell health across the 5.12kWh pack of your solar energy system battery.

2.2.1.2 Temperature Monitoring and Protection

Integrated temperature sensors provide continuous pack temperature monitoring with intelligent thermal management and over-temperature protection. Optimal operating conditions maintained for maximum solar energy system battery life.

2.2.2 Five-Layer Comprehensive Protection System

2.2.2.1 Independent Protection Circuits

Five independent protection circuits continuously monitor and enforce: overcharge protection, over-discharge protection, over-current protection, short circuit protection, and over-temperature protection. Each protection layer operates independently for maximum solar energy system safety.

2.2.2.2 Intelligent Fault Handling

The BMS intelligently handles fault conditions with graduated response: warning alerts, current limiting, and controlled shutdown as appropriate. Maximizes solar energy system uptime while protecting battery health and safety.

III. OCEE5K Solar Energy System Battery Performance Specifications

3.1 Charge and Discharge Performance

3.1.1 50A Maximum Continuous Charging

3.1.1.1 2560W Fast Recharge Capability

50A maximum continuous charging current supports up to 2560W of simultaneous charging power from your solar energy system inverter. Full 5.12kWh recharge in approximately 2 hours at maximum charge rate.

3.1.1.2 Multi-Stage Charge Optimization

The BMS communicates with your solar energy system inverter to implement optimized multi-stage charging: bulk charge, absorption charge, and float charge profiles specifically calibrated for LFP chemistry. Maximizes battery life and charging efficiency.

3.1.2 100A Continuous / 150A Pulse Discharging

3.1.2.1 5120W Continuous Output Capability

100A maximum continuous discharge current supports up to 5120W of continuous output power from your solar energy system battery. Sufficient for typical whole-home backup loads and essential circuit operation.

3.1.2.2 150A Surge Capability

150A maximum pulse discharge current for 1 second handles motor startup inrush currents from air conditioners, well pumps, refrigerators, and other inductive loads in your solar energy system.

3.2 Universal Communication and Compatibility

3.2.1 Dual CAN Bus + RS485 Communication

3.2.1.1 Industry-Standard Inverter Protocols

Dual communication protocols support all major hybrid inverter brands: CAN Bus for modern high-speed inverter communication and RS485 for compatibility with legacy and third-party solar energy system equipment.

3.2.1.2 Parallel Expansion Communication

CAN Bus communication enables seamless parallel operation of multiple OCEE5K units with coordinated BMS management, state of charge synchronization, and balanced current sharing across your expanded solar energy system battery bank.

3.2.2 Optional LCD Local Display

3.2.2.1 Comprehensive Local Diagnostics

The optional LCD display provides complete local visibility without external monitoring software: precise state of charge percentage, pack voltage, real-time charge/discharge current, individual cell voltage readings, battery temperature, active fault codes, and total cycle count.

3.2.2.2 Installation and Troubleshooting Support

The local display dramatically simplifies solar energy system installation, commissioning, and troubleshooting. Technicians can verify proper operation and diagnose issues immediately on-site.

IV. OCEE5K Solar Energy System Battery Mechanical and Environmental Design

4.1 Ultra-Slim Floor-Standing Form Factor

4.1.1 Space-Optimized Dimensions

4.1.1.1 140mm Ultra-Slim Depth Profile

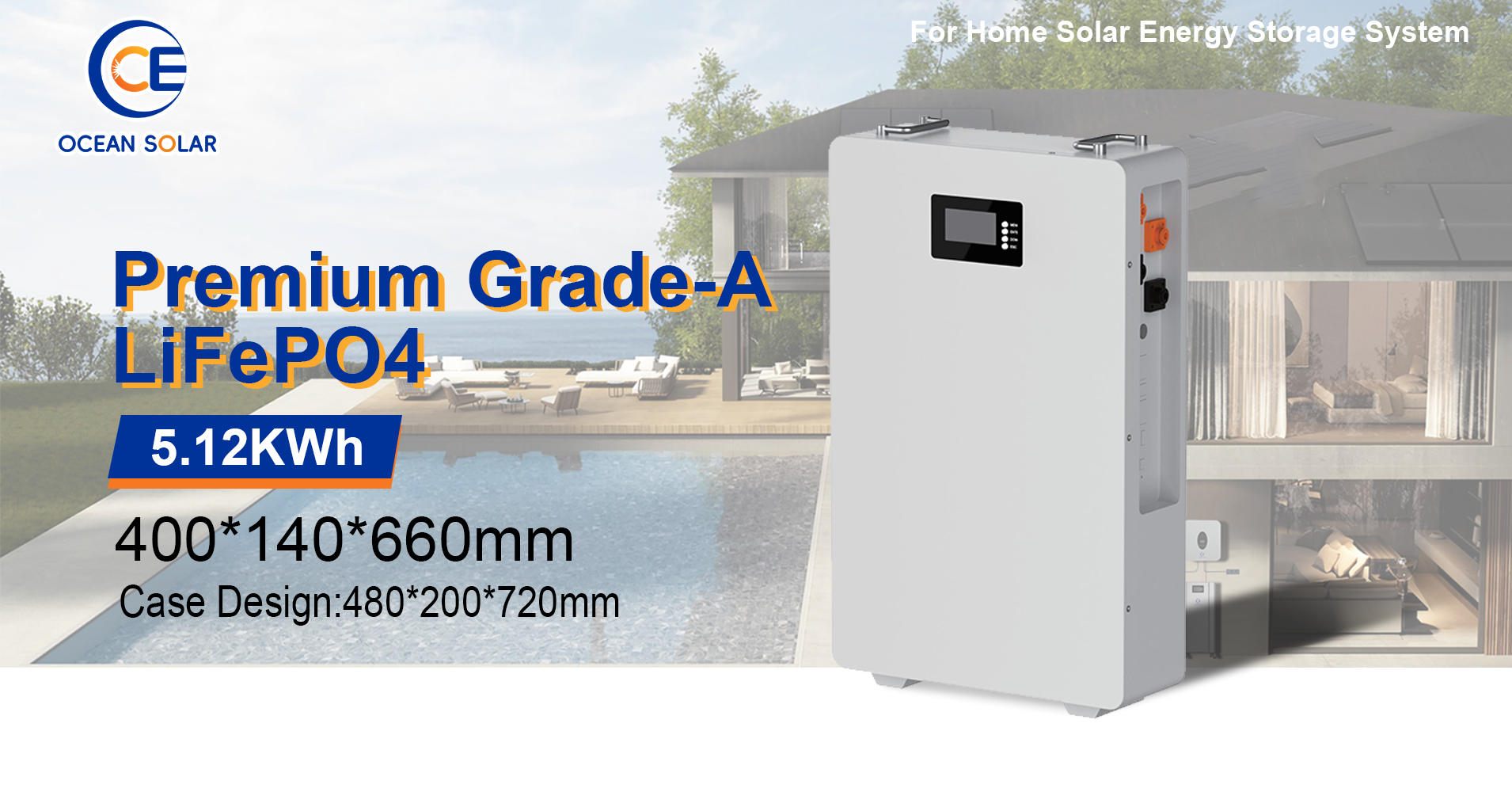

140mm ultra-slim depth profile enables installation in the most space-constrained locations. Fits between standard 16" wall studs, in 6" deep utility closets, along wall perimeters, and in tight mechanical rooms where deeper solar energy system batteries won't fit.

4.1.1.2 400mm Width, 660mm Height

400mm optimized width and 660mm vertical height provide excellent stability while minimizing floor footprint. The display positions at natural ergonomic viewing height for your solar energy system battery.

4.1.2 44.2kg Lightweight Design

4.1.2.1 Single-Person Handling Capability

44.2kg net weight enables single-person handling and positioning during solar energy system installation. Dramatically easier to maneuver and install than heavier 50kg+ battery packs.

4.1.2.2 Optimized Structural Design

High-strength steel enclosure with reinforced mounting points provides excellent structural rigidity and vibration resistance while maintaining minimum weight for your residential solar energy system battery.

4.2 Environmental and Safety Ratings

4.2.1 IP21 Indoor Optimized Protection

4.2.1.1 Dripping Water Protection

IP21 rating provides protection against vertically dripping water and large object ingress while maximizing cooling airflow efficiency. Optimized for indoor residential and light commercial solar energy system installations.

4.2.1.2 Wide Operating Temperature Range

-10°C to +50°C operating temperature range supports installation in unheated garages, basements, utility closets, and moderate climate outdoor enclosures as part of your solar energy system.

4.2.2 International Safety Certifications

4.2.2.1 UN38.3 Transportation Certified

Fully UN38.3 certified for safe air, sea, and ground transportation worldwide. Rigorously tested for vibration, shock, temperature cycling, external short circuit, impact, crush, and overcharge conditions.

4.2.2.2 MSDS Material Safety Compliant

Complete Material Safety Data Sheet documentation available for proper handling, storage, installation, and disposal of your solar energy system battery in compliance with international regulations.

V. Ten Reasons to Choose OCEAN SOLAR Premium Solar Energy System Batteries

8000-Cycle Grade-A LFP Cells — Industry-leading durability, 15-20+ year service life

5.12kWh Full Capacity — 100Ah at 51.2V high-voltage platform

140mm Ultra-Slim Profile — Fits in the most space-constrained locations

51.2V High-Voltage Architecture — Reduced losses, improved efficiency, smaller wiring

CAN Bus + RS485 Communication — Universal compatibility with all major inverters

5-Layer Intelligent Protection — Overcharge, over-discharge, over-current, short circuit, over-temperature

100A Continuous / 150A Pulse Discharge — Handles surge loads from motors and compressors

Optional LCD Local Display — Comprehensive on-site diagnostics and monitoring

Parallel Expandable Capacity — 5kWh to 80kWh+ modular scalability

UN38.3 + MSDS Certified — International safety and transportation compliance

Contact the OCEAN SOLAR battery specialist team today to get a detailed quote for the OCEE5K slim-profile floor-standing LFP solar energy system battery, and experience premium Grade-A 8000-cycle energy storage with the most space-efficient form factor available!
