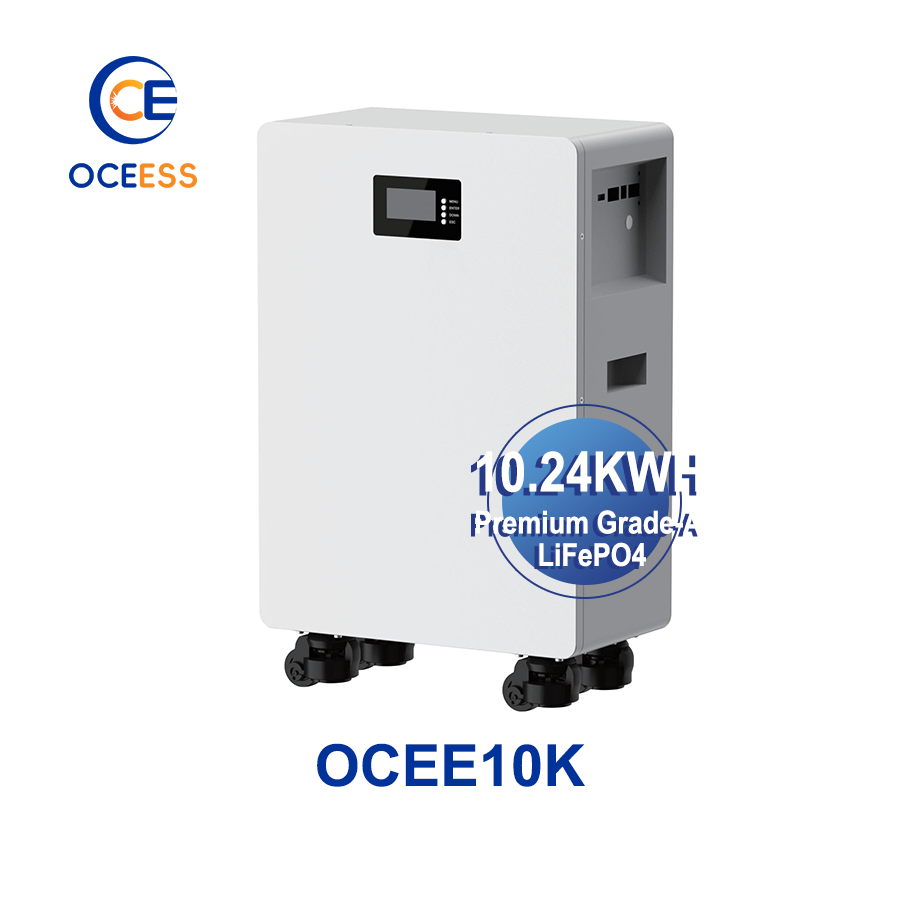

OCEE10K 10.24kWh High-Capacity Floor-standing LFP Battery

OCEE10K Solar Energy System Battery Core Specifications Table

Parameter Category	Technical Indicator	Detailed Specifications
System Model	Product Model	OCEE10K
System Type	Architecture	High-Capacity Floor-standing LFP Energy Storage Battery
Battery Chemistry	Cell Technology	Premium Grade-A LiFePO4 (LFP)
Nominal Voltage	System Voltage	51.2V High-Voltage Platform
Rated Capacity	Energy Storage	200Ah / 10240Wh (10.24kWh)
Cycle Life Rating	Durability	8000 Cycles @ 80% DoD
Float Charge Voltage	Charging	56.0V
Operating Voltage Range	Window	40.0V ~ 58.4Vdc
Max Continuous Charge Current	Input	100A
Max Continuous Discharge Current	Output	200A
Max Pulse Discharge Current	Peak	300A / 1 Second
Terminal Type	Connection	M8 Heavy-Duty
Protection Rating	Ingress	IP21 (Indoor Optimized)
Display	HMI	Optional LCD Display
Communication	Protocols	CAN Bus + RS485
Protection System	Safety	5-Layer Comprehensive Protection
Safety Certifications	Compliance	UN38.3, MSDS
Operating Temperature	Range	-10°C ~ +50°C
Dimensions	Footprint	460mm × 245mm × 640mm
Net Weight	System	88kg

OCEE10K 10.24kWh High-Capacity Floor-standing LFP Battery.pdf

---

OCEE10K Solar Energy System Battery Frequently Asked Questions

System Architecture and Capacity FAQs

Q: How does this OCEE10K compare to the OCEE5K slim-profile solar energy system battery?

A: The OCEE10K represents the high-capacity double-capacity version of the OCEE5K solar energy system battery: 10.24kWh vs. 5.12kWh (100% more capacity), 100A charge vs. 50A (100% faster), 200A discharge vs. 100A (100% more power), 300A pulse vs. 150A, M8 terminals vs. M6, and 88kg vs. 44.2kg. Both deliver 8000-cycle Grade-A cells and CAN/RS485 communication. The OCEE10K is the high-power large-capacity solar energy system battery for demanding residential and light commercial installations.

Q: What does 10.24kWh capacity mean for my solar energy system?

A: 10240Wh total stored energy provides: 2-4+ days of whole-home essential backup, 10+ hours at 1000W continuous load, 5+ hours at 2000W heavy load, and sufficient capacity for complete off-grid residential solar energy system operation. Double the capacity of standard 5kWh solar energy system battery packs.

Q: Is professional installation required for this high-capacity solar energy system battery?

A: Yes, professional installation by a qualified electrician is required for this 10.24kWh 51.2V high-capacity solar energy system battery due to the high power levels, 200A discharge capability, and heavy 88kg weight. The floor-standing design simplifies placement and integration into your residential or light commercial solar energy system.

Performance and High-Current FAQs

Q: What do 100A charge / 200A discharge ratings enable for my solar energy system?

A: 100A maximum continuous charging supports up to 5120W of simultaneous charging power from your solar energy system inverter — full 10.24kWh recharge in approximately 2 hours. 200A maximum continuous discharging supports up to 10240W of continuous output power with 300A pulse capability for the largest surge loads. These are professional-grade current ratings for demanding solar energy system applications.

Q: What is the significance of 300A pulse discharge for this solar energy system battery?

A: 300A maximum pulse discharge current handles the extreme inrush currents from multiple air conditioner compressors, well pumps, electric water heaters, workshop equipment, and industrial motor loads simultaneously. The highest pulse rating available in any residential floor-standing solar energy system battery.

Q: Why M8 heavy-duty terminals for this solar energy system battery?

A: M8 heavy-duty terminals are required for the 200A continuous and 300A pulse current levels to minimize connection resistance, prevent overheating, and ensure reliable high-current connections for the life of your high-capacity solar energy system battery.

Expansion and Compatibility FAQs

Q: What inverters are compatible with this high-power solar energy system battery?

A: The OCEE10K solar energy system battery is universally compatible with all major high-power hybrid, off-grid, and grid-tie inverters supporting 48V/51.2V LFP battery banks via standard CAN Bus and RS485 communication protocols. Fully compatible with OCEAN SOLAR OCEH6K, AIO6016 industrial series, and all third-party high-power inverter brands for your integrated solar energy system.

Q: Can multiple OCEE10K units expand my solar energy system capacity?

A: Yes, through parallel CAN Bus communication, multiple OCEE10K units operate in coordinated parallel for massive high-capacity solar energy system storage. Start with 10.24kWh, expand to 20.48kWh, 30.72kWh, 40.96kWh, or beyond as your high-power solar energy system requirements grow.

Q: How does the optional LCD display enhance this high-capacity solar energy system battery?

A: The optional LCD display provides local real-time high-current visibility for your large solar energy system battery: precise state of charge percentage, pack voltage, real-time 100A/200A charge/discharge currents, individual cell voltages, battery temperature, active fault codes, and total cycle count. Complete local diagnostics for your high-capacity solar energy system battery.

Safety and Application FAQs

Q: What safety protections are included with this high-power solar energy system battery?

A: Comprehensive five-layer intelligent high-current protection system managed by the built-in industrial BMS: overcharge protection, over-discharge protection, high-current over-current protection, heavy-duty short circuit protection, and over-temperature protection. Each protection feature is independently rated for 200A continuous operation for maximum solar energy system safety.

Q: What safety certifications does this solar energy system battery have?

A: The OCEE10K high-capacity solar energy system battery is fully certified to UN38.3 for heavy battery transportation safety and MSDS compliant for material safety. These certifications ensure safe shipping, handling, installation, and operation of your 10kWh LFP solar energy system battery worldwide.

Q: What are the primary applications for this 10.24kWh solar energy system battery?

A: Primary applications include: large home whole-house backup solar energy system storage, light commercial and small business energy storage, high-power off-grid cabin and remote site power, multi-unit residential solar energy system banks, industrial UPS system battery banks, and high-demand expandable solar energy system configurations.

Q: Why the optimized 460×245×640 footprint for this solar energy system battery?

A: The optimized 460×245mm footprint provides excellent stability for the 88kg high-capacity pack while maintaining compact floor space requirements. 640mm height positions the optional LCD display at natural viewing height and allows side-by-side parallel bank configuration for your expandable high-capacity solar energy system.

---

I. OCEAN SOLAR High-Capacity 10kWh Solar Energy System Battery Launch

1.1 The Double-Capacity High-Power Solar Energy System Battery Breakthrough

1.1.1 Limitations of Standard 5kWh Solar Energy System Batteries

1.1.1.1 The Capacity Gap of Standard Solar Energy System Batteries

Standard 5kWh solar energy system batteries cannot provide multi-day whole-home backup, cannot support high-power loads simultaneously, and require multiple parallel units for large homes. Users needed a single-unit double-capacity high-power floor-standing solar energy system battery delivering professional-grade current ratings.

1.1.1.2 The OCEE10K Solar Energy System Battery Solution

The OCEE10K solar energy system battery delivers 10.24kWh double capacity, 100A fast charging, 200A continuous discharge, 300A pulse capability, and complete CAN/RS485 communication in a single optimized floor-standing form factor. Professional high-power performance with half the parallel units required for your solar energy system.

1.1.2 OCEE10K Solar Energy System Battery Core Positioning

1.1.2.1 High-Capacity Premium Solar Energy System Battery

As OCEAN SOLAR's high-capacity floor-standing solar energy system battery, the OCEE10K combines premium Grade-A 8000-cycle LFP cells, professional 200A high-current capability, comprehensive industrial protection, and universal inverter compatibility in a single optimized 10kWh form factor. The ideal solution for demanding large-home and light commercial solar energy system installations.

1.1.2.2 The High-Power Single-Unit Solar Energy System Battery

The OCEE10K eliminates the need for parallel configuration of multiple 5kWh packs in most residential installations. One single 10.24kWh unit delivers sufficient capacity and power for complete whole-home solar energy system backup and off-grid operation.

1.2 Four Revolutionary High-Capacity Upgrades

1.2.1 10.24kWh Double Capacity vs. Standard 5kWh

1.2.1.1 100% More Stored Energy

10240Wh total stored energy represents a 100% increase over standard 5kWh solar energy system batteries. True multi-day whole-home backup without requiring parallel battery configuration for your residential solar energy system.

1.2.1.2 2-4+ Day Whole-Home Backup Capability

10.24kWh capacity delivers 2-4+ days of essential whole-home backup power and complete off-grid capability for energy-efficient homes. The most capacity available in a single floor-standing residential solar energy system battery.

1.2.2 100A Fast Charging / 200A High-Power Discharging

1.2.2.1 100% Faster Recharge Performance

100A maximum continuous charging current delivers 5120W charging power — full 10.24kWh recharge in approximately 2 hours. 100% faster recharge than standard 50A 5kWh solar energy system batteries.

1.2.2.2 Professional 200A Continuous Output

200A maximum continuous discharge current supports up to 10240W of simultaneous output power. Run multiple air conditioners, electric water heaters, workshop equipment, and commercial loads simultaneously from your high-power solar energy system.

1.2.3 300A Industrial-Grade Pulse Capability

1.2.3.3 Highest Residential Pulse Rating

300A maximum pulse discharge current for 1 second represents the highest pulse rating available in any residential floor-standing solar energy system battery. Handles the largest motor inrush currents without voltage sag or tripping.

1.2.3.4 M8 Heavy-Duty Connection System

Upgraded M8 heavy-duty terminals properly sized for 200A continuous and 300A pulse operation. Minimized connection resistance, eliminated overheating risk, and ensured reliable long-term high-current operation for your solar energy system.

1.2.4 8000-Cycle Grade-A LFP Cell Technology

1.2.4.1 Industry-Leading Cycle Life

Premium Grade-A LiFePO4 cells deliver 8000 charge-discharge cycles at 80% depth of discharge. 15-20+ year expected service life even with daily cycling for your investment-grade high-capacity solar energy system.

1.2.4.2 51.2V High-Voltage High-Current Architecture

51.2V high-voltage platform optimized for 200A operation with dramatically reduced I⊃2;R losses compared to lower voltage systems. Professional high-current architecture for your high-power solar energy system.

---

II. OCEE10K Solar Energy System Battery 10.24kWh High-Capacity LFP Technology

2.1 Premium Grade-A High-Current LiFePO4 Cell Pack

2.1.1 51.2V 200Ah High-Capacity Configuration

2.1.1.1 10240Wh Total Stored Energy

51.2V nominal voltage with 200Ah capacity delivers 10240Wh total stored energy. Premium Grade-A high-current cells configured in 16-series for optimal high-voltage high-current characteristics and balanced performance in your demanding solar energy system.

2.1.1.2 40.0-58.4V Wide Operating Range

40.0V minimum to 58.4V maximum operating voltage range provides excellent depth of discharge capability while maintaining cell health and maximizing usable capacity for your long-life high-capacity solar energy system battery.

2.1.2 8000-Cycle Industrial Durability Rating

2.1.2.1 15-20+ Year Expected Service Life

8000 charge-discharge cycles at 80% depth of discharge translates to approximately 15-20+ years of typical residential solar energy system operation. Daily cycling for over two decades of reliable high-capacity energy storage.

2.1.2.2 High-Current Optimized Cell Design

Grade-A LFP cells specifically optimized for high 200A continuous discharge operation with low internal resistance, minimal heat generation, and consistent high-current performance throughout the entire service life of your solar energy system.

2.2 Integrated Industrial-Grade Intelligent BMS

2.2.1 Comprehensive High-Current Cell Management

2.2.1.1 Per-Cell Precision High-Current Monitoring

Individual cell voltage monitoring and active balancing ensure uniform charging and discharging across all 16 series cells even at 200A discharge rates. Maximizes capacity utilization and maintains cell health across the 10.24kWh high-power pack of your solar energy system battery.

2.2.1.2 Multi-Point Temperature Monitoring

Multiple integrated temperature sensors provide continuous pack temperature monitoring with intelligent thermal management specifically calibrated for high-current 200A operation. Optimal operating conditions maintained for maximum solar energy system battery life.

2.2.2 Five-Layer High-Current Protection System

2.2.2.1 Industrial-Grade Independent Protection Circuits

Five independent protection circuits rated for 200A continuous operation continuously monitor and enforce: overcharge protection, over-discharge protection, 200A-rated over-current protection, heavy-duty short circuit protection, and over-temperature protection. Each protection layer operates independently for maximum high-power solar energy system safety.

2.2.2.2 Intelligent High-Current Fault Handling

The industrial BMS intelligently handles high-current fault conditions with graduated response: warning alerts, progressive current limiting, and controlled shutdown as appropriate. Maximizes solar energy system uptime while protecting battery health and safety during high-power operation.

---

III. OCEE10K Solar Energy System Battery High-Power Performance Specifications

3.1 Industry-Leading Charge and Discharge Performance

3.1.1 100A Maximum Continuous Fast Charging

3.1.1.1 5120W Ultra-Fast Recharge Capability

100A maximum continuous charging current supports up to 5120W of simultaneous charging power from your solar energy system inverter. Full 10.24kWh recharge in approximately 2 hours at maximum charge rate — twice as fast as standard 50A 5kWh solar energy system batteries.

3.1.1.2 High-Current Optimized Multi-Stage Charging

The industrial BMS communicates with your solar energy system inverter to implement high-current optimized multi-stage charging: bulk charge, absorption charge, and float charge profiles specifically calibrated for high-capacity LFP chemistry operating at elevated current levels. Maximizes battery life and charging efficiency for your high-power solar energy system.

3.1.2 200A Continuous / 300A Pulse Discharging

3.1.2.1 10240W Professional Continuous Output

200A maximum continuous discharge current supports up to 10240W of simultaneous output power from your solar energy system battery. Sufficient for multiple air conditioners, electric water heaters, workshop equipment, and light commercial loads operating simultaneously.

3.1.2.2 Industry-Leading 300A Surge Capability

300A maximum pulse discharge current for 1 second handles the extreme combined inrush currents from multiple motor loads starting simultaneously. No voltage sag, no tripping, reliable operation even under the most demanding solar energy system load conditions.

3.2 Universal High-Power Communication and Compatibility

3.2.1 Industrial CAN Bus + RS485 Communication

3.2.1.1 High-Power Inverter Protocol Support

Dual industrial communication protocols support all major high-power hybrid inverter brands: high-speed CAN Bus for modern high-current inverter communication and RS485 for compatibility with legacy and third-party high-power solar energy system equipment.

3.2.1.2 High-Current Parallel Expansion Communication

CAN Bus communication enables seamless parallel operation of multiple OCEE10K units with coordinated industrial BMS management, precision state of charge synchronization, and balanced high-current sharing across your expanded high-capacity solar energy system battery bank.

3.2.2 Optional LCD High-Current Local Display

3.2.2.1 Comprehensive High-Power Local Diagnostics

The optional LCD display provides complete high-current visibility without external monitoring software: precise state of charge percentage, pack voltage, real-time 100A/200A charge/discharge current readings, individual cell voltage monitoring, battery temperature, active fault codes, and total cycle count.

3.2.2.2 High-Power Installation and Troubleshooting

The local display dramatically simplifies high-power solar energy system installation, commissioning, and troubleshooting. Technicians can verify proper high-current operation and diagnose issues immediately on-site without specialized equipment.

---

IV. OCEE10K Solar Energy System Battery Mechanical and Industrial Design

4.1 Optimized High-Capacity Floor-Standing Form Factor

4.1.1 Stability-Optimized Dimensions

4.1.1.1 460×245 Stable Footprint

460×245mm optimized footprint provides exceptional stability for the 88kg high-capacity pack while maintaining compact floor space requirements. Wide base prevents tipping and ensures safe operation for your heavy high-power solar energy system battery.

4.1.1.2 640mm Ergonomic Height

640mm optimized vertical height positions the optional LCD display at natural ergonomic viewing height and allows efficient side-by-side parallel bank configuration for your expandable high-capacity solar energy system.

4.1.2 88kg Heavy-Duty Construction

4.1.2.1 Professional Installation Handling

88kg net weight requires professional two-person handling and positioning during solar energy system installation. The heavy weight provides inherent stability and vibration resistance for your high-power battery installation.

4.1.2.2 Industrial-Grade Structural Design

Heavy-gauge high-strength steel enclosure with reinforced mounting points and internal bracing provides excellent structural rigidity, vibration resistance, and electromagnetic shielding for your high-current residential or commercial solar energy system battery.

4.2 Environmental and Industrial Safety Ratings

4.2.1 IP21 Indoor Optimized High-Power Protection

4.2.1.1 Dripping Water and Object Protection

IP21 rating provides protection against vertically dripping water and large object ingress while maximizing cooling airflow efficiency specifically for 200A high-current operation. Optimized for indoor residential and light commercial solar energy system installations.

4.2.1.2 Wide High-Current Operating Temperature Range

-10°C to +50°C operating temperature range with enhanced thermal management for high-current operation. Supports installation in unheated garages, basements, utility rooms, and moderate climate enclosures as part of your high-power solar energy system.

4.2.2 International Heavy Battery Safety Certifications

4.2.2.1 UN38.3 Heavy Battery Transportation Certified

Fully UN38.3 certified for safe air, sea, and ground transportation of heavy 88kg battery packs worldwide. Rigorously tested for vibration, shock, temperature cycling, external short circuit, impact, crush, and overcharge conditions.

4.2.2.2 MSDS High-Capacity Material Safety Compliant

Complete Material Safety Data Sheet documentation available for proper handling, storage, installation, and disposal of your high-capacity 10kWh solar energy system battery in compliance with international regulations.

---

V. Ten Reasons to Choose OCEAN SOLAR High-Capacity Solar Energy System Batteries

10.24kWh Double Capacity — 100% more energy than standard 5kWh packs, 2-4+ day whole-home backup

8000-Cycle Grade-A LFP Cells — Industrial durability, 15-20+ year service life

100A Ultra-Fast Charging — Full 10.24kWh recharge in only 2 hours

200A Continuous High-Power Output — 10kW simultaneous load capability

300A Industrial Pulse Capability — Highest residential pulse rating, handles all motor loads

M8 Heavy-Duty Terminals — Properly sized for 200A reliable high-current connections

51.2V High-Voltage Architecture — Minimized losses, improved high-current efficiency

CAN Bus + RS485 Communication — Universal compatibility with all high-power inverters

5-Layer High-Current Protection — Industrial-grade safety rated for 200A operation

Parallel Expandable — 10kWh to 80kWh+ massive high-capacity scalability

---



Contact the OCEAN SOLAR high-power battery specialist team today to get a detailed quote for the OCEE10K 10.24kWh high-capacity floor-standing LFP solar energy system battery, and experience professional-grade 200A performance and double-capacity energy storage in a single optimized unit!



OCEAN SOLAR — Powering your high-demand solar energy system with premium high-capacity LFP battery technology
