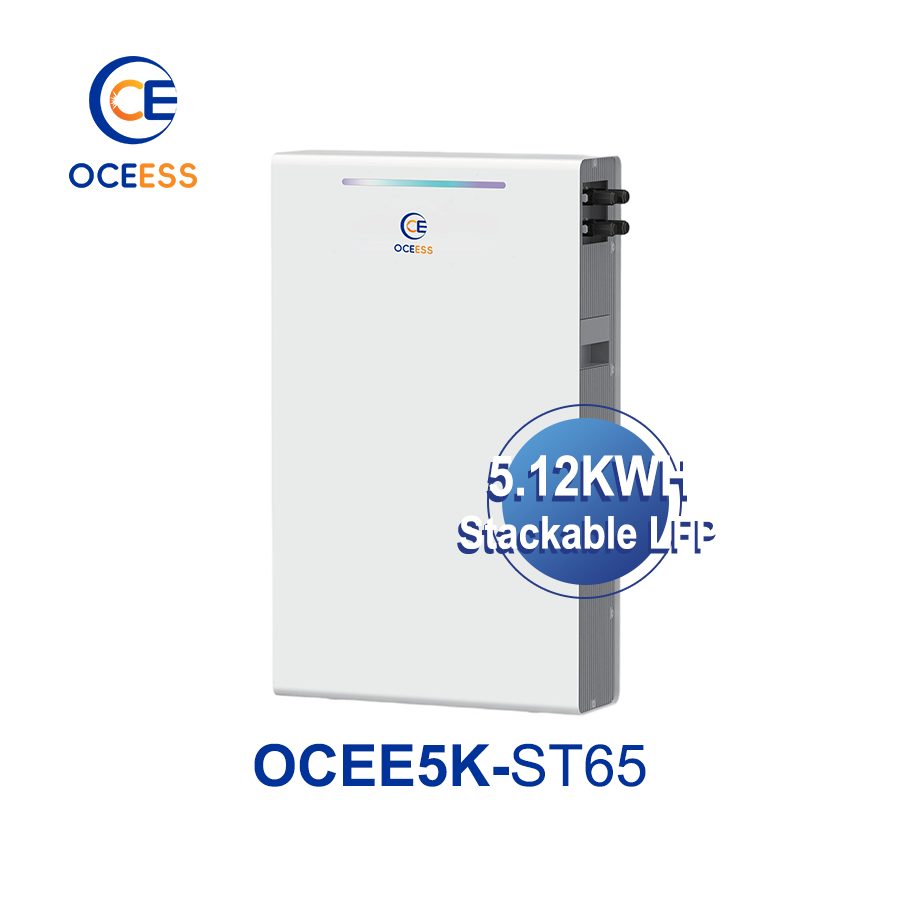

OCEE5K-ST65 5.12kWh Stackable LFP Battery

OCEE5K-ST65 Solar Energy Storage Battery Core Specifications Table

OCEE5K-ST65 5.12kWh Stackable LFP Battery.pdf

OCEE5K-ST65 Solar Energy Storage Battery Frequently Asked Questions

Installation and Operation FAQs

Q: Is professional installation required for this solar energy storage battery?

A: While the OCEE5K-ST65 solar energy storage battery features a user-friendly stackable design, we recommend professional installation by a qualified technician. Proper electrical connections, BMS configuration, and inverter integration are essential for optimal performance and safety compliance.

Q: Can this solar energy storage battery be used with any hybrid inverter?

A: Yes. The OCEE5K-ST65 solar energy storage battery features universal CAN and RS485 communication protocols, making it compatible with most major hybrid inverter brands including OCEAN SOLAR inverters and third-party systems. Our technical team provides integration support for all major brands.

Q: What does IP65 protection mean for this solar energy storage battery?

A: IP65 means the OCEE5K-ST65 solar energy storage battery is completely dust-tight and protected against low-pressure water jets from any direction. It can be installed outdoors, garages, and semi-exposed locations without additional weather protection enclosures.

Performance and Technical FAQs

Q: What does 8000 cycles mean for this solar energy storage battery's actual lifespan?

A: 8000 cycles means the battery retains ≥80% capacity after 8000 full charge-discharge cycles. With typical daily cycling, this equals approximately 20-25 years of service life — far exceeding lead-acid batteries (500-1000 cycles) and standard lithium batteries (3000-5000 cycles).

Q: How many OCEE5K-ST65 solar energy storage batteries can be connected in parallel?

A: The modular stackable design supports parallel expansion. Multiple OCEE5K-ST65 solar energy storage batteries can be connected to create systems from 5kWh up to 50kWh+ capacity, scaling with your solar energy system requirements.

Q: What functions does the built-in BMS provide in this solar energy storage battery?

A: The intelligent BMS provides: cell voltage monitoring, state of charge (SOC) calculation, state of health (SOH) tracking, cell balancing, overcharge/over-discharge protection, over-current protection, short-circuit protection, temperature monitoring, and communication with the inverter.

Q: How does this solar energy storage battery perform in cold temperatures?

A: The OCEE5K-ST65 solar energy storage battery operates reliably from -10°C to +50°C. The BMS includes thermal protection and optimized charging profiles for low-temperature operation, ensuring consistent performance in moderate climates.

Safety and Maintenance FAQs

Q: What safety protections are built into this solar energy storage battery?

A: The OCEE5K-ST65 solar energy storage battery features five-level comprehensive protection: 1) Overcharge Protection, 2) Over Discharge Protection, 3) Over-Current Protection, 4) Short Circuit Protection, 5) Over Temperature Protection. All protections are certified to UN38.3 safety standards.

Q: What regular maintenance does this solar energy storage battery require?

A: Virtually maintenance-free. The sealed LFP chemistry requires no watering or electrolyte maintenance. We recommend: keeping the unit clean, ensuring adequate ventilation, annual visual inspection of connections, and monitoring battery health via the inverter APP.

Q: Is this solar energy storage battery safe for transportation?

A: Yes. The OCEE5K-ST65 solar energy storage battery is fully certified to UN38.3 transportation safety standards and comes with MSDS documentation. It can be safely shipped via air, sea, and ground transportation worldwide.

Policy and Warranty FAQs

Q: What warranty is provided for this solar energy storage battery?

A: OCEAN SOLAR provides a standard 10-year warranty for the OCEE5K-ST65 solar energy storage battery, guaranteeing ≥80% capacity retention. Extended warranty options are available for commercial and utility-scale applications.

Q: Which inverter brands are compatible with this solar energy storage battery?

A: The OCEE5K-ST65 solar energy storage battery is compatible with all major hybrid inverter brands including OCEAN SOLAR, SMA, Victron, Growatt, GoodWe, Solis, Deye, and many others. Our integration team provides protocol files and technical support for seamless connectivity.

I. OCEAN SOLAR Premium Stackable Energy Storage Battery Launch

1.1 What is a Stackable LFP Energy Storage Battery

1.1.1 The Evolution of Residential Solar Energy Systems

1.1.1.1 Limitations of Fixed-Capacity Energy Storage

Traditional fixed-capacity solar energy system batteries force homeowners to predict their future energy needs at purchase time. If requirements grow, the entire battery system must be replaced at significant cost. The OCEE5K-ST65 modular solar energy storage battery eliminates this wasteful approach.

1.1.1.2 The Modular Stackable Battery Revolution

The stackable solar energy storage battery represents the future of residential and commercial energy storage. Start with one 5.12kWh module today, and simply add more modules vertically as your energy needs grow, your solar energy system expands, or electricity prices increase.

1.1.2 OCEE5K-ST65 Solar Energy Storage Battery Core Positioning

1.1.2.1 Premium Grade-A Cell 8000-Cycle Battery

As OCEAN SOLAR's flagship residential energy storage solution, the OCEE5K-ST65 solar energy storage battery features automotive-grade A-quality LFP cells delivering 8000 deep cycles — double the industry standard. This represents the pinnacle of battery durability and long-term value.

1.1.2.2 IP65 Outdoor-Rated Protection Standard

Unlike indoor-only battery products, the OCEE5K-ST65 solar energy storage battery achieves full IP65 ingress protection. Install outdoors, in garages, utility rooms, or semi-exposed locations without concerns about dust, moisture, or weather exposure.

1.2 Why Choose the OCEE5K-ST65 Solar Energy Storage Battery

1.2.1 True Modular Scalability

1.2.1.1 Stackable Installation Design

The innovative vertical stacking design requires no additional hardware or mounting brackets. Modules simply stack securely on top of each other, creating a clean, professional installation that saves valuable floor space in your solar energy system setup.

1.2.1.2 Parallel Expansion Capability

Start small, scale big. Begin with a single 5.12kWh OCEE5K-ST65 solar energy storage battery, then add additional modules in parallel as your budget and energy requirements grow. Your solar energy system investment grows with you.

1.2.2 Intelligent BMS and Universal Compatibility

1.2.2.1 Built-in Advanced BMS Management

Every OCEE5K-ST65 solar energy storage battery includes a sophisticated battery management system that continuously monitors and protects each individual cell. The BMS ensures optimal performance, maximum safety, and longest possible service life.

1.2.2.2 CAN/RS485 Universal Inverter Protocol

Dual communication protocols (CAN bus and RS485) ensure compatibility with virtually every hybrid inverter on the market. This universal compatibility makes the OCEE5K-ST65 the ideal energy storage solution for new solar energy systems and retrofit installations alike.

II. OCEE5K-ST65 Solar Energy Storage Battery Cell Technology Deep Dive

2.1 Grade-A LFP Cell Performance

2.1.1 8000 Cycle Longevity Technology

2.1.1.1 Premium Cell Manufacturing Standards

The OCEE5K-ST65 solar energy storage battery utilizes automotive-grade Grade-A LiFePO4 cells manufactured under strict ISO quality control. Each cell undergoes rigorous testing and matching to ensure uniform performance and exceptional cycle life.

2.1.1.2 10+ Year Expected Service Life

With 8000 deep cycles and typical daily usage patterns, the OCEE5K-ST65 solar energy storage battery delivers 20-25 years of reliable service. This means your solar energy system investment continues generating savings for decades after payback.

2.1.2 51.2V Voltage Platform Optimization

2.1.2.1 40.0V-58.4V Wide Operating Range

The 51.2V nominal voltage platform with 40.0V-58.4V operating range matches perfectly with 48V hybrid inverter systems, the industry standard for residential solar energy system installations worldwide.

2.1.2.2 56.0V Precision Float Charging

Precision 56.0V float charging ensures optimal battery health during standby operation. The BMS continuously adjusts charging parameters based on temperature, age, and state of charge to maximize battery longevity.

2.2 High-Current Discharge Capability

2.2.1 100A Continuous Discharge Performance

2.2.1.1 50A/100A Charge/Discharge Symmetry

The OCEE5K-ST65 solar energy storage battery delivers 50A continuous charging and 100A continuous discharging, providing ample power for household loads and supporting high-power inverters in your solar energy system.

2.2.1.2 150A 1-Second Pulse Discharge

An impressive 150A pulse discharge capability for 1 second ensures reliable starting of inductive loads like air conditioners, well pumps, refrigerators, and power tools without voltage sag or inverter tripping.

2.2.2 Thermal Management Design

2.2.2.1 -10°C to +50°C Operating Range

Engineered for reliable operation across -10°C to +50°C, the OCEE5K-ST65 solar energy storage battery handles most residential climate zones. The integrated thermal management and temperature protection ensure consistent performance year-round.

2.2.2.2 Optimal Thermal Dissipation Structure

The compact 550×175×225mm enclosure features optimized internal airflow and thermal conduction paths, ensuring even temperature distribution across all cells and preventing hotspots that degrade battery life in your solar energy system.

III. OCEE5K-ST65 Solar Energy Storage Battery BMS and Protection Technology

3.1 Five-Level Comprehensive Protection System

3.1.1 Electrical Safety Protections

3.1.1.1 Overcharge and Over-Discharge Protection

The BMS continuously monitors each cell voltage and automatically disconnects charging above 58.4V and discharging below 40.0V, preventing cell damage and ensuring the long-term health of your solar energy system storage.

3.1.1.2 Over-Current and Short Circuit Protection

Hardware-level over-current protection activates at 125A continuous and 200A instantaneous, with ultra-fast short-circuit protection responding within microseconds to prevent catastrophic failure in your solar energy system.

3.1.2 Thermal and Environmental Protection

3.1.2.1 Over Temperature Protection

Dual temperature sensors monitor both cell and PCB temperatures, automatically reducing charge/discharge rates or disconnecting as necessary to protect the battery from thermal damage in your solar energy system.

3.1.2.2 UN38.3 and MSDS Certified Safety

Every OCEE5K-ST65 solar energy storage battery is fully tested and certified to UN38.3 transportation safety standards, with complete MSDS documentation available for regulatory compliance and safe handling.

3.2 Intelligent Battery Management Algorithms

3.2.1 SOC/SOH Precision Calculation

3.2.1.1 Advanced Coulomb Counting with Voltage Correction

The BMS combines precision coulomb counting with periodic open-circuit voltage calibration to deliver highly accurate state of charge (SOC) readings to your solar energy system inverter, eliminating the "SOC drift" common in cheaper batteries.

3.2.1.2 Continuous State of Health Monitoring

The BMS continuously tracks battery performance degradation and calculates state of health (SOH), providing you and your solar energy system with transparency about remaining battery capacity and end-of-life forecasting.

3.2.2 Cell Balancing Technology

3.2.2.1 Active Cell Balancing Circuitry

Active cell balancing ensures all cells in the OCEE5K-ST65 solar energy storage battery maintain equal voltage and state of charge. This balancing technology maximizes usable capacity and significantly extends overall battery life.

3.2.2.2 Parallel Unit Synchronization

When multiple OCEE5K-ST65 solar energy storage batteries operate in parallel, the BMS systems communicate and synchronize to ensure equal current sharing and balanced charging across the entire solar energy system battery bank.

IV. OCEE5K-ST65 Solar Energy Storage Battery Installation and Scalability

4.1 Stackable Modular Design

4.1.1 Compact Footprint 550×175×225mm

4.1.1.1 Space-Saving Vertical Form Factor

At only 550mm wide × 175mm deep × 225mm tall per module, the OCEE5K-ST65 solar energy storage battery occupies minimal floor space. Stacking 4-6 modules vertically creates a 20-30kWh solar energy system in less than 0.1 square meters of floor area.

4.1.1.2 44.2kg Manageable Unit Weight

Each unit weighs only 44.2kg net, enabling safe two-person installation without specialized lifting equipment. The ergonomic design includes integrated handles for safe handling during your solar energy system installation.

4.1.2 Tool-Free Stacking Installation

4.1.2.1 Precision Alignment Guides

Integrated alignment guides ensure perfect vertical stacking every time. The interlocking design creates a mechanically stable battery bank without additional hardware or mounting brackets for your solar energy system.

4.1.2.2 M6 Heavy-Duty Terminal Connections

Heavy-duty M6 copper terminals provide reliable, low-resistance power connections. The standardized terminal size accommodates standard cable lugs and ensures secure, maintenance-free connections for your solar energy system.

4.2 Parallel Expansion Architecture

4.2.1 Multi-Unit Parallel Configuration

4.2.1.1 Simple Parallel Cabling

Adding capacity to your solar energy system is as simple as connecting positive-to-positive and negative-to-negative. The CAN bus communication automatically detects additional units and configures the BMS network.

4.2.1.2 Master-Slave BMS Communication

In multi-unit configurations, one OCEE5K-ST65 solar energy storage battery automatically becomes the master BMS, coordinating charging, discharging, and protection across the entire battery bank for your solar energy system.

4.2.2 Capacity Scaling from 5kWh to 50+kWh

4.2.2.1 Pay-As-You-Grow Investment Model

Start with 5.12kWh today, add another 5.12kWh next year, and continue scaling as your solar energy system expands, your household grows, or electricity prices rise. No wasted investment, no premature replacement.

4.2.2.2 Mixed Generation Compatibility

The BMS supports mixing OCEE5K-ST65 solar energy storage batteries of different ages and slight capacity differences, making it easy to expand your solar energy system years after initial installation.

V. OCEE5K-ST65 Solar Energy Storage Battery Communication and Integration

5.1 Universal Inverter Compatibility

5.1.1 CAN Bus Protocol Support

5.1.1.1 Standard CAN 2.0B Interface

The industry-standard CAN 2.0B interface supports all major inverter communication protocols. OCEAN SOLAR provides dedicated protocol files for all major inverter brands for plug-and-play integration with your solar energy system.

5.1.1.2 Real-Time Data Exchange

High-speed CAN communication provides real-time data exchange between the OCEE5K-ST65 solar energy storage battery and your inverter: SOC, SOH, voltage, current, temperature, alarms, and diagnostic information for complete solar energy system visibility.

5.1.2 RS485 Industrial Communication

5.1.2.1 Modbus RTU Protocol Support

For inverters and energy management systems using RS485, the OCEE5K-ST65 solar energy storage battery supports standard Modbus RTU protocol, enabling integration with legacy and industrial solar energy system equipment.

5.1.2.2 Multi-Drop Network Capability

The RS485 interface supports multi-drop network configuration, allowing multiple OCEE5K-ST65 solar energy storage batteries to communicate over a single twisted-pair cable in larger solar energy system installations.

5.2 Optional LCD Display Module

5.2.1 Real-Time Battery Status Monitoring

5.2.1.1 Local Visual Status Indication

The optional LCD display module provides at-a-glance status information: battery voltage, charge/discharge current, state of charge, temperature, and alarm status without requiring connection to your solar energy system inverter or network.

5.2.1.2 Diagnostic and Troubleshooting Interface

The display provides access to advanced diagnostic information, fault codes, and event logs, enabling technicians to quickly identify and resolve issues in your solar energy system without specialized tools.

5.2.2 Local Parameter Configuration

5.2.2.1 BMS Parameter Adjustment

Authorized technicians can adjust BMS protection parameters, charging profiles, and communication settings directly through the display interface during your solar energy system commissioning.

5.2.2.2 Factory Default Restoration

One-touch factory default restoration ensures the OCEE5K-ST65 solar energy storage battery can be quickly reset to original specifications if configuration issues arise during solar energy system installation or maintenance.

VI. OCEE5K-ST65 Solar Energy Storage Battery Global Market Applications

6.1 Residential and Commercial Energy Storage

6.1.1 European Residential Solar + Storage Market

6.1.1.1 High Electricity Price Markets

In European markets with high energy prices, the OCEE5K-ST65 solar energy storage battery maximizes solar self-consumption and enables TOU price arbitrage, delivering exceptional ROI and rapid payback for residential solar energy system owners.

6.1.1.2 Balcony and Rooftop Solar Integration

Perfectly matched for balcony solar energy systems and residential rooftop installations, the compact stackable design fits easily in apartments, townhouses, and single-family homes across Europe.

6.1.2 Australian and New Zealand CEC Market

6.1.2.1 Grid Stability and Backup Power

With increasing grid instability and extreme weather events, Australian and New Zealand households rely on the OCEE5K-ST65 solar energy storage battery for reliable backup power and energy independence in their solar energy system.

6.1.2.2 CEC-Listed Inverter Compatibility

Fully compatible with all CEC-listed hybrid inverters for the Australian and New Zealand markets, the OCEE5K-ST65 solar energy storage battery meets all regulatory requirements for solar energy system installations in these regions.

6.2 Off-Grid and Backup Power Solutions

6.2.1 Middle East Grid Stability Applications

6.2.1.1 Frequent Grid Outage Solutions

In Middle Eastern countries with frequent power outages, the OCEE5K-ST65 solar energy storage battery provides reliable backup power, ensuring critical loads remain operational during grid interruptions in your solar energy system.

6.2.1.2 High-Temperature Environmental Performance

The -10°C to +50°C operating range handles the high ambient temperatures common in Middle Eastern climates, delivering reliable performance for solar energy system installations across Lebanon, Egypt, Morocco, and the Gulf region.

6.2.2 Southeast Asia Rural Electrification

6.2.2.1 Off-Grid Community Power

For rural communities without reliable grid access across Southeast Asia, the OCEE5K-ST65 solar energy storage battery provides clean, dependable energy storage for off-grid solar energy system installations.

6.2.2.2 Humid Climate Durability

IP65 protection and 0-95% humidity tolerance ensure reliable operation in the tropical and monsoon climates common throughout Southeast Asia, making it ideal for solar energy system deployments in these regions.

VII. Ten Reasons to Choose OCEAN SOLAR Energy Storage Batteries

1. 8000 Cycles Grade-A LFP Cells — Double the industry standard, 20+ year service life

2. True Stackable Modular Design — Pay-as-you-grow scalability, no wasted investment

3. IP65 Outdoor Protection — Install anywhere, indoor or outdoor, garage or exterior

4. Built-in Intelligent BMS — Five-level protection, cell balancing, precision SOC/SOH

5. CAN/RS485 Universal Inverter Compatibility — Works with all major inverter brands

6. Parallel Expansion Supported — Scale from 5kWh to 50+kWh as needs grow

7. 100A Continuous High-Current Discharge — Ample power for all household loads

8. Five-Level Comprehensive Protection — Overcharge, over-discharge, over-current, short-circuit, over-temperature

9. UN38.3/MSDS Safety Certified — Global transportation and regulatory compliance

10. OCEAN SOLAR Global Warranty — 10-year standard warranty, worldwide technical support

Contact the OCEAN SOLAR team today to get a detailed quote and technical solution for integrating OCEE5K-ST65 stackable energy storage batteries into your solar energy system, and experience the ultimate in modular, scalable, and durable energy storage!

OCEAN SOLAR — Powering your solar energy system with premium energy storage solutions worldwide
