N-TopCon Solar Panel Mono 430W-460W Monofacial

Short Description:


Product Detail

Product Tags

Product Features

Type of panels: N-type TOPCon Technology

Power range: 430W-460W
Efficiency range:
21.50%-23.00%
Dimensions: 1762 mm x 1134mm x 30 mm
Weight: 20Kg
Performance Guarantee: 30 years
Product Warranty: 12 years
Packaging962pcs/40HQ Container

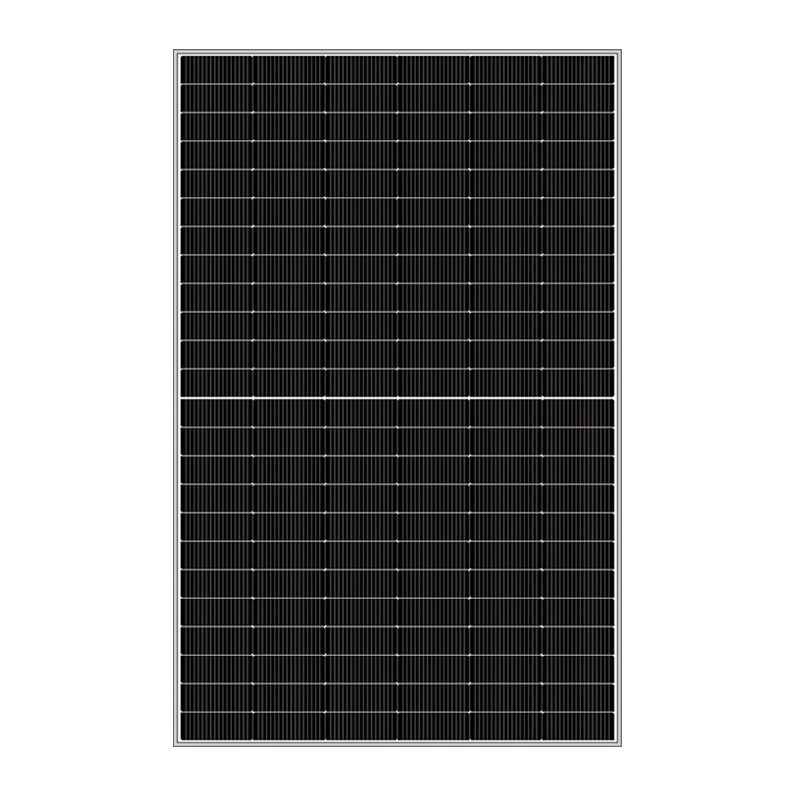

460w Monofacial1

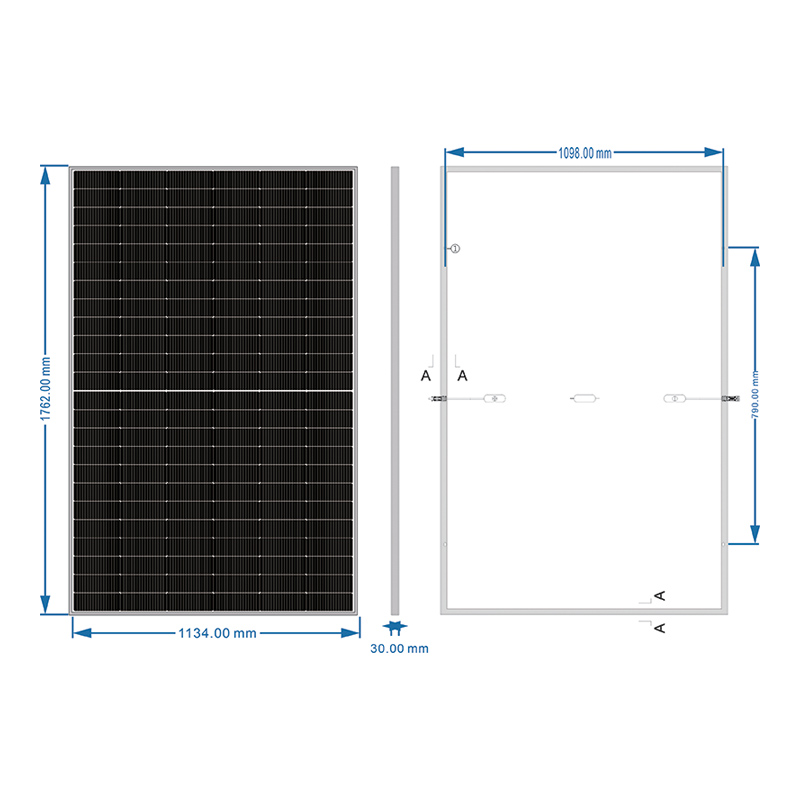

460w Monofacial2

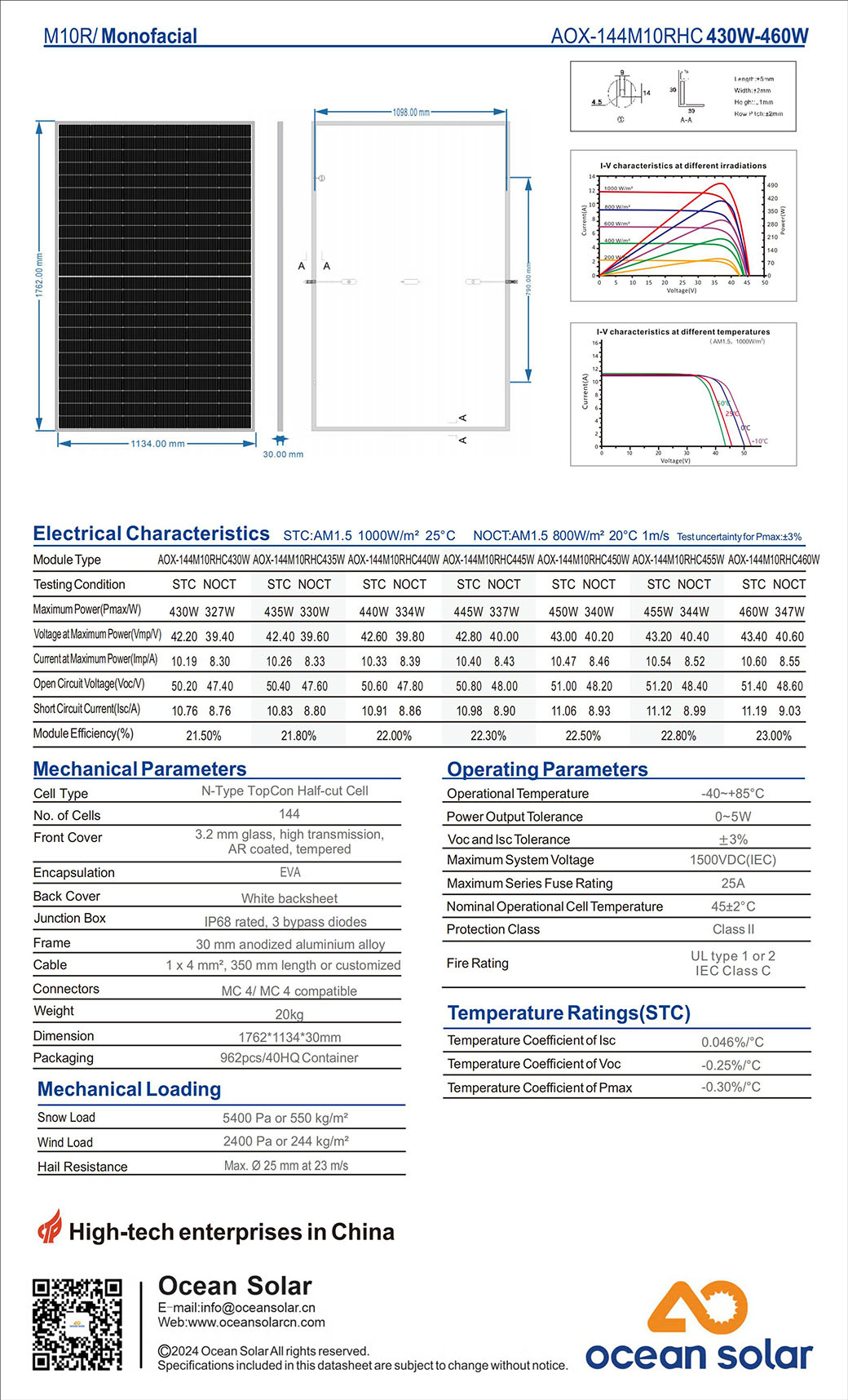

Data Sheet

Cell Type

N-Type TopCon Half-cut Cell

No. of cells

144

Front Cover

3.2 mm glass, high transmission,
AR coated, tempered

Encapsulation

EVA

Back Cover

White backsheet

Junction Box

IP68 rated, 3 bypass diodes

Frame

30 mm anodized aluminium alloy

Cable

1 x 4 mm², 350 mm length or customized

Connectors

MC 4/ MC 4 compatible

Weight

20kg

Dimension

1762*1134*30mm

Packaging

962pcs/40HQ Container

Product Certificate

certificate

details show

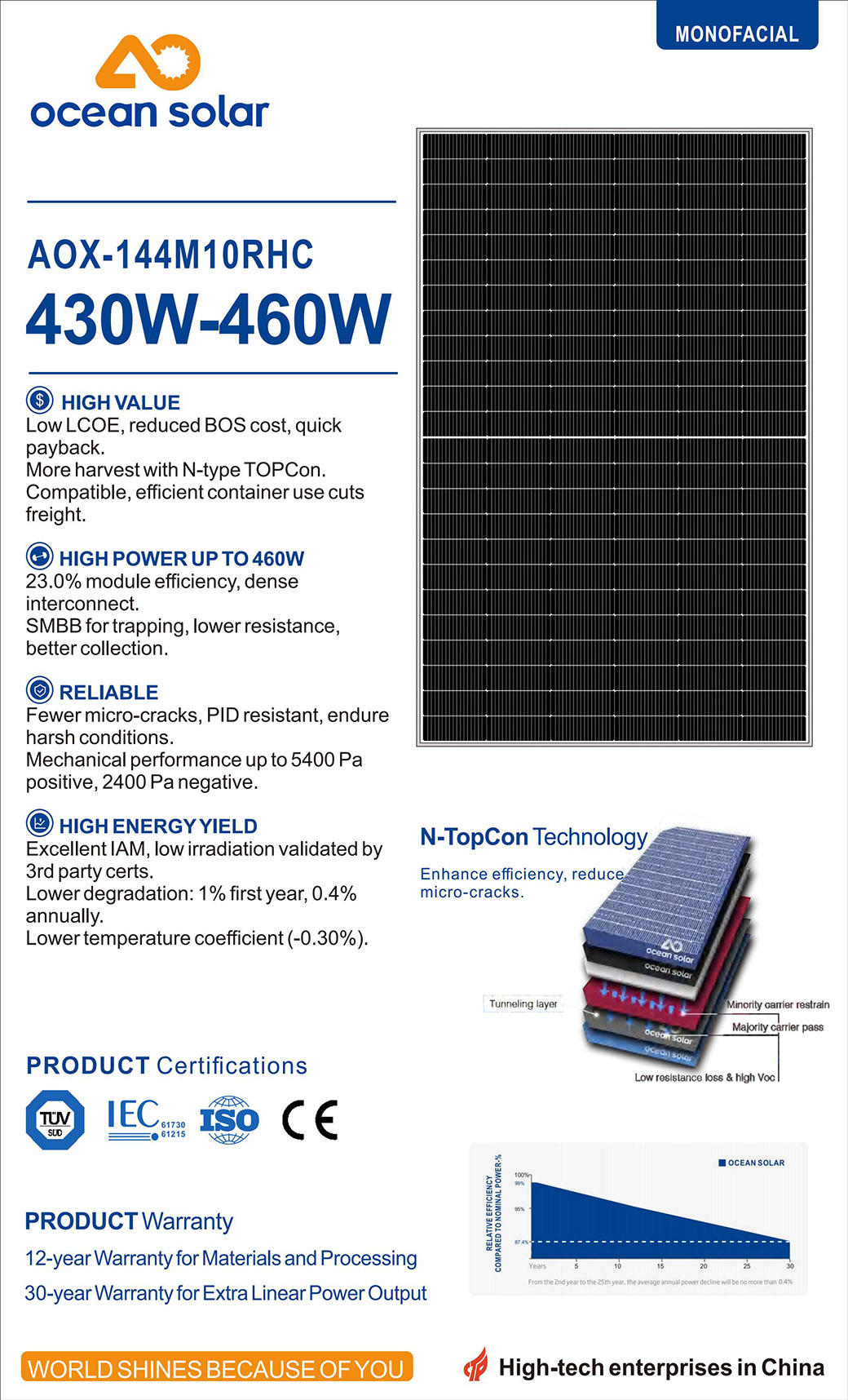

MONO 430W-460W Monofacial_00
MONO 430W-460W Monofacial_01
