G Series
FOX ESS

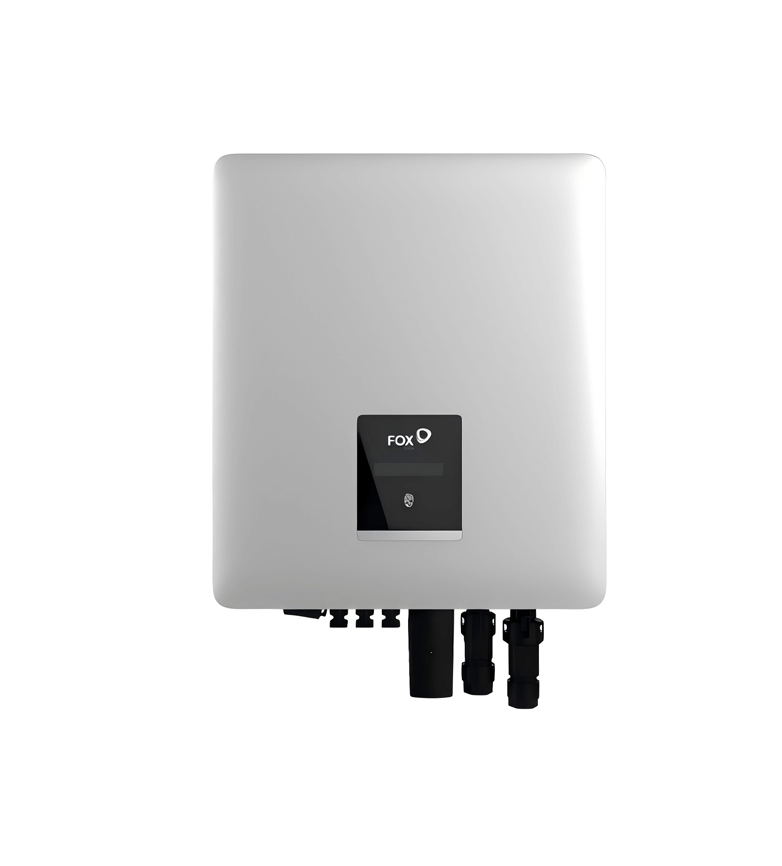

Single-Phase Grid-Tied Inverter
380*440*167mm
19kg
5 years
Product Description
FoxESS G Series Single-Phase Grid-Tied Inverter is a flagship product of FoxESS, a company founded in 2019 that specializes in the R&D, production and sales of PV inverters, energy storage inverters, lithium batteries, EV chargers and heat pumps. Tailored for residential and small commercial & industrial (C&I) distributed PV scenarios, it covers a power range of 7kW-10.5kW and features a 3-channel MPPT design, ultra-high conversion efficiency and reliable performance. Backed by FoxESS's global technical strength and strategic cooperation with authoritative institutions such as TÜV Rheinland, it provides users with a stable, efficient and safe PV energy conversion experience.
Wide Voltage Adaptation Range: With a startup input voltage as low as 80V and an ultra-wide MPPT operating voltage range of 80V-550V, it is highly compatible with mainstream large-size PV modules and various module combinations. Even in low-light environments such as early morning and late evening or areas with unstable grid voltage, it can start quickly and maintain efficient power conversion, reducing energy loss during low-light periods.
ltra-High Conversion Efficiency: Adopting advanced LLC resonant topology and high-performance power devices, the MPPT efficiency reaches up to 99%, the maximum overall efficiency exceeds 97.8% (industry-leading level), and the Chinese efficiency is 97.4%. The total harmonic distortion of current (THDi) is <3%, which meets strict grid connection standards and avoids interference with household appliances; the power factor can be flexibly adjusted from 0.8 leading to 0.8 lagging, adapting to different grid requirements and maximizing long-term power generation revenue for users.
3-Channel MPPT Precise Matching: Equipped with 3 MPPT channels (1 string per channel) and a maximum input current of 14A, it is perfectly suitable for large-scale PV arrays and complex roof layouts. It can independently optimize power generation for each string, effectively solving the problem of uneven light caused by shading and fully releasing the power generation potential of the entire PV system.
Space-Saving Compact Design: With dimensions of 380×440×167mm and a weight of only 19kg, it adopts a slim wall-mounted design and can be easily installed in roof equipment rooms, residential exterior wall corners or small commercial store utility areas. The reasonable structural design reduces the load pressure on installation brackets, lowering the difficulty of on-site hoisting and fixing for the construction team.
Plug-and-Play Configuration: The modular design supports flexible combination, combined with plug-and-play functionality and built-in insurance protection, greatly shortening installation time, reducing construction difficulty and labor costs, especially suitable for small C&I projects with tight schedules.
IP65 All-Weather Protection: With IP65 dustproof and waterproof rating, it supports direct outdoor installation without additional protective facilities. It adapts to an operating temperature of -25℃ to 60℃, 0~100% non-condensing humidity and a maximum altitude of 3000m, and can cope with complex regional climate conditions such as high temperature, severe cold and high altitude.
Comprehensive Intelligent Detection: Built-in insulation resistance detection and high-precision leakage current detection, it can automatically identify abnormal states such as component insulation degradation and line leakage, and immediately send alarm signals to the monitoring platform, helping users detect and solve potential risks before failures occur.
Full-Coverage Fault Protection: Covers DC reverse connection protection, anti-islanding protection, AC short circuit/overcurrent/overvoltage protection, and optional surge protection (DC/AC: Type II), constructing a multi-dimensional safety barrier to fully protect the safety of equipment, PV modules, power grids and personnel.
Compliant Quality Certification: Complying with international standards such as EN 62109-1/2, it has passed strict certifications from authoritative institutions like TÜV Rheinland. Its quality has been verified by global market applications, ensuring compliant operation in different countries and regions.
Multi-Mode Remote Monitoring: Optional WIFI/4G communication module supports dual-end access through FoxESS mobile APP (iOS/Android) and web-based monitoring platform. Users can real-time view core operating parameters such as output power, efficiency, voltage and current, check daily/weekly/monthly power generation statistics, and directly receive fault push notifications on mobile phones, realizing remote management without on-site inspection.
FoxCloud V2.0 Advanced Platform: Connected to FoxESS's independently developed FoxCloud V2.0 monitoring system, it has functions such as data statistical analysis, automatic fault alarm and historical data traceability. For small C&I users, it can also generate energy consumption and power generation analysis reports to optimize electricity usage strategies and reduce energy costs.
Low-Consumption Quiet Operation: Adopting natural cooling design without fan-assisted heat dissipation, the operating noise is <30dB (equivalent to the volume of soft indoor conversation), which does not affect the daily work and rest of surrounding residents or employees; the standby power consumption is <1W, reducing energy waste during non-power generation periods.
Strong Load-Bearing Capacity: The rated output apparent power ranges from 7000VA to 10500VA, and the maximum output current can reach 47.7A, which can meet the power supply needs of high-power household appliances and small C&I equipment, supporting the stable operation of the entire power consumption system.
Global Market Recognition: As a core product of FoxESS's PV inverter product line, relying on the company's global layout and international cooperation resources, it has been widely applied in residential and small C&I PV projects in Europe, Southeast Asia and other regions, winning unanimous praise from users.
Full Industry Chain Support: Backed by FoxESS's complete product ecosystem (covering PV inverters, energy storage systems, batteries, charging piles, etc.), it can be flexibly combined with other products to provide one-stop energy solutions, meeting users' diverse needs from pure PV power generation to comprehensive energy management.

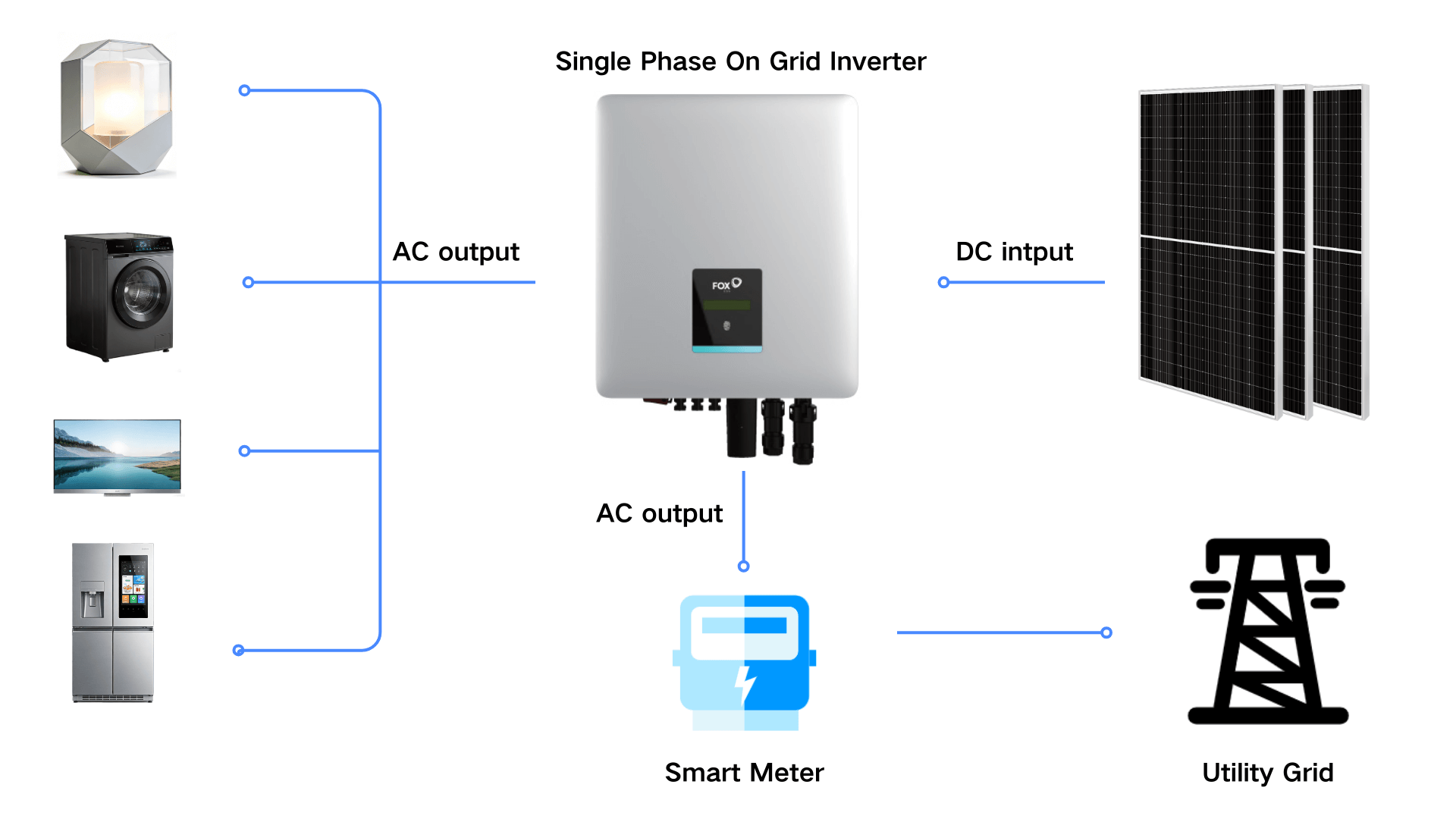

From large-scale residential roof PV systems to small C&I projects such as convenience stores, workshops and office buildings, the G series integrates ultra-high efficiency, flexible installation, intelligent management and comprehensive safety protection. With its 3-channel MPPT advantage and strong load-bearing capacity, it has become a preferred solution for medium-power distributed PV applications, and works with FoxESS to help global users achieve green energy transformation and sustainable development.
