Wholesale Mono 500W-540W Monofacial factory and suppliers | Ocean Solar

Mono 500W-540W Monofacial

Short Description:

Assembled with MBB N-TopCon cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Product Detail

Product Tags

Product Features

Type of panels: N-type TOPCon Technology, Half-cells, 182 mm * Monofacial

Power range: 500W-540W
Efficiency range:
Dimensions: 2094 mm x 1134mm x 30 mm
Weight: 25Kg(+/-0.5kg)
Performance Guarantee: 25 years
Product Warranty: 12 years
Packaging:36pcs/pallet,792pcs/40HQ Container

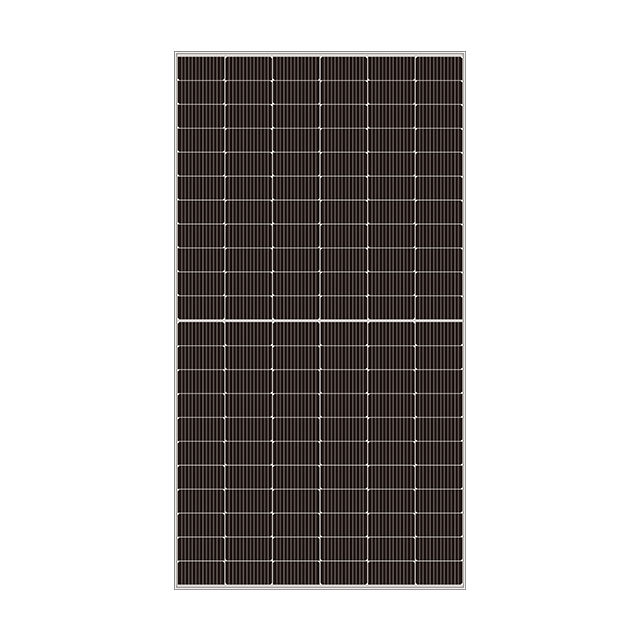

Mono 500W-540W-2

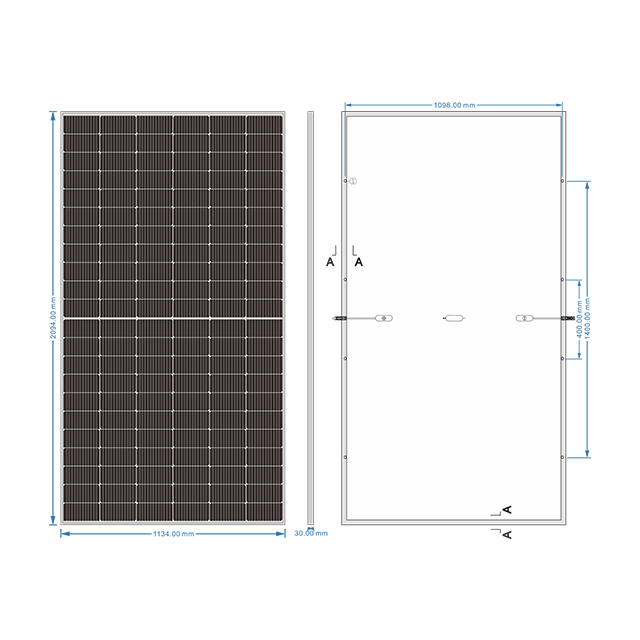

Mono 500W-540W-1

Data Sheet

Cell Mono 182*91
No. of cells 132(6×22)
Rated Maximum Power(Pmax) 540W
Maximum Efficiency 22.7%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 2094*1134*30mm
No.of one 40HQ container 792pcs

Product Warranty

12-year warranty for materials and processing;
25-year warranty for extra linear power output.

Product Certificate


Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

High-end three-dimensional flexible robotic cutting applications, to achieve bevel cutting function, the pipe and the torch using the servo positioning function .

Can cut carbon steel, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, H-beam, I-beam, angle, channel, etc. The device is widely used in various kind of pipes profile processing field, shipbuilding industry, network structure, steel, marine engineering, oil pipelines and other industries.

Widely used in residential PV system,commercial & industrial PV system,utility-scale PV system,solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.

details show

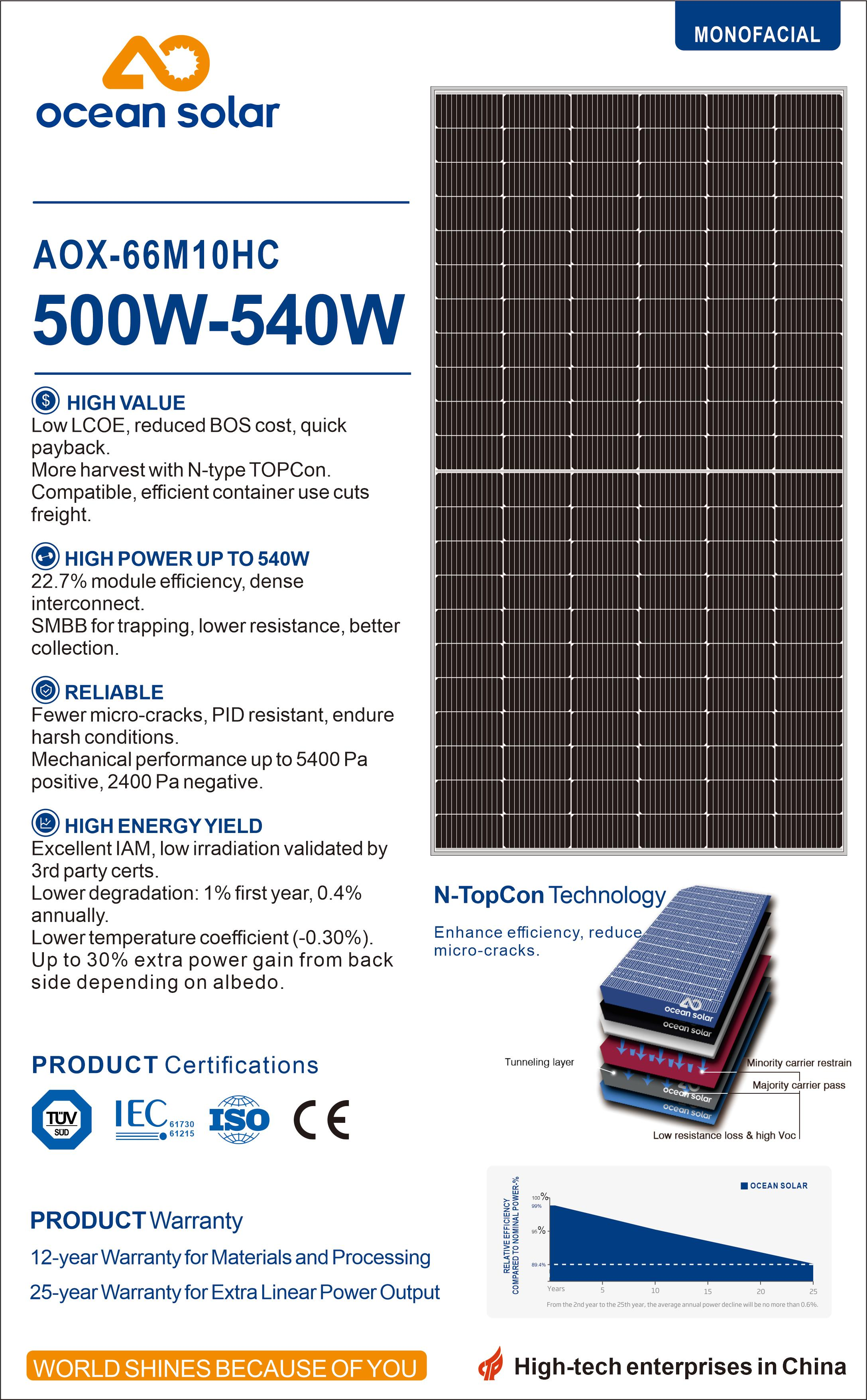

M10 540W_00

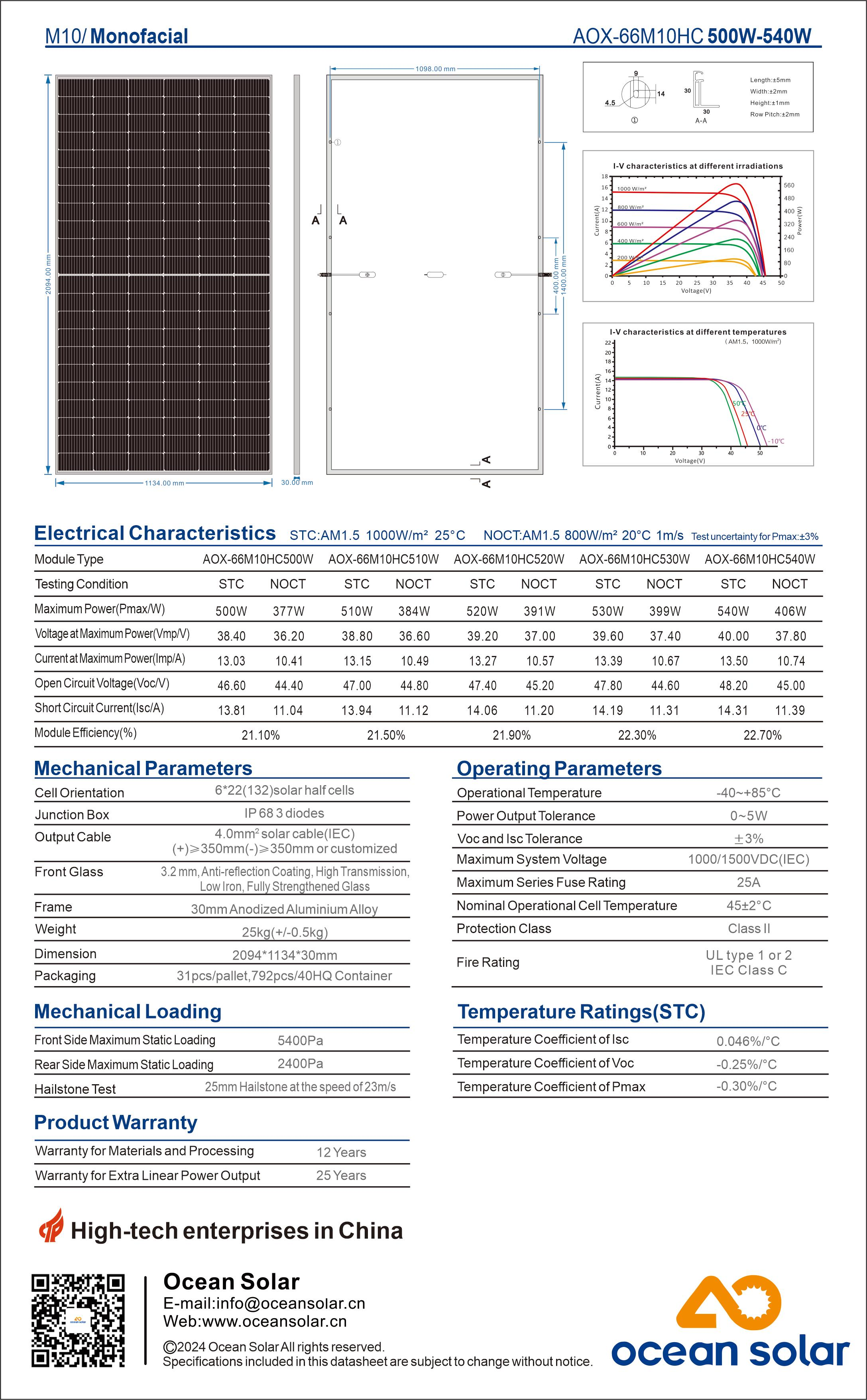

M10 540W_01
