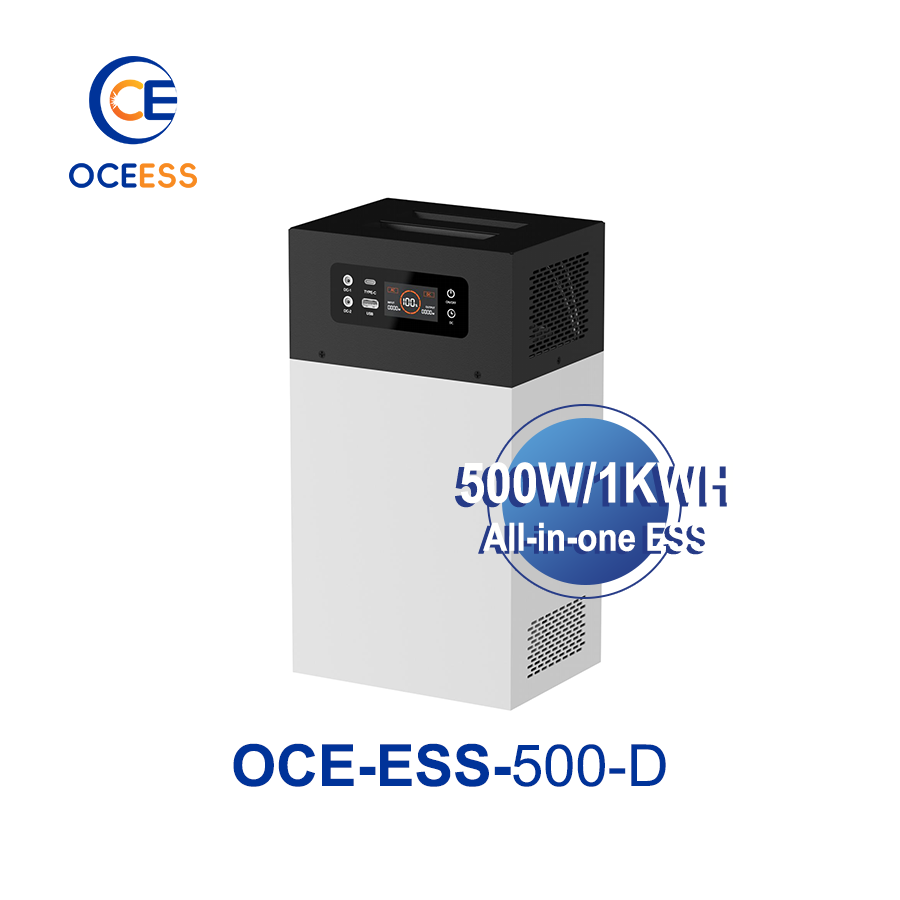

OCE-ESS-500W-D 500W/1kWh with LCD Display

OCE-ESS-500W-D Portable Solar Energy System Core Specifications Table

OCE-ESS-500W-D 500W/1kWh with LCD Display.pdf

OCE-ESS-500W-D Portable Solar Energy System Frequently Asked Questions

Display and User Interface FAQs

Q: What information does the LCD display show on this premium solar energy system?

A: The color LCD display on the OCE-ESS-500W-D solar energy system provides comprehensive real-time system information including: precise state of charge (SOC) percentage, battery voltage, charging/discharging current, real-time power output, remaining runtime estimation, operating mode indicators, and alarm status. Complete visibility and control for your portable solar energy system.

Q: How does the display version compare to the standard OCE-ESS-500W solar energy system?

A: Key upgrades over the standard model: 1) Color LCD digital display vs. basic LED indicators, 2) Dual Schuko European sockets vs. single universal socket, 3) 36W PD3.1/PPS multi-protocol fast charging USB-C, 4) Dual 12V/2A DC output ports. The premium display version delivers a significantly enhanced user experience for your solar energy system.

Q: Can I operate and monitor this solar energy system through the display interface?

A: Absolutely. The intuitive interface features dedicated control buttons directly on the display panel: power on/off, AC output toggle, DC output control, and display mode selection. Complete control and monitoring without external apps or connectivity for your standalone solar energy system.

Charging and Fast Charging FAQs

Q: What fast charging protocols are supported by this premium solar energy system?

A: The OCE-ESS-500W-D solar energy system features industry-leading multi-protocol fast charging supporting: PD2.0, PD3.1, PPS (3.3-21V programmable), QC2.0, QC3.0, BC1.2, Apple charging, Huawei FCP/SCP, and Samsung AFC protocols. 36W maximum output charges modern smartphones from 0-50% in just 25 minutes directly from your solar energy system.

Q: What are the 12V DC ports used for on this portable solar energy system?

A: The two dedicated 12V/2A round DC ports provide regulated 12V power ideal for: automotive accessories, camping equipment, LED light strips, CCTV cameras, routers, Raspberry Pi projects, and other 12V devices. Eliminates the need for bulky AC adapters with your versatile solar energy system.

Q: How long does it take to fully charge this display version solar energy system?

A: Fast charging performance matches the standard model with additional charging flexibility: AC grid charging at 500W fully charges in 2.0-2.5 hours. PV solar charging at 300W MPPT charges in 3.5-4 hours under full sun. The LCD display shows exact charging progress and time remaining for your solar energy system.

Output and Connectivity FAQs

Q: Why Schuko sockets instead of universal sockets on this solar energy system?

A: Schuko (Type F) is the standard European grounding socket providing superior electrical safety and compatibility across the EU, Germany, France, Spain, Poland, and most of Europe. The dual Schuko configuration is optimized specifically for the European solar energy system market.

Q: How many devices can I connect simultaneously to this solar energy system?

A: Exceptional connectivity: 2× Schuko AC outlets (500W total), 1× 36W multi-protocol USB-C fast charge, 2× 12V/2A DC ports. Power up to 5 devices simultaneously: refrigerator + two phones + LED lighting + router — all from one compact portable solar energy system.

Q: Does the pure sine wave output remain the same quality on this display version?

A: Yes, identical premium pure sine wave quality: <3% THD for linear loads, <5% for non-linear loads, ≥0.99 power factor. The display upgrade adds monitoring capability without compromising the excellent power quality that makes this solar energy system ideal for sensitive electronics.

Safety and Application FAQs

Q: What additional safety monitoring does the display provide for this solar energy system?

A: The LCD display provides proactive safety visibility: real-time voltage monitoring, current draw display, temperature status, fault code indication, and alarm alerts. Users can identify potential issues before they become problems, enhancing the overall safety and reliability of your portable solar energy system.

Q: Is this display version better for European market solar energy system applications?

A: Absolutely. The OCE-ESS-500W-D is specifically optimized for the European solar energy system market: Schuko sockets, CE compliance focus, multi-protocol charging matching European smartphone brands, and the professional display preferred by European consumers and solar energy system installers.

Q: What warranty and support is provided for this premium display solar energy system?

A: OCEAN SOLAR provides a standard 2-year comprehensive warranty for the OCE-ESS-500W-D solar energy system, including the LCD display module and fast charging electronics. Extended warranty options and priority technical support are available for European solar energy system distribution partners.

I. OCEAN SOLAR Premium Display Version Portable Solar Energy System Launch

1.1 The Display Upgrade Revolution in Portable Solar Energy Systems

1.1.1 Limitations of Basic LED Indicator Solar Energy Systems

1.1.1.1 The Problem with Simple LED Solar Energy Systems

Basic portable solar energy systems with only 25/50/75/100% LED indicators provide extremely limited information. Users cannot see actual voltage, current draw, real-time power, or estimated remaining runtime. The OCE-ESS-500W-D solar energy system solves this with a comprehensive color LCD display.

1.1.1.2 The Premium Solar Energy System User Experience

Modern portable solar energy system users demand transparency and control. The display version delivers professional-grade monitoring capability previously found only on high-end fixed home solar energy system installations — now available in a compact portable form factor.

1.1.2 OCE-ESS-500W-D Solar Energy System Core Positioning

1.1.2.1 European Market Premium Edition

The OCE-ESS-500W-D solar energy system is specifically optimized as the premium European market edition featuring: Schuko standard sockets, CE-optimized design, multi-protocol fast charging for European smartphone brands, and the professional LCD display preferred by discerning European solar energy system customers.

1.1.2.2 Enhanced Connectivity Premium Package

Every connectivity option upgraded: dual Schuko AC outlets, 36W PD3.1/PPS multi-protocol USB-C fast charging, dual 12V/2A DC outputs. The most connected and versatile 500W/1kWh portable solar energy system available.

1.2 Key Display Version Upgrade Advantages

1.2.1 Color LCD Digital Display System

1.2.1.1 Comprehensive Real-Time Monitoring

The color LCD display shows: precise SOC percentage (not just 25% increments), battery voltage to 0.1V accuracy, charging/discharging current, real-time wattage output, remaining runtime calculation, operating mode status, and fault alarm codes. Complete visibility into your solar energy system performance.

1.2.1.2 Intuitive Physical Control Interface

Dedicated physical buttons provide tactile control without touchscreen reliability issues: system power, AC output enable/disable, DC output control, and display mode cycling. Simple, reliable operation for your portable solar energy system in all conditions.

1.2.2 European-Optimized Connectivity

1.2.2.1 Dual Schuko Standard Sockets

Two grounded Schuko (Type F) sockets provide safe, compatible AC power across Germany, France, Spain, Poland, Netherlands, Belgium, Austria, and most European countries. The standard for European solar energy system installations.

1.2.2.2 Industry-Leading Fast Charging

36W multi-protocol fast charging supports virtually every fast charging standard worldwide. iPhone, Samsung Galaxy, Huawei, Google Pixel, and all modern smartphones charge at maximum speed directly from your solar energy system.

II. OCE-ESS-500W-D Solar Energy System Display and HMI Technology

2.1 Color LCD Digital Display System

2.1.1 Comprehensive Monitoring Capability

2.1.1.1 Precision SOC and Voltage Display

Precise state of charge displayed as exact percentage (0-100%) rather than crude 25% increments. Battery voltage displayed with 0.1V resolution. Know exactly how much capacity remains in your solar energy system at all times.

2.1.1.2 Real-Time Power and Current Metrics

Live charging and discharging current displayed in amps. Real-time power output displayed in watts. Monitor exactly how much power your devices are drawing from the solar energy system.

2.1.2 Intelligent Runtime Calculation

2.1.2.1 Dynamic Remaining Runtime Estimation

The onboard processor continuously calculates estimated remaining runtime based on current power draw. See at a glance how many hours of operation remain at the current load level for your solar energy system.

2.1.2.2 Operating Mode and Status Indicators

Clear visual indicators for charging mode, discharging mode, standby mode, fault conditions, and alarm status. Immediately understand the operating state of your solar energy system.

2.2 Physical Control Interface Design

2.2.1 Tactile Button Control System

2.2.1.1 System Power Control

Dedicated power button with positive tactile feedback. Reliable operation with gloves, in cold weather, and low-light conditions — no unreliable touchscreens on this solar energy system.

2.2.1.2 Output Enable/Disable Controls

Independent controls for AC output and DC output enable/disable. Conserve battery power by enabling only the outputs you need for your specific solar energy system application.

2.2.2 Display Mode Cycling

2.2.2.1 Multi-Page Display System

Cycle through multiple display pages showing different system parameters. Customize what information you want to see for your particular solar energy system usage scenario.

2.2.2.2 Alarm and Fault Code Display

System faults and alarms display specific numeric fault codes for quick troubleshooting. Service technicians can rapidly diagnose issues without opening the solar energy system enclosure.

III. OCE-ESS-500W-D Solar Energy System Enhanced Connectivity

3.1 Dual Schuko European AC Output

3.1.1 European Standard Grounded Sockets

3.1.1.1 Schuko Type F Standard Compatibility

Schuko is the dominant grounded socket standard across the European Union. Compatible with Germany, France, Spain, Poland, Netherlands, Belgium, Austria, Sweden, Norway, and most European solar energy system markets.

3.1.1.2 Integrated Safety Grounding

Proper protective earth grounding for user safety. Essential for power tools, appliances with metal casings, and medical equipment in European solar energy system applications.

3.1.2 Dual Independent Output Sockets

3.1.2.1 Simultaneous Multi-Device Operation

Two independent AC sockets support powering two separate devices simultaneously up to 500W total. Power your refrigerator and your laptop at the same time from one solar energy system.

3.1.2.2 500W Pure Sine Wave Quality

Identical premium power quality: pure sine wave output, <3% THD, ≥0.99 power factor. All sensitive electronics operate flawlessly from this premium solar energy system.

3.2 Multi-Protocol Fast Charging USB-C

3.2.1 Industry-Leading 36W PD3.1/PPS Charging

3.2.1.1 Universal Fast Charging Support

Comprehensive protocol support: PD2.0, PD3.1, PPS programmable power supply (3.3-21V, 20mV step), QC2.0, QC3.0, BC1.2, Apple charging, Huawei FCP/SCP, Samsung AFC. Charges virtually every modern device at maximum speed from your solar energy system.

3.2.1.2 36W Maximum Charging Power

36W output charges flagship smartphones from 0-50% in approximately 25 minutes. Charge laptops, tablets, power banks, and all USB-C devices directly from the solar energy system.

3.2.2 Dual 12V/2A Regulated DC Output

3.2.2.1 Stable Regulated 12V Power

Two dedicated round DC ports provide clean regulated 12V at 2A each (18W per port). Perfect for automotive accessories, camping equipment, LED lighting, CCTV, routers, and electronics projects powered by your solar energy system.

3.2.2.2 Eliminates AC Adapter Waste

Power 12V devices directly without inefficient and bulky AC-to-DC adapters. Improve overall system efficiency and reduce clutter for your portable solar energy system setup.

IV. OCE-ESS-500W-D Solar Energy System Core Power Performance

4.1 Inverter and Charging Performance

4.1.1 500W Pure Sine Wave Inverter

4.1.1.1 88% Peak Conversion Efficiency

Proven high-efficiency bidirectional inverter platform achieves 88% peak conversion efficiency. Minimizes energy loss and maximizes runtime from every watt stored in your solar energy system.

4.1.1.2 ≤20ms Seamless UPS Switching

Professional-grade ≤20ms transfer during grid outages. Computers, routers, and sensitive electronics continue operating without interruption or reset. True uninterruptible backup from your portable solar energy system.

4.1.2 Dual Input Fast Charging System

4.1.2.1 500W Fast AC Grid Charging

Full 500W AC charging completely recharges the 1kWh battery in just 2-2.5 hours. The LCD display shows charging progress and estimated completion time for your solar energy system.

4.1.2.2 300W MPPT Solar Charging

Built-in MPPT controller with 10-55V ultra-wide input range accepts virtually all portable solar panels. 300W maximum at 10A delivers fast off-grid charging for your portable solar energy system.

4.2 LFP Battery and Protection System

4.2.1 1004.8Wh LFP Energy Storage

4.2.1.1 Single-Cell 314Ah Architecture

Proven single 3.2V 314Ah LFP cell architecture delivers 1004.8Wh usable capacity. Simplified design with excellent reliability and cycle life for your portable solar energy system.

4.2.1.2 1000+ Deep Cycle Durability

Premium LFP chemistry delivers 1000+ deep charge-discharge cycles. Years of reliable daily operation for your portable solar energy system.

4.2.2 Comprehensive Multi-Level Protection

4.2.2.1 Full Protection Suite

Undervoltage protection, overvoltage protection, short circuit protection, and over-temperature protection. All protections now visible and monitorable through the LCD display on your premium solar energy system.

4.2.2.2 Enhanced Safety Visibility

The display provides proactive visibility into voltage, current, and temperature parameters. Identify and address issues before they trigger protection events. Enhanced safety through transparency for your solar energy system.

V. OCE-ESS-500W-D Solar Energy System European Market Applications

5.1 European Residential and Home Backup

5.1.1 German and Central European Home Backup

5.1.1.1 German Energy Crisis Backup Solution

Perfect for German households facing escalating energy prices and grid reliability concerns. Schuko sockets and CE compliance make this the ideal home backup solar energy system for the German market.

5.1.1.2 Essential Load Coverage During Outages

Powers internet routers, LED lighting, laptops, phones, and small refrigerators during blackouts. The display shows exactly how much backup time remains for your home solar energy system.

5.1.2 Spanish and Southern European Solar Integration

5.1.2.1 Iberian Peninsula Off-Grid Living

Popular for Spanish and Portuguese off-grid properties, casitas, and rural locations. Excellent solar charging performance combined with the monitoring display makes this the preferred portable solar energy system.

5.1.2.2 Mediterranean Camping and Caravanning

The premium choice for camping and caravanning across Spain, France, and Italy. Schuko sockets match European campsite standards, and the fast charging keeps all devices powered.

5.2 Professional and Commercial European Applications

5.2.1 Polish and Eastern European Market

5.2.1.1 Construction and Job Site Power

Ideal for Polish construction sites and remote work locations. Schuko sockets match Polish electrical standards, and the rugged design handles job site conditions for your work site solar energy system.

5.2.1.2 Small Business and Retail Backup

Keeps point-of-sale systems, terminals, and lighting operational during power outages. The display allows staff to monitor remaining backup capacity for their business solar energy system.

5.2.2 European Event and Production Industry

5.2.2.1 Film and Photography Location Power

Silent <40dB operation and pure sine wave power make this perfect for location filming and photography across Europe. The display allows crew to monitor power usage on set with their solar energy system.

5.2.2.2 Festival and Outdoor Event Power

Powers lighting, audio equipment, and vendor stalls at European music festivals, farmers markets, and outdoor events without generator noise or fumes. The premium display version is preferred by professional event solar energy system operators.

VI. Ten Reasons to Choose OCEAN SOLAR Premium Display Solar Energy Systems

Color LCD Digital Display — Comprehensive real-time monitoring with precise SOC, voltage, current, and power

Dual Schuko European Sockets — Standard grounded compatibility across all EU countries

36W PD3.1/PPS Multi-Protocol — Industry-leading fast charging for all smartphone brands

Dual 12V/2A DC Outputs — Direct 12V power for automotive and camping equipment

500W Pure Sine Wave Output — Premium grid-quality power for sensitive electronics

1004.8Wh LFP Capacity — Hours to days of reliable backup power

Dual PV/AC Fast Charging — 500W AC + 300W MPPT solar charging

≤20ms Seamless UPS — True uninterruptible power for computers and networking

<40dB Ultra-Quiet Operation — Near-silent for home, office, and event use

European Market Optimized — Schuko sockets, CE compliance, premium display interface

Contact the OCEAN SOLAR European sales team today to get a detailed quote for the OCE-ESS-500W-D premium display version portable solar energy system, and experience the ultimate in portable power monitoring, connectivity, and European-optimized performance!
