M6 MBB PERC 120 half cells 400W-415W all black solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Send email to us

Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

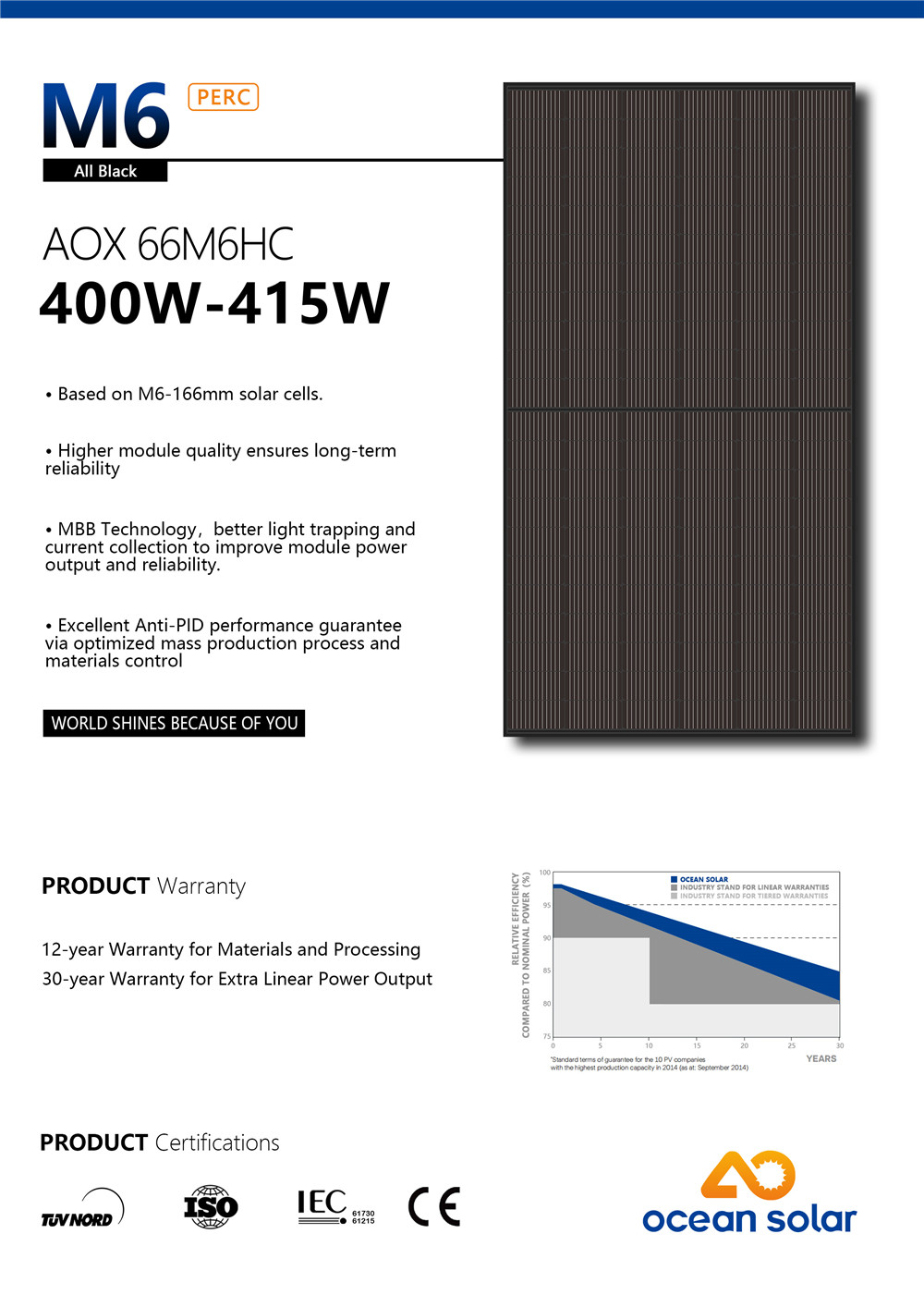

Data Sheet

Cell	Mono 166*83mm
No. of cells	132(6×22)
Rated Maximum Power(Pmax)	400W-415W
Maximum Efficiency	20.0-20.7%
Junction Box	IP68,3 diodes
Maximum System Voltage	1000V/1500V DC
Operating Temperature	-40℃～+85℃
Connectors	MC4
Dimension	1930103835mm
No.of one 20GP container	336PCS
No.of one 40HQ container	792PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system，commercial & industrial PV system，utility-scale PV system，solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights,etc.

details show

What is M6 solar modul ?

The M6 solar module is a high-efficiency solar panel that utilizes PERC (Passivated Emitter Rear Contact) technology to maximize its overall conversion efficiency and improve performance in low light conditions. It consists of 120 half-cells with a maximum power output of 340 watts.

The M6 solar modules are designed for residential, commercial and industrial applications and are suitable for roof and ground mounting. The module features a durable construction with tempered glass and aluminum frame to withstand harsh weather conditions such as hail, snow and high winds.

M6 solar modules are manufactured in compliance with various international safety and quality standards including IEC 61215, IEC 61730 and UL 1703. Its durable construction and high conversion efficiency make it a reliable and cost-effective choice for a variety of applications.
