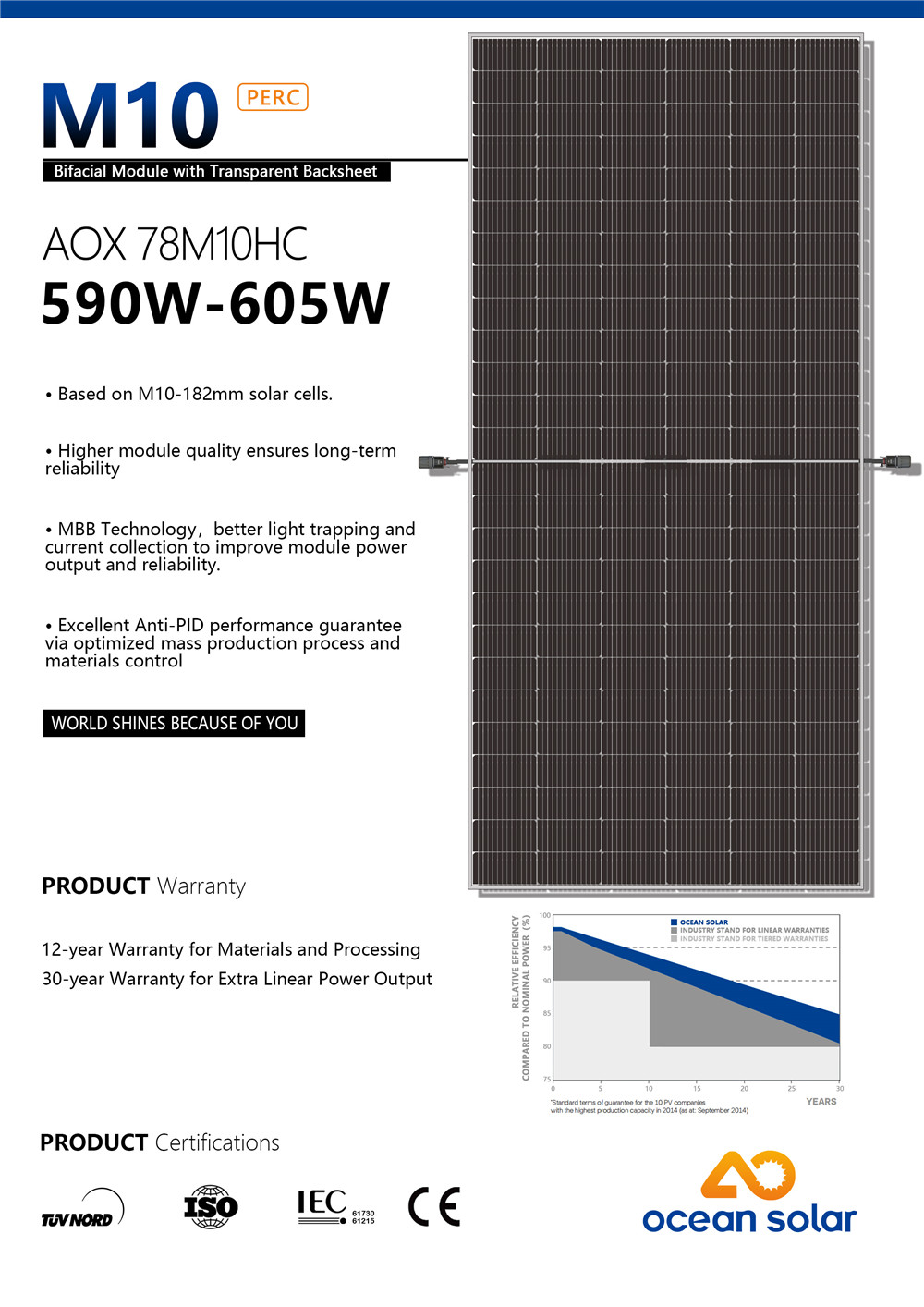

M10 MBB PERC 156 half cells 590W-605W bifacial solar module
Ultra-high Power Generation/Ultra-high Efficiency
Higher Bifacial Gain
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

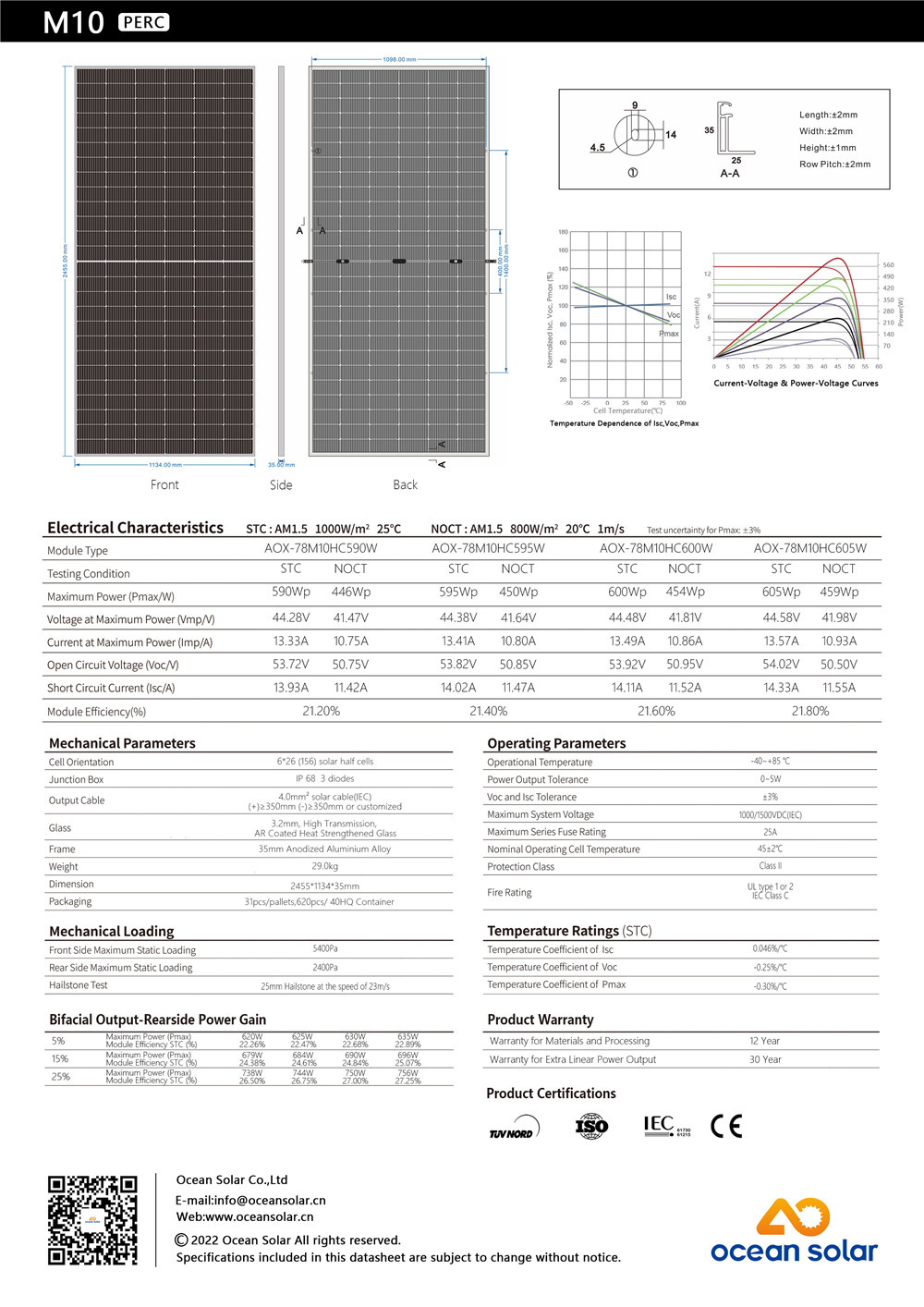

| Cell | Mono 182*91mm |
| No. of cells | 156(6×24) |
| Rated Maximum Power(Pmax) | 590W-605W |
| Maximum Efficiency | 21.2-21.7% |
| Junction Box | IP68,3 diodes |
| Maximum System Voltage | 1000V/1500V DC |
| Operating Temperature | -40℃～+85℃ |
| Connectors | MC4 |
| Dimension | 2455*1134*35mm |
| No.of one 20GP container | /// |
| No.of one 40HQ container | 620PCS |
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.
* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.
* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.
* Grade A quality, more favorable price, 30 years longer service life.
Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.
M10 MBB PERC 156 Half Cell 590W-605W Bifacial Solar Module is an advanced solar panel designed to provide high output and energy generation efficiency. The solar panel features 156 half-cells using MBB and PERC technologies, making it a sustainable and efficient option for residential and commercial properties.
One of the main advantages of the M10 MBB PERC 156 half-cut 590W-605W bifacial solar module is its high power output capability. With an output ranging from 590W to 605W, this is one of the highest performing solar panels on the market, delivering a lot of energy while taking up less space. This makes it ideal for properties with high energy needs or limited roof space.
Like the M10 MBB PERC 144 half-cut 540W-555W bifacial solar module, this solar panel also uses bifacial technology, which enables it to absorb energy from the front and back, significantly increasing energy output. When installed correctly with the proper tilt angle and mounting structure, solar panels can generate more electricity by using energy from the sun as well as reflected light from the ground, roof and walls.
This solar panel also uses PERC technology to improve energy conversion efficiency. Passivated emitter back contact technology improves the performance of solar cells by reducing the recombination of charge carriers, thereby increasing the amount of electricity generated. In addition, multi-busbar technology increases module power generation by reducing resistive losses and thermal stress within the battery, thereby improving durability.
M10 MBB PERC 156 half-cell 590W-605W bifacial solar modules are also designed to withstand harsh weather conditions. It features a durable frame structure made of high-grade materials such as tempered glass, which can withstand higher loads and improve mechanical strength. The module is resistant to environmental elements such as water, wind and dust, making it a long-lasting, low-maintenance option.
Plus, the sleek black frame design gives the solar panel a stylish look, making it an impressive addition to any commercial or residential property. Lightweight structure and easy-to-handle components make M10 MBB PERC 156 half-cell 590W-605W bifacial solar modules easy to install, saving time and reducing installation costs.
Finally, this solar panel is an eco-friendly option that helps reduce your carbon footprint while saving significant energy. By using this solar panel to generate renewable energy, homeowners and commercial users can significantly reduce their dependence on the grid and contribute to a cleaner environment.
In summary, the M10 MBB PERC 156 half-cell 590W-605W bifacial solar module is a high-performance solar panel that provides sustainable, efficient and reliable power generation. With its high power output, bifacial and PERC technologies, robust construction, easy installation and eco-friendly features, it is an excellent choice for those looking to generate renewable energy with reduced environmental impact.
