M10 MBB PERC 132 half cells 450W-465W all black solar module

Short Description:

Assembled with MBB PERC cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Send email to us

Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

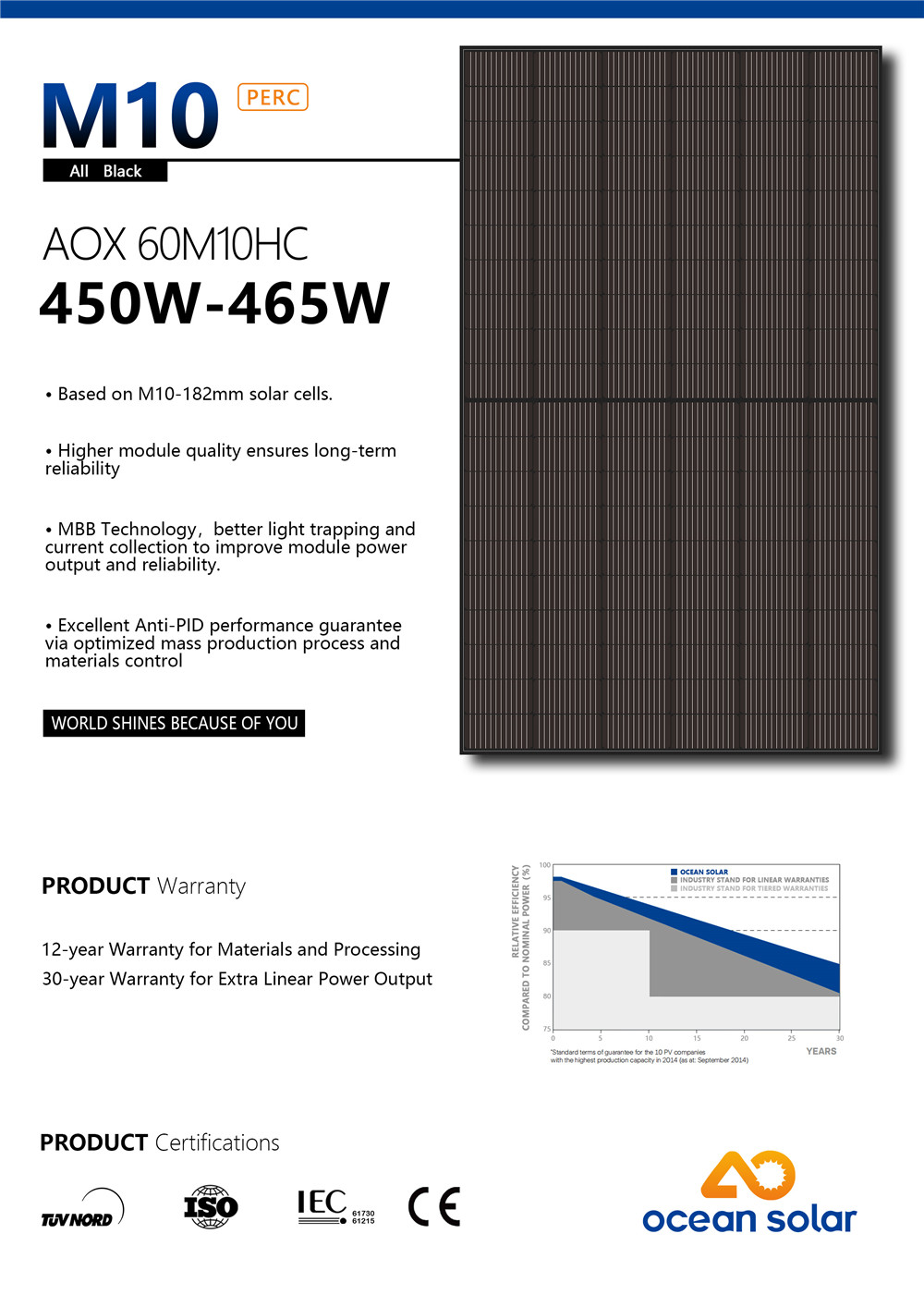

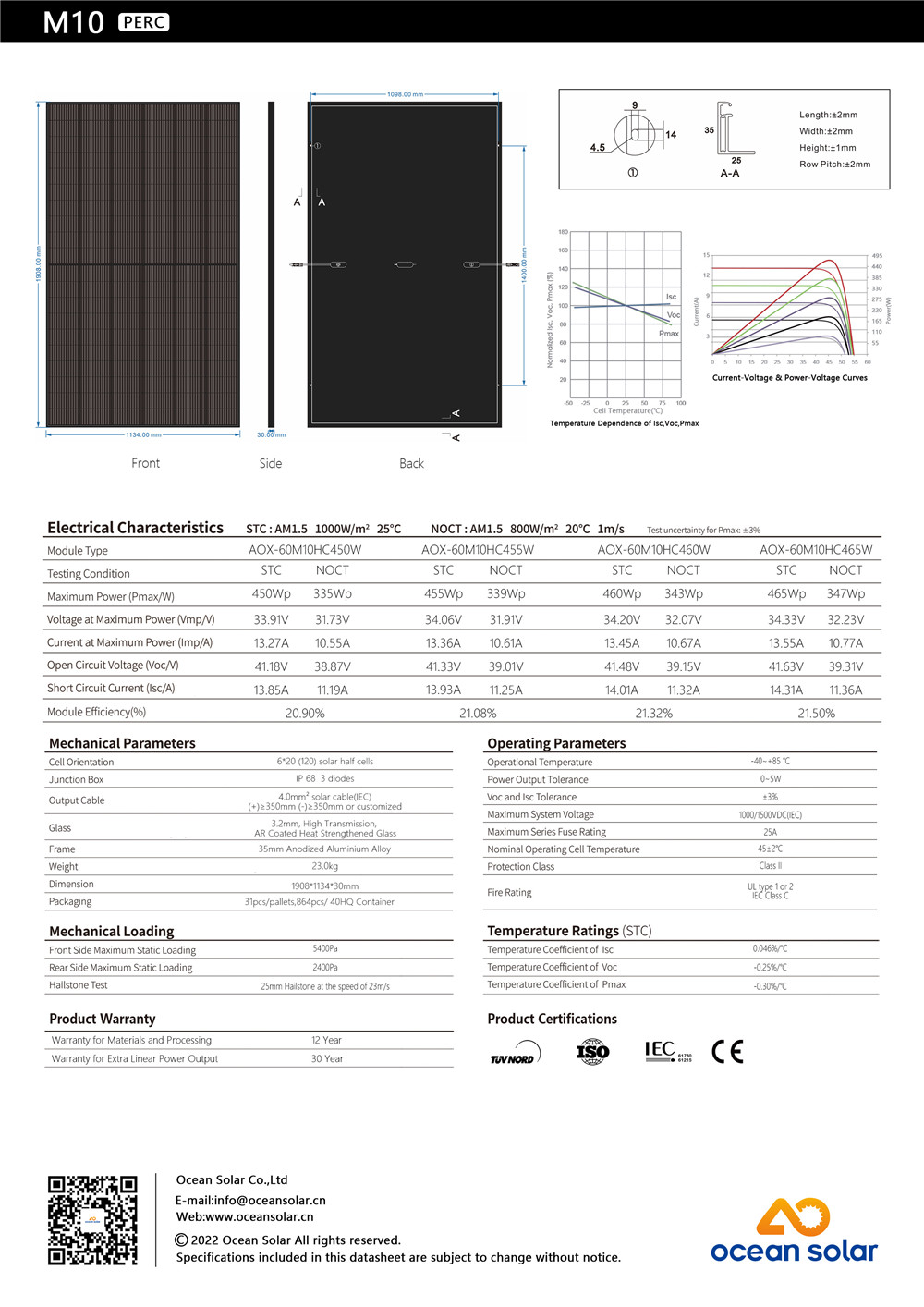

Data Sheet

Cell	Mono 182*91mm
No. of cells	120(6×20)
Rated Maximum Power(Pmax)	450W-465W
Maximum Efficiency	20.8-21.5%
Junction Box	IP68,3 diodes
Maximum System Voltage	1000V/1500V DC
Operating Temperature	-40℃～+85℃
Connectors	MC4
Dimension	1908113430mm
No.of one 20GP container	396PCS
No.of one 40HQ container	864PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

Product Detail

The M10 MBB PERC (Passivated Rear Emitter Contact) 132 Half Cell All Black Solar Module is a high performance solar panel designed for optimum power output and aesthetics.

The solar panel features 132 half-cells to maximize its overall conversion efficiency and improve its performance in low-light conditions. It has a maximum power output of 450 to 465 watts, making it a highly efficient module for a wide variety of applications.

The MBB (Multiple Busbar) technology used in this solar panel reduces its internal resistance and increases its conductivity, thereby increasing power density and improving overall performance. In addition, PERC technology enables solar cells to absorb more light and generate more energy, while the post-contact design improves their performance in high-temperature environments.

The module's all-black design provides a stylish and attractive appearance, with a black frame and back panel, and black solar cells. This makes it an ideal module for installations that require a more aesthetically pleasing design.

This solar panel complies with international safety and quality standards, including IEC 61215 and IEC 61730. Its durable construction is designed to withstand harsh weather conditions such as hail, snow and high winds, making it a reliable and long-lasting choice.

In summary, the M10 MBB PERC 132 Half Cell 450W-465W All Black Solar Module is a highly efficient and aesthetically pleasing solar panel that utilizes advanced technology to deliver an impressive power output. Its durable construction and ability to withstand harsh weather conditions make it a reliable and long-lasting choice for many different applications.
