M10 MBB ,N-Type TopCon 132 half cells 520W-535W solar module

Short Description:

Assembled with MBB ,N-Type TopCon cells, the half-cell configuration of the solar modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.


Product Detail

Product Tags

Product Features

Ultra-high Power Generation/Ultra-high Efficiency
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance

Data Sheet

Cell Mono 182*91mm
No. of cells 132(6×22)
Rated Maximum Power(Pmax) 520W-535W
Maximum Efficiency 21.9%-22.5%
Junction Box IP68,3 diodes
Maximum System Voltage 1000V/1500V DC
Operating Temperature -40℃~+85℃
Connectors MC4
Dimension 2094*1134*35mm
No.of one 20GP container 280PCS
No.of one 40HQ container 682PCS

Product Warranty

12-year warranty for materials and processing;
30-year warranty for extra linear power output.

Product Certificate

certificate

Product advantage

* Advanced automated production lines and first-class brand raw material suppliers ensure that solar panels are more reliable.

* All series of solar panels have passed TUV, CE, CQC, ISO,UNI9177- Fire Class 1 quality certification.

* Advanced Half-cells, MBB and PERC solar cell technology, higher solar panel efficiency and economic benefits.

* Grade A quality, more favorable price, 30 years longer service life.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

Product Application

Widely used in residential PV system, commercial & industrial PV system, utility-scale PV system, solar energy storage system, solar water pump, home solar system, solar monitoring, solar street lights, etc.

details show

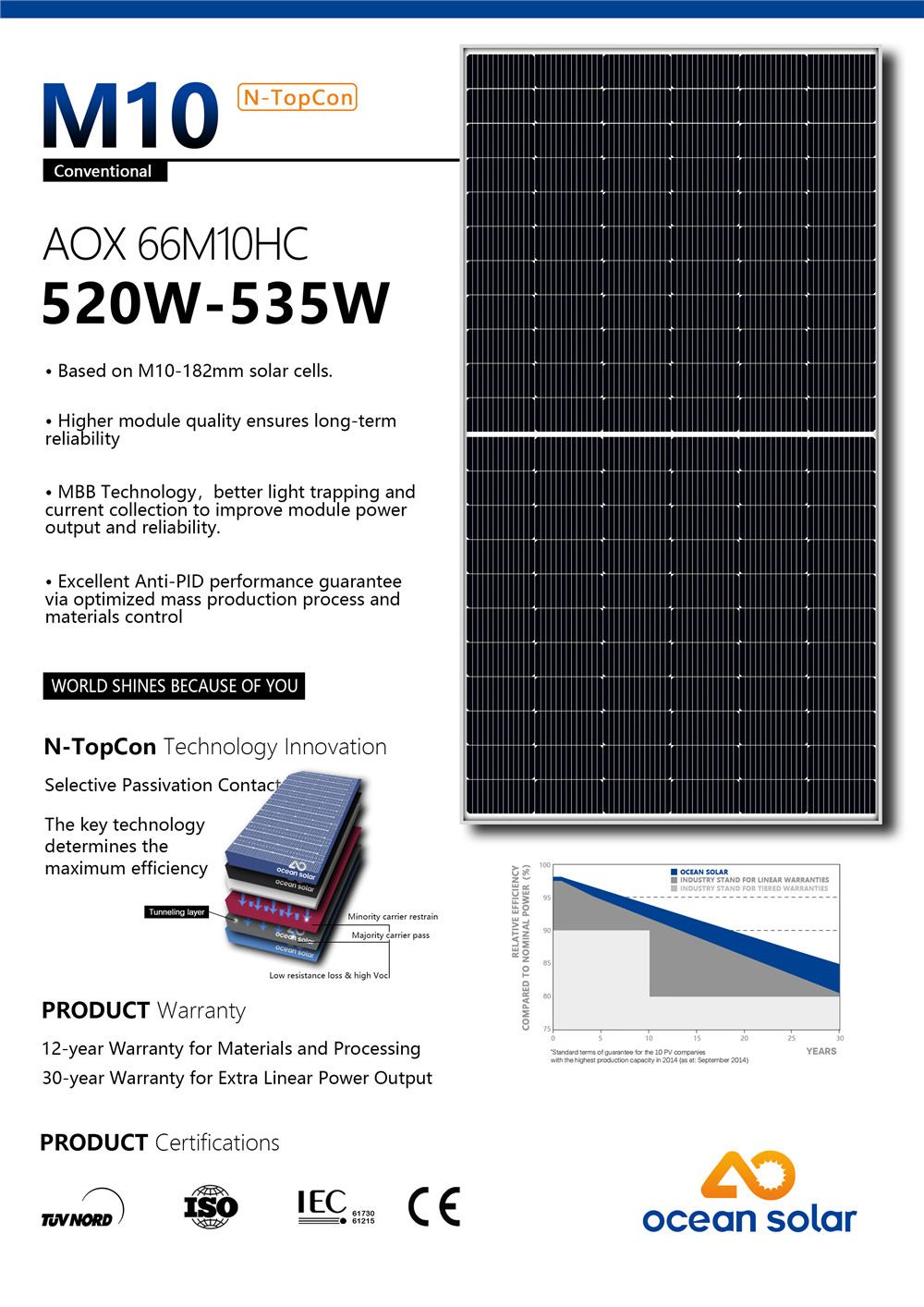

66M10-535W (1)

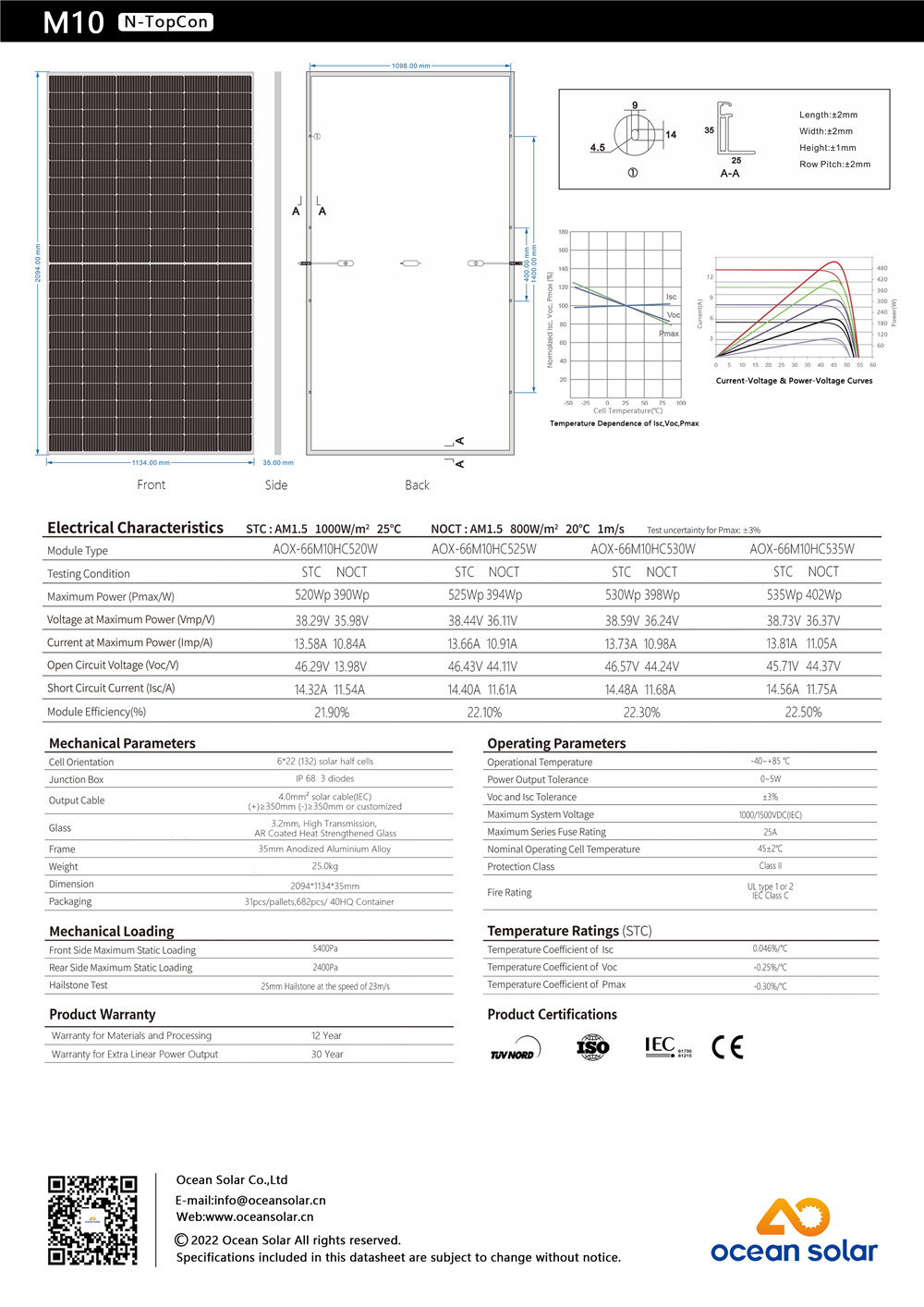

66M10-535W (2)

What is PERC vs TOPCon?

Both PERC and TOPCon are solar cell technologies designed to increase the efficiency and effectiveness of solar panels.

PERC stands for Passivated Emitter and Rear Cell and is an advanced silicon solar cell technology. In PERC solar cells, a layer of passivation material is added to the back of the cell to reduce the number of electrons lost through recombination or reflection. This layer helps to increase the efficiency of solar cells, resulting in a more efficient form of renewable energy. PERC solar cells are highly efficient and can operate in a wide range of conditions, making them an increasingly popular choice for renewable energy systems.

On the other hand, TOPCon, which stands for Tunnel Oxide Passivated Contact, is a new solar cell technology aimed at further increasing the efficiency of solar panels. In TOPCon solar cells, an ultra-thin oxide layer is added to the silicon wafer to form a highly efficient passivation layer. This layer helps reduce energy loss due to recombination or reflection, making solar panels more efficient and effective than PERC solar cells.

There are many benefits to using TOPCon solar cells compared to other types of solar cell technologies. On the one hand, TOPCon solar cells are very efficient and have the potential to generate more electricity than other types of solar cells. They are also extremely durable and highly resistant to photodegradation and thermal stress. Additionally, TOPCon solar cells are very flexible and can be used in a wide range of applications from large commercial solar farms to small residential solar panel systems.

In contrast, while PERC solar cells are very efficient, they are not as advanced as TOPCon solar cells. However, they are still very popular and widely used, especially in residential and commercial solar panel systems. Ultimately, the choice between PERC and TOPCon solar cell technologies will depend on many factors, including the specific needs and requirements of the relevant renewable energy system, as well as the budget and resources available to implement the system.
